Improving resistance change with temperature and thermal stability in Fe₃O₄ films for high-temperature resistors

Semiconductors with large electronic bandgaps can function in electronic devices at much higher ambient temperatures than silicon because of their lower intrinsic carrier concentration and higher breakdown voltage. SiC devices^1,2) have already been used in power electronics modules, enabling efficient power conversion in various applications. One current challenge is achieving high thermal stability so that these devices can be employed in harsh environments at temperatures as high as 250 °C (523 K). To this end, all the elements in modules—such as resistors, capacitors, substrates, and packages—must be built with heat-resistant materials.

In this work, we study conductive oxides for use in high-temperature resistors. Resistors must have a low-temperature coefficient of resistance, ${\rm{T}}{\rm{C}}{\rm{R}}=\tfrac{1}{\rho }\left(\tfrac{d\rho }{dT}\right),$ where ρ and T are the electrical resistivity and temperature, respectively. In commercial RuO₂ thick-film chip resistors, TCR is adjusted by mixing in glass, which ensures that the resistance fluctuates little with changing T;^3–5) however, such devices are not designed to withstand temperatures above 150 °C and cannot satisfy the benchmark resistance fluctuation of ±10% at temperatures of −40 °C to 250 °C.⁶⁾ Thus, finding oxides with intrinsically small TCR has drawn great interest. Nearly T-independent ρ–T characteristics often appear near the metal-to-insulator (semiconductor) transition; solid solutions made from 3d transition metal oxides^7–9) and degenerate oxide semiconductors¹⁰⁾ can exhibit such characteristics near room temperature.

Rather than following these approaches, we focused on a simple binary system, Fe₃O₄, whose contributions of band conduction and hopping conduction with two opposite TCR signs produce a very weak T dependence of ρ near room temperature.^11,12) However, to use Fe₃O₄ in film-type high-temperature resistors, two issues must be addressed. First, a high density of antiphase boundaries (APBs)^13–18) are generated in Fe₃O₄ films, giving rise to a strongly T-dependent ρ contribution¹⁷⁾ and altering the TCR to be semiconductor-like. APBs inevitably form because the inverse spinel structure of Fe₃O₄ has a cation sublattice, permitting fractional unit-cell translations with in-plane and out-of-plane shift vectors in the layer-by-layer growth.^13,14,18) Although APBs have been studied extensively for anomalous magnetic and magneto-transport behavior not seen in the bulk,^13–16) bulk-like ρ–T characteristics remain elusive, especially at high T. Second, at high ambient temperatures, chemical reactions of Fe₃O₄ films easily occur,^19,20) making it difficult to reliably measure electrical properties at high temperature. In this paper, we fabricate Fe₃O₄ devices with bulk-like TCR and high thermal stability. Our high-temperature resistance measurement demonstrates a resistance change of only 13% across the required T range from −40 °C to 250 °C.

Epitaxial films of Fe₃O₄ were grown on MgO (001) substrates by pulsed-laser deposition using an ArF excimer laser.²¹⁾ Prior to deposition, the MgO substrates were annealed at 700 °C using an oxygen pressure of 1 atm to obtain atomically smooth surfaces.²²⁾ During deposition, the substrate temperature was 350 °C, the oxygen partial pressure was 1.0 × 10⁻⁴ Pa. Some of the Fe₃O₄ films were transferred to a separate sputtering system and were covered with 130 nm thick Al₂O₃ films for the surface passivation. The film thickness was measured with an atomic force microscope, and the crystal structure was characterized by X-ray diffraction (XRD) with Cu Kα radiation. The electrical properties were measured by a four-probe method with a Physical Property Measurement System (Quantum Design, Inc.) at temperatures of 100–400 K and by a two-probe method using a probe station equipped with a hot chuck at temperatures of 323–523 K in air. Planar electrodes were made with a bilayer film of Au/Ti prepared by e-beam evaporation and a silver paint.

Figure 1(a) shows ρ–T curves of Fe₃O₄ films measured on heating for various thicknesses (d), together with bulk reference data measured for a Fe₃O₄ single crystal (SurfaceNet GmbH). In the films with d = 30 and 60 nm, the conduction was dominated by a negative TCR over the entire measured T range, and there is no obvious Verwey transition at low T (Fe valence ordering). As d was increased to a few hundreds of nanometers, the ρ at high T decreased and a broad ρ minima appeared near room temperature. As compared in the inset, the film with d = 430 nm exhibited a virtually bulk-like TCR with a sign-inversion T (T_TCR=0) of approximately 50 °C. Also, the Verwey transition temperature of 124 K is very close to the highest bulk value of 125 K,^23,24) implying that our Fe₃O₄ films are nearly stoichiometric and have small residual stresses.

Zoom In Zoom Out Reset image size

Figure 1(b) shows the magnetoresistance measured at T = 200 K in a perpendicular magnetic field of 9 T (MR_9T), the activation energy (E_a) estimated from ρ–T curves between 150 and 200 K, and T_TCR=0 for various d. At antiferromagnetic APBs, spin-polarized electrons are scattered, which increases ρ at 0 T and produces the negative magnetoresistance (supplementary information is available online at stacks.iop.org/APEX/12/011003/mmedia).^15,16) Because this additional ρ contribution has a large negative TCR,¹⁷⁾ T_TCR=0 smears out in the thin-film regime (d ≪ 100 nm).¹⁶⁾ With increasing d, both E_a and T_TCR=0 approach the bulk limit at a critical d of ∼200 nm. In agreement with previous papers,^15,16) MR_9T also decreases with increasing d, but still remains in the thick-film regime (supplementary information for the analysis of magnetoresistance data). For a more quantitative understanding of the relationship between magnetoresistance and ρ–T characteristics, it will be necessary to measure the domain size and the density of APBs by microscopy.

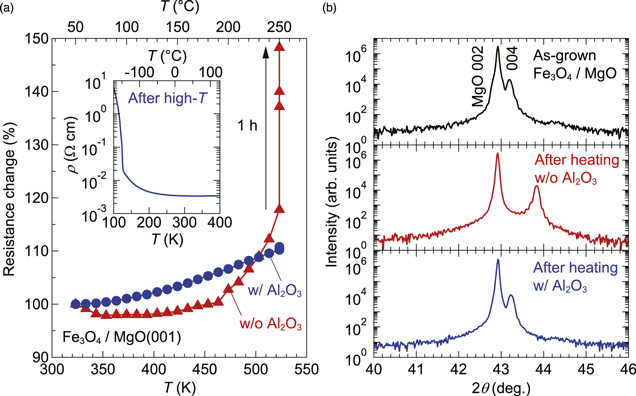

Having obtained the bulk-like TCR and T_TCR=0, we examined the thermal stability of the Fe₃O₄ films. Figure 2(a) shows the resistance in air when heating from room temperature to 532 K (250 °C) for a bare Fe₃O₄ film (without Al₂O₃). The resistance rapidly increased above ∼450 K, and holding the sample at 532 K caused an irreversible change in resistance accompanied by the disappearance of the Verwey transition at low T (not shown). The upper and middle panels of Fig. 2(b) show the XRD patterns of bare Fe₃O₄ films before and after the high-temperature measurement, respectively. The shift of the Fe₃O₄ (004) reflection to higher angle corresponds to the c-axis shrinkage from 8.378 to 8.262 Å (a = b = c = 8.378 Å in Fe₃O₄ bulk: JCPDS, PDF No. 01-071-6336). In the presence of water (humid air), Fe₃O₄ oxidizes into cation-deficient spinel γ-Fe₂O₃ at moderately high T.²⁰⁾ Although the reduced c-axis parameter is even smaller than c = 8.352 Å of γ-Fe₂O₃ bulk (JCPDS, PDF No. 00-039-1346), this result and the disappearance of the Verwey transition suggest a substantial change in the crystal structure. We completely suppressed such changes by depositing an amorphous insulating Al₂O₃ layer on the Fe₃O₄ surface, as shown in the lower panel of Fig. 2(b), which let us perform high-temperature measurement without concern about heat-induced damage [Fig. 2(a)]. In the Fe₃O₄ films passivated with Al₂O₃ (and also Si₃N₄), the Verwey transition characteristics showed no significant differences before and after high-temperature measurement (Figs. 1(a) and 2(a) inset), indicating that the Fe valence states responsible for the Verwey transition remained intact.

Zoom In Zoom Out Reset image size

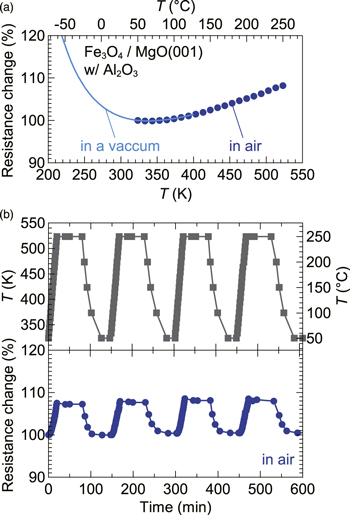

Figure 3(a) shows merged data of the low-temperature (in a vacuum) and high-temperature (in air) resistance characteristics measured for a 430 nm thick Fe₃O₄ film covered with Al₂O₃. At an operating T from −40 °C to 250 °C, the resistance change was as small as 13%. Although this change is not monotonic due to the characteristic ρ upturn, it falls well within the benchmark value of 20% (±10%) required for high-T resistors. A thermal cycling test, shown in Fig. 3(b), confirms that the resistances are reproducible, validating the high thermal stability of the Al₂O₃/Fe₃O₄/MgO structure. We believe that the improved thermal stability at high temperature came from the low oxygen diffusion coefficient of Al₂O₃ (Ref. 25) and the protection from contact with air.

Zoom In Zoom Out Reset image size

Various applications of Fe₃O₄ films have been proposed, including spintronic devices based on their half-metallic nature^26,27) and resistive memory devices exhibiting a reversible change in resistance by applying an electrical bias.²⁸⁾ The operation of the thermally stable resistor demonstrated in this work suggests that Fe₃O₄-based devices might also be used in power electronics modules. Exploring such applications would require fabrication of oxide devices with CMOS-compatible processes.

In summary, we tested Fe₃O₄ for use in high-temperature resistors. Using thick Fe₃O₄ films and appropriate passivation layers was important to suppress the effects of APBs and heat-induced degradation, and to correctly evaluate the resistance characteristics at high T. The small resistance change of 13% between −40 °C and 250 °C demonstrated by a simple binary, thus cheap, and environmentally friendly Fe₃O₄ system may offer a new route in the search for materials to use in high-temperature resistors.
