CHANGES IN THE PHYSICAL ENVIRONMENT OF THE INNER COMA OF 67P/CHURYUMOV–GERASIMENKO WITH DECREASING HELIOCENTRIC DISTANCE

Comets are considered to be relatively pristine leftovers from the early days of our solar system. They are distinguished from other minor bodies by a coma of gas and dust produced when ices retained from the formation of the solar system sublime. Understanding the connection between the coma and the comet's nucleus is critical because observations rarely detect the nucleus directly, and its properties must often be inferred from measurements of the surrounding coma. Because measurements of the coma do not necessarily represent the characteristics of the nucleus due to spatial, temporal and chemical evolution of the emitted material, projecting the coma observations back to the nucleus requires an understanding of the processes that induce changes in the coma. Compositional studies must take into account chemical reactions and photolysis to determine how the molecular abundances measured in the coma relate to the bulk composition of the nucleus.

Direct, high-resolution observations of cometary nuclei are rare, and come only from spacecraft encounters. Connecting these measurements to the coma provides a valuable means of evaluating the techniques used in situations where the nucleus cannot be seen. Images obtained by Giotto, Vega, Deep Space 1, and Stardust showed details of their targets' nuclei (Keller et al. 1987; Soderblom et al. 2002; Brownlee et al. 2004; Veverka et al. 2013), but in each case, coma observations were limited to the continuum around closest approach. The Deep Impact spacecraft was the first to observe both the gas and dust comae of comets 9P/Tempel 1 and 103P/Hartley 2 through a multi-wavelength filter set, while monitoring each comet for months around close approach (A'Hearn et al. 2005, 2011).

Orbiting the comet since 2014 August, the European Space Agency's Rosetta mission has allowed an unprecedented study of the activity and evolution 67P/Churyumov–Gerasimenko. The large heliocentric distance of the comet, its low activity levels, and the close proximity of the spacecraft to its surface allow us to sample an environment that has never been studied before and that is not accessible to observers from Earth. This paper describes observations of the dust and gas in the coma of 67P/Churyumov–Gerasimenko acquired by Rosetta's Optical, Spectroscopic, and Infrared Remote Imaging System (OSIRIS). Fragment species are relatively bright and emit in wavelengths accessible from the ground. OSIRIS' narrow-band filters provide an important link to ground-based observations, and help to connect our detailed knowledge of 67P/Churyumov–Gerasimenko to the wider population of comets.

OSIRIS consists of two bore-sighted cameras: a narrow-angle camera (NAC, field of view 22 × 22) and a wide-angle camera (WAC, field of view 114 × 1211) (Keller et al. 2007). The WAC is best equipped to study the coma; its 12 narrow-band and two medium-width filters allow color discrimination and the imaging of emission lines and bands from gas and continuum in optical wavelengths (250–750 nm). We typically monitored gas and dust activity with the WAC, about once every two weeks for heliocentric distances greater than 2 au, and once per week between 2 and 1.3 au pre-perihelion. The nominal sequence had a set of observations once per hour for a full comet rotation (∼12 hr 25 minutes during the observations described here; Keller et al. 2015). As both Rosetta and 67P were coming closer to Earth, the data volume available increased, allowing us to increase the observing cadence to one set of observations every 20 minutes, for 14 hr (to avoid aliasing with the comet's rotation period). Exposure times are optimized to achieve good a signal-to-noise ratio (S/N) in the coma, often resulting in saturation on the nucleus and in the appearance of internal reflection artifacts (ghosts), which appeared on the CCD images as a circular "blob" to the right of the nucleus (Keller et al. 2007). The acquired images are scaled with binning (typically 4 × 4 for coma observations) and observing geometry (distance to the comet, distance to the Sun). To establish the connection with the nucleus, short-exposure, 2 × 2 binned images were acquired with the 375 and 610 nm filters along with the coma images. For this paper, we limit ourselves to data acquired during four periods when Rosetta conducted the so-called "Volatile Activity Campaigns (VAC)." These campaigns were multi-instrument observations specifically designed to study the gas in the coma of 67P (including OSIRIS, VIRTIS, MIRO, and Alice), and two more dedicated OSIRIS campaigns to provide better temporal coverage. The observations discussed in this article were acquired before the comet's perihelion, between 2015 January 24 and July 3 (see Table 1). During this period, the comet's distance to the Sun decreased from 2.48 to 1.34 au. Because Rosetta was close to the surface in January, the nucleus fills a significant part of the field of view, whereas during the later observations the WAC maps a much larger part of the coma. For the analysis described below, we used images acquired at approximately the same diurnal phase.

3.1. Data Reduction and Image Processing

All images are pre-processed using the standard OSIRIS pipeline (Tubiana et al. 2015), which includes bias and dark subtraction, flat fielding, conversion from electron yield to radiance units (W m⁻² sr⁻¹ nm⁻¹), and bad-pixel masking.

3.1.1. Coma Gas Emissions in the Filters

The narrow-band filters were designed to sample either emission lines and bands of specific gases or continuum light at nearby wavelengths, but inevitably they also sample the emission of other molecules with lines that fall within the narrow-band filters' passbands at various levels. A summary of the characteristics of the WAC's filters and of the most prominent emission features within their passbands is given in Table 2.

Table 2.  Characteristics of the WAC's Filters (Keller et al. 2007)

Filter + Name	λcentral (nm)	Width (nm)	Comments
21 Green	537.2	63.2	Includes C2 Swan Δv = −1, 0
31 UV245	246.2	14.1	Isolated pinholes
41 CS	259.0	5.6	Several overlapping pinholes. Samples CS A1Π – X1Σ+ (0–0)
51 UV295	295.9	10.9	⋯
61 OH	309.7	4.1	Several pinholes, one strong (at the lower left quadrant of the CCD images). Samples OH A2Σ+ – X2Πi (0–0)
71 UV325	325.8	10.7	Many overlapping pinholes
81 NH	335.9	4.1	Samples NH A3Π1 – X3Σ− (0–0). Includes OH+ (A3Π – X3Σ−)
12 Red	629.8	156.8	Broad-band filter
13 UV375	375.6	9.8	Minor contribution C3 Comet Head Group
14 CN	388.4	5.2	Samples CN violet system. Minor contribution C3 Comet Head Group. Includes ${\mathrm{CO}}_{2}^{+}$ (Ã2Πg – X2Πg)
15 NH2	572.1	11.5	Samples NH2 Ã2A1 $\to$ X2B1 (0, 10, 0)
16 Na	590.7	4.7	Covers both Na D1 and D2 doublets; includes C2 Swan Δv = −2
17 O i	631.6	4.0	Samples [O i] 1D–3P 630 nm line only. Includes NH2 Ã2A1 $\to$ X2B1 (0, 8, 0)
18 Vis610	612.6	9.8	Includes NH2 Ã2A1 $\to$ X2B1 (0, 9, 0)

Download table as:  ASCIITypeset image

The WAC can map the distribution of water with its O i and OH filters. The O i filter covers the forbidden transitions from the O i (2p⁴) ¹D state to the ground state. The O i (2p⁴) ¹D state is populated directly by photodissociation of H₂O molecules, as is the O i (2p⁴) ¹S state, which relaxes mostly (95%) by decay into the ¹D state (see Cochran 2008). The OH filter covers the (0–0) band of the A²Σ⁺ – X ²Π transition of OH, centered at about 308.5 nm, which is excited almost entirely by fluorescence of sunlight (see Schleicher & A'Hearn 1988). A small fraction of the photodissociation of H₂O also leads directly to the population of OH in high rotational states of the A²Σ⁺ electronic state (A'Hearn et al. 2015), but the resulting emission falls outside the passband of the WAC's OH filter. The WAC's CN filter covers emission from B²Σ⁺ – X²S⁺ (0, 0) transitions around 388 nm. The NH₂ Ã ²A₁ $\to$ X²B₁ (0, 10, 0) band is very wide and how much of the emission falls within the NH₂ filter's passband depends on the heliocentric distance and velocity. The NH filter covers the NH A³Π₁ – X³Σ⁻ (0–0) transition. While the WAC is equipped with CS and Na filters, those two filters were used only sporadically during the first half of the mission because the low S/N and pinholes (CS) and contamination by C₂ emission (Na) hamper the interpretation of observations made with these two filters.

The WAC is also equipped with several filters that can sample the continuum. Comparing the 375 and 610 nm narrow-band filters illustrates the level of contamination of the latter filter by gas emission features. In WAC observations of 16Cyg, a system of two solar analogs, we measured a flux ratio Vis610/UV375 = 1.648 ± 0.08, whereas for the dust surrounding 67P this ratio was between 2.8 and 5.6 (January/March) and 2.5–3.3 (June/July). Such values would require a reddening between 20% and 40% per 100 nm between the two filters, while we determined from the NAC images that the average reddening of the dust between 375 and 610 nm was around 18% per 100 nm (Section 3.1.2.). This suggests that in the January/March data, up to 50% of the flux in the 610 nm filter might come from gaseous emission, probably mostly due to the emission from the NH₂ Ã ²A₁ $\to$ X ²B₁ (0, 9, 0) and C₂ d³Π_g – a³Π_u (Δv = −2) transitions. As will be discussed below, the Vis610/UV375 ratio measured in June and July is close to what is expected based on the NAC reddening measurement, suggesting that the relative contribution of gaseous emission to the flux measured in the Vis610 decreased.

To further assess the gas contamination in other filters, we show the transmission of the WAC filters on a high-resolution spectrum of comet 122P/DeVico (Cochran 2002) in Figure 1(a). The spectrum of this comet is not a particularly good proxy for that of 67P; the comet was observed very close to the Sun (0.7 au), it was extremely dust-poor, and the two comets have different compositions (67P is depleted in its carbon chain molecules while 122P has a "typical" composition; Fink 2009). However, the high-quality spectrum and line catalog demonstrate the extent of the contamination and the identification of the gases responsible for it. An example is shown in Figure 1(b), where we show the transmission of the O i filter overlaid on comet 122P/DeVico's spectrum. The filter was designed to sample emission from the [O i] ¹D $\to$ ³P line at 630 nm, but also contains several emission lines of the NH₂ molecule, notably the à ²A₁ $\to$ X ²B₁ (0, 8, 0). The WAC is equipped with a narrow-band filter designed specifically to observe the NH₂ à ²A₁ $\to$ X ²B₁ (0, 10, 0) band, which can be used to remove NH₂ emission from the 610 nm (NH₂ à ²A₁ $\to$ X ²B₁ (0, 9, 0) transition) and O i narrow-band filters (NH₂ à ²A₁ $\to$ X ²B₁ (0, 8, 0) transition) if the relation between the three different emission bands of NH₂ is known. To calculate the contribution of NH₂ emission to the flux measured in the NH₂, Vis610, and O i filters we weighted the archival spectrum S(λ) of 122P with OSIRIS' CCD quantum efficiency Q(λ), the reflectivity R(λ), and transmission of its filters T(λ):

$$\begin{eqnarray}&&S^{\prime} (\lambda )=\tfrac{\int \ Q(\lambda )R(\lambda )T(\lambda )S(\lambda )d\lambda }{\int Q(\lambda )R(\lambda )T(\lambda )d\lambda }.\end{eqnarray} \tag{ 1 }$$

For comet 122P we find that the ratio between NH₂ emission in the O i and NH₂ filters is 1.389, and the ratio between NH₂ emission in the Vis610 and NH₂ filters is 0.45. Using this band ratio, we find that NH₂ typically contributed between 10% and 20% to the flux measured in the O i filter (after continuum subtraction); however, as we will discuss in Section 5, this assumes that band ratios between photo-fluorescent excitation and electron impact excitation are similar, which may not be the case.

Zoom In Zoom Out Reset image size

Fluorescence efficiencies for NH₂ have been calculated by Kawakita & Watanabe (2002). Their model shows that the ratio between fluorescence efficiencies of even and odd transitions is strongly dependent on the heliocentric distance and heliocentric velocity, but that the ratio between even bands is constant. NH₂ emission in the NH₂ and O i filters is thus coupled and can be removed with a constant factor that is independent of heliocentric distance and velocity, and this factor should be the same for both 122P and 67P. The Vis610 filter, however, includes emission from an odd band, (0, 9, 0), which has a much more complex relation to the emission in the even (0, 10, 0) band sampled by the NH₂ filter. We therefore did not attempt to remove the contribution of NH₂ from the images acquired with the Vis610 filter.

In conclusion, we deem the filter centered at 375 nm to be best suited to image the continuum light, although its transmission includes some emission lines from C₃ (Ã ¹Π_u $\to$ X¹${{\rm{\Sigma }}}_{{\rm{g}}}^{+}$) transitions. There are fewer emission lines at shorter wavelengths, but the three near-UV continuum filters centered on 245, 295, and 325 nm suffer heavily from pinholes (circular defects in the filters' coatings from impurities in the production process), increasing the filter's transmission outside of the intended bandpass. The disadvantage of using the UV375 filter to remove the continuum from all the gas filters is that, since we use only one filter, we do not measure coma colors, and have to assume a linear reflectance with respect to the wavelength. The assumed reddening has a large impact on the continuum removal factor used with increasing wavelength difference.

3.1.2. Continuum Removal and Reddening

To measure the gaseous emission line flux, the contribution of the reflected continuum needs to be removed (see, e.g., Farnham et al. 2000). We used OSIRIS observations of the solar analogues of the 16Cyg system (the two stars are not spatially resolved by the WAC) to determine the ratio of narrow-band continuum fluxes in all filters for a solar spectrum. These ratios a are the weight factors needed to remove the flux contribution of "gray" dust from the total flux F_tot measured in a narrow band using the flux F₃₇₅ measured in the UV375 filter in order to measure the flux contribution from the gas of interest:

$$\begin{eqnarray}&&{F}_{\mathrm{gas}}={F}_{\mathrm{tot}}-\alpha {F}_{375}.\end{eqnarray} \tag{ 2 }$$

The signal-to-noise ratio in the OH and NH filters is poor because UV fluxes from solar analogs are low and the CCD's quantum efficiency drops significantly below 400 nm (Magrin et al. 2015). In addition, the long exposures required in these filters increase the chance of cosmic rays affecting the measurement and reducing the number of usable images. Average filter ratios and 1σ standard deviations are given in Table 2.

To calculate the effect of spectral reddening P (as a percentage per 100 nm) on the flux ratios we first calculated the resulting, reddened spectrum by weighting a solar spectrum with the reddening R(λ) as a linear function of wavelength λ between λ₁ = 375.6 nm and λ₂ = 612.6 nm (the central wavelengths of two of the WAC's continuum filters), normalized at 494 nm:

$$\begin{eqnarray}&&R(\lambda )=1+0.01P[\lambda -0.5({\lambda }_{2}-{\lambda }_{1})].\end{eqnarray} \tag{ 3 }$$

We used the ratios of the fluxes of the reddened spectrum and the original solar spectrum to calculate continuum removal factors for increasing reddening, which are given in Table 3. To estimate the average reddening of the continuum of 67P we performed a deeper investigation of the colors of the coma using observations with the NAC medium-band filters, for which the contributions of extraneous emission lines should be less important. For this, we chose a data set that had good coverage of the coma around the nucleus and used a large number of filters. The selected images were acquired on 2015 February 18 in five filters: near-UV, blue, orange, red, infrared. The comet was at about 2.3 au from the Sun and the phase angle was about 85°. The spacecraft was at 220 km from the comet and the NAC's field of view was about 9 km around the nucleus.

Table 3.  Continuum Removal Factors F for the WAC Gas Filters

Filters	Removal Factor				ΔF
	0%	10%	20%	30%	(%)
O i/UV375	1.570	2.026	2.623	3.438	5
CN/UV375	1.021	1.034	1.053	1.077	6
OH/UV375	0.479	0.444	0.397	0.332	10
NH/UV375	0.829	0.790	0.740	0.671	8
NH2/UV375	1.738	2.124	2.630	3.321	5
Na/UV375	1.673	2.080	2.614	3.343	8
Vis610/UV375	1.648	2.127	2.753	3.609	5

Note. These factors assume different continuum reddening (% per 100 nm between 375 and 610 nm). ΔF is the relative, error-propagated 1σ standard deviation of the removal factors.

Download table as:  ASCIITypeset image

We constructed a map of radial distance from the limb of the nucleus and computed the average surface brightness of the coma over an azimuthal region generally free of gas jets and ghosts. Assuming that in the broad NAC filters (mostly ∼50 nm) the contribution of the gas emission is small with respect to the dust contribution, we derived the colors of the dust coma. We found that the coma has an average reddening of 19% per 100 nm in the wavelength range 360–649 nm, the closest to the 375–610 nm range obtained with WAC filters.

However, NAC imaging is not available concurrently with most WAC gas observations, and it may or may not sample the relevant region of the coma given the instrument's small field of view. Therefore, we devised a second, empirical method to determine the reddening of the dust in the coma. We assumed that NH₂ emission comes predominantly from fragment species in the coma. Thus, for the images of 67P acquired with the NH₂ filter the underlying continuum subtraction was done by varying the continuum removal factor until jets disappeared from the NH₂ filter image, leaving a rather isotropic NH₂ coma. This method typically yields factors that correspond to 17%–20% per 100 nm between 375 and 610 nm, somewhat larger than reported from ground-based observations of the comet in previous appearances ((11 ± 2)% per 100 nm between 436 and 797 nm; Tubiana et al. 2011) but consistent with ground-based observations acquired during this appearance (20% between B and V; Snodgrass et al. 2016). We therefore used a constant reddening of 18% per 100 nm for the data discussed in this paper.

3.2. Column Densities and Production Rates

We identified observations in each sequence that were acquired at the same diurnal phase, extracted surface brightness profiles in two directions, and measured the surface brightness at a fixed position 3 km in the sunward direction above the surface.

When the formation and excitation processes of the fragment species are known, the measured surface brightnesses S(x, y) can be converted into column densities ${N}_{\mathrm{col}}$ by assuming fluorescence efficiencies g of each species:

$$\begin{eqnarray}&&{N}_{\mathrm{col}}(x,y)=\frac{4\pi S(x,y){\rm{\Delta }}\lambda }{{E}_{p}g},\end{eqnarray} \tag{ 4 }$$

where Δλ is the FWHM of the filter (Table 2) and E_p the energy of the photons at the wavelength of the emission feature considered. [O i] surface brightnesses can be converted into H₂O column densities using reaction rates for prompt excitation of the ¹S and ¹D states (Bhardwaj & Raghuram 2012), weighted by the branching ratios of the transitions leading to emission at 630 nm (the second line of the doublet at 636 nm is at the edge of the O i filter where the transmission is below 6% of the peak transmission; see Figure 1(b)). The CN, OH, and NH surface brightnesses were converted into column densities using published fluorescence efficiencies (Table 4). We have calculated production rates using a standard Haser model for easier comparison with other observations. Assumed outflow velocities and lifetimes for parents and daughters can be found in the Appendix (Table 7). To better evaluate the column densities, we also calculated production rates with a modified Haser model that takes into account the gas acceleration, collisional quenching of the long-lived ¹D state of the oxygen atom, and the effect of the oxygen atom moving out of the field of view before it can decay to the ground state. This model is described in the Appendix.

Table 4.  Photon Production Efficiencies Based on Photodissociation Rates (O i) and Fluorescence Models (OH, CN, NH) in Units of Photons/molecule

Date	O i1	OH2	CN3	NH4
	(photons molecule–1 s–1)
2015 Jan 14	9.95 × 10–8	7.13 × 10–5	0.010	1.89 × 10–3
2015 Mar 12	1.35 × 10–7	9.21 × 10–5	0.014	2.56 × 10–3
2015 Apr 14	1.72 × 10–7	1.18 × 10–4	0.018	3.29 × 10–3
2015 May 12	2.20 × 10–7	1.61 × 10–4	0.023	4.20 × 10–3
2015 Jun 3	2.85 × 10–7	1.95 × 10–4	0.029	5.09 × 10–3
2015 July 3	3.59 × 10–7	1.43 × 10–4	0.041	6.68 × 10–3

References. (1) Bhardwaj & Raghuram (2012), (2) Schleicher (2010), (3) Schleicher & A'Hearn (1988) and Kawakita & Watanabe (2002), (4) Kim et al. (1989).

Download table as:  ASCIITypeset image

3.3. Uncertainties

Narrow-band images for March and June after removal of continuum and contaminants are shown in Figure 2, along with contextual images acquired with the 375 nm filter. All images are oriented such that the direction to the Sun is upward. In each frame, the entire field of view of the WAC is shown, the sides of which correspond to 16 and 46 km projected at the distance of the nucleus. In each image a circular feature can be seen on the right side of the nucleus (saturated pixels are masked black in our image processing). These "ghosts" are caused by internal reflections from optical elements and always occur at the same place on the detector with respect to the nucleus. A smaller, weaker artifact can be seen in the same direction directly next to the nucleus. Three remnant pinholes can clearly be seen in the OH images.

Zoom In Zoom Out Reset image size

All continuum images show multiple bright, collimated jets on the sunward side of the nucleus. In the top row (the March data) those jets are not present in any of the continuum-subtracted gas images. At all epochs we see a plume-like morphology perpendicular to the sunward direction. This feature is seen in the O i and CN filter, but not in the OH, NH, and NH₂ filters, where the observed morphology is less pronounced and is enhanced toward the Sun (Figure 2).

The continuum-subtracted NH₂ images have poor S/N and show a broad distribution with little structure. For the data acquired in June and July, while assuming the same reddening of 18% per 100 nm (Section 3.1.2), the jets are oversubtracted in the O i data and cannot be entirely removed from most of the other filters. We believe this to be a consequence of our approach to the continuum subtraction (i.e., assuming a constant color throughout the inner coma). For each of the images in Figure 2, the color scale of the lookup table was adjusted to best emphasize the morphology. It is clear that while the morphology in the OH and NH images remains isotropic and diffuse, the cone in the [O i] and CN images becomes much fainter and less defined over time.

Radial surface brightness profiles were extracted from a 21 pixel wide box between the left limb of the nucleus and the edge of the frame. We extracted surface brightnesses in both the horizontal and vertical (sunward) directions, starting at the nucleus (orientation as in Figure 2). The 1σ uncertainty was estimated from the standard deviation within the 21 pixel wide box. The resulting continuum-subtracted profiles are shown in Figure 3. The first two epochs show the best S/N. The surface brightness decreased by a factor of 5–10 after February, resulting in visibly poorer S/N. For the observations in April, May, and June, data within 1 km from the surface seem unreliable, with the exception of CN. NH₂ is consistently very noisy (the plots have a logarithmic scale so negative values are not shown), and it was probably not detected in 2015 June and July. At all six epochs, there is a clear difference between the shapes of the profiles of OH and NH, which show a 1/r drop-off with distance, and those [O i] and CN, which are flat within the first ∼8 km from the surface. In January and March, the OH profiles in the sunward direction are very similar to those in the perpendicular direction. After that, the emission on the sunward side of the coma is much stronger (by a factor of 2) than that in the direction orthogonal to the comet–Sun line. This asymmetry is also present in the NH profiles, albeit less pronounced. In the O i and CN profiles, the emission is somewhat stronger in the orthogonal direction because the plumes visible in Figure 2 extend in both extraction directions. At the two epochs where we have a good NH₂ detection, January and March, the profiles are very flat and very different from the NH profile.

Zoom In Zoom Out Reset image size

There are numerous inconsistencies in our results if we assume standard cometary physics. First, column densities and production rates derived from OSIRIS images are much higher than those measured by other instruments on board Rosetta (MIRO, VIRTIS, and ROSINA/COPS; Bieler et al. 2015a; Bockelée-Morvan et al. 2015; Fougere et al. 2016). Assuming photodissociation of H₂O as the main source of formation and prompt emission by atomic oxygen, and photodissociation and subsequent fluorescent excitation of OH, CN, and NH emission, we derived column densities and calculated global production rates using the standard Haser model (Figure 4, Tables 5 and 6).

Zoom In Zoom Out Reset image size

There are currently no contemporaneous measurements available of the abundance of CN and NH. Abundances of NH₃ and HCN were 0.06% and 0.09% with respect to water, measured by Rosetta's ROSINA instrument at 3.1 au on the sunward side of the comet (Le Roy et al. 2015). Fink (2009) measured NH₂ and CN abundances of 0.19% and 0.15% from the ground at 1.35 au from the Sun post-perihelion during the 1995 apparition. To calculate the expected surface brightness levels, we assumed abundances of 0.1% for HCN and NH₃, and water production rates from Fougere et al. (2016). As shown in Figure 4(a), water production rates derived from the OH observations using the standard Haser model are initially more than a factor of 300 larger than expected. Production rates derived from CN and NH surface brightnesses are also larger by factors of 1000. This changes dramatically when we assume a more realistic velocity (Equation (8)) in the inner coma, see Figure 4(b). Production rates for H₂O derived from OH are now about one order of magnitude too large, and those of NH and CN parents about two orders of magnitude too large. For OH and CN, the July results are consistent with expected production rates. NH emission remains about a factor of 10 too high.

Second, with the WAC we expect to observe two water photolysis products, OH and O i. Using the standard Haser model, water production rates derived from OH seem consistently larger than those derived from [O i], by a factor of 6 in January and by a factor of 30 in July. This situation is not resolved by our appended coma model because there is no change in the relative column densities of OH and O i if both are assumed to come from H₂O.

Third, all production rates drop significantly between 2015 March and June. This variation is much larger than the diurnal variation of the total water production (∼25%; Gulkis et al. 2015) and not consistent with the observed trend of increasing production rates with decreasing heliocentric distance.

Fourth, the luminosity profiles are at odds with the observed morphology. Surface brightness profiles of parent species usually decrease with ∼1/r close to the nucleus, whereas those of fragment species have shallower slopes (see Combi et al. 2004). The OSIRIS surface brightness profiles (Figure 3), however, are flat for [O i] and CN, for which the morphology suggests a prompt excitation process. In contrast, the morphology seen in the OH and NH filters—a symmetric distribution around the nucleus—is typical for a fragment species that gets a significant vectorial kick upon photodissociation of a parent species. The morphology of emission in the O i and CN images resembles the projection of a cone of gas and indicates a parent dissociation process that produces these fragments directly into an excited state.

We therefore conclude that by adjusting our models to better describe the physical processes in the inner coma we can explain some of the observations, but that the differences between our observations and model results indicate that photodissociation and fluorescence are not the dominant processes resulting in the OH, [O i], CN, and NH emission observed in the inner coma. Instead, the fragments might be fragments from different parent species and/or formed by other processes. We will discuss this in more detail below.

5.1. Water Fragments: OH and O i

As concluded above, the emission from O i and OH cannot be explained by photodissociation of H₂O, followed by prompt emission of O i or by fluorescence of OH. The surface brightness profile of OH suggests that its emission might be the product of a process that produces OH directly in the A²Σ⁺ state. However, the difference between the [O i] and OH morphology indicates that at least part of the emission of the two fragments is not related.

From the morphology of the [O i] emission we concluded that it is the product of a process that directly produces atomic oxygen in an excited state. Like H₂O, photodissociation of CO₂ and CO produces O i in the ¹D and ¹S states, resulting in [O i] emission at 630 nm. Abundances of CO₂ and CO vary greatly between the summer and winter hemispheres. Here we assume that the sunlit side dominates the total gas production rate; there, abundance ratios from the "summer hemisphere" apply, which are H₂O:CO₂:CO = 100:2.7:2.5 (Le Roy et al. 2015). Assuming formation rates of O i ¹D and ¹S from CO₂ and CO from Bhardwaj & Raghuram (2012), photodissociation of CO₂ and CO contributes 10% and <1% to the [O i] 630 nm emission compared to H₂O (100%).

The ROSINA instrument reported unexpectedly high abundances of O₂, with an average of O₂/H₂O = (3.7 ± 1.5)%, with local abundances as high as 10% (Bieler et al. 2015b). The distribution of O₂ in the coma suggested that it is released by the nucleus and that its release is correlated to the outflow of water. Because the photodissociation of O₂ into O i ¹D is very efficient at these abundances (Huebner et al. 1992), it can contribute as much as an additional 25%–60% to the [O i] 630 nm emission from H₂O. Thus while the photodissociation of CO₂, CO, and O₂ molecules combined may produce as much [O i] emission as the photodissociation of H₂O, it cannot explain the factors of 20–40 of flux excess observed between January and March, nor can it explain the OH observations.

We then considered several processes that might produce the high observed surface brightness of both OH and [O i] directly from H₂O, including dissociative recombination of H₂O⁺, electron excitation of O i, and sputtering of water ice (see Bhardwaj & Raghuram 2012) but none of those have reaction rates that exceed that of photo-processes. Feldman et al. (2015) concluded that electron impact dissociation of H₂O vapor produced H i and O i emission observed by Rosetta/Alice in the far-UV. Electron impact dissociation produces O i in the ¹D and ¹S states, and OH in the A²Σ⁺ state. Those reactions typically have appearance thresholds between 10 and 20 eV, suggesting that they are driven by the large population of suprathermal electrons observed in by Rosetta's Ion and Electron Sensor (IES; Clark et al. 2015). While electrons with energies of 100 eV and larger were observed, the distribution falls off steeply above 30 eV. At these impact energies, the cross section for electron impact production of OH (A²Σ⁺) is 7 × 10⁻²² m² (Avakyan et al. 1998) and that of O i (¹S+¹D) is 6 × 10⁻²³ m² (Bhardwaj & Raghuram 2012).

To test whether electron impact dissociation can explain the observed surface brightness we added electron impact processes to our model (see the Appendix). In brief, we assumed a spherically outgassing nucleus with water production rates from the empirical trend reported by Fougere et al. (2016), and relative abundances of 3% for CO and CO₂, and 0.1% for HCN and NH₃. For the electrons, we assumed a radial distribution that decreased with the inverse of the distance to the nucleus based on measurements by the Rosetta Plasma Consortium's (RPC) Langmuir Probe and Mutual Impedance Probe. For the electron density, we used measurements with the IES (Broiles et al. 2016), which we assumed to increase linearly with the production rate and quadratically with the decrease in heliocentric distance. In addition, we included the effects of quenching of the O i ¹D state by collisions with H₂O molecules as well as the effect of transport as the O i atom moves out of the field of view before it can decay to the ground state.

The results of the model are shown in Figure 5. We find that at 1 km from the surface, electron impact dissociation of H₂O can produce up to a factor of 10 more [O i] 630 nm emission than the photodissociation of H₂O into excited O i ¹D, and at least two orders of magnitude more OH emission than the photodissociation of H₂O and subsequent fluorescent excitation of OH by sunlight. However, the morphology and surface brightness profiles seen in the O i and OH filters are very different, which is surprising since we assumed that they are both the product of electron impact dissociation of H₂O. In the O i images there is a clear plume visible to the left, which is entirely absent from OH images. If the main emission in the plume originated from electron impact dissociation of H₂O, it should also be present in OH emission. If electron impact dissociation drives the emission of [O i] and OH in the coma, then the atomic oxygen emission in the plume is probably produced from a molecule other than H₂O.

Zoom In Zoom Out Reset image size

We are not aware of experimental cross sections for the production of O i (¹D), but Bhardwaj & Raghuram (2012) suggest, based on theoretical cross sections, that reaction rates for producing O i (¹D) from CO₂ are as much as 40 times larger than reaction rates for producing it from H₂O. The reaction rates for the production of excited oxygen atoms from CO are much lower than those for H₂O. Assuming these cross sections for electron impact dissociation, a CO₂/H₂O abundance of 3% would imply that 60% of the observed [O i] emission comes from CO₂. This large contribution by electron impact dissociation of CO₂ explains the differences between both the morphology and surface brightness profiles of the [O i] and OH emission. The plume is visible in [O i] but not in OH. Its [O i] surface brightness at the core is about twice that at similar distances in the ambient coma, suggesting a local enhancement of the CO₂ abundance.

We do not expect our model to provide a fully realistic description of the inner coma. Predicted OH surface brightnesses are higher than observed, and quenching and transport may reduce the detectable [O i] surface brightness by as much as a factor of 100 (Figures 5(a) and (c)). In particular, the asymmetric outgassing of 67P will affect the impact of these processes. However, our results do confirm that electron impact dissociation can indeed explain the emission observed in OSIRIS' O i and OH filters from 2015 January through April.

5.2. Ammonia Fragments: NH and NH₂

5.3. CN

The production rates shown in Figure 4 suggest three different epochs: increasing emission before 2015 March following the heliocentric trend observed by MIRO, then a sharp decrease between mid-March and June, followed by an increase after 2015 June. The drop in coma emission is more than an order of magnitude and is seen in the O i, OH, CN, NH, and NH₂ filters. Over the course of our observations, the morphology of the emission in the different filters does not change noticeably (Figure 2). After May, the OH and CN emission levels are as expected from photo-processes alone (Figure 4). If the electron density evolved with our scaling law (linearly with the gas production and inverse quadratically with the heliocentric distance), we would expect 1000 times more OH emission than was observed (Figure 5(d)). Similarly, the predicted [O i] emission from dissociative electron impact of H₂O and CO₂ would produce 10 times more emission than was observed in July. However, production rates derived from [O i] and NH surface brightnesses assuming photodissociation are still unrealistically high (Figure 4), and the morphology in the CN filter still resembles that seen in the O i filter, suggesting that collisions with electrons still play a role in the emission observed after 2015 May. We propose that the drop between March and June 2015 was thus caused by a change in the number or temperature of projectile electrons available, and that this affects the emission in the different filters in different ways, according to the energy dependence of the relevant electron impact dissociation processes.

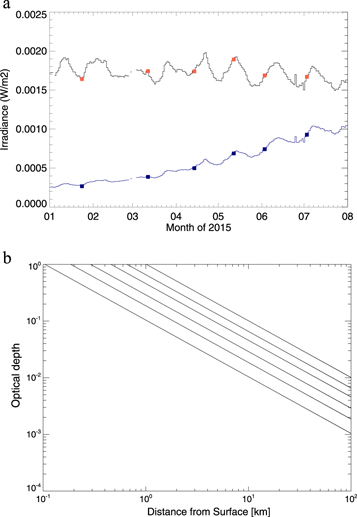

To explain the decrease in emission, we first consider the production of electrons. The Rosetta/RPC observations in 2015 February indicate that the main source of electrons within 256 km of the nucleus is the neutral gas in the coma (Edberg et al. 2015). The far- and extreme-ultraviolet (FUV/EUV) solar flux determines the photoionization rates of H₂O and other molecules in the coma, and thus also controls the number of electrons available. Daily averaged solar UV spectra are available from the Extreme Ultraviolet Variability Experiment on board the Solar Dynamics Observatory (SDO/EVE; Woods et al. 2012). We integrated the irradiance spectra over the range 30–100 nm,²⁹ the wavelengths that are most efficient in producing electrons by ionizing water (Huebner et al. 1992; Budzien et al. 1994). The results are shown in Figure 6(a). Over the course of our observations, the UV irradiance decreased gradually, and it varied by 10% on timescales of one or two weeks. Comparing the production rates and UV irradiances in Figure 6(a) suggests that there is no clear correlation between the short-term solar variations. In this period the comet approached the Sun from 2.5 to 1.3 au, an effect much larger than the weekly UV variations.

Zoom In Zoom Out Reset image size

With increasing gas production rates, the optical depth of the inner coma increases and fewer photoelectrons are produced. To investigate the optical depth of the coma, we calculated H₂O column densities using a Haser distribution (see the Appendix), and assumed water production rates from the empirical formula by Fougere et al. 2016; Figure 4). The dominant photons for ionization have wavelengths between 30 and 85 nm (Huebner et al. 1992; Budzien et al. 1994). At these two wavelengths, H₂O has photoabsorption cross sections of 1.0 × 10⁻²¹ m² and 1.6 × 10⁻²¹ m², respectively (Phillips et al. 1977). The results are shown in Figure 6(b). The relevant region here is between 1 and 10 km from the surface. In January, only 1%–10% of photons were lost within this region. This increased to 10%–64% in July. The electron production thus likely decreased in the region seen by OSIRIS, but not by enough to explain the observed drop in emission.

Along with the gas production rates, dust production rates also increased significantly over the course of our observations. Based on Cassini observations, it has been suggested that nanograin charging could result in significant electron depletion (Nilsson et al. 2015b; Vigren et al. 2015). Reaction rates for attachment of electrons to grains are very low for suprathermal electrons and would mostly affect electrons with much lower energies than those responsible for the electron impact dissociation (>10 eV). We do not expect electron–dust interactions to affect the observed emission.

The most likely explanation of the decrease in emission from the inner coma is a significant decrease in the electron temperature, which reduces reaction rates. At energies of a few eV, when temperatures fall below the appearance thresholds of the dissociative reactions, the excitation of H₂O molecules becomes an effective cooling process (Cravens & Korosmezey 1986). Electrons gain energy by photoionization processes and interactions between the comet and solar wind (Clark et al. 2015), and lose energy through collisional processes, for example (Wegmann et al. 1999):

$$\begin{eqnarray}{{\rm{H}}}_{2}{\rm{O}}+{hv} & \to & {{\rm{H}}}_{2}{{\rm{O}}}^{+}+e\ [+12.3\,\mathrm{eV}]\\ {{\rm{H}}}_{2}{\rm{O}}+e & \to & {{\rm{H}}}_{2}+{\rm{O}}({}^{1}{\rm{D}})+e\ \ [-12.3\ \mathrm{eV}]\\ {{\rm{H}}}_{2}{\rm{O}}+e & \to & {\rm{O}}{\rm{H}}+{\rm{H}}+e\ [-5.1\ \mathrm{eV}],\end{eqnarray} \tag{ 5 }$$

The Giotto probe observed maximum ion density 12,000 km from the nucleus of 1P/Halley (Häberli et al. 1995). This was attributed to a steep increase in the electron temperature with distance to the nucleus, in turn caused by decreased cooling through collisions between electrons and neutrals.

In the period 2015 January–July, the neutral gas density increased much faster ($\sim {{r}}_{{\rm{h}}}^{-4.2}$) than the increase in solar radiation ($\sim {r}_{{\rm{h}}}^{-2}$), which should lead to a decrease in the electron temperature. The electron impact dissociation processes that produce the emission observed with OSIRIS all have relatively high appearance energies (Avakyan et al. 1998). Cooling of the electrons below those energies could lead to an abrupt decrease in the emission.

Lastly, the observed decrease in the emission might be related to changes in the interaction between comet and solar wind. Electrons in the solar wind have higher temperatures than photoelectrons, and its interaction with the coma may heat electrons (Häberli et al. 1996; Clark et al. 2015; Broiles et al. 2016). Initially, the solar wind could penetrate deep into the coma (Nilsson et al. 2015a, 2015b). With increasing production rate, plasma boundaries separated the solar wind from the cometary gas (Rubin et al. 2015). By the end of 2015 February, the RPC/Ion Composition Analyzer measured that the proton energy spectrum started to change, indicative of an increasing interaction between comet and solar wind.

This study uses data from Rosetta's OSIRIS camera system and presents observations of the inner coma of 67P/Churyumov–Gerasimenko acquired with narrow-band filters centered on the emission features of OH, O i, CN, NH, and NH₂. The observations explore a new regime in cometary science: the inner coma of a low-activity comet at large heliocentric distances, and the Rosetta mission allows us to study how this environment changed over time. We developed an extensive image reduction procedure and applied this to observations acquired between 2015 January and July, when the comet's distance to the Sun decreased from 2.5 to 1.3 au.

The observations in all filters at all epochs indicated surface brightnesses that are one or more orders of magnitude higher than can be explained by photodissociation. Instead, the emission is likely the result of dissociative electron impact excitation and/or different species. The OH emission can be attributed to electron dissociative excitation of H₂O, and the observed intensities are generally consistent with neutral column densities and electron densities observed by other instruments on board Rosetta. We attribute most of the [O i] 630 nm emission in the inner coma to electron impact dissociative excitation of CO₂, which has a much larger cross section than H₂O. The emission detected in the NH filter is likely the result of electron dissociative excitation that produces OH⁺ ions from H₂O molecules directly in an excited state. The surface brightness levels observed in the CN filter and the similarity between the morphologies observed in the CN and [O i] filters suggest that the emission is the product both of ${\mathrm{CO}}_{2}^{+}$ ions produced by electron impact dissociative excitation and of fluorescent emission by CN radicals. Follow-up studies of the correlation between the emission seen in CN versus [O i], and OH versus NH might provide very interesting windows on the different reaction channels from impact on the same species.

The intensity of the emission in the inner coma decreased between March and June, despite increasing gas production rates as the comet approached the Sun. The most likely explanation is that, because the gas production rates increased much faster than the ionizing solar radiation, collisions between electrons and neutral water molecules lowered electron temperatures in the inner coma below the activation threshold of the dissociative impact excitation reactions. The increase in optical depth and deflection of the solar wind may have further contributed to the electron cooling.

Our results thus show that the narrow-band filters on Rosetta/OSIRIS can be used to remotely study the interaction between electrons and the neutral gas in the inner coma. However, the lack of experimental cross sections hampers the interpretation of our results; the cross sections needed most urgently are those for the production of O i ¹D from CO₂ and H₂O, and of CN from HCN. In addition, we have identified the need for models that combine the physical and chemical processes of cometary gases with plasma characteristics such as electron temperatures.

Impact excitation may matter in different planetary environments through different interaction mechanisms (photoelectrons, solar wind protons and/or electrons). First, since the resulting emission traces the distribution of a parent species, electron impact dissociation could explain the excitation of fragments whenever a steep, radial gradient is seen in the emission morphology of the fragment species, such as in the large-scale jet-like structures around comets (A'Hearn et al. 1986). Second, under conditions similar to those of 67P, dissociative electron impact excitation can lead to significant emission by fragment species. This might lead to detectable emission from Main Belt Comets or even Ceres—or to an overestimate of production rates if only photo-processes are assumed to drive the emission of fragment species.

Comet 67P reached its perihelion on 2015 August 13, at a heliocentric distance of 1.24 au. The Rosetta spacecraft will continue to orbit its nucleus and study how its coma evolves while the comet moves away from the Sun again.

The authors wish to thank Mike Combi, Mike Mumma, and the Rosetta/Alice team for helpful discussions regarding electron impact processes in the inner coma. Rosetta is an ESA mission with contributions from its member states and NASA. OSIRIS was built by a consortium of the Max-Planck-Institut für Sonnensystemforschung, Göttingen, Germany, the CISAS, University of Padova, Italy, the Laboratoire d'Astrophysique de Marseille, France, the Instituto de Astrofísica de Andalucia, CSIC, Granada, Spain, the Research and Scientific Support Department of the European Space Agency, Noordwijk, The Netherlands, the Instituto Nacional de Técnica Aeroespacial, Madrid, Spain, the Universidad Politéchnica de Madrid, Spain, the Department of Physics and Astronomy of Uppsala University, Sweden, and the Institut für Datentechnik und Kommunikationsnetze der Technischen Universität Braunschweig, Germany. The support of the national funding agencies of Germany (DLR), France (CNES), Italy (ASI), Spain (MEC), Sweden (SNSB), and the ESA Technical Directorate is acknowledged. This work was also supported by NASA JPL contract 1267923 to the University of Maryland (M.F.A'H. and D.B.). M.F.A'H. is also a Gauss Professor of the Akademie der Wissenschaften zu Göttingen and Max-Planck-Institut für Sonnensystemforschung (Germany). We gratefully acknowledge the use of SDO/EVE data.

To aid in our interpretation of our results, we have developed a basic coma model, summarized below. A true model would combine a realistic distribution of the neutral gas, the cometary and solar wind plasma, and all relevant chemical and physical reactions. The complexity of such a model is outside the scope of this paper.

A.1. Neutral Density Model

Total water production rates of 67P were estimated using the empirical relation derived between water production $Q({{\rm{H}}}_{2}{\rm{O}})$ and heliocentric distance r_h by Fougere et al. (2016):

$$\begin{eqnarray}&&Q({{\rm{H}}}_{2}{\rm{O}})\sim 1.02\,\times \,1{0}^{28}{r}_{{\rm{h}}}^{-4.2}(\mathrm{molecules}\,{{\rm{s}}}^{-1}).\end{eqnarray} \tag{ 7 }$$

We assumed constant abundances of CO₂/H₂O = 3%, CO/H₂O = 3%, O₂/H₂O = 3.8%, and HCN/H₂O = 0.1% (Bieler et al. 2015b; Le Roy et al. 2015; Fougere et al. 2016). For the distribution of fragment species we assumed a standard Haser model (Festou 1981; Combi et al. 2004). The photodissociation rates of the different gases are listed in Table 7, and those were scaled with the heliocentric distance as $1/{{{r}}_{{\rm{h}}}}^{2}$. We assumed that all gases are accelerated to a bulk velocity v_g within a distance d = 200 km from the center of the nucleus (Combi et al. 2004) using the empirical relation

$$\begin{eqnarray}&&{v}_{g}=0.85{r}_{h}^{-1/2}\left[1-{\rm{\exp }}\left(\tfrac{-d}{50\,\mathrm{km}}\right)\right]\,(\mathrm{km}\,{{\rm{s}}}^{-1}).\end{eqnarray} \tag{ 8 }$$

We assumed the same bulk outflow gas velocity for both parent and fragment species.

A.2. Electrons

The electron density in the coma was measured by the Langmuir Probe (LAP) and Mutual Impedance Probe (MIP) on Rosetta between 2015 February 4 and 28 (2.3 au from the Sun; Edberg et al. 2015). For the electron density we assumed that the number density and radial distribution measured by LAP/MIP scaled linearly with the water production rate and the photoionization rate (and thus the square of the heliocentric distance):

$$\begin{eqnarray}&&{n}_{e}=\tfrac{{Q}_{{{\rm{H}}}_{2}{\rm{O}}}}{{10}^{26}}\times \tfrac{{10}^{14}}{d}\times \tfrac{3}{{r}_{{\rm{h}}}^{2}}\,({{\rm{m}}}^{-3}),\end{eqnarray} \tag{ 9 }$$

where n_e denotes the electron density and d the distance from the comet's surface. Rather than assuming a temperature distribution, we assumed a fixed electron temperature of 30 eV (3.3 × 10⁶ m s⁻¹) for electron fluxes and for the cross sections of electron impact reactions. To calculate the emission resulting from dissociative electron impact dissociation, we multiplied the neutral density in the coma n(d) at a distance d from the nucleus by the local electron density n_e(d), electron velocity v_e, and emission cross section σ or by the reaction rate where applicable (Table 7):

$$\begin{eqnarray}&&S(d)=\frac{n(d){n}_{e}(d){v}_{e}\sigma }{4\pi }\,(\mathrm{ph}{\rm{o}}{\rm{t}}{\rm{o}}{\rm{n}}{\rm{s}}{{\rm{s}}}^{-1}{{\rm{m}}}^{-3}).\end{eqnarray} \tag{ 10 }$$

This is then integrated over the line of sight (from the position of the spacecraft Δ to infinity) to produce the surface brightnesses B(θ) as a function of the angle between the spacecraft–comet line and the comet–Sun line:

$$\begin{eqnarray}&&B(\theta )={\int }_{\bigtriangleup }^{\infty }\tfrac{S(d)}{4\pi }\delta d\,(\mathrm{ph}{{\rm{o}}{\rm{t}}{\rm{o}}{\rm{n}}{\rm{s}}{\rm{s}}}^{-1}{{\rm{m}}}^{-2}\,{\mathrm{sr}}^{-1}).\end{eqnarray} \tag{ 11 }$$

The radial distance d from the nucleus in any position in the comet–Sun–spacecraft plane can be calculated using the cosine rule.

A.3. O i Quenching and Transport

The [O i] 630 nm emission is different from the other emission features because it is a forbidden line, and we expect quenching of the O i ¹D state by the reaction O i ¹D + H₂O $\to$ 2OH to decrease the [O i] 630 nm emission with increasing production rates. The O i ¹D state has a long lifetime of 101 s (Atkinson et al. 1997). To assess the effect of the deactivation of O i ¹D through collisions with H₂O on the surface brightness profile we combined the Haser model from Appendix A.1 and adopted experimental rate coefficients of 2 × 10⁻¹⁹ m³ s⁻¹ molecule ⁻¹ (Streit et al. 1976). To correct for excited O i atoms lost through collisional quenching, we calculate an effective density n'(d) by weighting the neutral gas density function n(d) from Equation (9) by a correction factor. Assuming a quenching rate R (Table 7), the distance l(d) that an O i atom moving with velocity v_d can travel before colliding is

$$\begin{eqnarray}&&l(d)=\frac{{v}_{d}}{Rn(d)}.\end{eqnarray} \tag{ 12 }$$

Now the fraction of atoms that can emit and thus are not quenched is given by

$$\begin{eqnarray}&&n^{\prime} (d)=n(d)\left[1-\exp \left(\tfrac{-l(d)}{{v}_{d}\tau }\right)\right],\end{eqnarray} \tag{ 13 }$$

where $\tau$ is the lifetime of the O i ¹D state (101 s), and n(d) the density of neutral water at a distance d from the surface. We assumed a fixed distance between comet and spacecraft of 100 km to evaluate the effect of quenching and have added the [O i] emission from all H₂O and CO₂ processes (the dominant contributions to the O i emission, see Figure 5 in the main text). In January, only the first kilometer is affected by quenching in the inner coma. In July, the innermost 3 km are affected, and at 1 km approximately the observed surface brightness is approximately 50% of the emitted light.

In addition, because of the long lifetime of the ¹D state, only some of the atoms decay to the ground state within the field of view. We account for this with a second correction factor:

$$\begin{eqnarray}&&n^{\prime\prime} (d)=n^{\prime} (d)\left[1-\exp \left(\tfrac{-d}{{v}_{d}\tau }\right)\right].\end{eqnarray} \tag{ 14 }$$

The results, again for a fixed spacecraft distance of 100 km, are shown in Figures 5(c) and (d). The effect of the O i ¹D lifetime is dramatic: it flattens the surface emission in the first few kilometers around the nucleus.

A.4. Optical Depth
