A High-Eccentricity Warm Jupiter Orbiting TOI-4127

TESS (Ricker et al. 2015) observed TOI-4127 (TIC 141488193, Gaia DR3 1111639314047794944, 2MASS J07013709+7224538) in five non-contiguous sectors from 2019 December 19 (Sector 20) through 2022 July 9 (Sector 53). TOI 4127 was observed at a 30 minutes cadence during the TESS primary mission in Sectors 20 and 26, and at a 2 minutes cadence during the extended mission in Sectors 40, 47, and 53. We show the pre-search data conditioned simple aperture photometry (PDCSAP; Smith et al. 2012; Stumpe et al. 2012, 2014) light curves from the Science Processing Operations Center (SPOC; Jenkins et al. 2016) for the extended mission TESS sectors and the TESS-SPOC (Caldwell et al. 2020) light curves for the primary mission sectors in Figure 1.

Zoom In Zoom Out Reset image size

A single transit was detected in the Sector 20 Quick Look Pipeline (QLP; Huang et al. 2020b, 2020c) extraction light curve by the TESS single-transit planet candidate working group using a custom search algorithm in May 2020. A second transit with matching depth was detected in Sector 26 QLP data shortly thereafter. Pixel-level light curves were generated using eleanor (Feinstein et al. 2019) and analyzed to confirm that the transits were indeed associated with TOI-4127 and not a background or nearby source. The separation between the two transit midpoints in Sectors 20 and 26 was Δt ≈ 169 days. However, due to the gap in coverage between the two sectors, several period aliases were initially plausible until TESS returned to this star in Sectors 40, 47, and 53. Only the period alias at 56.4 days remained consistent with the photometry following a third transit detection in Sector 53 and a non-detection in Sector 40.

Although no transit is present in the PDCSAP light curve for Sector 47, we note that a transit would be expected to occur during the TESS observing baseline for this sector. In examining the light-curve metadata, we find that the data in the expected transit window were flagged as low quality due to scattered light, and were thus excluded from analysis with the PDCSAP module. Using the simple aperture photometry (SAP) light curve, we confirm that a transit-like feature is indeed observed at a time consistent with the expected period of 56.4 days (Figure 1). However, given the poor quality of the data and the presence of uncharacterized light-curve systematics, we restrict our analysis to the high-quality transits detected in Sectors 20, 26, and 53.

We observed TOI-4127 with the NN-Explore Exoplanet Stellar Speckle Imager (NESSI; Scott et al. 2018) on the WIYN ⁴⁶ 3.5 m telescope at Kitt Peak National Observatory on the night of 2021 April 1. Simultaneous 1 minute sequences of 40 ms diffraction-limited exposures were taken in the 832 and 532 nm narrowband filters. The speckle images were reconstructed using the procedures outlined in Howell et al. (2011). We show the reconstructed images and accompanying 5σ contrast curves for both filters in Figure 2. Our achieved contrast limits rule out the presence of faint stellar companions or background eclipsing binaries with Δmag <3.3 at 532 nm and Δmag <3.9 at 832 nm for separations >02.

Zoom In Zoom Out Reset image size

Following the identification of transit signals in the first two sectors of TESS data for TOI-4127, we observed the star with the NEID (Schwab et al. 2016) and SOPHIE (Bouchy & Sophie Team 2006; Perruchot et al. 2008) spectrographs to measure the mass and orbit of the transiting exoplanet candidate. Additional reconnaissance data from the Tillinghast Reflector Echelle Spectrograph (TRES; Fűrész 2008) were used to constrain the projected rotational velocity of the star.

Four reconnaissance spectra were obtained with TRES, which is mounted on the 1.5 m Tillinghast Reflector telescope at the Fred Lawrence Whipple Observatory (FLWO) atop Mount Hopkins, Arizona. TRES is an optical, fiber-fed echelle spectrograph with a wavelength range of 390–910 nm and a resolving power of R ∼ 44,000. The TRES spectra were first extracted and processed following the methods described in (Buchhave et al. 2010) and the Stellar Parameter Classification (SPC; Buchhave et al. 2012, 2014) tool was then used to derive stellar parameters from the data. SPC cross correlates an observed stellar spectrum against a grid of spectra synthesized from Kurucz atmospheric models (Kurucz 1992) to derive the effective temperature, surface gravity, metallicity, and rotational velocity of the star.

2.4.1. NEID Spectroscopy

2.4.2. SOPHIE Spectroscopy

Spectroscopic follow-up observations were also conducted with SOPHIE, which is a fiber-fed echelle spectrograph on the 1.93 m telescope at the Observatoire de Haute-Provence, France. A total of 21 high resolution (R ∼ 75,000) SOPHIE observations on the wavelength range 387–694 nm were obtained between 2021 September 27 and 2022 December 7, with a median single measurement precision of 8 m s⁻¹. We removed two of the exposures that were noisy due to weather conditions (S/N per pixel at 550 nm below 20). The 19 remaining exposures have S/N between 20 and 36. As with NEID, the SOPHIE pipeline (Bouchy et al. 2009) calculates RVs using the CCF method and using a G2-type numerical mask (Heidari 2022). Seven of the SOPHIE exposures were corrected for spectral contamination from scattered moonlight, which has the potential to distort the CCF and shift the measured RV (Roy et al. 2020). Following the methods described in Hébrard et al. (2008) and Pollacco et al. (2008), we calculate the CCF of both the stellar spectrum and a background sky spectrum, which were obtained simultaneously using a second fiber separated on sky by 2'. We then scale the CCFs by the relative throughputs of the two fibers and correct for scattered moonlight by subtracting the sky CCF from the stellar CCF. We also calculate the CCF bisectors for each spectrum and find no correlation with the measured RVs, which further supports our argument that the transit signals in the TESS data were not due to blending with a background source. The SOPHIE RVs are shown in Table 2.

Table 2. SOPHIE Radial Velocity Measurements for TOI-4127

Epoch (BJD)	RV (m s−1)	σRV (m s−1)
2459485.64778	−213	7
2459501.60591	−49	10
2459505.63623	18	9
2459524.64269	48	9
2459524.70562	69	8
2459562.49480	−5	6
2459567.45250	22	9
2459569.49023	44	8
2459603.44302	−86	8
2459604.35637	−60	7
2459609.38166	−33	11
2459620.42060	−6	9
2459628.36524	23	10
2459648.46673	66	7
2459662.45629	−52	7
2459663.42345	−69	8
2459686.38970	74	9
2459894.59742	−6	7
2459920.53907	78	7

Download table as:  ASCIITypeset image

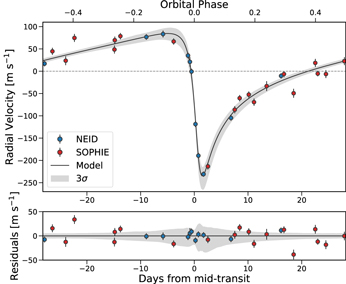

As we show in Figure 3, the NEID and SOPHIE RV measurements vary in phase with the TESS photometric ephemeris. In addition, the semi-amplitude of the signal is consistent with that induced by a Jupiter-mass exoplanet. We conclude that the observed RV variations and transit signals for TOI-4127 are due to the presence of an eccentric giant exoplanet, TOI-4127 b.

Zoom In Zoom Out Reset image size

We run a first order derivation of the stellar parameters using SpecMatch-Emp (Yee et al. 2017), comparing the observed NEID spectra to a library of High Resolution Echelle Spectrometer (HIRES; Vogt et al. 1994) reference spectra of well-characterized stars. We first shift the observed NEID spectra to the barycentric rest frame and co-add these to produce a high-S/N master spectrum. We then run SpecMatch-Emp over the wavelength range 5052–5807 Å, broken up into ∼50 Å chunks across the free spectral ranges of echelle orders 106–121. SpecMatch-Emp calculates the best-fit stellar parameters using a linear combination of the closest matching spectra in the library, with coefficients determined by a χ² minimization of the composite library spectrum and target spectrum. We achieve a good fit to the target spectrum across all orders. The derived stellar parameters, T_eff, $\mathrm{log}g$, and [Fe/H], are found to be consistent with the median values derived from the TRES spectra with SPC. The SpecMatch-Emp values are listed in Table 3, along with the median TRES $v\sin i$.

Table 3. Summary of Stellar Parameters for TOI-4127

Parameter	Value	Description	Reference
Alternate Identifiers:
TIC	141488193	TESS Input Catalog	Stassun
Gaia DR3	1111639314047794944	⋯	Gaia DR3
2MASS	J07013709+7224538	⋯	2MASS
Coordinates and Parallax:
αJ2016	07:01:37.09	R.A. (R.A.)	Gaia DR3
δJ2016	+72:24:53.75	decl. (decl.)	Gaia DR3
ϖ	3.07 ± 0.02	Parallax (mas)	Gaia DR3
Broadband photometry:
BT	12.020 ± 0.151	Tycho−BT	Stassun
VT	11.441 ± 0.010	Tycho−VT	Stassun
TESS	11.0383 ± 0.0061	⋯	Stassun
G	11.4090 ± 0.0003	Gaia	Gaia DR3
Bp	11.6841 ± 0.0003	Gaia	Gaia DR3
Rp	10.9814 ± 0.0004	Gaia	Gaia DR3
J	10.538 ± 0.023	⋯	2MASS
H	10.308 ± 0.023	⋯	2MASS
Ks	10.245 ± 0.016	⋯	2MASS
W1	10.206 ± 0.022	⋯	WISE
W2	10.249 ± 0.020	⋯	WISE
W3	10.277 ± 0.051	⋯	WISE
W4	8.921	⋯	WISE
Derived Stellar Parameters:
Teff	6096 ± 115	Effective Temperature (K)	This Work a
$\mathrm{log}g$	4.26 ± 0.14	Surface Gravity (log (cm s−2))	This Work a
[Fe/H]	0.14 ± 0.12	Metallicity (dex)	This Work a
$v\sin i$	7.7 ± 0.5	Projected Rotational Velocity (km s−1)	This Work b
M⋆	1.230 ± 0.070	Stellar Mass (M⊙)	This Work c
R⋆	1.293 ± 0.050	Stellar Radius (R⊙)	This Work c
L⋆,bol	2.072 ± 0.028	Bolometric Luminosity (L⊙)	This Work c
F⋆,bol	6.289 ± 0.073 × 10−10	Bolometric Flux (erg s−1 cm−2)	This Work c
Age	4.8 ± 2.1	Stellar Age (Gyr)	This Work c
AV	0.02 ± 0.02	Extinction (mag)	This Work c

Notes.

^a Parameters from SpecMatch-Emp analysis of NEID spectra. ^b Parameters from SPC analysis of TRES spectra. ^c Parameters from SED analysis.

References: Stassun (Stassun & Torres 2018), Gaia DR3 (Gaia Collaboration et al. 2022), 2MASS (Cutri et al. 2003), WISE (Wright et al. 2010).

Download table as:  ASCIITypeset image

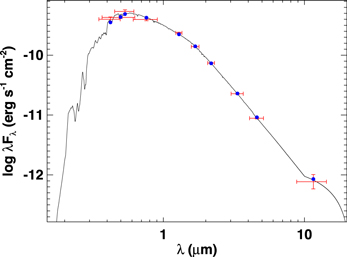

As an independent determination of the basic stellar parameters, we performed an analysis of the broadband spectral energy distribution (SED) of the star together with the Gaia EDR3 parallax (with no systematic offset applied; see, e.g., Stassun & Torres 2021) to determine an empirical measurement of the stellar radius, following the procedures described in Stassun & Torres (2016) and Stassun et al. (2017, 2018). We pulled the B_T V_T magnitudes from Tycho-2 (as reported by Stassun & Torres 2018), the JHK_S magnitudes from 2MASS (Cutri et al. 2003), the W1–W3 magnitudes from WISE (Wright et al. 2010), and the G_BP G_RP magnitudes from Gaia (Gaia Collaboration et al. 2022). Together, the available photometry spans the full stellar SED over the wavelength range 0.4–10 μm (see Figure 4).

Zoom In Zoom Out Reset image size

We performed a fit using Kurucz stellar atmosphere models (Kurucz 1993), with the effective temperature (T_eff) and metallicity ([Fe/H]) adopted from the spectroscopically determined values. The remaining free parameter is the extinction A_V , which we limited to the maximum line-of-sight value from the Galactic dust maps of Schlegel et al. (1998). The resulting fit (Figure 4) has a reduced χ² of 1.1, with A_V = 0.02 ± 0.02. Integrating the (de-reddened) model SED gives the bolometric flux at Earth, F_bol = 6.289 ± 0.073 × 10⁻¹⁰ erg s⁻¹ cm⁻². Taking the F_bol with the Gaia parallax gives the bolometric luminosity directly as L_bol = 2.074 ± 0.028 L_⊙, and that together with T_eff gives the stellar radius, R_⋆ = 1.293 ± 0.050 R_⊙. In addition, we can estimate the stellar mass from the empirical relations of Torres et al. (2010), giving M_⋆ = 1.23 ± 0.07 M_⊙.

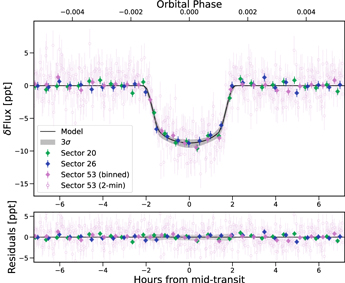

We use the exoplanet package (Foreman-Mackey et al. 2021a) to jointly model the measured photometric and radial velocity signals for TOI-4127, with Gaussian priors on the stellar mass and radius imposed by the results of our SpecMatch-Emp and SED analysis, and flat priors on the exoplanet orbital period (P), transit depth (δ), and transit impact parameter (b). We model the orbit using a full Keplerian with uniform priors on exoplanet mass (M_p ), orbital period (P), and transit impact parameter (b), and we sample the eccentricity and argument of periastron on the unit disk in $\sqrt{e}\sin \omega$ − $\sqrt{e}\cos \omega$ space. We elect not to place informative priors on the eccentricity because previous work has shown that there is no strongly favored eccentricity distribution for the known warm Jupiter population (Dong et al. 2021a). The orbital parameters are fitted simultaneously to both the RV and photometric data sets. For the photometry, we also place uniform priors on the transit depth (δ) and we include a quadratic limb darkening law, which is re-parameterized as in Kipping (2013), and a Matern-3/2 Gaussian process kernel (Foreman-Mackey et al. 2017; Foreman-Mackey 2018) for the variability of the underlying light curve. We fit separate jitter terms (σ) and offset terms (γ) for NEID and SOPHIE, and we allow for a long term, linear background trend.

From the best-fit solution, we confirm that TOI-4127 b is a warm Jupiter on an eccentric orbit. The fitted orbital period is $P={56.39879}_{-0.00010}^{+0.00010}$ days, which is in good agreement with the initial estimate from observed transit separation, and we report a relatively high eccentricity of $e={0.7471}_{-0.0086}^{+0.0078}$. The best-fit companion mass and radius are ${M}_{p}={2.30}_{-0.11}^{+0.11}{M}_{{\rm{J}}}$ and ${R}_{p}={1.096}_{-0.032}^{+0.039}{R}_{{\rm{J}}}$, which are consistent with a gas giant exoplanet. The transit and phase-folded orbit are shown in Figures 5 and 6, respectively, and we list the fitted parameters in Table 4.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Table 4. Derived Parameters for TOI-4127 b

Parameter	Value	Description
Exoplanet Parameters:
P	${56.39879}_{-0.00010}^{+0.00010}$	Orbital Period (days)
TC	${2458862.72816}_{-0.00100}^{+0.00096}$	Time of Conjunction (BJD)
e	${0.7471}_{-0.0086}^{+0.0078}$	Eccentricity
ω	${129.6}_{-2.0}^{+2.0}$	Argument of Periastron (°)
i	${89.30}_{-0.60}^{+0.46}$	Inclination (°)
b	${0.17}_{-0.11}^{+0.14}$	Transit Impact Parameter
K	${160.1}_{-3.8}^{+3.7}$	RV Semi-amplitude (m s−1)
a	${0.3081}_{-0.0058}^{+0.0055}$	Semimajor Axis (au)
u1	${0.49}_{-0.18}^{+0.16}$	Linear Limb
u2	$-{0.05}_{-0.19}^{+0.36}$	Quadratic Limb
δ	${7.46}_{-0.27}^{+0.25}$	Transit Depth (ppt)
Mp	${2.30}_{-0.11}^{+0.11}$	Planet Mass (MJ)
Rp	${1.096}_{-0.032}^{+0.039}$	Planet Radius (RJ)
ρp	${2.17}_{-0.24}^{+0.22}$	Planet Density (g cm−3)
ρ⋆	${0.775}_{-0.070}^{+0.066}$	Stellar Density(g cm−3)
S	${22.3}_{-1.2}^{+1.5}$	Insolation (S⊕)
Teq	${605.1}_{-8.2}^{+9.6}$	Equilibrium Temperature (K)
Instrument and Model Parameters:
σphot,TESS	${520}_{-7}^{+8}$	TESS Photometric Jitter (ppm)
σGP	${231}_{-17}^{+15}$	Covariance Amplitude (ppm)
ρGP	${0.298}_{-0.067}^{+0.091}$	Covariance Timescale (days)
σRV,NEID	${5.6}_{-3.2}^{+3.9}$	NEID RV Jitter (m s−1)
γRV,NEID	$-{36.2916}_{-0.0035}^{+0.0036}$	NEID Systemic Velocity (km s−1)
σRV,SOPHIE	${15.1}_{-3.0}^{+2.8}$	SOPHIE RV Jitter (m s−1)
γRV,SOPHIE	$-{36.814}_{-0.004}^{+0.004}$	SOPHIE Systemic Velocity (km s−1)

Download table as:  ASCIITypeset image

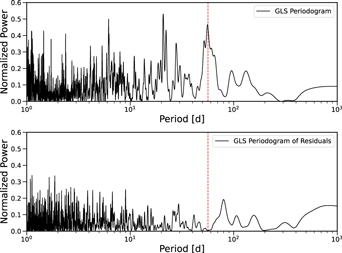

We compute the generalized Lomb–Scargle (Zechmeister & Kürster 2009, 2018) periodogram of the RV time series and residuals (residual rms =13.8 m s⁻¹) to explore whether the data might contain evidence for additional non-transiting planets or other periodic signals (Figure 7). Following the removal of the 56.4 days signal for TOI-4127 b, no significant periodic signals emerge. In addition, we find no evidence for any long-term trends. The best-fit RV slope from the joint fit is 0.001 ± 0.025 m s⁻¹ day⁻¹, or 0.45 ± 8.95 m s⁻¹ yr⁻¹. We discuss additional constraints on the presence of external companions in Section 4.1.2.

Zoom In Zoom Out Reset image size

4.1.1. High-eccentricity Tidal Migration

The relatively high eccentricity of TOI-4127 b places it in a sparsely populated region of orbital parameter space. ⁴⁸ Fewer than 10 other transiting warm Jupiters with >3σ mass measurements have eccentricities >0.5 (Figure 8). Of the four planets in this class with higher eccentricities than TOI-4127 b, two (HD 80606 b; Naef et al. 2001 and TOI-3362 b; Dong et al.2021b) are expected to tidally circularize to become hot Jupiters, though this depends on other factors such as the rate of tidal dissipation in each system. Assuming a tidal dissipation efficiency parameter of Q_p = 10^6.5 (Jackson et al. 2008), both of these exoplanets pass near enough to the tidal radii of their host stars at perisatron for tidal dissipation to be strong enough to induce inward migration. To explore whether TOI-4127 b may also be a hot Jupiter progenitor en route to a tight, circular orbit, we first consider the timescale for tidal circularization. We calculate the circularization timescale as in Equations (2) and (3) of Adams & Laughlin (2006),

$$\begin{eqnarray}\begin{array}{rcl}{\tau }_{\mathrm{circ}} & \approx & 1.6\,\mathrm{Gyr}\left(\displaystyle \frac{{Q}_{p}}{{10}^{6}}\right)\left(\displaystyle \frac{{m}_{p}}{{m}_{{\rm{J}}}}\right){\left(\displaystyle \frac{{M}_{\star }}{{M}_{\odot }}\right)}^{-3/2}\\ & & \times {\left(\displaystyle \frac{{R}_{p}}{{R}_{{\rm{J}}}}\right)}^{-5}{\left(\displaystyle \frac{a}{0.05\,\mathrm{au}}(1-{e}^{2})\right)}^{13/2}{[F({e}^{2})]}^{-1}\end{array}\end{eqnarray} \tag{ 1 }$$

where we adopt the approximation F(e²) ≈ 1 + 6e² + e⁴, dropping higher order terms. Again assuming Q_p = 10^6.5, we find ${\tau }_{\mathrm{circ}}={780}_{-210}^{+280}$ Gyr. Tidal dissipation would need to be two orders of magnitude more efficient than the value assumed here for the orbit to circularize before TOI-4127 evolves off the main sequence. This is plausible given that Q_p is difficult to constrain for any individual system because this parameter depends strongly on the physical parameters of the planet (e.g., Ogilvie & Lin 2004; Jackson et al. 2008).

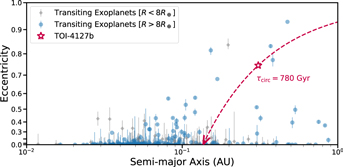

Zoom In Zoom Out Reset image size

Apart from adopting a different value of Q_p , one way to significantly increase tidal dissipation efficiency is through tidal interactions that lead to energy exchange between the orbit and the exoplanet's f-mode (Wu 2018). This effect requires that, at pericenter, the exoplanet comes within 4 times the tidal radius of the host star, r_t :

$$\begin{eqnarray}&&{a}_{\mathrm{peri}}\leqslant 4{R}_{p}{\left({M}_{\star }/{M}_{p}\right)}^{1/3}.\end{eqnarray} \tag{ 2 }$$

For TOI-4127 b, we find that a_peri ≈ 18r_t , which is much too large for f-mode dissipation to take effect.

We also consider the final orbital parameters of TOI-4127 b in the case that the orbit does ultimately circularize. If we assume that the angular momentum of the exoplanet is conserved during high-eccentricity tidal migration (i.e., no mass loss and no angular momentum exchange), then the final semimajor axis is given by

$$\begin{eqnarray}&&{a}_{\mathrm{present}}(1-{e}_{\mathrm{present}}^{2})={a}_{\mathrm{final}}(1-{e}_{\mathrm{final}}^{2}),\end{eqnarray} \tag{ 3 }$$

and for a circular orbit with e_final = 0, ${a}_{\mathrm{final}}={0.1361}_{-0.0046}^{+0.0050}$ au. Both the final semimajor axis and the corresponding orbital period (${P}_{\mathrm{final}}={16.56}_{-0.65}^{+0.72}$ days) are inconsistent with the population of hot Jupiters, which exhibit a pile-up at semimajor axes a < 0.1 au and orbital periods of 3–4 days (Wright et al. 2009; Santerne et al. 2016).

TOI-4127 b does not presently have the characteristics of a hot Jupiter progenitor in the same class as HD 80606 b and TOI-3362 b. This will remain true if the present eccentric orbit is the result of a one-time excitation event with no avenue for future angular momentum exchange, such as planet–planet scattering (Rasio & Ford 1996) in which the second body is ejected from the system. As Ford et al. (2001) show, a scattering event in which one planet is ejected can excite the eccentricity of the retained planet up to ${e}_{\max }\approx 0.8$ if the planets are of equal mass. This scenario could plausibly explain the observed eccentricity of TOI-4127 b ($e={0.7471}_{-0.0086}^{+0.0078}$). However, the high eccentricity may instead be a product of ongoing interactions with an external perturber, such as perturber-coupled eccentricity oscillation or a series of planet–planet scattering events. If a distant, massive perturber is present in a system with a warm Jupiter, then angular momentum exchange with this perturber may periodically place the inner planet on a high-eccentricity tidal migration track (Dong et al. 2014).

4.1.2. Constraints on the Presence of an Undetected Perturber

We do not detect any additional stellar or planetary companions to TOI-4127, but coupling with an undetected perturber might still be responsible for the high eccentricity of the detected warm Jupiter. We show in Section 2.2 using NESSI speckle imaging data that TOI-4127 lacks any bright neighbors, but the NESSI data alone do not constrain the presence of low mass companions such as mid- to late-K dwarfs and M dwarfs and substellar objects. We consider the detectability of such an object given the available data here. First, we note that Gaia does not detect any sources within 25'' (projected separation ≈6800 au) of TOI-4127 (Gaia Collaboration et al. 2022), which is consistent with the absence of sources detected with NESSI and the lack of contamination observed in the pixel-level TESS light curves. In addition, the Gaia astrometric solution for this star has a renormalized unit weight error (RUWE) of 1.27 (Gaia Collaboration et al. 2022). The RUWE quantifies how well the solution conforms to that of a single star; while values significantly larger than 1 indicate a preference for a multiple object astrometric solution, Penoyre et al. (2020) suggest a threshold of RUWE > 1.4 for this to be attributed to orbital motion induced by a bound companion.

Following the methods of Jackson et al. (2021), which we summarize below, we next construct a population of perturbers that is capable of exciting eccentricity oscillations in TOI-4127 b and facilitating migration to a final semimajor axis of a_final < 0.1 au. We then assess the detectability of members of this population given the available observational data. We only consider radial velocity and astrometric detectability in full, and we comment briefly on transit timing variations. With only three transits, the existing photometry is insufficient for robust analysis of transit timing variations or transit duration variations for this system.

We first build a population of companion planets that is capable of inducing strong eccentricity oscillations in TOI-4127 b by drawing planetary masses and orbital parameters from a set of analytical distributions that are informed by observations of long-period giant planets. Although the population of long-period giants is not well constrained by observations, Jackson et al. (2021) show that their results are robust to different choices for the underlying companion distributions. For this work, we draw masses from a power-law distribution set by Cumming et al. (2008) over the range of 0.1–20 M_J, orbital periods from a broken power-law distribution set by Fernandes et al. (2019) over the range of 200–100,000 days with a turnover in occurrence rate at 859 days, eccentricities from a beta distribution (α = 0.74, β = 1.61) fit to the set of confirmed long-period giant planets on the NASA Exoplanet Archive, inclinations from an isotropic distribution, and the remaining orbital angles from uniform distributions. In order for perturber-coupled high-eccentricity migration to occur in this system, TOI-4127 b and the undetected companion must be long-term stable and the precession induced by the outer companion must be much faster than general relativistic precession. We apply these two analytical cuts to our simulated population of potential perturbers following Section 2.4 of Jackson et al. (2021).

Next, we assess the detectability of each perturber by modeling the two-planet RV signal of the system. We draw planetary parameters for TOI-4127 b from the best-fit posterior distribution of the joint transit + RV fit in Section 3.2 and we randomly draw a companion from our simulated perturber population. Using the NEID and SOPHIE observation times and measurement uncertainties, we calculate the RV signal that would have been observed for this two-planet system. We then fit and subtract the TOI-4127 b signal using the mpfit idl package (Markwardt 2009), fixing the orbital period and time of conjunction. This leaves us with the residual signal from the perturbing companion. We repeat this process for 1000 perturbers and then determine the detectability of each residual signal by measuring the ratio of the slope of the residual RV signal to the estimated error in the slope (∣slope∣/e_slope). As in Jackson et al. (2021), we consider the companion to be detectable for each trial in which this metric is greater than 3.5 over the full RV baseline. To assess sensitivity to perturbers with orbital periods shorter than the full RV baseline, we also calculate the slope ratio for each of the following limited baselines: (1) the full NEID baseline, including all overlapping SOPHIE measurements, (2) the full SOPHIE baseline, including all overlapping NEID measurements, and (3) BJD 2459450 through BJD 2459700 (i.e., all data excluding the earliest NEID measurements and latest SOPHIE measurements).

Perturbing companions may also be detectable with Gaia astrometry. For each of the above trials, we model the transverse motion of the stellar host due to the gravitational pull of the perturber following Quirrenbach (2010) and subtract off a linear fit to account for proper motion. For each trial, we sample the model at 473 points, corresponding to the number of measurements used in the Gaia Data Release 3 astrometric solution (Gaia Collaboration et al. 2022) for TOI-4127 and we calculate the maximum angular distance, Δθ, between model samples. We compare this value to a conservative detection limit of 100 μas (Perryman et al. 2014), and we label trials with Δθ above this limit as detectable via Gaia astrometry.

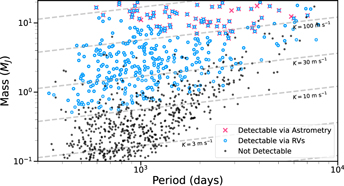

We show the sample of potential perturbers in Figure 9. While signals from most of these objects with RV semi-amplitudes greater than ∼10 m s⁻¹ would have been detected in the available RV or astrometric data sets, exoplanets with masses K < 10 m s⁻¹ are overwhelmingly not detectable. Therefore, we cannot rule out perturber-coupled eccentricity oscillations as the source of the eccentric orbit of TOI-4127 b and as a mechanism for future high-eccentricity tidal migration. In addition, given that a fraction of potential perturbers shown in Figure 7 have K < 3 m s⁻¹, it is unlikely that RV observations alone could definitely confirm or reject the perturber-coupled eccentricity oscillation scenario without increased significant observational expense. At the reported NEID single measurement precision of 6.13 m s⁻¹ for this target, one would need more than 30 additional observations to achieve even a 3σ mass measurement of a perturber with K = 3 m s⁻¹.

Zoom In Zoom Out Reset image size

To determine whether transit timing variations might be detectable, we fit the observed transit midpoints and we compare these to the expected transit ephemeris for each of the three transits based on the best-fit period and time of conjunction. We find that the transit midpoints deviate from the best-fit ephemeris by 135 ± 107 s, −246 ± 136 s, and 125 ± 110 s for the transits in Sectors 20, 26, and 53, respectively. Given the corresponding ephemeris uncertainties of ±86, ±69, and ±104 s, we find no evidence for significant timing variations.

Under the naïve assumption that the planetary surface temperature responds instantaneously to changing irradiation during its elliptical orbit, the equilibrium surface temperature of TOI-4127 b during transit is ${T}_{\mathrm{eq},\mathrm{tr}}={1145}_{-29}^{+30}$ K for a surface albedo of 1, and the corresponding transmission spectroscopy metric (TSM; Kempton et al. 2018) is ${15.3}_{-1.3}^{+1.5}$. On its own, this modest TSM does not make TOI-4127 b an exceptional target for atmospheric characterization with JWST because it falls well below the threshold of TSM > 96 that is recommended by Kempton et al. (2018). However, phase-curve observations across different parts of the orbit are considerably more compelling. The high orbital eccentricity will lead to extreme temperature variations, exceeding 1200 K at pericenter and dropping below 500 K at apocenter, and potentially changes in the equilibrium chemistry of the atmosphere (Fortney et al. 2020; Mayorga et al. 2021). Even a pair of measurements during transit and occultation (${T}_{\mathrm{eq},\mathrm{oc}}={590}_{-13}^{+15}$ K), if feasible, would nearly capture the two temperature extremes and serve as a powerful probe of the atmospheric chemistry of TOI-4127 b. We use the fitted orbital parameters to calculate the secondary impact parameter as

$$\begin{eqnarray}&&{b}_{2}=b\displaystyle \frac{1+e\sin (\omega )}{1-e\sin (\omega )}={0.65}_{-0.43}^{+0.51}\end{eqnarray} \tag{ 4 }$$

and find that an occultation is very likely, though not guaranteed. Phase-curve measurements can also be used to place constraints on the heat redistribution timescale, and thus rotation period of TOI-4127 b (e.g., Lewis et al. 2014, 2017; de Wit et al. 2016). In contrast to the fully tidally locked synchronous rotation of short-period planets with circular orbits, eccentric warm Jupiters are expected to exhibit pseudo-synchronous rotation, in which their rotation rates are approximately equivalent to the orbital frequency at periastron (Hut 1981; Ivanov & Papaloizou 2007). Deviation from (or adherence to) pseudo-synchronous rotation can shed light on the tidal interaction timescale of the system.

Using the fitted orbital period and time of conjunction, we estimate the projected uncertainty on the TOI-4127 b transit ephemeris for the next 40 orbits (∼6 yr). As shown in Figure 10, the ephemeris is expected to remain precise to better than 25 minutes, or ∼10% of the transit duration, over this time frame. This is sufficient not only for the planning and execution of atmospheric measurements during transit and eclipse but also for measurements of the stellar obliquity via the Rossiter–McLaughlin (RM) effect (McLaughlin 1924; Rossiter 1924).

Zoom In Zoom Out Reset image size

Recent work by Rice et al. (2022b) has shown that warm Jupiters are preferentially more aligned than hot Jupiters. These findings have implications for the formation histories and dynamical evolution of these systems (Wang et al. 2021; Rice et al. 2022a). However, the Rice et al. (2022b) sample includes only two warm Jupiters orbiting host stars with effective temperatures above the Kraft break (Kraft 1967), defined as T_eff ≃ 6100 K, which is important given observed correlations between alignment and stellar temperature (Albrecht et al. 2012). Measurement of the RM effect for TOI-4127, which has an effective temperature of T_eff = 6096 ± 115 K, would add a valuable data point to population-level studies of stellar obliquities.

We calculate the expected semi-amplitude of the RM signal as

$$\begin{eqnarray}&&{A}_{\mathrm{RM}}=\displaystyle \frac{2\delta }{3}v\sin i\sqrt{1-{b}^{2}}\end{eqnarray} \tag{ 5 }$$

which yields 37.7 ± 1.3 m s⁻¹ for the $v\sin i$ value of 7.7 km s⁻¹ from SPC analysis of TRES data. Measurement of a RM signal of this magnitude would be feasible with an instrument such as NEID, for which we achieve ∼6 m s⁻¹ RV precision on this target with exposure times of 15 minutes. However, given the long orbital period of TOI-4127 b, opportunities to observe a complete transit from the ground will be relatively rare. Using the projected transit ephemerides shown in Figure 10, we identify the set of viable RM opportunities through the end of 2028 for several ground-based telescopes and instruments with the requisite aperture and precision RV measurement capabilities. In addition to NEID and SOPHIE, we consider the Keck Planet Finder (KPF; Gibson et al. 2016) and MAROON-X (Seifahrt et al. 2018), both on Maunakea, and the HARPS-N spectrograph (Cosentino et al. 2012) on the Telescopio Nazionale Galileo on La Palma Island. Here, we define a viable opportunity as one for which the solar altitude is < − 18° and the target airmass is <2 for the duration of the transit; the list of transit dates is shown in Table 5.

Table 5. Ground-based Rossiter–McLaughlin Measurement Opportunities for TOI-4127 b

UTC Date	Transit Midpoint (BJD)	Instrument
2023 Nov 24	${2460272.6974}_{-0.0021}^{+0.0020}$	HARPS-N
2024 Mar 15	${2460385.4950}_{-0.0022}^{+0.0022}$	HARPS-N,
⋯	⋯	SOPHIE
2024 Dec 22	${2460667.4888}_{-0.0027}^{+0.0026}$	HARPS-N
2025 Sep 30	${2460949.4827}_{-0.0032}^{+0.0032}$	SOPHIE
2025 Nov 26	${2461005.8814}_{-0.0033}^{+0.0033}$	NEID,
⋯	⋯	SOPHIE
2026 Dec 26	${2461400.6729}_{-0.0040}^{+0.0039}$	NEID,
⋯	⋯	HARPS-N,
⋯	⋯	SOPHIE
2027 Apr 17	${2461513.4704}_{-0.0042}^{+0.0041}$	SOPHIE
2027 Oct 4	${2461682.6667}_{-0.0045}^{+0.0045}$	HARPS-N
2027 Nov 29	${2461739.0655}_{-0.0047}^{+0.0046}$	KPF,
⋯	⋯	MAROON-X
2028 Jan 24	${2461795.4642}_{-0.0048}^{+0.0047}$	HARPS-N,
⋯	⋯	SOPHIE
2028 Nov 1	${2462077.4581}_{-0.0053}^{+0.0052}$	SOPHIE
2028 Dec 28	${2462133.8569}_{-0.0054}^{+0.0053}$	NEID

Download table as:  ASCIITypeset image
