Size-Based Ion Selectivity of Micropore Electric Double Layers in Capacitive Deionization Electrodes

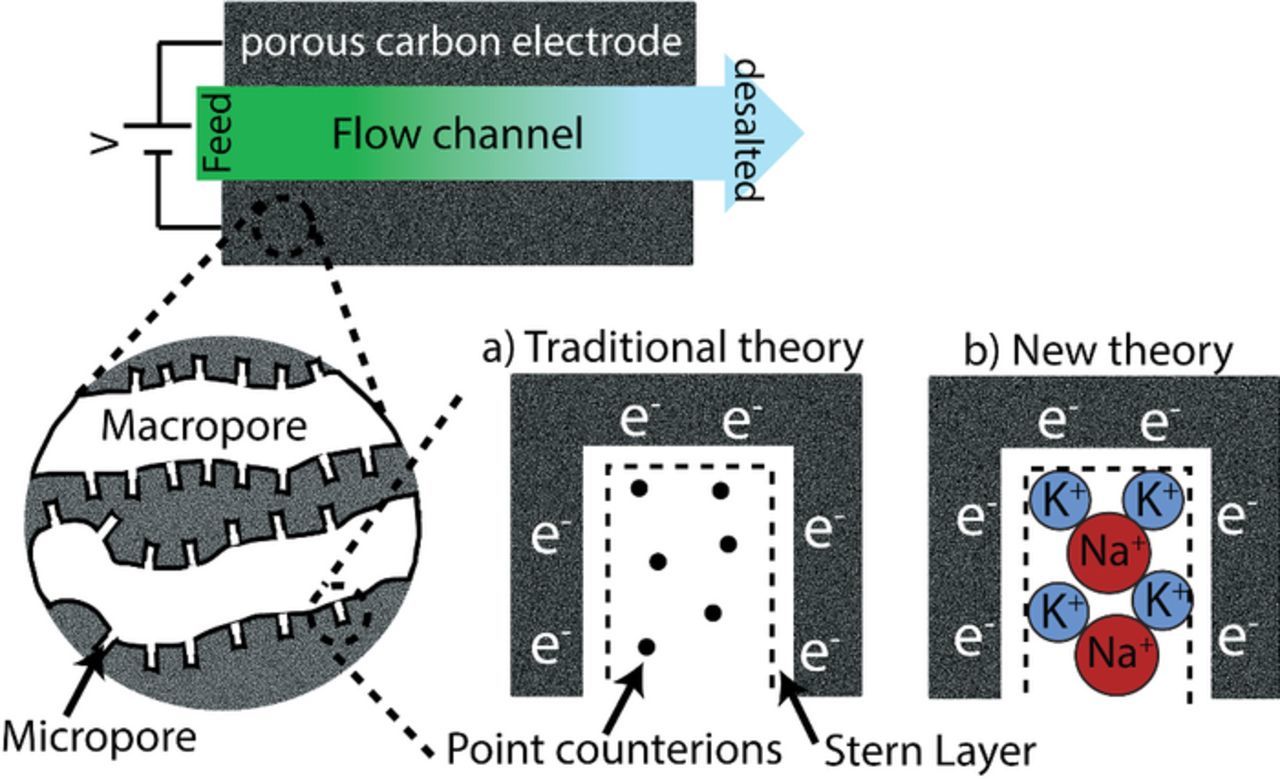

We begin with the theory for equilibrium salt electrosorption by micropore EDLs assuming point (volume-less) ions (Fig. 1a), as is typically assumed in CDI theory with multiple counterionic species.^27,32 Invoking equilibrium, and so equalized electrochemical potential, between the micro and macropores results in:

Here c_mi,i and c_ma,i are the concentrations of ion i in the micropore and macropore, respectively, Δϕ_D is the dimensionless Donnan electric potential defined as ϕ_mi − ϕ_ma, and z_i is the valence of ion i. All electric potentials are non-dimensionalized by the thermal potential V_T = kT/e, where T is the temperature, k is the Boltzmann constant, and e is the electron charge. We now restrict the discussion to an electrolyte consisting of two counterions denoted by subscript "1" and subscript "2". To focus on the effect of ion size on selectivity, we assume both counterions have equal valence, z. For simplicity, we assume the electrolyte consists of a single coion with valence –z, denoted by subscript "co". Applying Eq. 1 to each ion, and invoking electroneutrality in the macropore, we obtain the following:

The parameter α_i is defined as the ratio of the concentration of counterion i in the charged micropore EDL to its concentration in the macropore. The ratio α₁/α₂ has previously been termed a selectivity ratio,³³ and will be used here to describe the selectivity of the micropore EDL at a given charge state (given Donnan potential). We can see from Eqs. 2 and 3 that α₁/α₂ = 1 for all values of Δϕ_D, and thus the micropore EDL does not preferentially select either counterion for the case of equal valence and point counterions. Other works have used ratios of excess counterion concentrations to quantify selectivity of planar EDLs, and these ratios account for both electrostatic and entropic effects (e.g. the selective storage of a counterion due to a higher macropore concentration relative to the other counterion).^34,35 Meanwhile, the selectivity ratio used in this work accounts for solely the electrostatic effect.

By combining Eqs. 2–4, we can express the micropore volumetric charge density as:³²

Alternatively, by the definition of the Stern layer capacitance, micropore volumetric charge density can be expressed as:³²

Here C_st is the volumetric Stern layer capacitance, Δϕ_st is the dimensionless potential drop across the Stern layer, and the negative sign is inserted as the micropore charge is opposite in sign to the wall charge. Setting Eqs. 5 and 6 equal to each other, using the macropore potential as a reference (ϕ_ma ≡ 0), and using ϕ_e = Δϕ_st + Δϕ_D where ϕ_e is the electrode's dimensionless solid phase potential,³² we obtain:

Eq. 7 can be solved for Δϕ_D, after which all the micropore concentrations given by Eqs. 2–4 can be determined. Eq. 7 can be linearized for the case where zΔϕ_D < <1, however, such a low Donnan potential is not common to charged CDI electrodes.

While Eqs. 2, 3, and 7 can be used to solve for the selectivity ratio and micropore concentrations for the case of point ions (Fig. 1a), we now develop an analogous set of equations which consider finite-sized ions by accounting for ion volume exclusion interactions in the micropore EDL (Fig. 1b). To account for volume exclusion effects, we add a dimensionless excess chemical potential difference between the micro and macropores, Δμ^ex_i, to the equilibrium expression given by Eq. 1:³⁶

For a system with two equal charge and finite-sized counterions, applying Eq. 8 we obtain:

From Eqs. 9 and 10, the selectivity ratio can be simplified to . Thus, the selectivity ratio is no longer necessarily unity, and the micropore EDL will preferentially select the ion with the smaller excess potential term (for positive net excess potentials). To account for ion volume exclusion interactions, we use an appropriate analytical expression for μ^ex_i which can be applied to ion i in the macropore or micropore. Two such equations have been extensively employed for planar EDLs and electrolytes with multiple counterions, the Bikerman equation derived from lattice-gas type model for the EDL, and the Boublik-Mansoori-Carnahan-Starling-Leland (BMCSL) equation derived by considering ions as hard spheres with differing diameters (an extension of the Carnahan-Starling equation of state for single-sized hard spheres).^34,35,37 While the Bikerman equation is the simpler expression, it has been well-established that the BMCSL equation (and the related Carnahan-Starling equation) is the more accurate prediction for the case of EDLs with planar geometry.^35,38 Thus, we here employ the BMCSL equation, to our knowledge for the first time, to study size-based selectivity by micropore EDLs of CDI electrodes. The BMCSL equation is given by:

Here d_i is the hard-sphere diameter of ion i, which we consider to be an adjustable parameter used to fit data, as with previous works employing the BMCSL equation to study EDLs.³⁵ Further, represents the volume fraction occupied by all finite sized ions, N_a is Avogadro's constant, and . We now invoke the definitions of volumetric micropore charge density to obtain:

Eqs. 9, 10, 12 and 13 form a set of algebraic equations which must be solved together for unknowns Δϕ_D, c_{mi, 1}, c_{mi, 2}. The model presented here can be used to predict the salt stored in an electrode's micropore EDLs at cell equilibrium, for example at the end of a constant voltage cell charging. To predict dynamic CDI data, such as cell effluent composition versus time after application of a cell voltage or current, the model presented here must be generalized to include two electrodes and coupled to a set of macroscopic transport equations.¹ We will leave the latter developments to a future work, while here focusing on the selectivity predicted at cell equilibrium.

While the selectivity ratio, α₁/α₂, is convenient to study the theoretically expected selectivity, a related metric known as the separation factor is more readily measured experimentally. We denote the separation factor by β₁/β₂, where β_i is obtained from experimental data via the expression β_i = SAC_i/c_{feed, i}, and SAC_i is the cells' salt adsorption capacity for ion i in units of mol/g_carbon.³⁹ SAC_i is obtained from measurements of the concentration of ion i in the cell effluent during the charge step in a single-pass experiment, which when subtracted from the feed concentration, integrated in time, and multiplied by feed flow rate gives the total moles of ion i removed from the feed.¹ The charge step when measuring SAC_i generally begins with an uncharged electrode and ends at cell equilibrium. To calculate the selectivity ratio from our model results, we use the expression β₁/β₂ = [(c_{mi, 1} − c_{ma, 1}) · c_{ma, 2}]/[(c_{mi, 2} − c_{ma, 2}) · c_{ma, 1}], which assumes c_{ma, i} = c_{feed, i} at the beginning and end of the charge step, and the initial (pre-charging) micropore concentration equals the macropore concentration (i.e. no micropore chemical charge¹⁷). For the typical CDI operating condition of high Donnan potentials, zΔϕ_D ≫ 1, our model predicts that β₁/β₂ ∼ α₁/α₂ since c_{mi, i} ≫ c_{ma, i} (see Fig. 3a).

Zoom In Zoom Out Reset image size

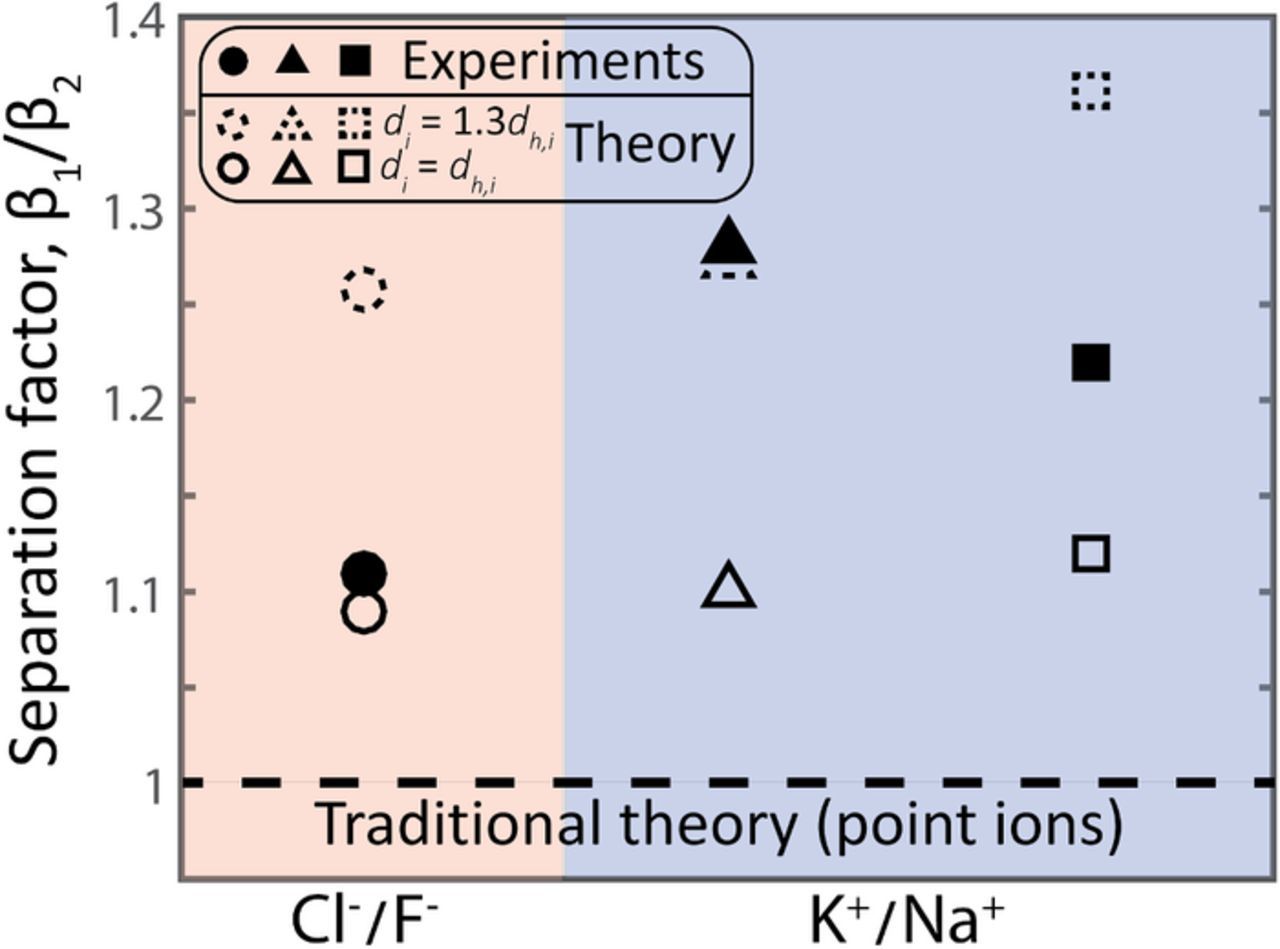

In Figure 2, we compare model predictions for β₁/β₂ (dashed line and open markers), to the measured separation factor previously observed at cell equilibrium for three experimental CDI cells (filled markers).^23,27,31 The experiments considered all utilized electrolytes containing two competing, univalent ions, either Cl⁻/F⁻ or K⁺/Na⁺. For β₁/β₂, we define counterion "1" to be the smaller ion and counterion "2" as the larger ion based on the known hydrated ion radius in bulk electrolyte, from Ref. ⁴⁰. For each experiment, the observed separation factor is significantly above unity, ranging between 1.11 and 1.28, indicating that the smaller of the two competing univalent ions is preferentially electrosorbed by the micropore EDLs. The predicted separation factor by traditional CDI theory assuming point ions is unity (dashed line in Fig. 2), and thus cannot capture this experimentally-observed selectivity. When comparing experiments to theory with excluded volume interactions modeled via the BMCSL equation, a key parameter to consider is the counterion hard-sphere diameter, d_i. A value for d_i larger than the hydrated ion diameter in bulk solution, d_h,i, has been required to fit BMCSL-based theory to data for the case of a planar EDL.^34,35 For example, Biesheuvel et al. required a d_i of 1.15–1.2 times d_h,i in order to allow for theory predictions to approach experimentally-observed selectivity.³⁵ Based on these observations, it has been hypothesized that the effective counterion size near highly-charged interfaces may be significantly larger than in bulk solution due to increased electrostatic repulsion between counterions within such EDLs.³⁴ As seen in Fig. 2, our model predictions including ion volume exclusion effects fall within the range of 1.26 to 1.36 when assuming a typical Stern layer capacitance of 0.2 GF/m³,^23,27,41 and d_i = 1.3d_h.i for counterions (open makers with dashed lines). When we instead use simply d_i = d_h,i, the predicted separation factor is between 1.09 and 1.12 (open makers with solid lines). As can be seen in Fig. 2, our theory generally underpredicts the experimentally achieved separation factor when d_i = d_h,i, a finding consistent with previous literature.^34,35 For simplicity, in these calculations we neglected the (small) excess potential acting on the coions, so set Δμ^ex_co = 0, as predicted coion concentration in micropore EDLs at non-dimensional electrode potentials above unity approaches zero. For the electrode potential used in the theory calculations, we assumed that the experimental cells were symmetric so that ϕ_e = V_cell/2V_T at cell equilibrium, where V_cell is the applied cell voltage during experiments. This latter assumption is reinforced by ample experimental evidence that CDI cells with the same, chemically uncharged, microporous carbon material as anode and cathode typically exhibit an approximately symmetric voltage distribution, despite the slight size variations between the anion and cation (typically sodium and chloride).^19,42,43 Overall, both the model and experimental results of Fig. 2 demonstrate that ion size plays a significant role in the CDI process for electrolytes with competing, equally-charged ions, even when there are only slight differences between the ions' size (e.g. a <0.3 Å difference between the bulk solution hydrated radii of Na⁺ and K⁺).⁴⁰

Zoom In Zoom Out Reset image size

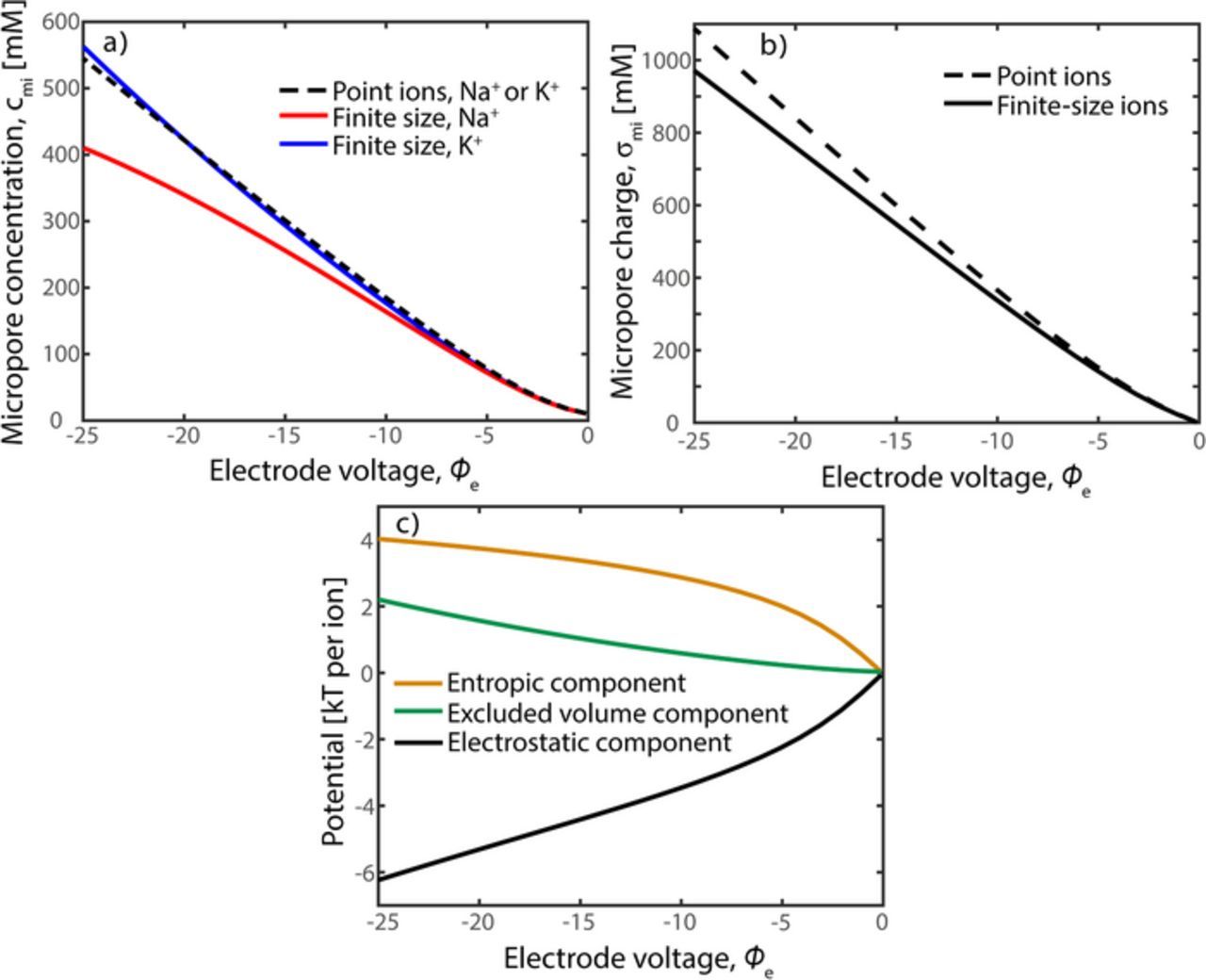

In Figure 3, we show model predictions for the case of Na⁺ and K⁺ counterions, a Stern capacitance of 0.2 GF/m³, macropore concentration of 10 mM for each counterion, and d_i = 1.25d_h,i. Figure 3a shows the predictions of micropore concentration versus non-dimensional electrode potential for the case of point ions (dashed line) and finite-size ions (red and blue lines). For the case of point ions, the predicted concentration profiles for Na⁺ and K⁺ are identical, as expected from Eqs. 2 and 3. But, when accounting for volume exclusion interactions, we see significant differences in micropore concentration at typical CDI electrode potentials, despite the small difference in size between sodium and potassium.⁴⁰ For example, at ϕ_e = −25, the predicted micropore concentration of Na⁺ is about 410 mM, while that of K⁺ is 565 mM. We do not show on the plot predicted coion concentration, as this concentration is below 10 mM for a charged electrode and approaches zero at voltages significantly above unity. In Figure 3b, we show predictions of micropore charge density versus electrode potential, which shows non-negligible deviations in micropore charge between the case of point ions and finite-size ions at high electrode potentials. The case of finite-sized ions achieves lower micropore charge for a given voltage, which demonstrates that volume exclusion interactions act to lower the predicted capacitance of the electrode. We can quantify the relative importance of volume exclusion effects by comparing these to entropic and electrostatic contributions to the electrochemical potential. In Figure 3c, we plot the predictions for the net components of electrochemical potential acting on the finite-sized K⁺ cation, including the net entropic component, , the net electrostatic component, zΔϕ_D, and net volume exclusion effects, . As expected, the electrostatic component drives ion storage in the micropore as this term is negative for all electrode potentials. Due to the equilibrium between micro and macropore, the electrostatic contribution is balanced by both entropic and volume interaction effects. At high electrode potentials volume effects are significant relative to entropic, even for the relatively small-sized potassium ion (d_h,K+ = 0.66 nm). For example, at ϕ_e = −25, the entropic component contributes approximately 4 kT per ion, while volume effects amount to over 2 kT per ion. The latter result reinforces that accounting for ion volume effects in micropores is likely crucial toward accurate modeling of desalination and electrode capacitance in CDI systems.

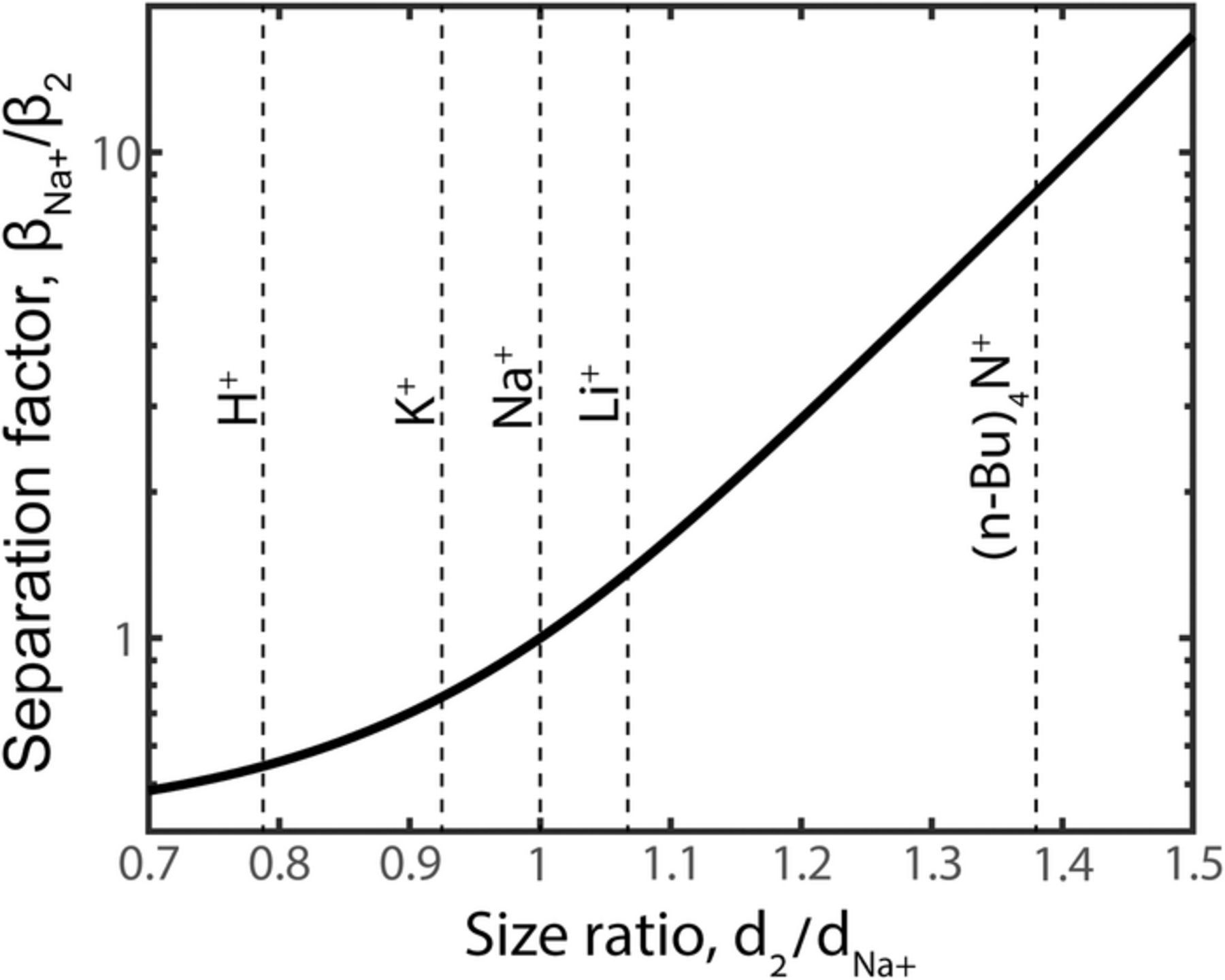

As the results of Figs. 2 and 3 determined that ion size can play a significant role during brackish water desalination by CDI, we now provide calculations to indicate whether CDI cells can effectively separate a wider range of ions based on their size. In Figure 4, we plot the predicted separation factor versus ion size ratio for ϕ_e = −24 and two finite-sized and univalent counterions, where counterion "1" is Na⁺, and where d_i = 1.25d_{h, i} for all ions plotted. The vertical dashed lines in Fig. 4 indicate the size ratio of various cations relative to the sodium cation. Salt cations, such as K⁺ and lithium (Li⁺), have a size nearly equal to that of Na⁺, and thus the predicted selectivity ratios for these cations depart only modestly from unity. However, for other cations such as hydronium (H⁺) and tetrabutylammonium, larger departures are observed, with and . The implication for the case of H⁺ is that volume exclusion interactions may be important to account for when attempting to model the spatiotemporal pH dynamics in a CDI cell. The value of pH within the electrodes of a charging CDI cell and also of the cell effluent is known to vary strongly relative to the feed pH,⁸ which has been attributed to the effect of possible electrochemical reactions and electrosorption of H⁺ and hydroxyl (OH⁻) ions into electrode micropores.^44–46 Thus, our model results suggest that accurate modeling of the electrosorption of H⁺ and OH⁻ may require accounting for volume exclusion interactions, due to the significant size difference between H⁺/OH⁻ and salt ions. The calculations involving the tetrabutylammonium cation illustrates a strong effect of ion size on selectivity, as with an ion size ratio of only ∼1.4. This demonstrates that effective separation processes by ion size may be possible with a CDI cell. To date, ion separations or targeted ion removal based on ion size remains a largely unexplored application area of CDI.

Zoom In Zoom Out Reset image size

The model presented here including excluded volume interactions in micropore EDLs can be extended in several ways. Firstly, it can be generalized to the case of finite-sized ions with differing valence to capture, for example, the case of competitive electrosorption between a smaller univalent ion and a larger divalent ion. The latter scenario has been studied theoretically and experimentally in the context of charged planar interfaces,^34,35,47 and experimentally in porous electrode CDI systems,³¹ but has not been incorporated into CDI theory to our knowledge. Second, while the BMCSL equation used here captures volume exclusion effects due finite-sized ions, it does not capture excess chemical potential contributions from ion-wall interactions. Such contributions may be significant in the highly geometrically-confined micropore, as suggested by previous Monte Carlo simulations showing that decreasing distance between two charged plates to approach the size of the counterions enhances the selectivity toward the smaller counterion.³³ Beyond accounting for the ion-wall interactions of the mean-size micropore, the pore size distribution of the micropores may need to be accounted for as well.⁴⁸ Unfortunately, excess potentials representing wall-ion interactions are not easily described analytically, and are instead inferred from detailed molecular dynamics simulations, rendering this effect beyond the scope of this work.⁴⁹ Third, while the model presented here captures the separation factor observed in recent CDI experiments (see Fig. 2), it does not capture other ion-size based experimental phenomena observed in microporous carbon electrodes. For example, carbon electrodes with sub-nanometer micropores have been experimentally shown to nearly completely exclude sodium ions but permit smaller hydronium ions (), and in other cases exhibit selectivity based on ion shape.^24,26 These phenomena may be due to strong ion-wall interactions attributed to the extremely small size of the micropores. Fourth, as our model follows a mean-field approach, it does not capture local ion-ion interactions in the micropore, which may affect the predicted micropore concentration and EDL selectivity.^38,50 Finally, the model presented here can be applied toward describing the electrosorption of large ions at higher electrode potentials than are accessible by CDI with aqueous solutions. For example, in the application of CDI to remediating organic solvents such as propylene carbonate, electrosorption of the large tetraethylammonium cations (TEA⁺) results in desolvation or solvation sheath distortion of the cation.⁴ For such systems, we expect ion volume exclusion interactions to be highly important, affecting strongly the predicted equilibrium micropore concentration and the electric charge stored.

We here investigate theoretically the effect of ion size on desalination by CDI in an electrolyte with competing counterions of equal-valence. For the case of two finite-sized counterions, our model predicts a selectivity ratio of , which demonstrates that the micropore selects the ion with the smallest value of (positive) net excess potential. We here express the excess chemical potential via the BMCSL equation, thus accounting for ion volume exclusion interactions in micropore EDLs. Our model captures the non-unity separation factor observed experimentally in CDI systems with two equal-valence counterions, which could not be explained by previous CDI theory. Further, we show that theory based on the BMCSL equation can approximately capture the measured values of the separation factor when using the hard-sphere diameter as an adjustable parameter. In the future, this model can be extended to include other effects which may be important due to the strong geometric confinement in micropores, such as ion-wall interaction effects.

This work was performed in the context of a project funded by the Israeli Ministry of National Infrastructures, Energy and Water Resources, and also a project funded by the Israel Science Foundation (ISF) in the framework of the Israel National Research Center for Electrochemical Propulsion (INREP) project.
