A Heat Resistant and Flame-Retardant Polysulfonamide/Polypropylene Composite Nonwoven for High Performance Lithium Ion Battery Separator

Polypropylene material and phenoxy polyphosphazene was purchased from Shandong Botao Company. Polysulfonamide (PSA) was purchased from DuPont Company. N, N-dimethylacetamide (DMAc, 99.5%) was supplied by Sinopharm Chemical Reagent Co., Ltd. Commercialied microporous polypropylene separator (MPP separator, Celgard 2400) was purchased from Celgard Company (USA) and used as comparative analysis. Lithium cobalt oxidate (LiCoO₂) was supplied by Citic GuoAn Power Technology Co., Ltd. Graphite powder was supplied by Sigma-Aldrich Co., Ltd. Lithium iron phosphate (LiFePO₄) was supplied by Tianjin STL Energy Technology Co., Ltd. 1 M lithium hexafluorophosphate (LiPF₆) in ethylene carbonate (EC)/dimethyl carbonate (DMC) (1/1, V/V) was supplied by Guotai-huarong New Chemical Materials Co., Ltd. Lithium bis(oxalate) borate (LiBOB) was supplied by Suzhou Fotai New Materials Co., Ltd. Propylene carbonate (PC) was supplied by Shenzhen Capchem Technology Co., Ltd.

Schematic illustration for the fabrication of PSAP separator was shown in Scheme 1. For the melt-blown spinning step, PP raw material and phenoxy polyphosphazene (400 g) were conveyed to screw extruder and heated at 200°C for 2 hrs to form polymer melt, then the polymer melt was pulled into ultra-fine fibers from the spinneret holes at high pressure. The obtained melt-blown nonwoven was then rolled by hot calendering and obtained polypropylene nonwoven.

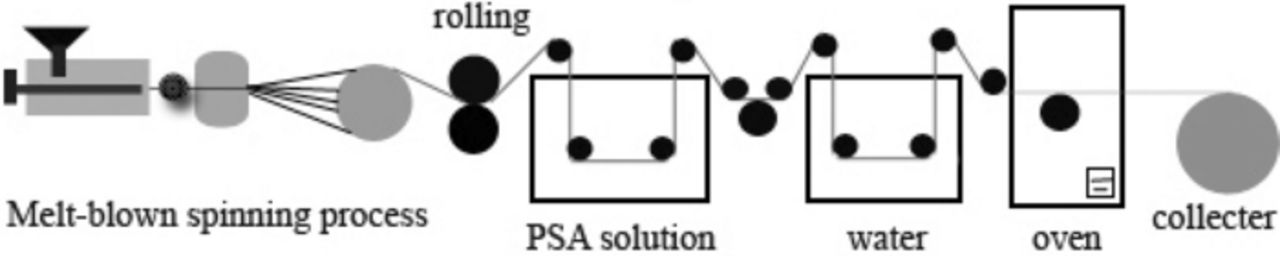

Scheme 1. Schematic illustration for the fabrication of PSAP separator.

For the phase inversion step, PSA (600 g) was dissolved in 1 L DMAc with stirring to give the homogeneous solution. After that, polypropylene nonwoven was immersed into PSA solution and followed by immediately delivered to coagulation bath and kept for 15 min to generate PSAP composite nonwoven. The PSAP composite nonwoven was dried in an oven at 60°C for 1 h and then was collected for future evalution.

The morphology of the separators was observed by field emission scanning electron microscope (SEM, Hitachi S-4800). The air permeability was measured using the Gurley-type densometer (4110 N, Gurley), the Gurley value was defined as the time of 100 cc air to pass through the separator. The porosity (P) was defined as the ratio of void volume to apparent geometric volume. It was determined using n-butanol uptake method and then calculated using Eq. (1): P = [(W_f –W_o)/ρV] × 100%, where W_f and W_o are the weight of the wet and dry membranes, respectively; ρ is the density of n-butanol; and V is the apparent volume of the membrane. The electrolyte uptake (EU), expressed as a percentage, was defined as the weight ratio of the electrolyte solution absorbed by the polymer membrane to the polymer. It was determined using liquid electrolyte (1 M LiPF₆ in EC/DMC (1:1, V:V)) and then calculated by following Eq. (2): EU = [(W-W_o)/W_o] × 100%, where W_o and W indicate the weight of separator before and after liquid electrolyte absorption, respectively. For these measurements, each sample was immersed in the n-butanol or liquid electrolyte for 2 hrs. The weight of sample was measured after removing the excess amount of n-butanol or liquid electrolyte.

Separators were cut into squares (2 cm × 2 cm) and dimensional changes were monitored after keeping the separators from 100°C to 150°C for 1 h. Thermal shrinkage ratio (TSR) was calculated using the following Eq. (3): TSR (%) = [(S_o-S)/S_o] × 100%. Here, S_o and S represent the area of the separator before and after thermal treatment at a series of temperature for 1 h, respectively. Limiting oxygen index (LOI) measurement was undertaken using JF-3 type oxygen index tester (China). Heat release value was determined by automatic oxygen bomb calorimeter.

The electrochemical stability of the separator was conducted by a linear sweep voltammetry (LSV) test. The separator was sandwiched between a stainless-steel working electrode and a lithium metal reference electrode at a scan rate of 1.0 mV s⁻¹ from 2.5 V to 6.0 V vs. Li⁺/Li to check oxidative decomposition.

Ionic conductivity of separators was measured by preparing cells where liquid electrolyte impregnated separators were sandwiched between stainless steel blocking electrodes (diameter: 16.2 mm). The ionic conductivity (σ) is calculated by employing the formula: σ = L/AR_b, where L is the thickness of the separator sample and A is the contact area between the separator and the electrode. The ionic conductivity was determined from bulk resistances (R_b), which were measured by AC complex impedance analyzes using an impedance analyzer in combination with Zahner Zennium Electrochemical Workstation over a frequency range from 1.0 Hz to 10⁶ Hz with 10 mV of AC amplitude.

Battery tests such as rate capability and cycle life were carried out using a LAND battery testing system in the voltage range of 2.75 V-4.20 V at room temperature using 2032 coin type cell consisting of LiCoO₂ electrode as a cathode, graphite electrode as an anode and 1 M LiPF₆-EC/DMC (1:1 in volume) as an electrolyte. The charge/discharge performance was evaluated under a constant charge/discharge current and constant voltage charge along with the discharge densities were varied form 0.2 C (26 mA g⁻¹) to 8.0 C (1040 mA g⁻¹) for rate capability and 0.5 C (65 mA g⁻¹) for cycle test.

Cycle performance at elevated temperature were carried out using a LAND battery testing system in the voltage range of 2.5 V-4.0 V at 120°C using 2032 coin type cell consisting of LiFePO₄ electrode as a cathode, lithium metal as an anode and 0.5 M LiBOB-PC as an electrolyte. The charge/discharge performance was evaluated under a constant charge/discharge current and constant voltage charge along with the discharge densities were varied form 0.5 C (65 mA g⁻¹).

The morphological characterization of polypropylene nonwoven and PSAP separator were elucidated in Figure 1. It was clearly observed in Figure 1a that the average diameter size of polypropylene fibers was 2 ± 0.1 μm and the polypropylene nonwoven exhibited excessively large-sized pores (>3 μm), which may lead to internal short circuits and a decrease in open voltage of the battery. It was demonstrated in Figure 1b–1c that the pores of PSAP separator were homogeneously distributed and the diameter was about 1 μm. As shown in Figure 1d, the average thickness of PSAP separator was 50 μm and it possessed tortuously labyrinth-like porous structure. The well interconnected microporous structure and intrinsically lyophilic nature of PSAP separator was expected to prevent the growth of lithium dendrites and absorb more electrolyte, resulting in high ionic conductivity.^24–26

Zoom In Zoom Out Reset image size

Table I listed the thickness, porosity, air permeability and electrolyte uptake of MPP separator, polypropylene nonwoven and PSAP separator, respectively. Gurley value of polypropylene nonwoven was 0.5 s due to its larger pore sizes. However, Gurley value of PSAP separator was 26 s, which was much lower than that of MPP separator (492 s). It is well recognized that highly microporous structure of separator generate lower Gurley value. The improvement in the microporous structure of PSAP separator was consistent with its porosity. Notably, the porosity of PSAP separator (65%) was fairly higher than that of MPP separator (35%) and lower than that of polypropylene nonwoven (90%). It was deduced that although PSA coating reduced the porosity of polypropylene nonwoven, PSAP separator still possessed considerable porosity for holding sufficient liquid electrolyte in facilitating free ionic transportation and improving ionic conductivity.^6,27–30

The electrolyte uptake of separators was crucial for cycle performance of lithium ion battery. Figure 2 displayed electrolyte uptake curves of MPP separator, polypropylene nonwoven and PSAP separator at varied time. And the inset vividly showed that the wettability of MPP separator was poor due to its intrinsically hydrophobic nature and low surface energy.³¹ In contrast, PSAP separator was easily soaked and the electrolyte droplets rapidly spread over a wide area of the separator. Obviously, the electrolyte uptake of PSAP separator took within 20 min, while it took more than 2 h to reach its maximum value for MPP separator. The comparatively higher uptakes of liquid electrolyte implied that better affinity exists between PSAP separator and the liquid electrolyte. The enhanced electrolyte wettability and uptake of PSAP separator may be ascribed to the well interconnected microporous structure and the intrinsically lyophilic nature of polysulfonamide material.³² Both the highly developed porous structure and good electrolyte wettability were expected to allow fast ion transport in PSAP separator, which thus contributed to better rate capability of the cells.^33–35

Zoom In Zoom Out Reset image size

Thermal shrinkage of the separators was another significant factor pertaining to safety characteristics of the lithium ion battery.^36–38 Hot oven test was conducted for MPP separator, polypropylene nonwoven and PSAP separator for 1 h storage. As shown in Figure 3a, PSAP separator exhibited negligible thermal shrinkage than the MPP separator over a wider range of temperatures from 100°C to 150°C, which verified that the introduction of PSA coating is effective in improving the thermal dimentional stability of separators.²⁰ It could be seen in Figure 3b that PSAP separator exhibited negligible dimension change, while MPP separator shrank by 50% at the uniaxially stretched direction. This superior thermal tolerance could prevent internal electrical short circuit at elevated temperature during cell cycling. Hence, PSAP separator was expected to be a highly safe separator for lithium ion battery with requested thermal safety.

Zoom In Zoom Out Reset image size

The flame retarding capability of the separator was a critical factor for improving the safety of lithium ion battery and has been very rarely mentioned because most polyolefin-based separators are combustible.³⁹ Combustion test of MPP separator and PSAP separator in air was shown in Figure 4. When MPP separator was set on fire, the separator shrank immediately and caught fire within short time (<3 s) (Figure 4a, 4c). In contrast, PSAP separator showed excellent flame retarding ability. It did not be ignited even when set on fire (Figure 4b, 4d). Limiting oxygen index (LOI) is a parameter for evaluating flame retardancy and flammability of polymeric materials. The higher the value of LOI is, the better the flame retardancy is. The LOI results for the samples were depicted in Table I. It can be seen that PSAP separator presented higher LOI values (25%) than that of MPP separator (18%). The inflame retarding property of PSAP separator was superior to that of MPP separator. The main reason was that compositing PSA improved heat resistance and phenoxy polyphosphazene enhanced flame retardancy of polypropylene nonwoven. This superior inflame retarding property endow better safety performance for PSAP separator compared to MPP separator.

Zoom In Zoom Out Reset image size

It is important to investigate the electrochemical stability of separator within the operation voltage of the battery system for practical battery applications. It was observed in Figure 5 that electrolyte soaked with MPP separator decomposed at about 4.8 V vs. Li⁺/Li which agreed well with the literature reported.⁴⁰ While there are no obvious decomposition of any components in the electrolyte soaked with PSAP separator below 5.0 V vs. Li⁺/Li. The high electrochemical stability would be ascribed to intrinsic high electrochemical stability of PSA material and superior interfacial compatibility between the carbonate electrolyte and separator.⁴¹ These results indicate that PSAP separator is very promising for applications in lithium ion battery.

Zoom In Zoom Out Reset image size

Arrhenius plots of ionic conductivity of liquid electrolyte-soaked MPP separator and PSAP separator as a function of temperature was depicted in Figure 6. It could be observed that ionic conductivity increases with increasing temperature. At 20°C, the obtained ionic conductivity was 2 × 10⁻⁴ and 8 × 10⁻⁴ S cm⁻¹ for MPP separator and PSAP separator, respectively. At 60°C, the obtained ionic conductivity was 4 × 10⁻⁴ and 1.2 × 10⁻³ S cm⁻¹ for MPP separator and PSAP separator, respectively. Considering the considerable porosity, ionic conductivity of liquid electrolyte-soaked PSAP separator was much higher than that of MPP separator mainly due to its interconnected porous structure and better electrolyte uptake.^42,43 The linear plots suggested that the conductive behavior was basically agreed well with the Arrhenius equation over the temperature range of 20°C to 60°C.⁴⁴ Thus, the activation energy (E_a) could be calculated from the slope of fitted straight line according to the Arrhenius equation σ = A exp (-E_a/RT), where σ was conductivity of membrane, A was the pre-exponential index, E_a was the activation energy, R was gas constant (8.314 J K⁻¹ mol⁻¹), and T was temperature (K). The E_a for MPP separator and PSAP separator were 15.83 kJ mol⁻¹ and 8.84 kJ mol⁻¹, respectively. Lower activation energy means faster ion diffusion, which favors enhanced ionic conductivity.

Zoom In Zoom Out Reset image size

A key factor in determining the practical applications of PSAP separator is its endurable high-rate charge and discharge capability in lithium ion battery. Figure 7 depicted clearly that the rate capabilities of the LiCoO₂/graphite cells employing the MPP separator and PSAP separator. The discharging capacities of the MPP separator cells dropped drastically as discharging current densities increased from 0.2 C(138 mAh g⁻¹) to 8 C (50 mAh g⁻¹, 36.2% of the discharging capacity at 0.2 C). By contrast, PSAP separator based cells exhibited much better capacity retention at varied rate. It was demonstrated that the cells assembled with PSAP separator showed higher discharge capabilities than that of MPP separator. This better rate performance is an indicator of a low resistance, which can be contributed to better ionic transport capability.^26,45

Zoom In Zoom Out Reset image size

Cycle life was also an important parameter for evaluating lithium ion battery. The capacity retention ratio as a function of cycle number at various rates from 0.5 C to 8.0 C for LiCoO₂/graphite cells using MPP separator and PSAP separator was shown in Figure 8. The cell with PSAP separator at 0.5 C gave an initial discharge capacity of 133.1 mAh g⁻¹ and retains 121 mAh g⁻¹ after 60 cycles indicative of a better capacity retention ratio of around 90%, while that of MPP separator retained 80% of its initial capacity. Futhermore, cycle performance of LiCoO₂/graphite cells at different rates from 1 C and 8 C was also measured. It was clearly noted that the cell with PSAP separator displayed much higher discharge capacity and more excellent cycle performance than MPP separator at various rates. The superior cycle performance of PSAP separator would be attributed to excellent liquid electrolyte retention and outstanding electrochemically interfacial stability.^46,47

Zoom In Zoom Out Reset image size

To investigate the variation of cell impedances during cycle performance test, AC impedance measurement was carried out for LiCoO₂/graphite cells assembled with MPP separator and PSAP separator after the first cycle and after the 100 cycles test. It is well known that the semicircle corresponds to the charge-transfer resistance due to lithium ion migration at the electrode/electrolyte interface.¹⁷ The straight slopping line corresponds to the diffusion resistances of lithium ion.

It was observed in Figure 9a that the charge-transfer resistance of PSAP separator after first cycle was 20 Ω, which slightly lower to that of MPP separator (21 Ω). However, obvious differences of the charge transfer regime after 100 cycles were observed in Figure 9b. The kinetic property was further investigated by modeling AC impedance spectra based on the modified equivalent circuit (Figure 9b). The fitting values from this equivalent circuit are presented in Table II. It was clearly shown that R_ct of the PSAP separator after 100 cycles 35 Ω, whereas that of the MPP separator displayed 46 Ω. The difference of charge-transfer resistance between MPP separator and PSAP separator was ascribed to a good compatibility between PSAP separator and liquid electrolyte.⁴⁸

Zoom In Zoom Out Reset image size

In the following study, cycle performance of lithium iron phosphate (LiFePO₄)/Li metal cells using MPP separator and PSAP separator are evaluated under 0.5 C at an elevated temperature of 120°C. As shown in Figure 10, the discharge capacity retention after 30 cycles was found to be 90% for PSAP separator. In contrast, the cell using MPP separator could not charge and discharge at 120°C. This could be explained that better thermal dimensional stability of PSAP separator maintained the unusual cycle performance of lithium ion battery at the elevated temperature, promising a possible long-term service life for high power lithium ion battery.⁴⁹
