A Design Approach to Lithium-Ion Battery Electrolyte Based on Diluted Solvate Ionic Liquids

Triglyme (G3, water content <50 ppm) and tetra-glyme (G4, water content <50 ppm) were kindly supplied by Nippon Nyukazai. Li[TFSA] (battery-grade, water content <50 ppm) was kindly supplied by Solvay Japan. Super-dehydrated toluene was purchased from Wako. Battery-grade propylene carbonate (PC) and lithium bis(pentafluoroethanesulfonyl)amide (Li[BETA]) were obtained from Kishida Chemical. A hydrofluoroether, 1,1,2,2-tetrafluoroethy-l 2,2,3,3-tetrafluoropropyl ether, which has a chemical structure of HCF₂−CF₂−O−CH₂−CF₂−CF₂H (hereafter, abbreviated as HFE), was purchased from Kanto Kagaku and dried with molecular sieves. All these electrolyte components were used as received. The electrolyte solutions were prepared and stored in an Ar-filled glove box (VAC, [H₂O] < 1 ppm).

For the LiCoO₂ positive electrode, LiCoO₂ powder (kindly supplied by AGC Seimi Chemical), acetylene black (AB, Denki Kagaku Kogyo), and poly(vinylidene fluoride) (PVDF, Kureha Chemical) were used as an active material, a conduction supporting agent, and a binder, respectively. The mass ratio of LiCoO₂/AB/PVDF was 85/9/6. A slurry with N-methylpyrrolidone (NMP, Kanto Chemical) was spread on an Al foil current collector and dried at 80°C. The prepared LiCoO₂ electrode sheet was cut into a circular shape (16 mm diameter) and compressed at 300 kgf cm⁻² using a hydraulic press. The thickness and active material loading were ca. 17 μm and ca. 3 mg cm⁻², respectively. For the graphite negative electrode, artificial graphite powder (kindly supplied by Hitachi Chemicals), AB, and PVDF were mixed with the mass ratio of graphite/AB/PVDF at 90/3/7. The NMP slurry was spread on a Cu foil current collector and dried at 80°C. This graphite sheet was cut into a circular shape (16 mm diameter) and compressed at 300 kgf cm⁻² using a hydraulic press. The typical thickness of the graphite anode was ca. 40 μm, which corresponds to a loading of graphite of ca. 4 mg cm⁻². The above electrodes were used for half-cell tests. Commercially available electrode sheets of LiCoO₂ (1.5 mAh cm⁻²) and graphite (1.6 mAh cm⁻²) (both obtained from Piotrek), were also employed for full-cell tests.

The oxidative electrochemical stabilities of the electrolytes were studied using linear sweep voltammetry (LSV) with an electrochemical measurement system (VMP3, Bio-Logic). LSV was performed at 30°C at a scan rate of 1 mV s⁻¹ in a three-electrode cell with Li metal foil as the reference and counter electrodes and a platinum or aluminum disk as the working electrode.

For half-cell tests, a 2032-type coin cell was fabricated with the composite electrode (LiCoO₂ or graphite), a glass filter as a separator (GA-55, Advantec), a Li metal disk (16 mm in diameter, Honjo Metal), and electrolyte in an Ar-filled glove box. Galvanostatic charge/discharge measurements were performed on the coin cells using an automatic charge/discharge instrument (HJ1001SD8, Hokuto Denko) at 30°C. The cutoff potentials were set to 3.0 and 4.2 V for the LiCoO₂ half-cell and at 0.001 and 2.0 V for the graphite half-cell, respectively. The specific capacity of the cell was calculated on the basis of the active material loading. The gravimetric current density was 137 mA g⁻¹ and 372 mA g⁻¹ (C/1 rate) for the LiCoO₂ and graphite half-cell, respectively. For full-cell tests, the commercial LiCoO₂ and graphite electrodes (10 and 12 mm in diameter, respectively) and the glass filter separator were used for fabricating a 2032-type coin cell.

Table I summarizes salt concentration (c); transport properties such as conductivity (σ), viscosity (η), and molar conductivity ratio (Λ_imp/Λ_NMR); and the ratio of self-diffusion coefficients for glyme and lithium (D_G/D_Li) for neat SILs and SILs diluted by toluene, PC or HFE as reported in our previous work.^31,34 Except for [Li(G3)][TFSA]/toluene, ionic conductivities were enhanced to a level comparable with that of the standard electrolyte by dilution with less viscous solvents. However, increases in ionic conductivities were not as high as expected given that dilution lowered viscosity values by two orders of magnitude. This phenomenon can be attributed to a decrease in the number of charge carriers resulting from dilution and ionic association. The molar conductivity ratio (so-called ionicity, Λ_imp/Λ_NMR) has been used to estimate the apparent degree of dissociation or correlative motion of ions in various types of electrolytes.^35,36 Λ_imp is the molar conductivity, and Λ_NMR is determined from the ionic self-diffusion coefficients D_Li and D_TFSA using the Nernst-Einstein equation: Λ_NMR = F²(D_Li + D_TFSA)/RT, where F is the Faraday constant, R is the gas constant, and T is the absolute temperature. As can be seen in Λ_imp/Λ_NMR values (Table I), the addition of toluene decreased Λ_imp/Λ_NMR for both SILs and ionic association is more pronounced in [Li(G3)][TFSA]/toluene. The lower ionicity and increased ionic association caused a minor increase in conductivity for [Li(G3)][TFSA]/toluene.

The D_G/D_Li ratio is a useful tool for evaluating the stability of complex cations [Li(G3)]⁺ and [Li(G4)]⁺ in the diluted SILs (Table I). D_G/D_Li is close to unity for neat and toluene- and HFE-diluted SILs, suggesting the formation of glyme-Li complex cations. However, D_G/D_Li is > 1 in PC-diluted SILs, indicating the glyme diffused faster than Li⁺. Likely, ligand exchange between the glyme and PC was responsible for the D_G/D_Li > 1. Obviously, the stability of glyme-Li complex cations is greatly influenced by solvent species and uncoordinated glymes were present in the PC-diluted SILs.

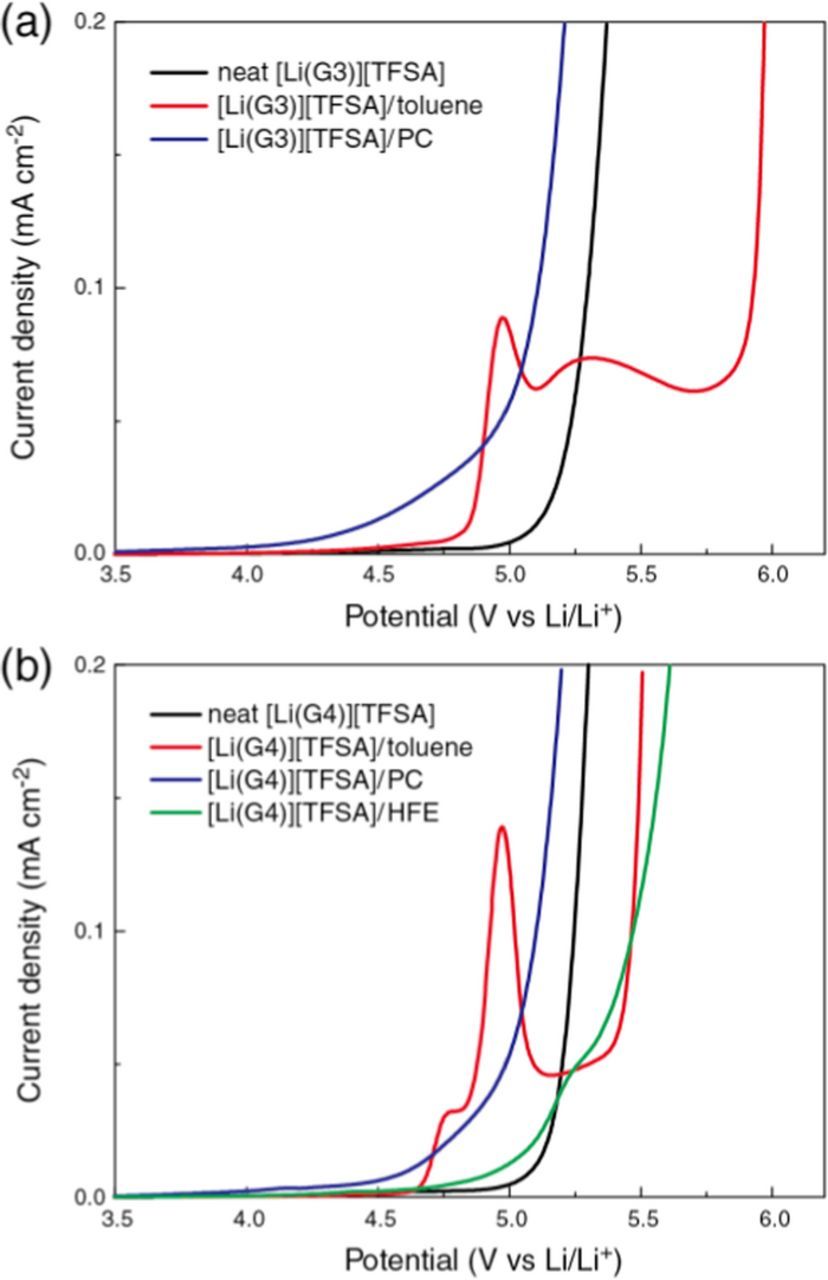

Figure 1 shows LSV curves at a Pt electrode in the neat and diluted SILs. Previous studies have shown that glyme solvents are oxidized around 4 V (vs Li/Li⁺) in the uncoordinated form, but that anodic stability is enhanced to 5 V by complex formation with Li⁺ because strong glyme-Li interactions lower the highest occupied molecular orbital (HOMO) energy levels of the glymes.^37,38 The diluted electrolytes of [Li(G3)][TFSA] and [Li(G4)][TFSA] showed similar voltammograms regardless of their cationic structure, [Li(G3)]⁺ or [Li(G4)]⁺. The onset potentials of current flow in toluene-, PC- or HFE-diluted SILs were lower than those in neat SILs. Modest anodic current in the range of 4−4.5 V can be measured in the PC-diluted SILs. Because the co-solvent PC is electrochemically stable in this potential range, the anodic current is attributed to the oxidative decomposition of the uncoordinated glyme. Discernible current flow followed by peak current was observed at potentials higher than 4.5 V in the toluene-diluted SILs, likely due to anodic decomposition of the co-solvent toluene. Although the anodic stability of the toluene- and HFE-diluted SILs was lower than those of the neat SILs, they have a potential to withstand the operation of 4 V-class Li-ion batteries.

Zoom In Zoom Out Reset image size

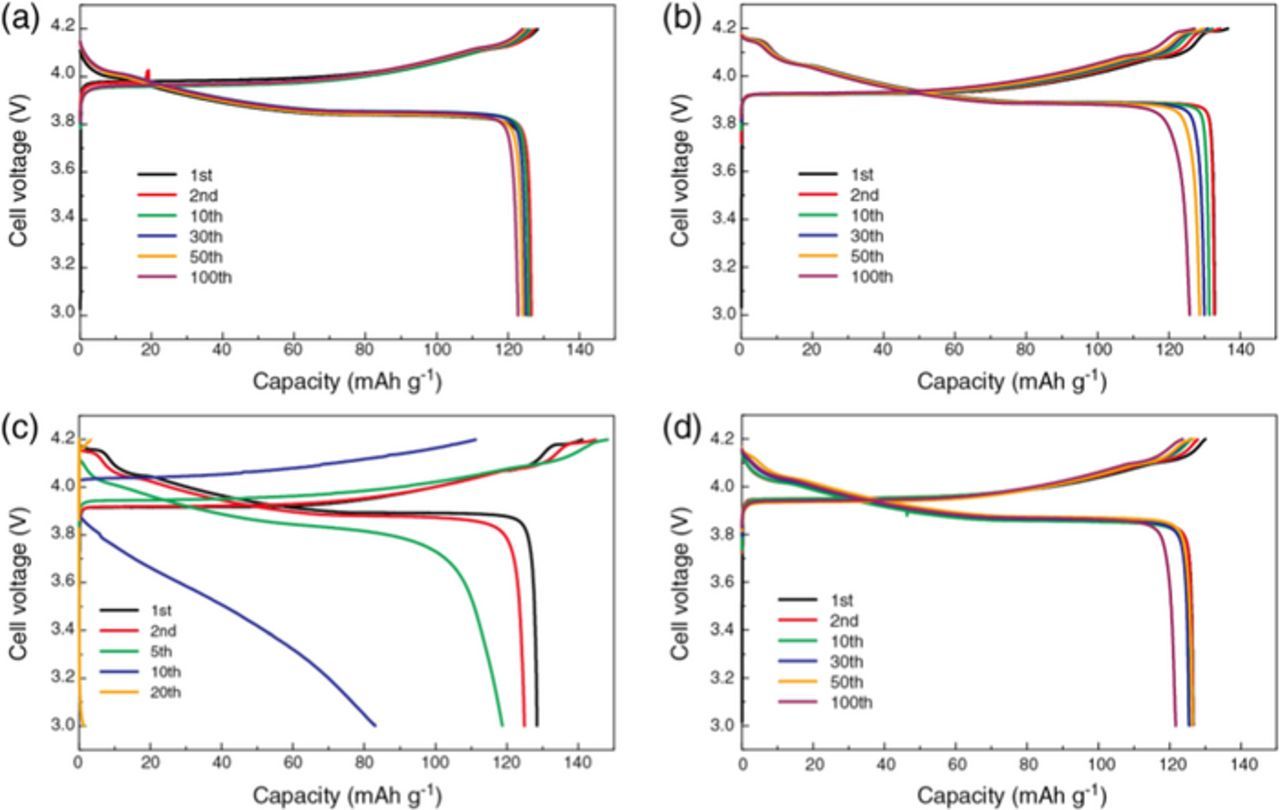

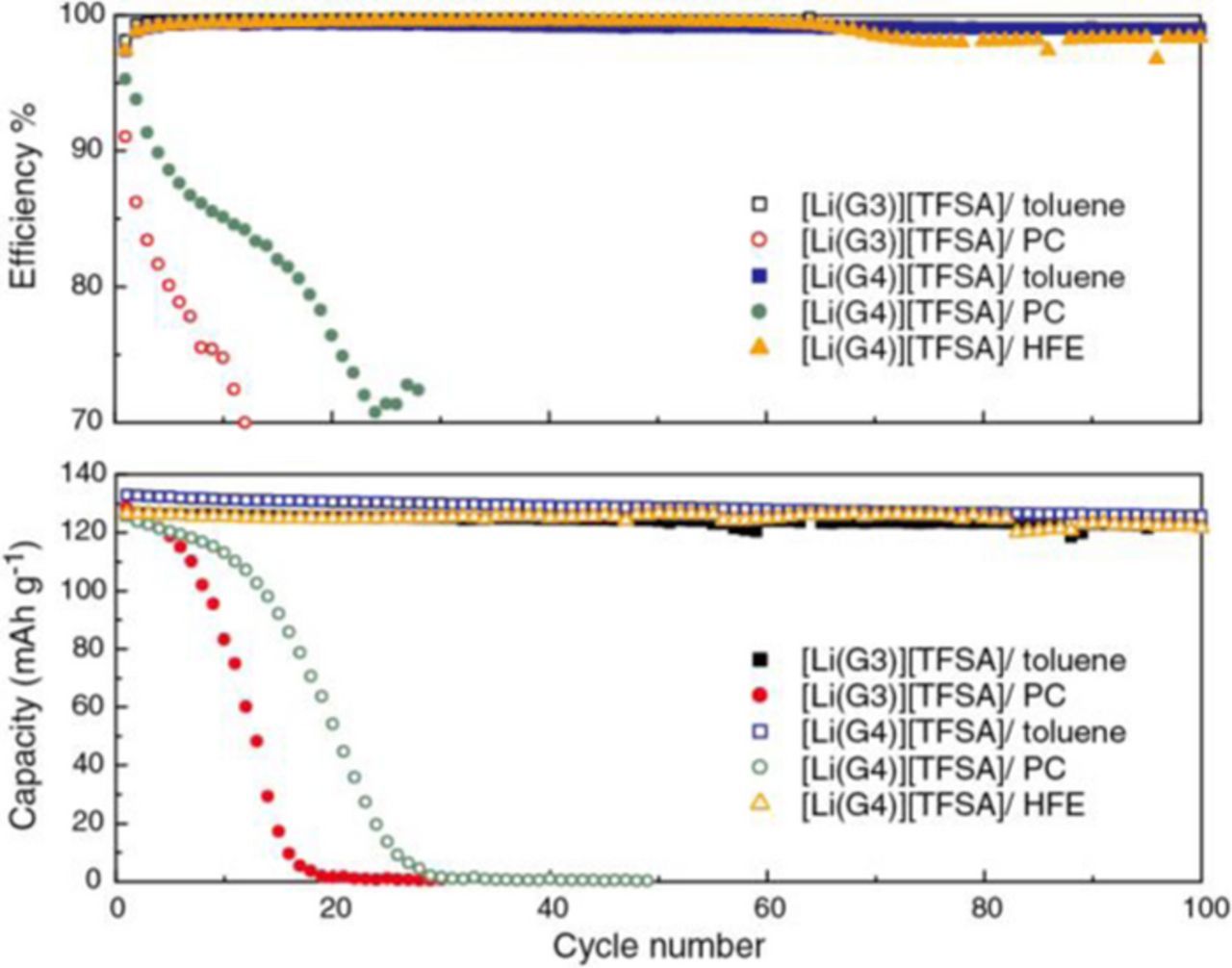

To examine the applicability of the diluted SIL electrolytes to 4 V-class Li-ion batteries as noted in the former section, we investigated the charge/discharge behavior of Li-LiCoO₂ half-cell. The theoretical capacity of LiCoO₂ in this voltage range is 137 mA h g⁻¹ based on the electrochemical reaction: LiCoO₂ ⇄ Li_1/2CoO₂ + 1/2Li⁺ + 1/2e⁻. Figures 2 and 3 show the galvanostatic charge/discharge curves and cycle characteristics of [Li metal anode | diluted SIL electrolyte | LiCoO₂ cathode] cells measured in the cell voltage range 3.0−4.2 V at a gravimetric current density of 17 mA g⁻¹ (C/8 rate), corresponding to a geometric current density of 50 μA cm⁻².

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Due to the enhanced anodic stability, the toluene-diluted SILs allowed reversible and stable charge/discharge behaviors with a high Coulombic efficiency (99%) of the LiCoO₂ half-cells. Cells retained 97% and 95% discharge capacities even after 100 cycles for [Li(G3)][TFSA]/toluene and [Li(G4)][TFSA]/toluene, respectively. The cell with [Li(G3)][TFSA]/toluene showed a lower initial capacity (126 mAh g⁻¹) compared to the cell with [Li(G4)][TFSA]/toluene that delivered the initial charge and discharge capacity (132 mAh g⁻¹) close to the theoretical value. As shown in Figures 2a and 2b, the charge and discharge voltage plateaus of the cell with [Li(G3)][TFSA]/toluene are slightly higher and lower, respectively, than those of the cell with [Li(G4)][TFSA]/toluene. This is indicative of higher internal resistance in the cell with [Li(G3)][TFSA]/toluene. The lower ionic conductivity of [Li(G3)][TFSA]/toluene is probably responsible for the observed lower capacities and larger overvoltage of the LiCoO₂ half-cell. For comparison, the charge-discharge curves and the cycling performance of the LiCoO₂ half-cell with [Li(G4)][TFSA]/HFE is also shown in Figures 2d and 3. HFE is not a common organic solvent but can provide non-flammability³⁹ and high fluidity to the SILs.³¹ Similar to the cell with the toluene-diluted SILs, [Li(G4)][TFSA]/HFE showed reversible and stable charge/discharge behaviors with a high Coulombic efficiency (99%) because the glyme-Li complex cations also remained stable in HFE.³¹

In contrast to the cells using the toluene-diluted SILs, the charge/discharge behavior of the cells using the PC-diluted SILs was very unstable, as shown in Figures 2c and 3. At the beginning of the cycles (1st−5th), the charge capacities exceeded the theoretical capacity of 137 mAh g⁻¹ suggesting unfavorable side reactions occurred in the cell, e.g., the oxidative decomposition of the glyme as discussed in the former section. The overvoltage in the charge/discharge curves increased with repeating charge/discharge cycles and both capacity and efficiency rapidly faded within 20 or 30 cycles. The rapid failure of the cell is possibly due to the electrochemical instability of the PC-diluted SIL electrolyte, i.e., the uncoordinated glymes, at high charging potential (∼4.2 V) in the LiCoO₂ half-cell.

The Al electrode is known to undergo pitting corrosion around 3.8 V in electrolytes containing Li[TFSA] salt.^40–42 Therefore, both corrosion of the Al current collector and electrolyte decomposition may occur in diluted SILs. This corrosion may be another factor behind the deteriorating charge/discharge performance of the cells with PC-diluted SILs. Previous reports proposed that Al corrosion in Li[TFSA]-based electrolytes takes place through decomposition of the oxide layer, followed by the anodic dissolution of Al metal into the electrolyte in form of a complex with [TFSA]⁻ such as Al[TFSA]₃.^43,44 Recent studies have also shown that Al corrosion can be suppressed in concentrated electrolytes⁴⁵ and neat SILs³⁰ as well as in aprotic IL-based electrolytes, in which no effective solvents that are capable of dissolving the Al-[TFSA] complexes are present.⁴⁴

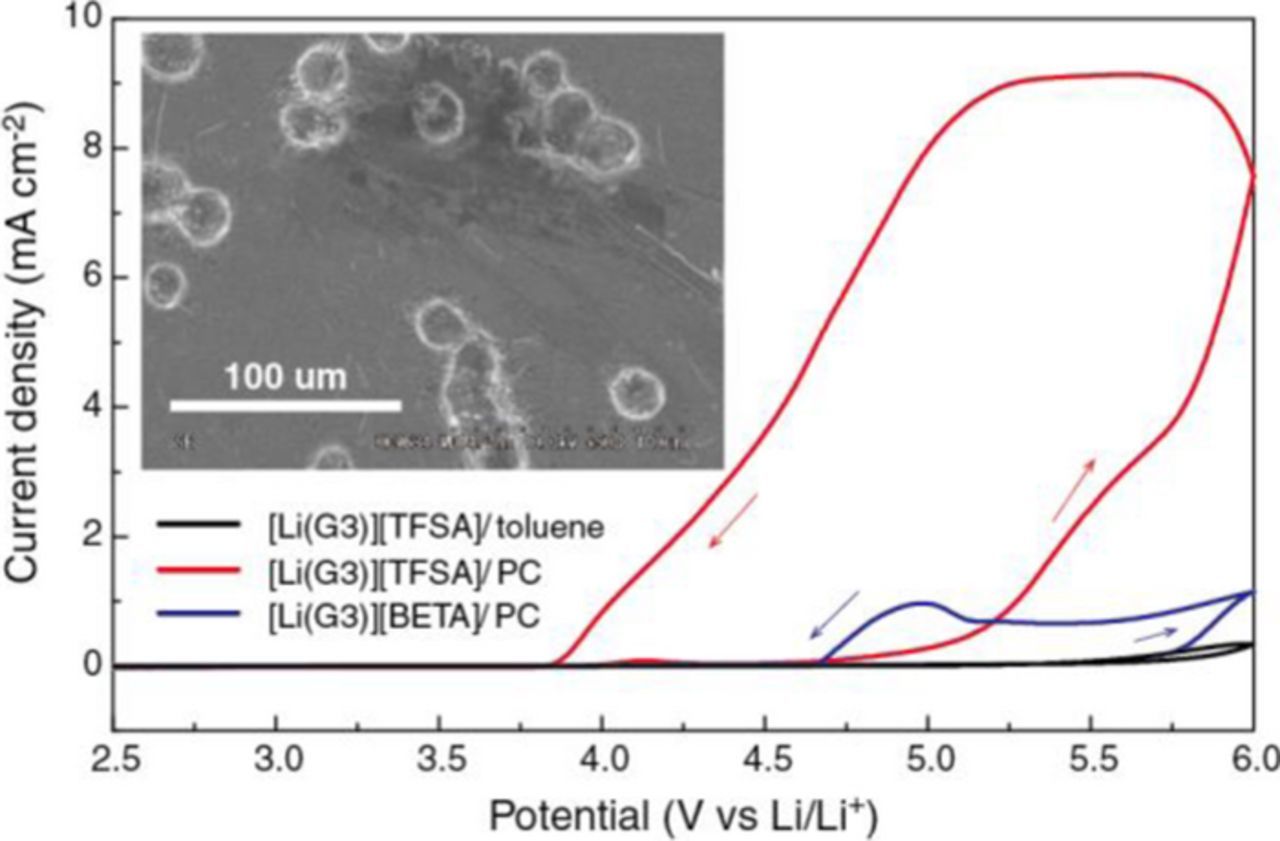

To study the Al corrosion behavior in the diluted SILs, cyclic voltammetry was performed on the coin cell with Al foil as a working electrode and metallic Li-foil as counter and reference electrodes. Figure 4 shows cyclic voltammograms of an Al electrode in diluted SIL electrolytes. As expected, there is no detectable current in the voltammograms for [Li(G3)][TFSA]/toluene at a potential less than 5 V. The Al corrosion was evidently suppressed in [Li(G3)][TFSA]/toluene because Al-[TFSA] complexes would be insoluble in both toluene and [Li(G3)][TFSA]. Similarly, the Al corrosion is suppressed in the [Li(G3)][TFSA]/HFE electrolyte because Al-[TFSA] complexes is insoluble in HFE.³² Therefore, the LiCoO₂ half-cell with the HFE-diluted SIL can be cycled for more than 100 cycles (Figure 2d). However, a drastic increase in the anodic current can be seen in [Li(G3)][TFSA]/PC. The surface Al₂O₃ layer was decomposed at the first anodic scan. Then, oxidation of the fresh Al surface and the anodic dissolution of Al-[TFSA] complexes occurred simultaneously during the reverse scan. SEM image of the Al electrode after measurement (Figure 4 inset) confirmed the pitting corrosion of the Al electrode in [Li(G3)][TFSA]/PC. Both polar co-solvent PC and the uncoordinated glyme can solubilize the Al-[TFSA] complexes, leading to the observed pitting corrosion. The same Al corrosion tests were also performed in [Li(G4)][TFSA]/toluene, [Li(G4)][TFSA]/PC, and [Li(G4)][BETA]/PC, but the results (data not shown) were very similar to those in the diluted SILs based on [Li(G3)][TFSA] or [Li(G3)][BETA] as shown in Figure 4.

Zoom In Zoom Out Reset image size

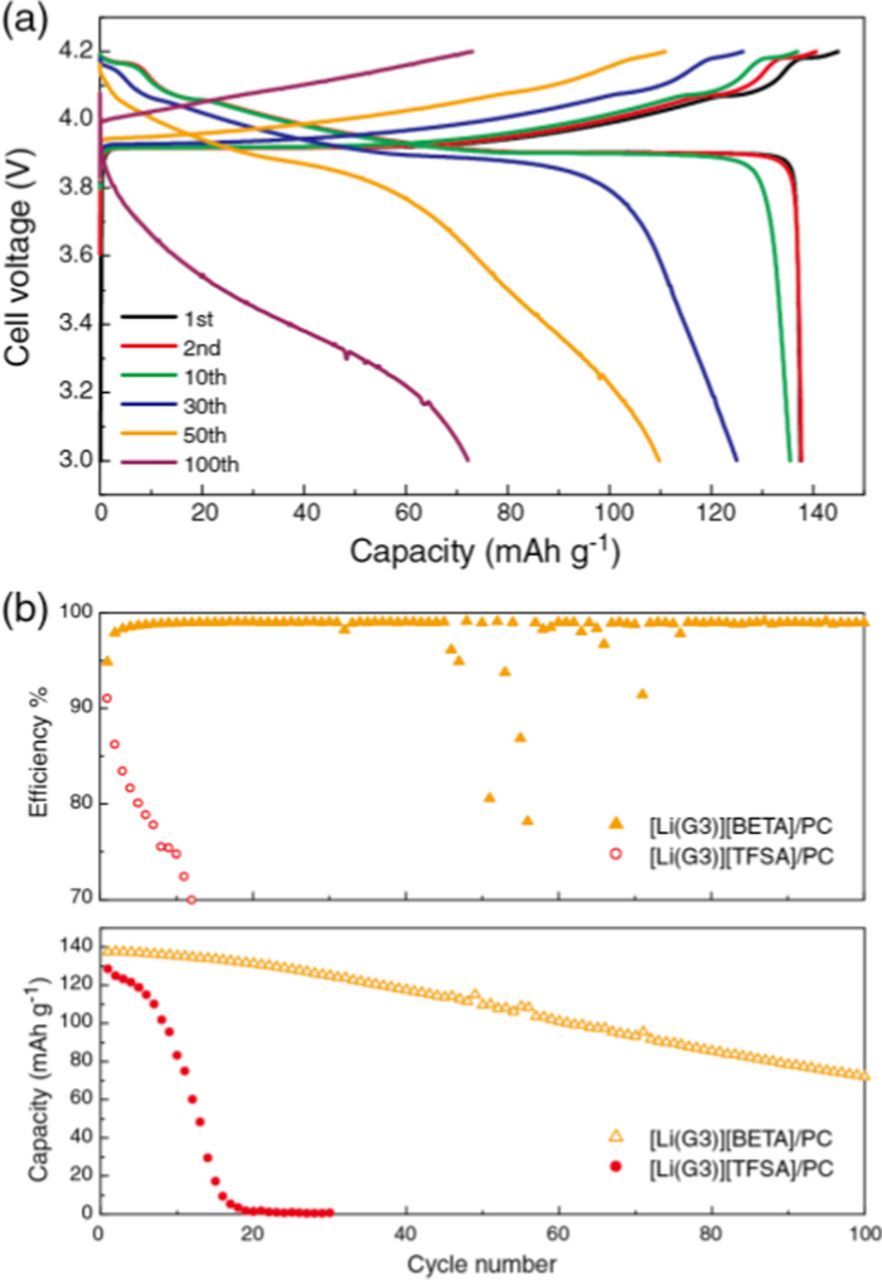

Unlike Li[TFSA]-based electrolytes, organic electrolytes containing Li[BETA] salt were reported to mitigate the pitting corrosion of Al current collector.⁴³ Therefore, we also examined the Al corrosion behavior in [Li(G3)][BETA]/PC. The anodic dissolution of the Al electrode (and/or electrolyte decomposition) was suppressed up to 4.7 V in [Li(G3)][BETA]/PC. Likely, insoluble Al-[BETA] complexes could be formed on the electrode surface during the anodic scan and further Al corrosion did not take place in this electrolyte. Nevertheless, the capacities of the LiCoO₂ half-cells with [Li(G3)][BETA]/PC faded upon cycling, as shown in Figure 5. This result indicates the anodic decomposition of the uncoordinated glymes (as suggested by D_G/D_Li = 1.09 for [Li(G3)][BETA]/PC) also contributed to capacity fading. The decline was not as drastic as for the LiCoO₂ half-cells with [Li(G3)][TFSA]/PC and these cells retained 53% discharge capacity after 100 cycles. Coulombic efficiency (98−99%) was greater for the cells with [Li(G3)][BETA]/PC than that of the cell with [Li(G3)][TFSA]/PC. These results suggest that the rapid capacity fading and low efficiency of the cell with [Li(G3)][TFSA]/PC (Figure 3) were predominantly attributed to Al corrosion.

Zoom In Zoom Out Reset image size

Consequently, electrolyte components in diluted SILs greatly influenced the electrochemical stability and charge/discharge performance of the LiCoO₂ half-cells. The SILs diluted with apolar solvents, such as toluene and HFE, allowed stable and reversible cycling of the LiCoO₂ half-cells, owing to their higher anodic stability and suppression of the Al corrosion.

Reversible charge-discharge of graphite anode depends on the formation of an effective SEI layer on the graphite surface to yield a graphite intercalation compound accompanied with desolvation of Li⁺. This is one of the reasons that the standard electrolyte has been thus far irreplaceable. Many electrolytes were excluded from candidacy for Li-ion batteries using a graphite electrode due to their incompatibility with the graphite anode. For instance, the intercalation of the organic cations hinders the successful intercalation of Li⁺ in aprotic IL-based electrolyte,⁴⁶ except for in special cases such as bis(fluorosulfonyl)amide (FSA) anion based ILs.⁴⁷ The reversible intercalation/deintercalation of the cationic species of the ILs from/into graphite was confirmed instead of the Li⁺ intercalation/deintercalation. Sulfone-based organic electrolytes generally reduced at a potential higher than the intercalation/deintercalation potential of Li⁺, but did not form the effective SEI. Even organic electrolyte with PC as a main component does not achieve successful charge/discharge of the graphite anode due to the co-intercalation of the Li⁺ solvated with PC solvents into the graphite layer and continuous reductive decomposition of PC on the graphite. Likewise, ether-based organic electrolytes including glyme also caused the solvent intercalation and the associated graphite exfoliation.⁴⁸ SEI-forming additives such as ethylene sulfite, vinylene carbonate, and fluoroethylene carbonate have often been added to electrolytes for the reversible intercalation/deintercalation.⁴⁹ Recently, Song et al. reported that the co-intercalation can be suppressed in a PC-based electrolytes by the addition of small amount of diglyme.⁵⁰ In this case, the diglyme-solvated Li⁺ ion preferentially intercalated and decomposed within the graphite and form a surface film (SEI), and the SEI effectively suppresses the co-intercalation of PC-solvated Li⁺, i.e. the diglyme acts as SEI-forming additive in PC-based electrolytes.

Recent works have shown that highly concentrated electrolytes of various popular solvents such as PC, ethyl acetate, dimethoxyethane, tetrahydrofuran, acetonitrile, sulfolane, and dimethyl sulfoxide allow reversible charge/discharge of graphite anode.^51–54 The same thing was also true for the SILs [Li(G3)][TFSA] and [Li(G4)][TFSA].^32,33,48 A possible explanation by Yamada et al. for this general phenomenon in the highly concentrated electrolytes is that an effective SEI can be formed by sacrificial decomposition of counter anions of a Li salt such as [TFSA]⁻.⁵⁵ Dokko et al. reported that the desolvation of Li⁺ occurred at the graphite interface when the activities of Li⁺ and uncoordinated solvent in the electrolyte are significantly high and low respectively, whereas the co-intercalation of Li⁺ and solvent takes place in the electrolyte containing the uncoordinated solvent (i.e., high activity of the uncoordinated solvent).⁴⁸ The activities of Li⁺ and the uncoordinated solvent were responsible for the reversible intercalation/deintercalation.^32,48

Apolar solvents such as HFE and toluene do not behave as a solvent for Li⁺ solvation so are likely not responsible for the reversible intercalation/deintercalation. Our previous study revealed that the HFE-diluted SILs allowed the reversible Li⁺ intercalation into graphite with a relatively high capacity of 300 mAh g⁻¹.^32,33

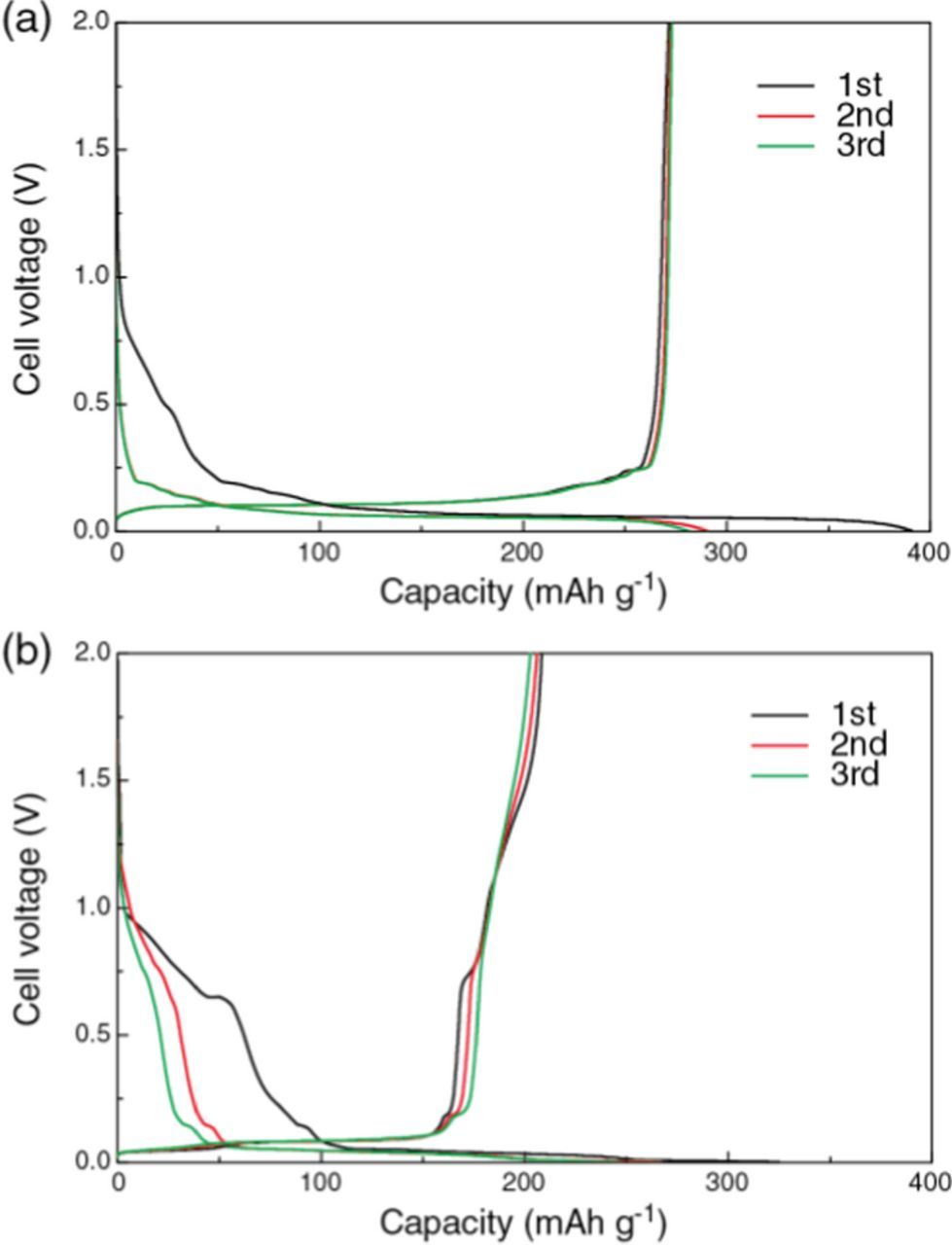

Figure 6 shows the galvanostatic charge/discharge curves of [Li metal anode | diluted SIL electrolyte | graphite cathode] cells measured in the cell voltage range from 0.001−2.0 V at a current density of 18.6 mA g⁻¹ at 30°C (C/20 rate). The Li⁺ intercalation process is defined as "charging" for the graphite electrodes. In Figure 6a, irreversible capacity was observed in the range 0.25−0.8 V at 1^st cycle during the charging for the cell with [Li(G3)][TFSA]/toluene. This phenomenon can be attributed to co-intercalation of Li⁺ and G3 into the graphite, leading to initial Coulombic efficiency of 70%. However, in 2^nd and 3^rd cycles, the irreversible charge capacity became significantly smaller and a large charge capacity appeared in the potential range <0.2 V due to the expected Li⁺ intercalation for the formation of graphite intercalation compound with Li⁺. The discharge capacity of the cell reached approximately 270 mA h g⁻¹, and the Coulombic efficiency of 2^nd and 3^rd cycles were ca. 94−96%. This suggests that desolvation of Li⁺ occurred successfully at the graphite/electrolyte interface and the co-intercalation of G3 was suppressed in [Li(G3)][TFSA]/toluene. The capacity being lower than the theoretical value may be ascribed to the lower ionic conductivity of [Li(G3)][TFSA]/toluene. In Figure 6b, irreversible capacity for the cell with [Li(G4)][TFSA]/toluene was larger than that for the cell with [Li(G3)][TFSA]/toluene, and was still discernible at 2^nd and 3^rd cycles. Discharge capacities (approximately 200 mA h g⁻¹) and Coulombic efficiency (64−82%) were also smaller for the cell with [Li(G4)][TFSA]/toluene. These results suggest that the unfavorable co-intercalation of the solvent was more pronounced in the cell with [Li(G4)][TFSA]/toluene. Highly reversible charge/discharge of the graphite half-cell with [Li(G3)][TFSA]/toluene is probably due to higher activity of Li⁺ in [Li(G3)][TFSA] than in [Li(G4)][TFSA] as reported in previous measurements of Li/Li⁺ electrode potential.⁵⁶

Zoom In Zoom Out Reset image size

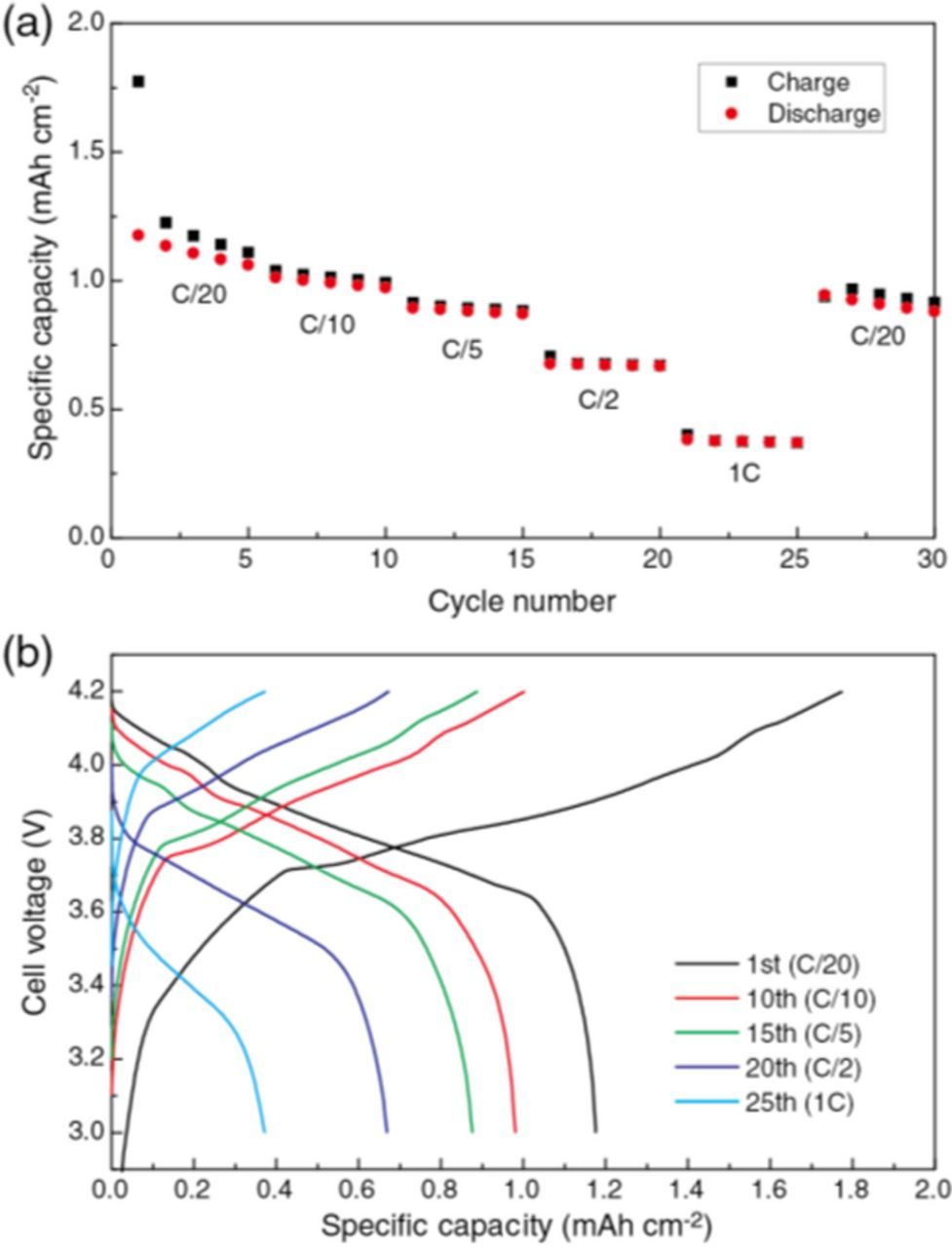

The rate capability of the [LiCoO₂ cathode | diluted SIL electrolyte | graphite anode] cell is shown in Figure 7, where [Li(G3)][TFSA]/toluene was chosen as the electrolyte because of its better compatibility with the LiCoO₂ and graphite electrodes. The initial charge capacity exceeded the theoretical capacity of the cell (1.5 mAh cm⁻²), but 1^st discharge capacity was ca. 1.2 mAh cm⁻², corresponding to a Coulombic efficiency of 66%. These capacities are likely due to the irreversible reactions at the graphite/electrolyte interface as mentioned in the former section. After the 1^st cycle, the efficiencies greatly improved to 95−99% at subsequent cycles depending on the charge/discharge rate, suggesting more reversible charge/discharge reactions at both LiCoO₂ positive and the graphite negative electrodes. The capacities decreased with an increase in charge/discharge rate, but the full-cell still delivered charge/discharge capacities of ca. 0.4 mAh cm⁻² (C/1 rate) with the efficiency of 99% and discharge capacity retention of 75% after 30 cycles at a C/20 rate. As can be seen in Figure 7b, the overpotential on charge/discharge increased at a higher rate, due to the limited Li⁺ transport in [Li(G3)][TFSA]/toluene as well as Li⁺ diffusion inside the active materials and Li⁺ transfer across the electrode/electrolyte interfaces. Therefore, the increased overpotential (internal resistance of the cell) is responsible for the lower capacity at higher charge/discharge rates. Although the performance of the full-cell with [Li(G3)][TFSA]/toluene was not as excellent as that of commercialized Li-ion cells, further optimizing diluted SILs with electrolyte additives holds potential to improve full-cell performance. These results clearly show that diluted SILs can be used as the electrolyte in rocking chair type Li-ion batteries without any of the components of the well-designed standard electrolyte, such as carbonate solvents and LiPF₆.
