Rationalization of the Low-Potential Reactivity of 3d-Metal-Based Inorganic Compounds toward Li

Electrochemical tests were done on Swagelok-type cells, with an -based material as positive electrode lithium metal as negative electrode (Aldrich), and a borosilicate glass fiber separator soaked with a molar solution (in EC:DMC/1:1 in mass ratio) as electrolyte. The used materials were either homemade or provided by Aldrich or by UM (Belgium) for CoO powders. Plastic composite positive electrodes were made according to Bellcore's plastic Li-ion technology (PLiON™), in which the studied powder, poly(vinylidene fluoride)-hexafluoropropylene (PVDF-HFP), SP carbon, and dibutyl phthalate (DBP) weight ratios were 56, 12, 10, and 22%, respectively. 1 cm² and 75 μm thick disks containing between 7 and 10 mg of the active material were punched out of the plastic laminate and extracted for their DBP by diethyl ether prior to being used as electrode.

The assembled cells were electrochemically tested using a MacPile automatic cycling/data recording system (Biologic S.A., Claix, France) that can be operated in both galvanostatic and potentiostastic modes. Transmission electron microscopy (TEM) observations were made by means of a Philips transmission electron microscope CM12 instrument equipped with a home-designed sample holder for moisture-sensitive samples.

A survey of the reactivity of numerous binary compounds toward Li at low voltage was carried out. In order to simplify, metal elements (M) recognized to electrochemically form Li alloys^{2 3} as well as compounds giving insertion reactions with lithium such as ^{9 10 11 12 13 14 15} or were excluded from such studies. Finally, (rutile), MnO, FeO, CoO, NiO, and CuO were the only oxides tested down to 0.02 V vs. Li. We only noted an electrochemical activity for the 3d metals situated on the right side of the periodic table starting from Cu, Ni, Co, Fe, Mn.^{5 6 7 8} The voltage-composition curves, reported in Fig. 1 for a few MO, exhibited similar features with a well-defined plateau during the first discharge followed by an additional capacity and a hysteresis-type profile upon cycling. For all these metal oxides, the end of this plateau was shown, as deduced by TEM, to be associated to the formation of metal nanoparticles, embedded in a matrix. Note that the electrochemical behavior of CuO is slightly different due to the Cu(I) stability, as reported elsewhere.^{7 16} In contrast, did not react, and we experienced a limited capacity for MnO when cycled in galvanostatic mode down to 0.02 V (1 Li per 5 h). Finally, besides the oxides associated to the ones on the right side of the 3d-metal series, we found that the corresponding sulfides such as ⁸ and ¹⁷ (in collaboration with Telcordia) exhibited the same electrochemical behavior (e.g., plateau followed by a sloping voltage). Such observations are explained by an extended description of the unusual oxides reactivity vs. Li according to Reaction 1

Zoom In Zoom Out Reset image size

Although this electrode reaction clearly differs from classical insertion or Li-alloying processes, such reversible systems can exist as previously reported.^{6 8} We just have to check if Reaction 1 is thermodynamically spontaneously feasible in the a side (reduction process) for all the tested oxides. That is to say, one must calculate the standard Gibbs free energy change by simply considering a cell as conventionally described¹⁸

The overall cell reaction is

Under reference pressure and (experimental conditions in our Swagelok-cells), we can easily calculate the Gibbs free energy change involved in Reaction 2 (equal in our case to ) and finally the electromotive force (emf) value E from the well-known relation, where F is Faraday's constant

For the oxides considered in this study, we calculated (and E) using the thermodynamic data given in the literature for massive compounds (Table I).^{18 19} The Gibbs free energy values are negative, proving unambiguously that such oxides are, under these conditions, spontaneously reducible (a side). The standard potential of the electrode reaction, Reaction 1, can be easily deduced by the Hess law according to the following relation

whereas the equilibrium potential of Reaction 1 is deduced from the Nernst law. Note that the redox system being our reference electrode, and with we have the final relation Consequently, since Reaction 1 is thermodynamically spontaneous in the a side, as we have shown, it should proceed in the b side if an external emf greater than E is applied. Thus, by considering a thermodynamic reversible process (at equilibrium), we expect Reaction 1 to proceed on both sides with the onset being a well-defined plateau at an equilibrium potential with a capacity of For instance, with CoO this plateau should be at vs.

Table I.

Calculated Gibbs free energy change and emf values for the reaction .
Compound	(kJ mol−1)	(V)
	−233.53	0.605
MnO	−199.17	1.032
FeO	−317.10	1.643
NiO	−346.24	1.794
CoO	−347.01	1.798
	−414.18	2.146
CuO	−428.26	2.219

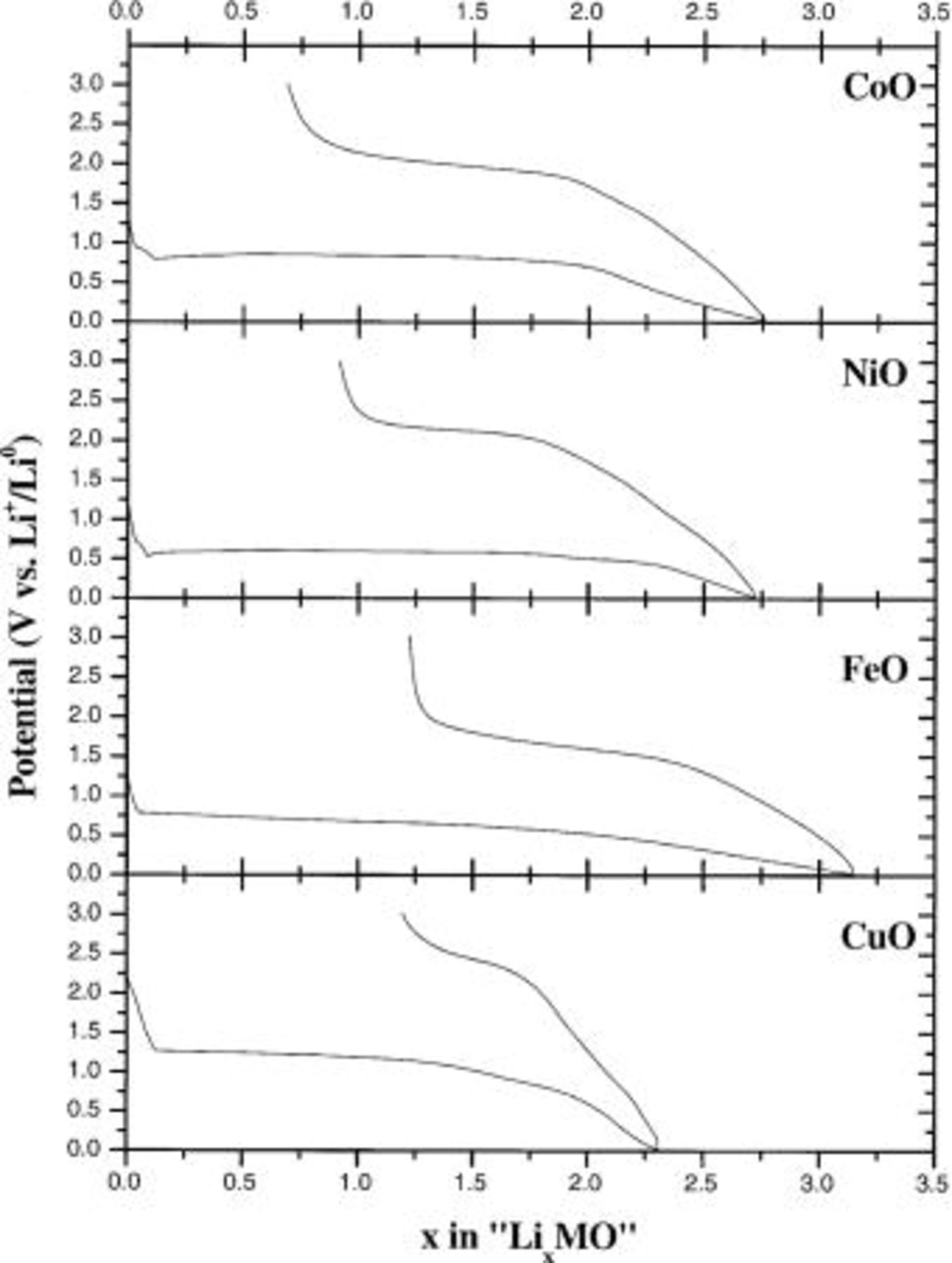

Nevertheless, Fig. 1 shows that the reduction potential of MO/Li cells (especially during the first discharge) is quite low compared with the theoretical predictions. For instance, the cobalt monoxide reduction takes place at about 0.8 V. Such deviation is naturally of kinetic nature and represents the important overpotential needed to initiate and pursue the decomposition reaction. As expected, a relaxation step in the middle of the plateau [open-circuit voltage (OCV) measurement] increases the cell voltage (Fig. 2). Note that the OCV value after 100 h is only about 1.3 V by comparison with the theoretical value indicating a slow system. This is consistent with Novak's results on CuO cells claiming that a 2 month period was necessary for a CuO electrode to go back to its steady equilibrium potential after a current pulse.²⁰ Assuming that the 1 V overpotential needed for reducing CoO is of the same amplitude as for most of the other 3d oxides considered, one can, according to Table I, anticipate some difficulties in reducing MnO and a fortiori However, using potentiostatic intermittent titration technique (PITT) measurements to minimize the needed overpotential value,²¹ the overall MnO reduction was observed at just about 100 mV above the system (Fig. 3). As expected, no reactivity was measured for under similar conditions.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

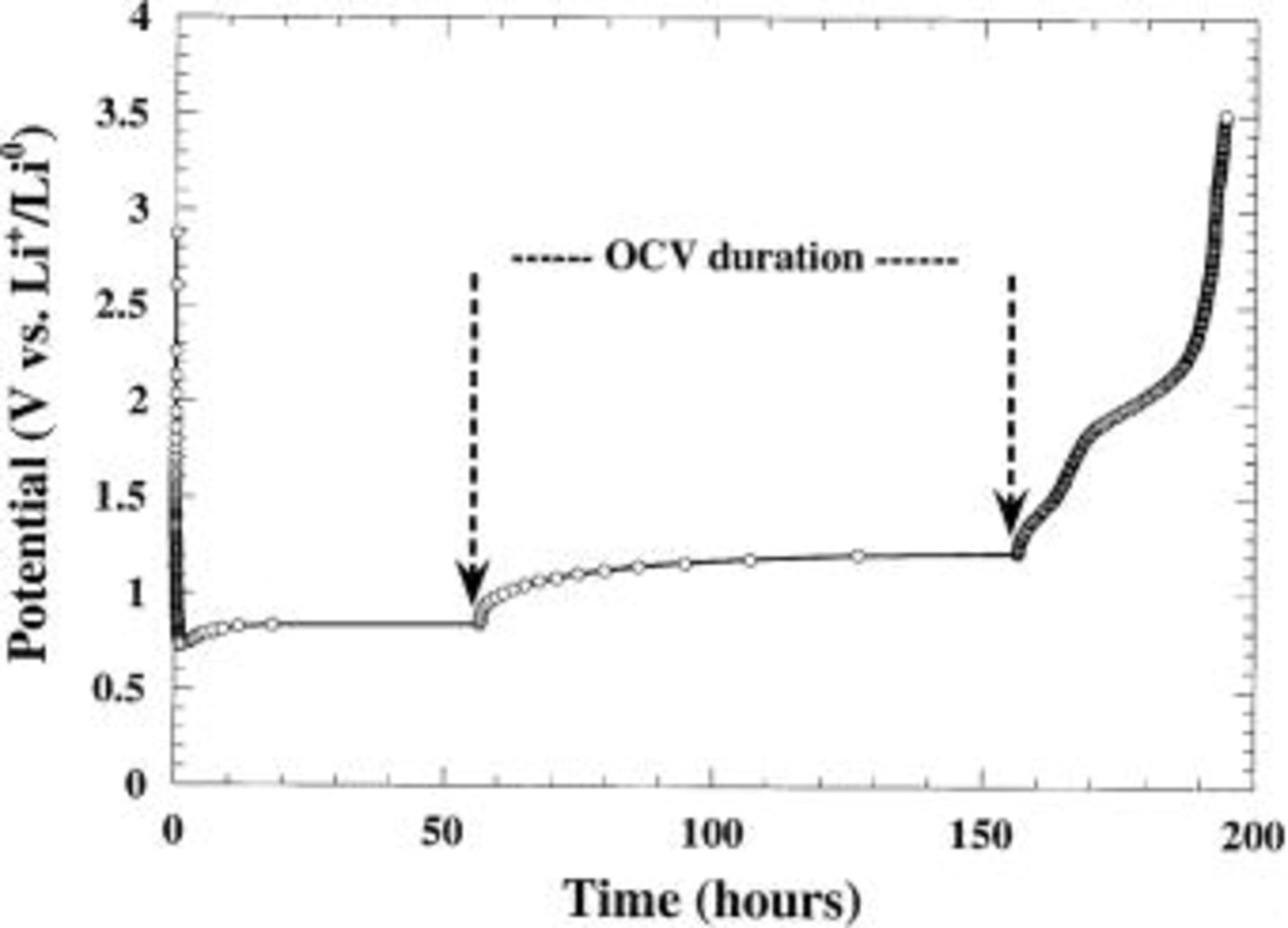

Returning to Reaction 1, the electrochemical reversibility "especially the back side reaction (b)," although thermodynamically possible, was kinetically unexpected due to the difficult task to reconvert (solid-state phases) into metal oxide We experienced this difficulty by forcing the reoxidation of stoichiometric amounts of metallic cobalt and powders mechanically milled by means of a SPEX 800 apparatus that operates in a shock mode. Whatever the milling time tried, we never succeeded in recharging a Li cell using such a positive mixture at the positive electrode. Besides, note that the well-defined plateau observed during the first discharge (Fig. 1) is vanishing on subsequent discharges, leading to "sloppy voltage plateaus." This is mainly due to the nanosized character of the electroproduced particles, which generates many new indefinite interfaces. Consequently, we believed that the reversibility experienced with various cells is mainly nested in the nanoparticle character of the positive electrode after it has been reduced once. Indeed, the specific particles confinement on a nanoscale decreases considerably the activation energy by comparison with massive solid-state compounds. Nevertheless, electrochemically speaking, Reaction 1 remains slow, as seen by the large difference observed between the discharge and the charge-voltage composition curves in cycling (Fig. 1).

Although unconventional for the battery community because quite unlike the classical Li-insertion or Li-alloying mechanism, the suggested electrochemical reaction, Reaction 1, bears some striking similarity with the "second-kind" type of electrode, well known in conventional electrochemistry. To support such a statement, one must further analyze what is behind Reaction 1, especially in terms of mechanism.

A "second-kind"-type electrode has, by definition, two solid phases in contact with the electrolyte as well as an inert electrical lead. One of the phases is typically a metal; the second one is a nonsoluble salt or compound of the metal.²² Examples of such electrode type can be oxide-based and, finally, Reaction 1 can be compared with the well known and commercialized aqueous reference electrode that operates according to Reaction 5, with

This reaction is basically a classical precipitation reaction that involves the ion (super basic), which immediately reacts either with the protons of the medium to form a water molecule or with (acidic species) to form HgO. More specifically, the underlying mechanism, as shown in Table II, can be described as two main steps: (i) a charge transfer (CT) between and with (ii) an acido-basic consecutive reaction (CR) during which the oxygen of mercury oxide (basic species) is captured by protons (acid species) to form a water molecule. The overall reversibility of Reaction 5 implies the reversibility of the two CT and CR reactions together with the basicity of the oxygen-based compounds (e.g., HgO and ). Thus, as Reactions 1 and 5 look alike, it is quite tempting to also describe Reaction 1 as a CT between and with the oxygen being taken by to form instead of via an acido-basic reaction.

Table II.

Detailed electrode reaction for system showing the charge transfer (CT) and the acido-basic consecutive reaction (CR).
Discharge		Charge
Steps	Reactions	Steps	Reactions
CT		CT
CR		CR

Nevertheless, there is an important physicochemical difference between and for instance. In fact, within the mercury electrode, water that constitutes the electrolyte medium (solvent) is in excess. Furthermore, its liquid state enables a large surface contact with the redox couple favoring the electrochemical reaction. On the contrary, is present in the solid state and in limited amount. In addition, the occurrence of Reaction 1, that simultaneously brings in three solid phases and ), obviously implies a mass transport through intergranular diffusion. However, as explained previously, we should recall that we are dealing with a heterogeneous nanometric system so that the reactivity diffusion length is approaching that of a liquid medium, thereby lifting the kinetic limitation.

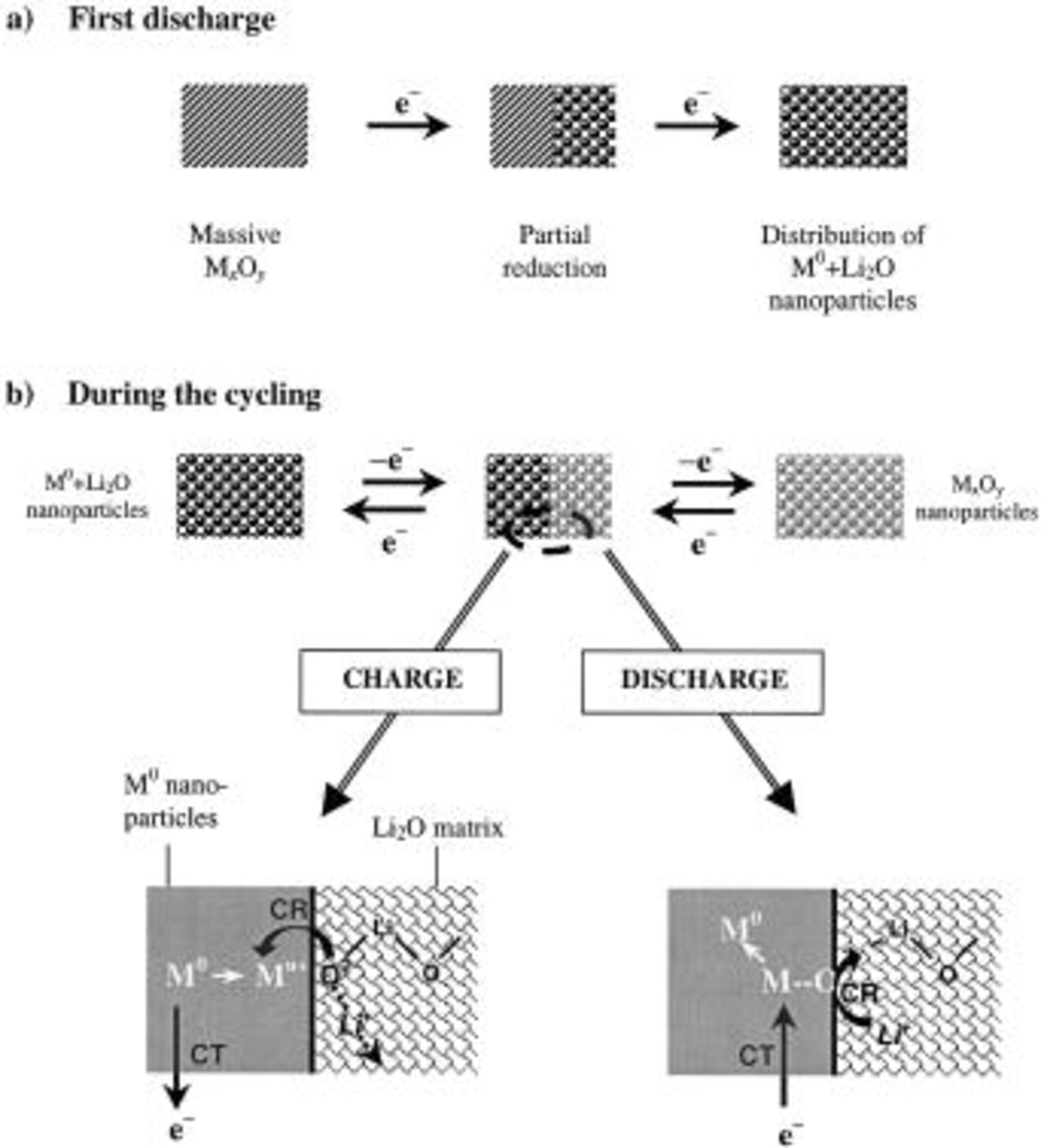

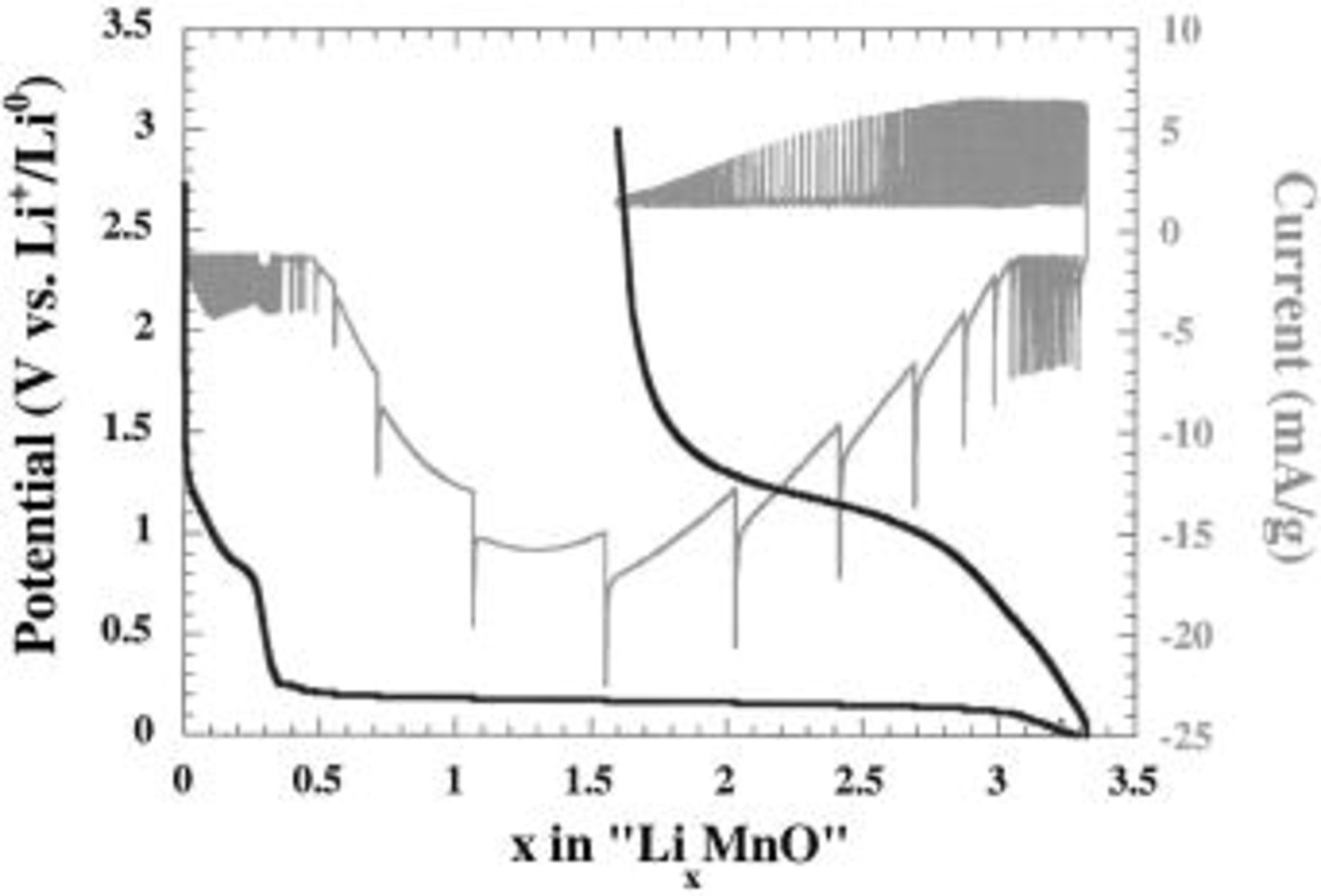

At this point a legitimate question is whether our proposed electrochemically assisted acido-basic reaction favored by nanoparticles (see the summary scheme in Fig. 4) could be a satisfactory approach. As an attempt to answer such a question, among the 3d-metal oxides that should thermodynamically react with Li, one must compare the acido-basic character of metal oxides, and therefore go back to acidity concepts. Different definitions exist depending on the considered species and the medium. For instance, we have the well-known Lewis approach on the electronic doublet (⋅ ⋅), the Brønsted definition dealing with proton exchange, and the Lux-Flood²³ concept dealing with anion transfer. Since ions are directly involved in our process, we chose the latter. In order to compare the acidity/basicity of oxides, Smith defined a scale in which the oxide basicity is defined by the a constant fixed to 0 for and that will be positive or negative for acidic and basic oxides, respectively.²⁴ The more negative a parameter will be, the more basic the oxide will be. The a values for the investigated oxides are reported in Table III. Finally, all oxides that reacted reversibly with Li are basic as itself. Based on this acido-basicity complex, an explanation was given to a recent report²⁵ claiming the misunderstood feasibility of reoxidizing into SnO basic and not into acid when cycling a cell.

Zoom In Zoom Out Reset image size

Table III.

Values of parameter for binary oxides, relative to given by Smith's scale.24
Compound	Parameter a
	0
	−9.2
	0.7
MnO	−4.8
FeO	−3.4
NiO	−2.4
CoO	−3.8
	−1.0
CuO	−2.5

At this point, it is worth stressing that in the 1980s, the reversible reactivity of metal oxides toward Li according to Reaction 1 was put forward by Thackeray et al. for high-temperature molten salts KCl/LiAl at 420°C.^{9 10} At that time, the proposed mechanism consisted of a "displacement" reaction of either iron or Li from the initial structure, thus leaving the initial oxygen skeleton untouched. Such a mechanism, which implies the quantitative iron diffusion (relatively heavy cation), is hardly believable in our case where the temperature does not exceed 25°C. Although the work of these authors regarding the molten salts medium is well accepted, it is worth recalling that Trémillon²⁶ explained through the oxidation of ilmenite in the presence of (Reaction 6) that species (free and stable in molten salt media) play a role in redox reactions involving oxides

Thus, in light of such a report, our electrochemically assisted acido-basic reaction could satisfactorily explain Thackeray's reaction as well.

In light of these encouraging results it was tempting to generalize our electrochemically assisted acido-basic mechanism to other compounds besides oxides when it is thermodynamically possible to reduce them. As is not the only anion showing basicity, one can go further by studying the electrochemical reactivity of other simple materials having the same transition cations as the studied oxides but different anions ( and for instance) so that the envisaged reaction can be written as follows

Such a generalization boils down to verify both the thermodynamic feasibility of Reaction 7 and the exchange facility of the anion X (e.g., its basicity). Thermodynamically wise Reaction 7 is feasible for In contrast, while can be electrochemically reduced by Li, no estimate could be calculated due to the lack of existing thermodynamic data in the literature. Regarding acido-basicity, one needs a scale quantifying the intrinsic basicity of various anions, which have no solvating effect since Reaction 7 deals with solid-state couples. Such a classification does exist and consists in measuring the strength of gaseous acids and bases [e.g., measuring the intrinsic proton affinity (PA) for X, which is taken positive by convention]. Waddington²⁷ indirectly determined from the Born-Harber cycle the term PA used for chalcogenides and the nitride anions. The values are reported in Table IV.

Table IV.

Values of the intrinsic PA for chalcogenide and nitride ions given by Waddington.27
Anion	PA in the gas phase (kJ/mol)
	3084
	2318
	2300
	2200

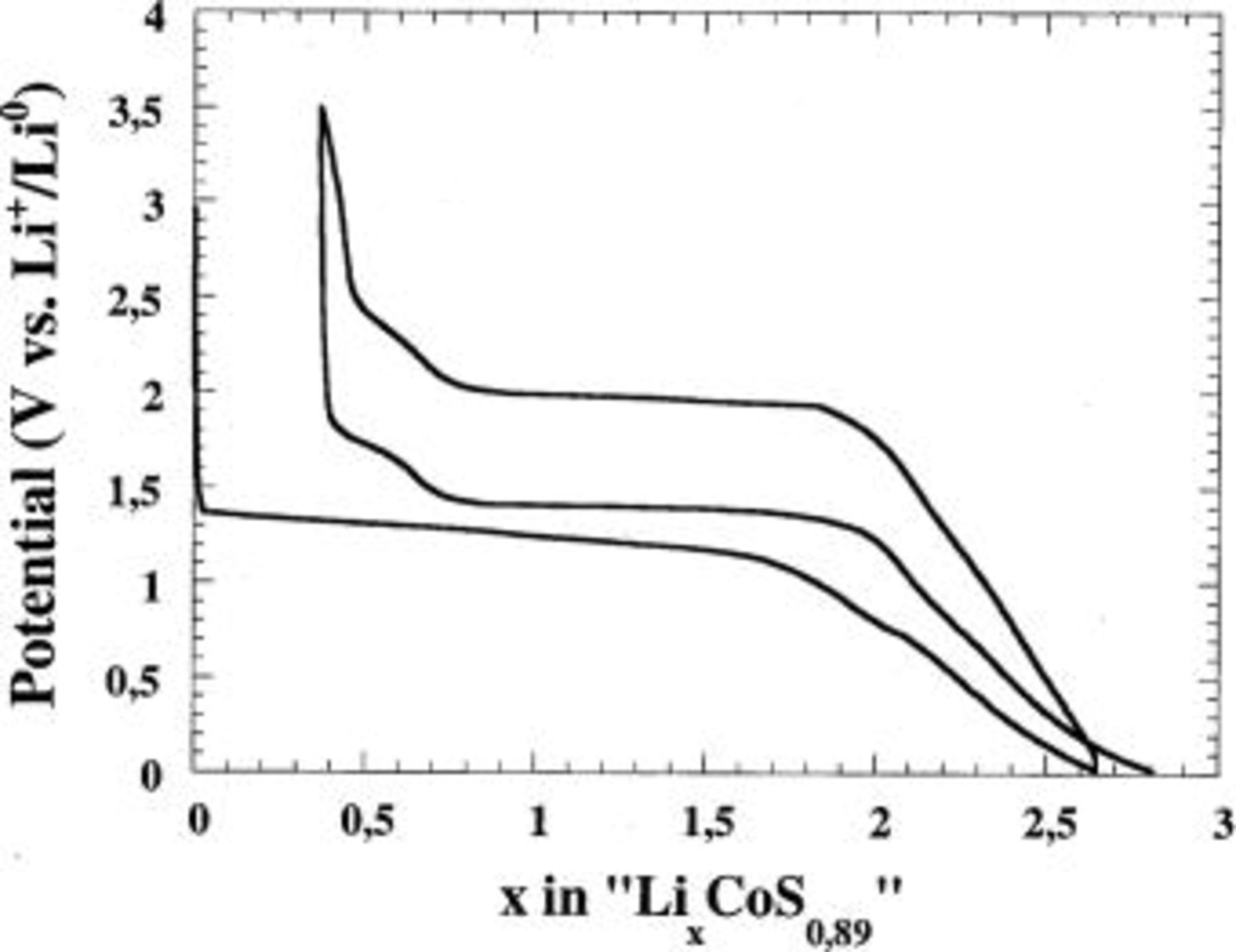

The nitride ion shows a 33% higher PA (e.g., large basicity) as compared to consistent with the large electrostatic attraction of the three negative charges. basicity is in the same size order as for the oxide, whereas the selenium ion is slightly more acid. Nevertheless, in our case is not suitable because its metal nature makes it electroactive above 2 V just like tellurium.^{28 29} Consequently, simple sulfides and 3d-transition metal nitrides can react along the same principle as Reaction 1. Here, we only show the electrochemical reaction of a sulfite, namely, (from Aldrich). Figure 5 shows the potential-composition curve obtained when in classical galvanostatic mode and for 1 Li/5 h. Like for the oxides, a well-defined plateau is noticed during the first discharge, with a capacity close to the expected theoretical value if we refer to the following reaction

Zoom In Zoom Out Reset image size

In contrast, the reaction overpotential is clearly smaller than for the oxides (0.3 instead of 1 V), and therefore the plateau average potential is closer to the theoretical equilibrium potential as determined using similar testing parameters as for the oxides. The recharge evolution is nearly the same as that of the oxides except for the plateau at 2.2 V, which is less ill defined than for the oxides. TEM studies were carried out to further validate the oxide mechanism similarity. Figure 6a shows active material particles after a reduction carried out down to 0.02 V. Again, there is nanoparticle formation (∼50 Å) together with the growth of an inorganic/organic layer around the initial particle of the active material that preserves its shape. From scanning area electron diffraction (SAED) the presence of and is clearly defined for the discharged electrode (Fig. 6b). Upon subsequent oxidation, vanishes to the expense of in a similar way as that observed for the oxides.

Zoom In Zoom Out Reset image size

These results clearly indicate that the reactivity mechanism of Li toward the oxide defined by Reaction 1 can be extended to chalcogenides and even nitrides, as recently demonstrated by our Telcordia colleagues (U.S.), for ¹⁷ When M does not alloy with Li and X is a base, the reversible reaction, Reaction 7, can be observed as long as nanometric particles are produced. Using this electrochemical process, Li is absolutely not inserted but acts as an acid to trap and fix the base X.

In light of this mechanism we can explain our early work dealing with the large reversible capacity of the unusual reversible reactivity of 3d-metal vanadates Ni, Fe,...) toward Li, which until now was a mystery to us, in spite of the fact that we had most of the pieces to solve the puzzle. Indeed, by studying the we established a correlation between the hydrated vanadates electrochemical capacity and their oxygen content,³⁰ and furthermore, we witnessed, through in situ X-ray absorption near-edge spectroscopy (XANES) and Mössbauer measurements,^{31 32} the reduction of to and its reoxidation upon cycling but neglected the sample morphology evolution upon cycling. A fully reduced iron vanadate phase, was recently investigated by performing TEM measurements.⁸ We evidenced the nanometric character of the sample together with, as determined by SAED, the reversible reduction of in (e.g., Fe-O/metallic iron), thus giving some meaning to our early oxygen correlation.

Since our first report, a wide variety of 3d-metal-based inorganic materials including oxides ( ), borates ), or phosphates have been investigated by others and by our group for their reactivity toward Li at low potential. For instance, was shown to present the same electrochemical characteristics as oxides (extra capacity, important polarization, amorphization of the initial material). Although no indication was given by the authors regarding the implied process, we checked the fully reduced material by performing TEM and evidenced the nanometric character of the sample together with the formation/decomposition of as determined by SAED. The same mechanism holds as well for the twenty Co-, Ni-, or Fe-based binary or ternary oxides that we have already studied. with a sustained reversible capacity as large as 1100 mAh/g is among the most attractive.

We have shown that the reversible electrochemical reactivity of metal oxides toward Li recently reported, leading to the formation of metallic nanoparticles, can be predicted from a classical thermodynamic approach. Formally, the considered reaction can be compared to a simple "second-kind"-type electrode well known in conventional solution electrochemistry where an acido-basic type reaction is involved ("" exchange). To support such a statement, among the 3d-metal oxides that thermodynamically reacted with Li, we have successfully checked their basic character using the Smith's scale. Nevertheless, the unexpected reversibility of the reaction is kinetically promoted in solid state by the nanoparticle character of the active material. Finally, this simple description was extended to other classes of materials where X is basic too. Such oversimplified generalization appears to satisfactorily describe most of the examples reported so far, dealing with the low potential Li reactivity of 3d-metal-based inorganic compounds. In short, through this work we clearly showed that the reversible reactivity of metal oxides toward Li, at first totally unexpected, could simply be explained from well-known and founded concepts.

The authors give special thanks to D. Larcher, L. Dupont, G. Amatucci, N. Pereira, and M. Dollé.

Université de Picardie Jules Verne assisted in meeting the publication costs of this article.
