Controlled derivatization of hydroxyl groups of graphene oxide in mild conditions

GO samples were provided by NanoInnova (Spain) (batches: NIT.GO.Z.10.4, NIT.GO.R.10.1, and NIT.GO.M.10.200) and Grupo Antolin (Spain). The chemicals and solvents were obtained from commercial suppliers and used without purification. The solvents used for synthesis were analytical grade. Water was purified using a Millipore filter system MilliQ^®. When stated, suspensions were sonicated in a water bath (20 W, 40 kHz). For dialysis MWCO 12 000–14 000 Da membranes were purchased from Spectrum Laboratories, Inc. XPS was performed on a Thermo Scientific K-Alpha x-ray photoelectron spectrometer with a basic chamber pressure of 10⁻⁸–10⁻⁹ bar and an Al anode as the x-ray source (1486 eV). More information is given in supplementary information (stacks.iop.org/TDM/5/035037/mmedia). TGA was performed on a TGA1 (Mettler Toledo) apparatus from 30 to 900 °C with a ramp of 10 °C·min⁻¹ under N₂ using a flow rate of 50 ml·min⁻¹ and platinum pans. MAS NMR experiments were performed on an AVANCE 750 MHz wide bore spectrometer (Bruker^™) operating at a frequency of 188.5 MHz for ¹³C NMR. More information is given in Supplementary Information. The syntheses of tert-butyl (4-iodobutyl)carbamate 1, Boc-protected 6-aminocaproic acid 4, and (4-((tert-butoxycarbonyl)amino)butyl)triphenylphosphonium iodide 7 are described in supplementary information. In case the filtration of the GO suspensions was too long, 0.45 µm pore size polytetrafluoroethylene (PTFE) Millipore^® membranes were used.

Williamson reaction

Boc deprotection

Control reactions

Esterification

Control reaction

Wittig reaction

Control reaction

We first investigated the selective derivatization of the hydroxyl groups by the Williamson reaction. As GO is a generic term to name various types of oxidized graphite products, we aimed to compare the chemical reactivity of two commercially available GO samples from NanoInnova (named GO-N) and Grupo Antolin companies (named GO-A). GO-N has been synthesized by the Hummers' method, while GO-A has been prepared by a different process from rolled carbon nanofibers that are cut and exfoliated. The amount of the different types of oxygenated groups vary between both GO samples. In addition, GO-N contains aggregated sheets and is ~20 nm thick, whereas GO-A is mainly constituted of monolayers, along with some irregular particles of 3–10 nm thickness [34]. It is noteworthy that thickness may induce differences in term of chemical reactivity.

The Williamson reaction allows the formation of an ether bond from an organohalide and a deprotonated alcohol (alkoxide ion) via a substitution reaction. Discovered in 1850 and widely used in both academy and industry, it remains the simplest and most commonly used strategy to form ethers from free hydroxyl groups [35, 36]. In this work, the Williamson ether synthesis was done in the presence of an iodinated derivative (compound 1) and potassium carbonate in DMF (scheme 1). As the Williamson reaction is often performed upon heating, the reaction was initially carried out at 80 °C on GO-N yielding functionalized GO (f-GO)-N-80 2 [36]. Compound 1 was prepared from 4-amino-1-butanol in two steps (see supplementary information for details). The Boc protecting group on f-GO-N-80 2 was removed using a solution of HCl in 1,4-dioxane, leading to f-GO-N-80 3. The amount of amino groups introduced on GO was assessed by UV/Vis spectroscopy using the Kaiser test, which is a colorimetric test commonly used in peptide synthesis and applied to carbon-based nanomaterials to assess the quantity of amine functions [37, 38]. The amount of ${\rm NH}_{3}^{+}$ resulted 70 µmol per gram of f-GO-N-80 3. The presence of amine functions on GO allows further derivatization with molecules of interest [39]. In parallel, we performed a two-step control experiment without adding potassium carbonate in the first step to assess if compound 1 has an affinity for the GO surface and adsorbs by hydrophobic and electrostatic interactions (this sample is named GO-N-80-CONT-I 3). The Kaiser test performed after heating GO-N and 1 in DMF at 80 °C and subsequent HCl treatment was negative. This result is a proof that the positive Kaiser test loading obtained in the presence of the base is due to covalent grafting and not to unspecific non-covalent interactions of compound 1 with GO.

Zoom In Zoom Out Reset image size

The f-GO-N-80 3 sample was characterized by XPS and TGA. According to XPS, starting GO-N is composed of 69.2% C and 30.8% O (figure S1(a)). After derivatization using the Williamson reaction, a peak corresponding to the N1s envelope appeared at a value close to 399.8 eV, confirming the incorporation of nitrogen (figure S1(a)) [40]. TGA allowed comparing the thermal profile of GO before and after functionalization. The experiments were performed under inert atmosphere at a heating rate of 10 °C min⁻¹. As already reported in the literature, it is complicated to interpret the TGA data as GO is thermally unstable [41, 42]. In fact, GO displays a thermogram with three main weight loss slopes (figure S1(b)) [43]. The weight loss below 100 °C is due to desorption of water and some unstable oxygenated functionalities. The weight loss at around 200 °C is attributed to the decomposition of other labile oxygen-containing groups. Finally, the small and continuous weight loss above 250 °C can be ascribed to the removal of more stable oxygenated moieties. The thermogravimetric profile of f-GO-N-80 3 was different in comparison to GO-N, displaying higher thermal stability. For better comparison, we prepared a second control sample by treating GO in the same conditions (two steps), but without adding compound 1 in the first step to assess if the base (potassium carbonate) could affect the structure of GO (this sample is named GO-N-80-CONT-II 3 in figure S1(b)). In fact, the control treated GO also showed higher thermal stability. It seems that the treatment at 80 °C used to perform the reaction induced the removal of some labile functions [44]. Thus, in the temperature range from 250 to 900 °C, the higher weight loss for f-GO-N-80 3 compared to the control treated GO can be attributed to the pyrolysis of the functional groups attached to the surface of GO by the Williamson reaction, confirming that the reaction occurred.

The conventional Williamson reaction is generally conducted at 50 °C–100 °C [36]. But, at this temperature GO is partially reduced [31, 44], as we confirmed by TGA. Indeed, the C/O ratio calculated by XPS increases from 2.2 for starting GO-N to 3.5 after derivatization. Therefore, we tried to optimize the protocol for the Williamson reaction in order to avoid heating and hence prevent the reduction of GO. The reaction was performed at different temperatures, namely at 60 °C, 40 °C, and room temperature (corresponding sample names are f-GO-N-60 3, f-GO-N-40 3, and f-GO-N-RT 3). The reaction at room temperature was also conducted using cesium carbonate as alternative base to K₂CO₃ (sample name: f-GO-N-RT-Cs 3), as Cs₂CO₃ has been used for the O-alkylation of phenols in mild conditions [45]. Furthermore, cesium base-promoted phenol alkylation has been extensively applied [46]. The level of functionalization for each condition reaction was assessed by the Kaiser test (table 1). We can observe that the amine loading increases when the temperature decreases. The highest loading was obtained by performing the reaction at room temperature using potassium carbonate (f-GO-N-RT 3). Regarding the percentage of nitrogen obtained by XPS, the tendency is inverted. Indeed, the %N decreases upon reducing the temperature, from 1.77% at 80 °C to 0.65% at room temperature. These decreasing values can be explained by the fact that there is a loss of CO and CO₂ from GO upon increasing temperature. As a consequence, besides the introduction of nitrogen there is also the elimination of carbon and oxygen atoms at high temperature [43]. This is the reason why the Kaiser test is more appropriate to determine the level of functionalization.

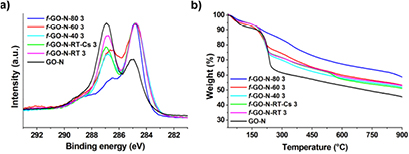

The different samples of GO-N functionalized by the Williamson reaction were characterized by high resolution XPS and TGA (figure 1). Both techniques confirmed the partial reduction of GO upon heating. Indeed, there is a temperature-dependent reduction of intensity of the XPS peak at ~287 eV, attributed to the C–O bond, compared to the peak at ~285 eV corresponding to the C–C bond (figure 1(a)). Furthermore, GO that reacted at 60 °C and especially at 80 °C shows a higher thermal stability according to TGA, which is consistent with partial reduction (figure 1(b)). Even though cesium was demonstrated to have a high sorption capacity onto GO [47], no residual cesium was detected in f-GO-N-RT-Cs 3 by XPS. However, the use of cesium carbonate did not allow reaching a higher functionalization degree compared to potassium carbonate.

Zoom In Zoom Out Reset image size

Two control reactions were performed in the optimized conditions, namely by treating GO in DMF at room temperature in the presence of compound 1 (GO-N-CONT-I 3) or K₂CO₃ (GO-N-CONT-II 3) to verify that 1 does not adsorb on the surface of GO and that the base does not affect GO, respectively. Kaiser test of GO-N-CONT-I 3 resulted negative, confirming that compound 1 has not been immobilized on GO at room temperature via non-covalent interactions that would have led to misleading conclusions. This result was confirmed by XPS as no nitrogen was detected for GO-N-CONT-I 3 (data not shown). We also analyzed the other control sample (GO-N-CONT-II 3) by XPS and we noticed a change in the relative intensity of the two peaks in the C1s spectrum (figure S2). Indeed, the C–O bond peak at ~287 eV is higher than the C–C peak at ~285 eV in GO-N and GO-N-CONT-I 3, while it has a similar intensity in the case of GO-N-CONT-II 3. Nevertheless, we found that there was no significant reduction of GO by K₂CO₃ as %O was similar for GO-N-CONT-II 3 compared to starting GO-N and GO-N-CONT-I 3 (29.2%, 30.8%, and 30.5%, respectively). We think the relative increase of the C–C XPS peak could be explained by the metastability of GO resulting in the loss of CO and CO₂ [48–50].

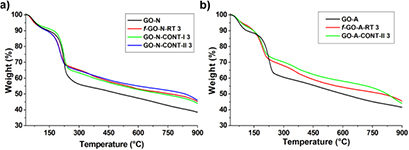

The control samples are also necessary to interpret the TGA data of functionalized GO samples [19]. Indeed, TGA showed that both control samples display a slightly higher thermal stability compared to the starting GO, due to the loss of some labile oxygenated functions that occurs even at room temperature, as we previously observed in the study of the epoxide opening on GO (figure 2(a)) [19]. Nevertheless, the weight loss difference is much less important in this case in comparison to the control sample treated at 80 °C (figure S1(b)). By comparing the TGA of both control GO samples with the thermal profile of f-GO-N-RT 3, it was not possible to confirm the positive outcome of the Williamson reaction. This result emphasizes however the difficulty to interpret the TGA data due to the thermal instability of GO and the low molecular weight of the functionalities introduced on GO by the Williamson reaction.

Zoom In Zoom Out Reset image size

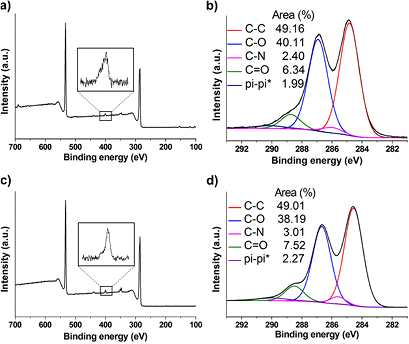

The optimized conditions were used then to functionalize GO-A leading to f-GO-A-RT 3. In this case, a clearer difference was observed by comparing the TGA curve of the functionalized GO and the control sample GO-A-CONT-II 3 (figure 2(b)). Indeed, the weight loss was higher after the Williamson reaction in comparison with the control sample. It seems that the level of functionalization is more important in the case of GO-A compared to GO-N. This result is in agreement with both the Kaiser test and XPS (figure 3), showing a higher loading for f-GO-A-RT 3 (190 versus 132 µmol g⁻¹ for f-GO-N-RT 3) and a superior %N (1.25% versus 0.65% for f-GO-N-RT 3), respectively. Moreover, the peak attributed to the C–N bond was identified in the carbon high resolution spectra, confirming the introduction of the amino chain on GO (figure 3, right).

Zoom In Zoom Out Reset image size

TEM was also used to characterize the different starting GO and f-GO 3 (figure S3). Both GO-N and GO-A samples display a lateral dimension of a few micrometers and have wrinkled sheets with folded edges. The morphology of the GO sheets seems to be unaffected by the conditions used for the Williamson reaction and the subsequent acidic treatment to remove the protecting group.

Taken together, these data demonstrate that the hydroxyls of GO can be functionalized by the Williamson reaction in mild conditions. The characterization of f-GO 3 by TGA, Kaiser test, and XPS indicates a slightly higher level of functionalization of GO-A compared to GO-N.

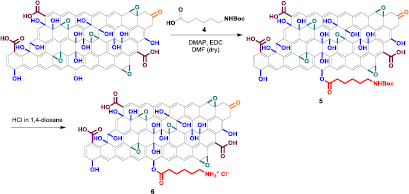

We then explored the reactivity of GO towards esterification of the hydroxyl groups. The esterification reaction was performed on both GO samples at room temperature using Boc-protected aminocaproic acid 4 in the presence of EDC and DMAP as coupling agents, leading to f-GO 5 (scheme 2). Boc cleavage was performed using HCl in 1,4 dioxane, leading to f-GO 6. The amine loading assessed by the Kaiser test resulted 165 and 136 µmol g⁻¹ for f-GO-N 6 and f-GO-A 6, respectively. A control reaction was performed without adding the coupling agents to verify if compound 4 has a tendency to adsorb onto GO (GO-CONT 6).

Zoom In Zoom Out Reset image size

As already observed before, the control reaction performed at room temperature shows a higher thermal stability compared to the starting GO, most probably due to the elimination of some labile functional groups from GO, even at room temperature (figure S4). The thermogravimetric curves of both f-GO-N 6 and f-GO-A 6 are rather similar to their respective control samples, probably due to the low molecular weight of carboxylic derivative 4, making the TGA data inconclusive.

XPS confirmed the introduction of nitrogen on GO (2.0 and 2.4% for GO-N and GO-A, respectively), while no nitrogen was detected for the control samples, further confirming the covalent functionalization of GO (figures 4 and S5). In addition, in the carbon high resolution spectra we could identify the signal of the C–N bond at ~286 eV for both f-GO 6 samples.

Zoom In Zoom Out Reset image size

TEM showed that the esterification conditions and the acidic treatment did not alter the morphology of the GO sheets (figure S6).

In the case of these esterified GO samples we decided to extend the characterization using solid-state NMR. Both f-GO 6 samples were analyzed by ¹³C MAS solid-state NMR and compared to respective starting GO to confirm the covalent introduction of derivative 4 by esterification. There are three main peaks in the ¹³C multiple contact-cross polarization (MC-CP)/MAS NMR of starting GO-N at ~60, 70, and 130 ppm that are attributed to the epoxides, C–OH, and C=C bonds, respectively (figure 5(a), red spectrum) [19]. In the case of starting GO-A, the peak at ~130 ppm is less intense (figure 5(b), red spectrum).

Zoom In Zoom Out Reset image size

We also performed a quantitative ¹³C direct polarization (DP)/MAS NMR analysis and observed that this peak is as intense as in the case of GO-N (figure S7, red spectra; table S1). This result could be explained by the fact that the distribution of protonated carbon atoms is different in both GO samples. Indeed, in the case of GO-N, the protonated carbon atoms seem to be well distributed on the graphene basal plane. Hence, the protons are capable of transferring magnetization to the carbons in close proximity. On the contrary, in the case of GO-A, there would be fewer protonated carbons, maybe in the form of clusters. As a consequence, only the protons at the cluster border can transfer magnetization to the adjacent carbons, thus explaining the low intense peak at ~130 ppm in the case of GO-A in comparison to GO-N.

After esterification new peaks were identified at ~25 and 40 ppm that can be assigned to the methylene groups of compound 4 (figure 5, black spectra). An additional peak with lower intensity also appeared at ~160 ppm in the case of GO-A and it was assigned to the ester function (figure 5(b)) [51]. In the case of GO-N this peak was not visible, probably due to its very low intensity (figure 5(a)). The peaks of the C–O bonds at ~60 and 70 ppm corresponding to epoxides and hydroxyls are unchanged, which confirms that the mild conditions did not affect the chemical composition of GO. In the quantitative ¹³C DP/MAS NMR spectra the peaks assigned to the methylene groups of derivative 4 are visible and intense, confirming the successful derivatization of GO (figure S7). Nevertheless, as the spectra are noisy, it is not possible to distinguish the peak attributed to the ester bond in the quantitative ¹³C DP/MAS NMR spectra.

Overall, the hydroxyl groups of GO were functionalized by the Williamson reaction and by esterification. The reactivity was rather similar for the two types of GO used in this study and for both reactions, thus highlighting the efficiency of the two derivatization strategies.

We also examined the reactivity of the ketones towards the Wittig reaction. For this purpose, GO was reacted with (4-((tert-butoxycarbonyl)amino)butyl)triphenylphosphonium iodide 7 and potassium bis(trimethylsilyl)amide (KHMDS) as a base to form the ylide in situ, leading to the formation of f-GO 8 (scheme 3). KHMDS was employed because of its steric hindrance to avoid undesired side reactions between the base and the oxygenated groups of GO. The Boc group was removed using HCl in 1,4-dioxane, resulting in the formation of f-GO 9. A control reaction was performed without derivative 7 to verify that the base did not provoke changes in the structure of GO (GO-CONT 9).

Zoom In Zoom Out Reset image size

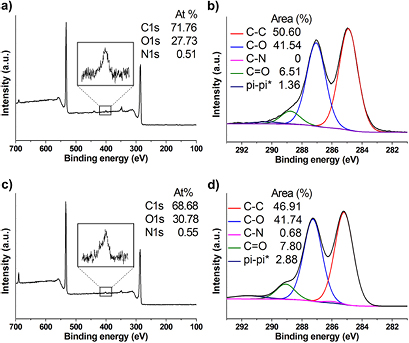

The amine loading calculated by the Kaiser test after Boc deprotection was 22 and 26 µmol g⁻¹ for f-GO-N 9 and f-GO-A 9, respectively. These loading values are indicative of a negligible amount of ketones on the surface of both GO samples and/or a low reactivity towards the Wittig reaction. Based on MAS solid-state NMR and the negligible amount of carbonyls (figures 5 and S7), the first hypothesis seems to be the most probable. The low level of functionalization was confirmed by XPS and TGA. Indeed, ~0.5% of nitrogen was detected by XPS for both f-GO 9 (figure 6), while no nitrogen was found for the control samples (figure S8). Moreover, no peak (or a very low peak) corresponding to the C–N bond could be identified upon deconvolution of the carbon high resolution spectra.

Zoom In Zoom Out Reset image size

The samples were finally characterized by TGA (figure S9). GO-CONT 9 samples have similar thermal profiles compared to previous control samples GO-CONT-I 3, GO-CONT-II 3, and GO-CONT 6. This similarity confirms that KHMDS does not reduce GO, as also confirmed by XPS (figure S8). The curve of f-GO-N 9 displays a slightly higher weight loss compared to the control sample (figure S9(a)), whereas f-GO-A 9 and GO-A-CONT 9 have a comparable thermal profile (figure S9(b)). But, as already mentioned before, TGA is not the appropriate characterization technique to assess the level of functionalization of GO derivatized with low molecular weight molecules. Overall, based on characterization by Kaiser test, XPS, and TGA, we can conclude that the derivatization of GO in conditions to perform the Wittig reaction was not successful. This is certainly due to the absence or to a negligible amount of ketones.
