Bioactive borate glass promotes the repair of radius segmental bone defects by enhancing the osteogenic differentiation of BMSCs

The study protocol was approved by the Animal Care Committee of Shanghai Jiao Tong University Affiliated Sixth People's Hospital. All experiments were carried out in accordance with the guideline of the local Animal Welfare Committee. During the study, 26 male New Zealand White Rabbits (NZWR) (2.5–3 kg) were kept in individual cages under standard conditions and were allowed to be fully active. The animal surgery was performed as previously described [19, 20]. Briefly, the rabbits were anesthetized by intravenous injection of penobarbital (30 mg kg⁻¹). A 3 cm incision was made over the left distal radius. The soft tissue was dissected and the radius was exposed by blunt separation. A 15 mm segmental diaphyseal defect was created with an oscillating saw under irrigation with 0.9% saline. The radius bone defects were randomly filled with materials or with nothing as follows: (1) control without any implantation (n  =  6); (2) β-TCP (n  =  10); (3) BG (n  =  10). The wounds were closed with 4-0 resorbable sutures. Carprofen was given to relieve pain. Water and food were provided ad libitum.

Fluorescence labeling was used to study new bone formation and mineralization within the bone defect using the protocol previously described [21]. Briefly, alizarin red S (30 mg kg⁻¹; Sigma-Aldrich) and calcein green (10 mg kg⁻¹; Sigma-Aldrich) were intraperitoneally injected at six and nine weeks post-surgery. After 12 weeks, the animals were sacrificed and fixed in 10% neutral formalin for 48 h.

Standardized anterior-posterior radiographs were taken at 4, 8 and 12 weeks after surgery using x-rays to qualitatively assess bone regeneration and defect bridging.

The specimens, which contained the 1.5 cm segmental defect and 0.5 cm of proximal and 0.5 cm of distal cortical bone adjacent to the defect, were fixed in 70% alcohol. A high-resolution micro-CT system was used to evaluate the healing of the defects. The specimens were scanned continuously at a resolution of 25 μm per voxel. After scanning, the images were reconstructed and 3D analyses were performed. The quantifications of bone mineral density (BMD) and bone volume (BV) were performed using the same standardized threshold.

The specimens were dehydrated in a graded series of alcohol baths and embedded in polymethymetacrylate (PMMA). To guarantee the same region was compared with different groups, the position of radius was standardized. The samples were cut in longitudinal sections in a thickness of 250 μm using a saw microtome (Leica SP1600, Germany). The sections were glued onto a transparent plastic plate and polished to a final thickness of 60 μm. The sections were examined for fluorescent labeling under a confocal laser scanning microscope (CLSM) (Leica, Germany). The excitation/emission wavelengths used were 543/580–670 nm (alizarin red, red) and 488/500–550 nm (calcein, green). For further observation of osteoid and mineralized tissue, the sections were stained with van Gieson's picric-fuchsine.

All experiment protocols were approved by the Ethics Committee of Shanghai Jiao Tong University Affiliated Sixth People's Hospital. Written consents were obtained from all donors (age 40–68 years). The BMSCs were isolated and cultured as previously described [22, 23]. Briefly, bone marrow was aspirated and suspended in α-MEM (Gibco) supplemented with 10% Fetal Bovine Serum (FBS, Gibco). The culture media was changed every 2 d and the non-adherent cells were discarded. Remaining cells were trypsinized and passaged when they reached 80% confluence. Passages 4 and 5 were used for the following experiments.

The BG and β-TCP cylindrical porous scaffolds (8 mm in diameter  ×  2 mm) were sonicated for 4 h, rinsed in distilled water, and autoclaved at 125 °C/0.14 MPa for 30 min. All scaffolds were pre-incubated in the medium for 24 h before cell seeding. Then hBMSCs were seeded on the scaffolds at an initial density of 1  ×  10⁵ cells/scaffold and the culture media was changed every 2 d. The cells were cultured for 3 d, after which the scaffolds were washed with PBS and then fixed with 2.5% glutaraldehyde for 2 h. The scaffolds were coated with gold and the morphological characteristics of the attached cells were observed by a scanning electron microscope (SEM, MX2600, CamScan). Cell seeded scaffolds were also stained with Live/Dead assay kit (LIVE/DEAD Viability/Cytoxicity Kit, Invitrogen, CA) and observed under a confocal fluorescence microscope (Leica DMI6000B, Germany).

The dissolution extracts of BG were prepared by adding 2 g BG powders to 10 ml α-MEM culture medium supplemented with 50 U ml⁻¹ penicillin and 50 μg ml⁻¹ streptomycin. Then the pH of BG extracts was adjusted to 7.2–7.4 using ammonia. After incubation at 37 °C for 24 h, the mixture was centrifuged and the supernatant was collected. To remove the particulates, the supernatant was filtered through a 0.22 μm filter (Millipore, USA). The resulting supernatant, supplemented with 10% FBS, was denoted as original extract. The original extract was diluted x times with α-MEM to obtain the final extract denoted as the 1/x extract which was used for the cellular experiments. All the extracts were supplemented with 10% FBS and analyzed for the concentrations of Ca, P and B by inductively-coupled, plasma optical emission spectroscopy (ICP-AES; Varian Co., USA) (table 1).

A CCK-8 proliferation assay was performed to investigate cell viability. Briefly, 5  ×  10³ hBMSCs were seeded in 96-well plates and incubated for 24 h. Then the culture medium was replaced by 2 mL of fresh culture medium containing 1/2, 1/4, 1/8, 1/16, 1/32 diluted borate extracts, respectively. The α-MEM was used as a control. On day 1, 3 and 7, A CCK-8 assay was performed by adding 10 μl CCK-8 solution to each well and incubated at 37 °C for 3 h. Then 100 μl media was transferred and read at 450 nm with a microplate reader (iMark^™; Bio-Rad, USA). All experiments were done in triplicate and repeated three independent times.

The activity of ALP was measured using an ALP Detection Kit (Beyotime, China). Briefly, hBMSCs were cultured in the presence of different concentrations of borate extracts for 7 and 14 d, respectively. Then the cells were lysed in 200 μl 0.2% Triton X-100. The solution was centrifuged at 14 000 rpm for 15 min at 4 °C. The supernatant was mixed with a working solution of ALP assay kit according to the manufacturer's instructions (Beyotime, China). The absorbance at 450 nm was read with a microplate reader (iMark^™; Bio-Rad, USA). The ALP activity was normalized to total protein content as measured by the bicinchoninic acid protein assay kit (Pierce, USA) as previously described [24].

To investigate the effect of borate extracts on osteogenic-genes or BMP/Smad-related genes expression, the total RNA of the hBMSCs cultured in media with 1/4 extract were isolated after 3 and 10 d, or 1 and 3 d, respectively. Then RT-PCR was performed. Briefly, total RNA was obtained with the TRIZOL reagent (Invitrogen, USA). Complementary DNA was synthesized by cDNA Synthesis kit (TakaRa, Japan) from 1 μg total RNA according to the manufacturer's instructions. RT-PCR was performed with a real-time PCR kit (SYBR Premix EX Taq, TaKaRa). GAPDH was used as a housekeeping gene to normalize gene expression. Primer sequences used for real-time PCR are shown in table 2.

hBMSCs cultured with and without 1/4 extract were analyzed by western blotting. The total cellular proteins were first extracted. The cells were lysed in ice-cold lysis buffer (50 mM Tris-HCl, 150 mM NaCl, 1 mM EDTA, 1% NP-40, and 0.1% SDS) containing 1 mM phenylmethylsulphonyl fluoride (PMSF) (Sigma, USA) and phosphatase inhibitor cocktail (Sigma, USA). The cell lysates were cleared by centrifugation at 4 °C and 12 000 rpm for 15 min. The protein concentrations of the lysates were quantified using a BCA assay Kit. The cell proteins were separated by standard sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to polyvinylidene difluoride (PVDF) membranes. After incubation in a 5% BSA blocking solution for 1 h, the membranes were incubated overnight at 4 °C with anti-phospho-Smad1/5, anti-Smad1, and anti-β-actin antibodies (all from Cell Signaling Technology, USA). The signal inhibitor used for BMP/Smad was noggin (R&D Systems, USA). The noggin was dissolved in PBS containing 0.1% BSA at a concentration of 100 ng ml⁻¹ for subsequent experiments. The membranes were then washed three times with PBS-Tween-20 and incubated with horseradish peroxidase (HPR)-conjugated secondary antibodies (Sigma, USA) at 37 °C. The immunoreactive bands were observed using the ECL chemiluminescence reagent (Millipore, USA)

ALP staining was performed as previously described [25]. Briefly, hBMSCs were cultured in 1/4 original extract for 10 d. Cells were fixed with 4% paraformaldehyde and incubated in a mixture of nitro-blue tetrazolium and 5-bromo-4chloro-3-indolylphosphate.

Alizarin Red S staining was performed to detect extracellular calcium content as previously described [26]. Briefly, the hBMSCs were seeded in 6-well plates and cultured in 1/4 original extract for 14 d. Cells were rinsed with PBS and fixed in 4% paraformaldehyde for 15 min, then stained with 1% (w/v) Alizarin Red S for 30 min at room temperature.

The gross view of the radius implanted with BG showed better bone repair at 12 weeks after surgery (figure 1(A)) compared to β-TCP transplantation. The morphology of the newly formed radius in BG group look is similar to those of the normal radius. In the β-TCP group, much of the implanted scaffold remained and a small amount of callus formed close to the scaffold after 12 weeks. In the control group, most of the defects were filled with fibrous tissue and no bone union was observed. The ends of the bone defects were sclerotic and the medullary cavities were blocked at 12 weeks post-implantation, suggesting that the bone defect was not healed.

Zoom In Zoom Out Reset image size

Van Gieson's picric-fuchsine staining was performed to evaluate the new bone formation and in vivo degradation of the scaffold. The new bone formation was much more evident in the BG implantation than in the β-TCP group after 12 weeks (figure 1(B)). Furthermore, very little BG was observed in the BG transplantation group, while a massive amount of β-TCP was detected in the β-TCP transplantation group. There was no obvious formation of bone tissue in the blank control group. Taken together, these data demonstrate that BG treatment has a better effect on bone repair as compared to β-TCP.

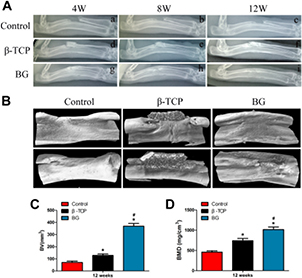

To assess bone regeneration and bone union within the defects, x-rays were taken at 4, 8 and 12 weeks after surgery (figure 2(A)). In the control group, the segmental defect was not healed and non-union was apparent at all time points (figures 2(A(a)–(c))). In the β-TCP group, β-TCP did not degrade at 4 weeks post-surgery; it began to degrade at 8 weeks and a small amount of callus formed in the interspaces between the implants and bone tissue, and the β-TCP was partly degraded at 12 weeks (figures 2(A(d)–(f))). In contrast, the implanted material bonded with the proximal and distal host bone and partially degraded at 4 weeks in the BG group. Moreover, at 8 weeks massive amounts of callus formed and most of the implanted BG was degraded. At 12 weeks, the bone defects were fully bridged and the implanted BG completely degraded. The boundary between new bone and normal bone was indistinct. The medullary cavity reformed and achieved recanalization in the BG group (figures 2(A(g)–(i))).

Zoom In Zoom Out Reset image size

The images of new bone formation were then reconstructed by micro-CT and BV and BMD in the bone defect were calculated by using auxiliary software of micro-CT with a threshold of 800 defined as bone tissue. The results showed that the new bone in the BG group was greater than that in the β-TCP group or control group at 12 weeks after surgery (figure 2(B)). Morphometric analysis further revealed that BV and local BMDs in the BG group were significantly increased compared to the β-TCP group and control group, respectively (figures 2(C) and (D)).

Immunofluorescence staining of alizarin red and calcein further revealed that, at week 6 and 9, the area of mineralized deposition of new bone formation in the BG group was significantly increased compared to the β-TCP group or the control group (figure 3).

Zoom In Zoom Out Reset image size

The attachment and survival of hBMSCs on BG was shown in figure 4(A). hBMSCs could attach on the BG scaffold at day 1. Under the use of Live/Dead staining, it showed that hBMSCs on BG had a higher survival rate even after 7 d, indicating that the BG is non-cytotoxic.

Zoom In Zoom Out Reset image size

The concentrations of B, Ca, and P in the extracts are shown in table 1. We found that BG extracts contain much higher amounts of B, Ca, and P than α-MEM.

To investigate the effect of extracts on the proliferation of hBMSCs, cells were cultured with different extracts for 1, 3 and 7 d. As determined by the CCK-8 proliferation assay, no significant difference was detected between cell growth in either extract or in the control media at 1 and 3 d. After 7 d of culture, however, cell proliferation in the 1/4, 1/8, 1/16, 1/32 extracts significantly increased (figure 4(B)).

To investigate the effect of BG extracts on the osteogenic differentiation of hBMSCs, ALP activity was examined at 7 and 14 d after being cultured in different extracts. As shown in figure 4(C), ALP activity on day 7 was significantly elevated in 1/4 extract whereas the ALP activity on day 14 was significantly elevated in all the extracts.

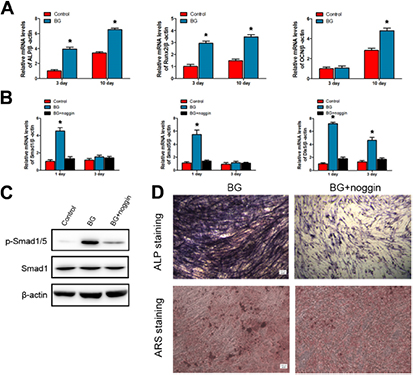

To further confirm the effect of BG extracts on osteogenic differentiation of hBMSCs, hBMSCs were cultured in 1/4 extract for 3 and 10 d, then the expression of osteoblastic markers in hBMSCs was examined by RT-PCR. As shown in figure 5(A), the expression of ALP and Runx2 were significantly enhanced by the extracts of BG over 10 d. The gene expression of OCN showed no significant difference among the three groups at day 3 whereas it was dramatically increased in cells cultured with the BG extracts at day 10.

Zoom In Zoom Out Reset image size

Data described above demonstrated that the 1/4 extract of BG was the most effective to induce hBMSCs osteogenic differentiation. Therefore, we next sought to investigate whether the BMP/Smad signaling pathway was activated during BMSC differentiation after treatment with 1/4 BG extract. The gene expression levels of key molecules (Smad1/5 and Dlx5 transcription factors) in the BMP/Smad signaling pathway were examined using RT-PCR [27]. As shown in figure 5(B), cells cultured in the control group expressed a low level of these genes, while cells showed significant higher expression of Smad1/5 and Dlx5 after incubation with the 1/4 BG extracts at day 1. Specifically, expression of Dlx5 in BG group was remarkably higher than that in the control group at day 3.

To clarify whether activation of BMP/Smad is required for the hBMSCs osteogenic differentiation induced by 1/4 BG extracts, the BMP/Smad signaling pathway was blocked with a specific inhibitor, noggin, for 24 h prior to 1/4 BG extract. Subsequently, qRT-PCR, Western blot, ALP, and ARS staining were preformed to assess osteogenic activity. Data from these experiments showed that the BG-induced 1/4 BG extract-induced up-regulation of Smad1/5 and Dlx5 mRNA expression and p-Smad1/5 proteins were suppressed by noggin (figures 5(B) and (C)). The ALP and ARS staining also revealed that 1/4 BG extract-induced osteogenic activity was remarkably inhibited by the noggin treatment (figure 5(D)). Taken together, these data suggest that BG-induced osteoblast differentiation is achieved through activating BMP/Smad signaling.
