Entanglement-based 3D magnetic gradiometry with an ultracold atomic scattering halo

Our experiment starts with a BEC of metastable helium (He*) in the 2 ³S₁ state, magnetically trapped in the m_J = +1 Zeeman sublevel [23]. After the trap switch-off, a nearly uniform DC magnetic field ${B}\approx 0.5(\hat{{\bf{x}}}+\hat{{\bf{z}}})/\sqrt{2}\,{\rm{G}}$ (see figure 1 for the coordinate system) is actively stabilised to attenuate stray AC fields by over 100 fold, and shot-to-shot variations to less than 0.1 mG, by independently controlling three orthogonal sets of Helmholtz coils surrounding the experimental chamber [24].

Zoom In Zoom Out Reset image size

The atomic ensemble used in both schemes is an s-wave scattering halo created in a collision of two BECs, which has been theoretically investigated for applications to quantum metrology in [25], and pairwise entanglement was recently experimentally verified [22]. Using a stimulated Raman transition to impart a coherent momentum kick, we split the BEC into two daughter condensates, which are initially overlapped then separate at velocities $\pm 60\hat{{\bf{z}}}\,\mathrm{mm}\,{{\rm{s}}}^{-1}$ in the centre of mass frame (see figure 1(a)). Binary atomic collisions then scatter atoms by counter-propagating pairs (anti-correlated in momentum) with uniform probability amplitude in all directions, such that the momentum distribution of the scattering halo resembles a thin spherical shell. The pairs can be prepared in the symmetric spin Bell state $\left|{{\rm{\Psi }}}^{+}\right\rangle$ by inducing a spin-flip via the Raman transition, and thus oppositely spin polarising the colliding condensates. The atomic spin states in our work are m_J = {+1, 0}, which we denote by the eigenstates of the ${\hat{\sigma }}_{z}$ Pauli operator $\{\left|\uparrow \right\rangle ,\left|\downarrow \right\rangle \}$, respectively.

Approximately $416\,\mathrm{ms}$ after trap switch-off, the 3D position and m_J of individual atoms are measured (see figure 1(a)) using a combination of a Stern–Gerlach (SG) sequence and a single-atom sensitive detector¹ . This far-field distribution of atoms can be used to reconstruct the spatial distribution at an intermediate point in its trajectory using a simple geometric argument (see footnote 1). We find that the reconstructed field-of-view of the interrogated region corresponds to the volume of the scattering halo (thin spherical shell) at that point of expansion, while the spatial resolution is ultimately limited by the corresponding width of the collision source in each dimension (see footnote 1 for details on the reconstruction).

For EBMG we begin with a collision between $\left|\uparrow \right\rangle$ and $\left|\downarrow \right\rangle$ states to scatter pairs entangled in spins and generate $\left|{{\rm{\Psi }}}^{+}\right\rangle$ [22, 25]. The scattered mode, in reality, is a superposition of the unoccupied vacuum, a single entangled pair, as well as higher numbers of the pairs [25], analogous to the two-mode squeezed vacuum in quantum optics. Two-body correlations in the scattering halo were experimentally determined [22], and theoretically investigated [25] for applications to quantum metrology, and an agreement between the theory and experiments to higher order correlations was found in [26], although there was no spin degree of freedom in the latter. We note that sensitivity beyond SQL has been demonstrated by directly utilising such number fluctuations in twin Fock states of atomic ensembles [27], but this effect is negligible to the scattering halo which generally operate in the spontaneous regime with average mode occupancy below unity.

As the entangled pairs separate, they oscillate coherently between the Bell states $\left|{{\rm{\Psi }}}^{+}\right\rangle$ and $\left|{{\rm{\Psi }}}^{-}\right\rangle$ at the difference in Larmor frequencies of each atom δω = γδB, where $\gamma \approx 2.8\,\mathrm{MHz}\,{{\rm{G}}}^{-1}$ is the gyromagnetic ratio of He*, and δB is the difference in B between the entangled atoms' locations. Therefore the pair's dynamics are independent of any symmetric perturbation to the system, but only to the asymmetric component, such as the difference in magnetic field experienced by each atom in the pair. We characterise the pair by the Bell phase Φ, such that after some time τ following the collision the pair is given by

$$\begin{eqnarray}&&\left|{\rm{\Psi }}(\tau )\right\rangle =\cos {\rm{\Phi }}(\tau )\left|{{\rm{\Psi }}}^{+}\right\rangle +{\rm{i}}\sin {\rm{\Phi }}(\tau )\left|{{\rm{\Psi }}}^{-}\right\rangle .\end{eqnarray} \tag{ 1 }$$

The Bell phase then evolves according to ${\rm{\Phi }}(\tau )=\gamma /2{\int }_{0}^{\tau }\delta {B}(\tau ^{\prime} ){\rm{d}}\tau ^{\prime}$. Therefore, pairs scattered along different directions will undergo different time evolution, such that the entire scattering halo interrogates the spatial variation in the magnetic field.

For a pair of atoms in a superposition of Bell states as in (1), Φ can be estimated by the correlation of their spins projected in a complementary basis to ${\hat{\sigma }}_{z}$, such as ${\hat{\sigma }}_{x}$. In our experiment the change in basis is effected by a π/2-pulse using separate Raman beams, which act independently on each atom's spin according to $\left|\uparrow \right\rangle \to (\left|\uparrow \right\rangle +\left|\downarrow \right\rangle )/\sqrt{2}$, and $\left|\downarrow \right\rangle \to (-\left|\uparrow \right\rangle +\left|\downarrow \right\rangle )/\sqrt{2}$. The co-propagating Raman beam geometry used for the spin rotation ensures that the atoms' momenta are unaffected by the two-photon recoil [22]. Under the π/2-pulse, the singlet is invariant $\left|{{\rm{\Psi }}}^{-}\right\rangle \to (\left|\uparrow \downarrow \right\rangle -\left|\downarrow \uparrow \right\rangle )/\sqrt{2}$ and remains perfectly anti-correlated, whereas the triplet becomes $\left|{{\rm{\Psi }}}^{+}\right\rangle \to (\left|\uparrow \uparrow \right\rangle -\left|\downarrow \downarrow \right\rangle )/\sqrt{2}$ and thus perfectly correlated in spin. Observe that the rotated Bell states are then distinguished by the spin correlator $({\hat{\sigma }}_{z}\otimes {\hat{\sigma }}_{z}){\left|{{\rm{\Psi }}}^{\pm }\right\rangle }_{\pi /2}=(\pm 1){\left|{{\rm{\Psi }}}^{\pm }\right\rangle }_{\pi /2}$, where the subscript indicates that a π/2-pulse has been applied to the state. The pairwise correlator on the state (1) after the π/2-pulse therefore reveals the Bell phase, given by

$$\begin{eqnarray}\begin{array}{rcl}{\left\langle {\hat{\sigma }}_{z}\otimes {\hat{\sigma }}_{z}\right\rangle }_{\pi /2} & = & +1\cdot {\cos }^{2}{\rm{\Phi }}-1\cdot {\sin }^{2}{\rm{\Phi }}\\ & = & \cos 2{\rm{\Phi }}.\end{array}\end{eqnarray} \tag{ 2 }$$

Note that our measurement incorporates all atom number fluctuations by determining the above idealised pair correlation from generalised correlations in the collective spin projections (difference in the number of atoms with spin $\left|\uparrow \right\rangle$ and $\left|\downarrow \right\rangle$) between the counter-propagating modes (see footnote 1).

Figure 2(a) shows the observed time-evolution of the pairwise correlation at representative locations on the scattering halo (using bins of half-cone angle $\approx 20^\circ$), and clearly shows the large range of dynamics along different scattering angles (see footnote 1 for details on the correlation analysis). The earliest time we have applied the π/2-pulse to the entangled halo is $0.8\,\mathrm{ms}$ after the collision sequence (see figure 1(b)), which provides sufficient time for the BECs to fully separate, ensuring that no more pairs are scattered into the halo after the π/2-pulse (see footnote 1). The pairs remain close to $\left|{{\rm{\Psi }}}^{+}\right\rangle$ for short times after the collision ($\tau \lesssim 1\,\mathrm{ms}$) regardless of their scattering angle, since there is insufficient spatial separation between the pairs, and thus relatively small differences in magnetic field. As the halo expands further, we begin to observe a gradually increasing scattering angle-dependent evolution of the Bell states, such that at $\tau =1.7\,\mathrm{ms}$ the halo simultaneously contains regions of almost stationary $\left|{{\rm{\Psi }}}^{+}\right\rangle$ states (◦-marker), as well as those which have almost fully evolved to the orthogonal state $\left|{{\rm{\Psi }}}^{-}\right\rangle$ (×-marker).

Zoom In Zoom Out Reset image size

Since the interrogation region is small and well isolated, we approximate the magnetic field to first order in position around the point of collision ${{\bf{r}}}_{0}$, such that $B({\bf{r}})={B}_{0}+{\rm{\nabla }}B\cdot {{\bf{r}}}^{{\rm{{\prime} }}}+{ \mathcal O }(r{{\rm{{\prime} }}}^{2})$, where ${\bf{r}}^{\prime} ={\bf{r}}-{{\bf{r}}}_{0}$. Then, an entangled pair in equation (1) counter-propagating at velocities $\pm {{\bf{v}}}_{r}$ in the centre-of-momentum frame evolves according to ${\rm{d}}{\rm{\Phi }}/{\rm{d}}t=(\gamma /2){\boldsymbol{\nabla }}B\cdot (2{{\bf{v}}}_{r}t)$, unaffected by the free-falling frame. In terms of the gradient of magnetic field strength along the scattering axis ${\rm{d}}{B}/{\rm{d}}r={\boldsymbol{\nabla }}{B}\cdot {{\bf{v}}}_{r}/\left|{{\bf{v}}}_{r}\right|$, this gives

$$\begin{eqnarray}&&{\rm{\Phi }}(\tau )=\frac{\gamma {v}_{r}}{2}\frac{{\rm{d}}B}{{\rm{d}}r}{\tau }^{2}.\end{eqnarray} \tag{ 3 }$$

Note that the correlation measurement (2) cannot reveal the sign of ${\rm{d}}B/{\rm{d}}r$, and all gradient measurements henceforth reported are their absolute value. The above model gives an excellent fit to the observed correlation dynamics as seen in figure 2(a). The quadratic dependence of Φ on τ also qualitatively explains the transition from almost stationary states at $\left|{{\rm{\Psi }}}^{+}\right\rangle$ regardless of the scattering angle at the start of expansion, to the diverging behaviour at later times.

Figure 2(b) shows the reconstructed spatial distribution of ${\rm{d}}B/{\rm{d}}r$ obtained by fitting the single free parameter model, in the equirectangular projection where θ (ϕ) is the azimuthal (elevation) angle in the scattering halo-centred coordinate system. The measurement uncertainty from an individual binning region is ${\rm{\Delta }}({\rm{d}}B/{\rm{d}}r)=0.4(1)\,{\rm{G}}\,{{\rm{m}}}^{-1}$, where the uncertainty indicates the standard deviation over the spatial distribution. The observed uncertainty from EBMG is in a reasonable agreement to the theoretical prediction (phase uncertainty ${\rm{\Delta }}{\rm{\Phi }}=1/\sqrt{2N{\eta }^{2}n}$ to equation (3), where $\bar{N}\approx 22(8)$ is the average number of atoms in a double-cone region, $\bar{\tau }\approx 1.1(2)\,\mathrm{ms}$ the average interrogation time, and n = 7540 the number of experiments) given by ${\rm{\Delta }}({\rm{d}}B/{\rm{d}}r)=0.16(8)\,{\rm{G}}\,{{\rm{m}}}^{-1}$. The reconstructed spatial distribution in figure 2(b) is qualitatively consistent with our model of uniform gradient across the halo which gives ${\rm{d}}B/{\rm{d}}r=\left|{\boldsymbol{\nabla }}B\right|\cos \beta$, where β is the angle between the principal direction of the magnetic field gradient and the scattering direction. The fitted first order approximation of the magnetic field to the reconstructed data in figure 2(b) gives ${\boldsymbol{\nabla }}{B}=4.5(1)\hat{{\bf{x}}}+0.2(1)\hat{{\bf{y}}}+0.4(1)\hat{{\bf{z}}}\,{\rm{G}}\,{{\rm{m}}}^{-1}$, up to a flip in the sign (direction) of the vector. An independent estimation using a commercial magnetometer placed $\pm 100\hat{{\bf{y}}}\,\mathrm{mm}$ around the interrogation region supports this result yielding ${({\boldsymbol{\nabla }}{B})}_{y}=0.4(2)\,{\rm{G}}\,{{\rm{m}}}^{-1}$. The observed distribution of magnetic field gradient is indeed maximised along the x-axis which agrees with the direction of the fitted gradient vector ${\rm{\nabla }}B$, and steadily decreases away to a sharp minimum region around the perpendicular directions, as expected from the above cosine behaviour of gradients in a scalar field with first-order non-uniformity. Figure 2(c) clearly shows that the spatial distribution of ${\rm{d}}B/{\rm{d}}r$ probed by the entanglement-based scheme is in excellent agreement with the simple model of an inhomogeneous magnetic field expanded to first order. The observed consistency validates the initial approximation used to estimate ${\rm{d}}B/{\rm{d}}r$ from the correlation dynamics seen in figure 2(a).

EBMG provides a way to map field gradients decoupled from the absolute magnitude of the field. Higher order field gradients, neglected in our simple proof-of-concept demonstration, can be gradually incorporated by interrogating the scattering halo at finer intervals of its expansion, to reduce integration effects. Any field gradient at an arbitrary location in space could in principle be measured by displacing the point of collision accordingly.

The proposed scheme to achieve 3D magnetic field tomography is based on the standard Ramsey interferometry [3], implemented on the scattering halo at different times during its free-expansion (see figure 1(c)), such that the 3D magnetic field distribution is reconstructed in slices of spherical shells of variable radii.

In this demonstration of 3D magnetic field tomography, we let a $\left|\uparrow \right\rangle$-scattering halo expand freely for $3\,\mathrm{ms}$ after a $\left|\uparrow \right\rangle$-polarised collision, at which time the halo diameter is D ≈ 360 μm, when Ramsey interferometry—two π/2-pulses with a delay in between (τ)—is applied (see figure 1(c)). During the interrogation period τ, a relative phase accumulates between the $\left|\uparrow \right\rangle /\left|\downarrow \right\rangle$ components at the local Larmor frequency. The second π/2-pulse maps the interferometric phase to the normalised polarisation such that $({n}_{\uparrow }-{n}_{\downarrow })/({n}_{\uparrow }+{n}_{\downarrow })\sim \cos \gamma {B}\tau$, where ${n}_{\uparrow /\downarrow }$ is the number of atoms with spin-$\uparrow /\downarrow$, respectively.

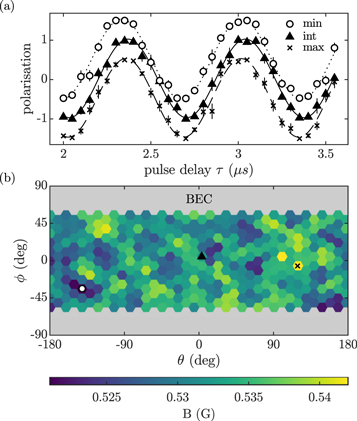

Figure 3(a) shows the observed Ramsey signal at different locations on the scattering halo corresponding to where the maximum, minimum, and an intermediate value of magnetic fields were observed. 10 shots were taken at each interrogation time τ uniformly spaced between 2 μs and 3.55 μs, with a single-shot average of ≈68 atoms scattered into an individual conical bin (half-cone angle of 11°), and ≈7200 in the whole scattering halo, accounting for the detector efficiency. Using the individual spatially-resolved Ramsey signals around the halo, we reconstruct the magnetic field ${B}({\bf{r}})$ over the scattering halo at the interrogation time. The projected spherical distribution is shown in figure 3(b), where the corresponding halo diameter is ≈360 μm. The grey areas in figure 3(b) correspond to excluded regions of the scattering halo near the BECs ($\left|\phi \right|\gt 60^\circ$), which cause the detector to saturate. The average measurement uncertainty at the individual bin (pixel) was ΔB = 3.2(2) mG (uncertainty indicates the standard deviation over the spatial distribution), while the overall image histogram around the sphere is well described by a Gaussian distribution with a mean of $0.532\,{\rm{G}}$ and a standard deviation of ≈4.8(9) mG. An independent measurement of the magnetic field, based on the Zeeman shift to the two-photon Raman transition [28], yields $0.53(1)\,{\rm{G}}$, in good agreement with this result. Since in this demonstration the observed spatial variation is comparable to the measurement uncertainty of a single bin, we conclude that the actively stabilised magnetic field inside our vacuum chamber is uniform at the level of our noise floor. For a comparison to the EBMG result, the Ramsey demonstration yields an uncertainty of $\approx 10\,{\rm{G}}\,{{\rm{m}}}^{-1}$, based on the errors propagated in evaluating the finite difference δB/δr. This explains the nondiscrimination of spatial features predicted by EBMG in figure 3(b), due to the poor signal to noise ratio of ≈1/2.

Zoom In Zoom Out Reset image size

Some key technical challenges can be addressed to improve the metrological performance demonstrated here, such as by increasing the atom number N, detector efficiency η, and interrogation time τ, based on the SQL of Larmor precession-based magnetometers ${\rm{\Delta }}{B}=1/\gamma \sqrt{N}\tau$ [29], and from a more efficient sampling strategy of τ [30]. We note that the theoretical uncertainty in the magnetic field, corresponding to the SQL phase uncertainty, from our experimental parameters for a single pixel is ΔB = 2.7 mG, and is in an excellent agreement with the observed uncertainty from the experiment.
