Geometric phase effects in ultracold hydrogen exchange reaction

The Schrödinger equation is solved using a numerically exact six-dimensional time-independent coupled-channel formalism implemented in the adiabatically adjusting principle axis hyperspherical (APH) coordinates [69–71]. This is enabled by partitioning the hyperradius into two regions: an inner region and an outer region. In the inner region, also called the interaction region (i.e., for small hyperradius ρ) where all three atoms are in close proximity, Smith–Whitten symmetrized hyperspherical or APH coordinates are used. In the outer region (i.e., for large hyperradius ρ) where the reactant and product channels become decoupled, a properly symmetrized set of Fock–Delves hyperspherical coordinates are used (one for each arrangement channel). The method accurately treats the body-frame Eckart singularities [70] associated with non-zero total angular momentum quantum number J and includes the geometric phase using the general vector potential approach [30, 72]. An adiabatic approach is used both in the inner and outer regions by discretizing the hyperradius ρ into a large number of sectors. The three-body Hamiltonian is diagonalized at the midpoint of each sector to obtain a set of 5D angular wave functions (hyperspherical surface functions). The 5D angular solutions are independent of the collision energy and need to be computed once for each value of J, inversion parity and identical particle exchange symmetry. They form the basis set for the coupled-channel equations in ρ and are used to compute a set of potential coupling matrices within each sector and the overlap matrices between adjacent sectors. The log-derivative propagator method of Johnson [73] is used to propagate the coupled equations from small to large ρ. Finally, the asymptotic boundary conditions are applied at large ρ to compute the scattering S matrix from which the cross sections and reaction rate coefficients are computed. The non-thermal reaction rate coefficients reported here are obtained by multiplying the reaction cross sections with the relative collision velocity.

Our previous work [39–41] illustrated that to observe the GP effect in reactive and inelastic scattering two criteria must be met: (i) the relevant adiabatic PES must display a CI, and (ii) the scattering amplitudes for the different pathways encircling the CI must have comparable magnitude and scatter into the same angular region. The latter criterion is partly satisfied in the ultracold regime where s-wave scattering dominates. In addition to the isotropic (i.e., s-wave) scattering, the ultracold regime can lead to an effective quantization of the scattering phase shift (i.e., the phase shift approaches an integral multiple of π) which often results in maximum constructive or destructive interference between the different scattering amplitudes. The details of the interference mechanism have been discussed in prior works [39–41] and only a brief description is given here.

There are two types of reactive pathways possible in H+HD collisions. One is a hydrogen exchange reaction, H_a+H_bD($v,j$) $\to$ H_b+H_aD($v^{\prime} ,j^{\prime}$) where the two identical H atoms (labeled a and b for illustrative purpose) exchange with one another. This process should be considered together with a purely nonreactive inelastic transition H_a+H_bD($v,j$) $\to$ H_a+H_b($v^{\prime} ,j^{\prime}$)D where there is no H atom exchange. For an accurate description of H+HD scattering, both processes need to be taken into account as demonstrated in a recent experimental work of Jankunas et al [23]. The other process is a pure reactive collision, H+HD $\to$ D+H₂. A detailed schematic diagram of the 2D slice of the ground state H₃ electronic PES and the above two reaction pathways are given in figures 1(a) and (b) of [40]. To avoid repetition we do not reproduce the reaction pathways here but provide a brief description of each reaction mechanism. As our main focus is the hydrogen exchange reaction that shows the largest GP effect, the theoretical description is based on the exchange pathways depicted in figure 1(a) of [40] and prior works of Althorpe and collaborators [31–34]. If f_inel and f_ex are the scattering amplitudes for the 'inelastic' and 'exchange' pathways, they can be written in terms of the NGP and GP scattering amplitudes, f_NGP and f_GP, according to

$$\begin{eqnarray}&&{f}_{{\rm{NGP}}/{\rm{GP}}}=\displaystyle \frac{1}{\sqrt{2}}({f}_{{\rm{inel}}}\pm {f}_{{\rm{ex}}}),\end{eqnarray} \tag{ 1 }$$

where the plus sign refers to NGP and the minus sign refers to GP. The square modulus of the scattering amplitudes for the NGP and GP calculations may be written as

$$\begin{eqnarray}&&| {f}_{{\rm{NGP}}/{\rm{GP}}}{| }^{2}=\displaystyle \frac{1}{2}(| {f}_{{\rm{inel}}}{| }^{2}+| {f}_{{\rm{ex}}}{| }^{2}\pm 2| {f}_{{\rm{inel}}}| \,| {f}_{{\rm{ex}}}| \cos {\rm{\Delta }})\end{eqnarray} \tag{ 2 }$$

where the complex scattering amplitudes f_inel and f_ex are expressed as ${f}_{{\rm{inel}}}=| {f}_{{\rm{inel}}}| {{\rm{e}}}^{{\rm{i}}{\delta }_{{\rm{inel}}}}$ and ${f}_{{\rm{ex}}}=| {f}_{{\rm{ex}}}| {{\rm{e}}}^{{\rm{i}}{\delta }_{{\rm{ex}}}}$ and ${\rm{\Delta }}={\delta }_{{\rm{ex}}}-{\delta }_{{\rm{inel}}}$ is the phase difference between the exchange and inelastic pathways. The GP effect becomes significant when the two scattering amplitudes are of comparable magnitude, i.e., $| {f}_{{\rm{ex}}}| =| {f}_{{\rm{inel}}}| =| f|$ which leads to $| {f}_{{\rm{NGP}}/{\rm{GP}}}{| }^{2}=| f{| }^{2}(1\pm \cos {\rm{\Delta }})$. Further, if $\cos {\rm{\Delta }}=+1$ then maximum (constructive) interference occurs for the NGP case and $| {f}_{{\rm{NGP}}}{| }^{2}\sim 2| f{| }^{2}$ and $| {f}_{{\rm{GP}}}{| }^{2}\sim 0$. In contrast, if $\cos {\rm{\Delta }}=-1$ then maximum (constructive) interference occurs for the GP case and $| {f}_{{\rm{GP}}}{| }^{2}\sim 2| f{| }^{2}$ and $| {f}_{{\rm{NGP}}}{| }^{2}\sim 0$. In the ultracold regime, an effective quantization of ${\rm{\Delta }}=n\pi$ can occur where n is an integer and the reaction can then be turned on or off depending simply on the sign of the interference term (since $| \cos {\rm{\Delta }}| \sim 1$). On the other hand, if one of the scattering amplitudes is much greater than the other, $| {f}_{{\rm{ex}}}{| }^{2}\& Gt;\,| {f}_{{\rm{inel}}}{| }^{2}$ or $| {f}_{{\rm{inel}}}{| }^{2}\& Gt;| {f}_{{\rm{ex}}}{| }^{2}$, then equation (2) becomes $| {f}_{{\rm{NGP}}/{\rm{GP}}}{| }^{2}\sim | {f}_{{\rm{ex}}}{| }^{2}/2$ or $| {f}_{{\rm{NGP}}/{\rm{GP}}}{| }^{2}\sim | {f}_{{\rm{inel}}}{| }^{2}/2$. In these cases, the interference term containing $| \cos {\rm{\Delta }}|$ plays no role and the GP effect vanishes. When many partial waves contribute, as in higher energy collisions, the interference term averages out to zero ($\cos {\rm{\Delta }}\sim 0$) and there is no GP effect. The above theoretical description is also valid for the pure reactive case, H+HD $\to$ D+H₂ except the two scattering amplitudes for the different paths are replaced by $| {f}_{{\rm{ex}}}| =| {f}_{{\rm{loop}}}|$ and $| {f}_{{\rm{inel}}}| =| {f}_{{\rm{direct}}}|$. The phase quantization of ${\rm{\Delta }}=n\pi$ can be understood in terms of scattering in a simple spherical square well potential for the different pathways (i.e., Levinson's theorem ${\delta }_{{\rm{ex}}}={n}_{{\rm{ex}}}\pi$ and ${\delta }_{{\rm{inel}}}={n}_{{\rm{inel}}}\pi$ but with a different number of bound states n_ex and n_inel for the spherical well potentials traversed by the two pathways) [39]. As we demonstrate below, our explicit scattering calculations appear to validate this model, yielding $\cos {\rm{\Delta }}$ values that are close to ±1 when the NGP or GP effect dominates.

Extensive convergence tests have been carried out to determine appropriate values of the basis set truncation parameters for the surface function calculations in the APH angular coordinates θ and ϕ. The APH region was restricted to hyperradius $1.9\leqslant \rho \leqslant 7.03$ bohr with a logarithmic spacing in ρ. The parameters l_max and m_max control the number of basis functions in θ and ϕ in this region, respectively. For computational efficiency the hyperradial region in the APH coordinates is divided into five segments with increasingly larger basis functions as ρ increases. The basis set changes at ρ values 2.89, 3.61, 4.51, 5.63 and 7.03 bohr with (${l}_{\max },\,{m}_{\max })$ parameters (103, 190), (115, 214), (123, 232), (135, 250), and (143, 274), respectively. For J = 0 these basis sets led to surface function matrices of dimension 39 624, 49 764, 57 660, 68 136 and 79 056. A sequential diagonalization truncation (SDT) scheme is used to reduce the dimensionality of these matrices to 8916, 10 410, 11 817, 14 156 and 16 741, respectively. This leads to a significant savings in computational time, especially for $J\gt 0$ for which the surface function matrices are much larger. The J = 0 calculations included 300 coupled channel equations of which 81 are open channels and the rest are closed channels (asymptotically). Asymptotically these 300 channels correspond to different rovibrational levels of the HD and H₂ molecules. In the outer region where Delves co-ordinates are used the coupled channel solutions are further propagated from $\rho =7.03$ bohr to 50 bohr with a uniform spacing of ${\rm{\Delta }}\rho =0.2$ bohr. The number of basis functions in this region is controlled by an energy cutoff parameter which is taken to be 4.0 eV relative to the minimum energy of the asymptotic H₂ diatomic potential. The global H₃ PES reported by Boothroyd et al [74], referred to as the BKMP2 PES, was adopted for the calculations. The H₃ PES of Mielke et al [75] yields comparable results for both the GP and NGP calculations as illustrated in our recent work [40]. Computations were performed for $J=0-4$ which yield converged cross sections for collision energies below 20 K. Nevertheless, results are presented for collision energies up to 100 K, which are converged with respect to basis set parameters but not the partial wave summation.

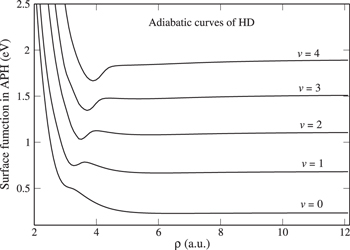

In figure 1 we present vibrationally adiabatic potentials for H+HD($v=0-4$) collisions which depict a barrierless path for $v\gt 3$, consistent with previous analysis of Jankunas et al [24] The potentials for $v\lt 3$ exhibit barriers in the incident or outgoing channels which suppress ultracold reactivity.

Zoom In Zoom Out Reset image size

Figure 2 shows a few selected rotationally resolved reaction rate coefficients for the hydrogen exchange channel leading to H+HD($v^{\prime} =0,j^{\prime} =3$); H+HD($v^{\prime} =1,j^{\prime} =2$); and H+HD($v^{\prime} =3,j^{\prime} =2$) channels that show large GP effect. The results in the left panels correspond to even exchange symmetry and those in the right panels depict the odd exchange symmetry. The even and odd exchange symmetries refer to the symmetry of the nuclear motion wave function with respect to the permutation of the identical hydrogen nuclei. Since the hydrogen nuclei behave as spin 1/2 Fermions, the total molecular wave function (nuclear motion × electronic × nuclear spin) must be antisymmetric with respect to the permutation of the two identical H nuclei. Since the electronic wave function for H₂ is a symmetric ${}^{1}{{\rm{\Sigma }}}_{g}^{+}$ state, the even (odd) nuclear motion wavefunction is multiplied by the odd (even) nuclear spin function with the appropriate statistical weight. These statistical weights are included in the rates plotted in figure 2 (1/4 for even and 3/4 for odd). The black and red curves denote NGP and GP rates, respectively. It is seen that the NGP rates dominate for the even exchange symmetry and the GP rates dominate for the odd exchange symmetry (however this is not always the case). For the $v^{\prime} =0,j^{\prime} =3$ results in panels (a) and (d), the GP and NGP results differ by more than two orders of magnitude. For the other transitions, they differ by 1-2 orders of magnitude. The peak in the reaction rates near 1 K is a shape resonance due to a ${\ell }=1$ partial wave which we will discuss in more detail in section 3.3.

Zoom In Zoom Out Reset image size

Figure 3 shows the ratio of the square of the scattering amplitudes for the exchange (reactive) and inelastic (nonreactive) pathways (upper panels (a) and (c)) and average value of $\cos {\rm{\Delta }}$ for $j^{\prime} =3$ and ${m}_{j^{\prime} }=3$ (lower panels, (b) and (d)) for both even and odd exchange symmetries as functions of the collision energy. Results for J = 0, J = 1 and that summed over $J=0-4$ are shown in black, red and blue curves, respectively, for the H+HD($v^{\prime} =0,j^{\prime} =3$) product channel. It is seen that $\langle \cos {\rm{\Delta }}\rangle$ values for the summed $J=0-4$ case approach ±1 (+1 in panel (b) and -1 in panel (d)) for collision energies below 1 mK where only the ${\ell }=0$ partial wave contributes. The GP effect is most pronounced in this regime where the exchange (reactive) and inelastic (nonreactive) scattering amplitudes have comparable magnitude (i.e., their ratio is near unity). Hence, the square modulus of the total scattering amplitude for the NGP and GP cases can be approximated as $| {f}^{{\rm{NGP}}}{| }^{2}\sim {f}^{2}(1+\cos {\rm{\Delta }})\sim 2{f}^{2}$ (when NGP dominates) and $| {f}^{{\rm{GP}}}{| }^{2}\sim {f}^{2}(1-\cos {\rm{\Delta }})\sim 2{f}^{2}$ (when GP dominates) in the ultracold regime. This explains the dominance of the NGP and GP rates at low energies in panels (a) and (d) of figure 2. As the collision energy increases contributions from J = 1 (${\ell }=1$ partial wave) becomes important. However, in panels (b) and (d) of figure 3 it is seen that the sign of $\cos {\rm{\Delta }}$ is flipped for J = 1 leading to $| {f}^{{\rm{NGP}}}{| }^{2}\sim {f}^{2}(1+\cos {\rm{\Delta }})\sim 0$ (as $\cos {\rm{\Delta }}$ = −1 in panel (b)) and $| {f}^{{\rm{GP}}}{| }^{2}\sim {f}^{2}(1-\cos {\rm{\Delta }})\sim 0$ (as $\cos {\rm{\Delta }}$ = +1 in panel (d)) for J = 1. This also explains why the NGP contribution is suppressed and the GP contribution is enhanced at the resonance region near 1 K in figure 2(a). The opposite effect is seen in figure 2(d). A similar trend is observed for $\left\langle \tfrac{| \,{f}^{\mathrm{ex}}{| }^{2}}{| \,{f}^{\mathrm{inel}}{| }^{2}}\right\rangle$ and $\langle \cos {\rm{\Delta }}\rangle$ values for the final states presented in panels (b), (c), (e) and (f) of figure (2). At higher energies, $\cos {\rm{\Delta }}$ tends to oscillate about zero which leads to a small interference term and negligible GP effect. This is illustrated further in figure 4 which shows a $\cos {\rm{\Delta }}$ vs $\cos {\rm{\Delta }}$ plot for all of the open rotationally resolved H+HD($v^{\prime} ,j^{\prime}$) channels at a collision energy of 1μK. The even and odd exchange symmetry cases are plotted in black and red dots, respectively. It is seen that the majority of $\cos {\rm{\Delta }}$ values are clustered near ±1 (+1 for even and −1 for odd exchange symmetry) indicating that the phase difference $\cos {\rm{\Delta }}$ is essentially quantized at low energies leading to significant GP effects in most rotationally resolved rate coefficients.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In figure 5 we present the gauge invariance check of our GP results. The vector potential approach for including the GP is based on a general vector potential of the form ${\bf{A}}=-m/2\,{\rm{\nabla }}\eta$ where η is the azimuthal angle which encircles the CI and m is an integer [5]. Even $m=0,2,\ldots$ correspond to NGP and odd $m=1,3,\ldots$ correspond to GP. Our NGP and GP calculations use m = 0 and 1, respectively. The gauge invariance check (green dots) shown in figure 5 uses m = 2, which is equivalent to a NGP calculation. Figure 5 shows that gauge invariance is well satisfied for the same final states depicted in figure 2 but restricted to total $J=0-2$ (to reduce the computational time). This confirms that the results are well converged and the large GP effects are genuine.

Zoom In Zoom Out Reset image size

Figure 6 shows vibrationally resolved rate coefficients for $v^{\prime} =0-3$ for the GP (shown in red) and NGP (shown in black) cases summed over all open rotational levels. To avoid cluttering, $v^{\prime} =0,\,1$ results are plotted in the upper panels ((a) and (c)) and $v^{\prime} =2,\,3$ product states are plotted in the lower panels ((b) and (d)). Panels (a) and (b) are for even exchange symmetry and panels (c) and (d) are for odd exchange symmetry. Results for $v^{\prime} =0$ and 2 are denoted by solid curves while $v^{\prime} =1$ and 3 are denoted by dashed curves. It is seen that the GP effect persists in vibrationally resolved rate coefficients though to a lesser extent compared to the rotationally resolved rates. The GP and NGP rates differ by nearly an order of magnitude for $v^{\prime} =0$ and 1 for both symmetries. It is striking to note that after summing over all open rotational states, the NGP rates exceed the GP rates for even exchange symmetry while the GP rates exceed the NGP rates for the odd exchange symmetry.

Zoom In Zoom Out Reset image size

The total and J-resolved rate coefficients summed over $v^{\prime}$ and $j^{\prime}$ are shown in figure 7 (left panels) for even (panel a) and odd (panel b) exchange symmetries as a function of the collision energy. The same but summed over even and odd exchange symmetries is shown in the right panel of figure 7 (panel (c)). Note that appropriate nuclear spin statistics factors have been included in the even and odd exchange symmetry contributions and the sum reflects this. The GP and NGP results are shown in red and black curves, respectively. The thick solid curves include contributions from $J=0-4$ whereas the thin solid, dashed, dashed dotted, thick dotted and dotted dashed curves correspond to $J=0,\,1,\,2,\,3$ and 4, respectively. As the angular momentum barrier in the entrance channel increases with J, the contribution of higher partial waves to the reaction rate coefficients decreases as the collision energy is reduced. The pure s-wave limit is reached for collision energies below 10 mK. It is seen that the rate coefficients are converged with respect to angular momentum partial wave sum for energies up to 20 K. The GP effect persists for collision energies up to about 0.1 K and also slightly in the resonant part of the cross section near 1.0 K. Clearly, experimental verification of the resonance can be a sensitive probe of the GP effect in the H+HD($v=4,j=0)$ reaction. In the ultracold regime (below 1 mK), the NGP rate coefficient for the even exchange symmetry (panel (a)) summed over $J=0-4$ exceeds the GP rates by a factor of 3. This is reversed for odd exchange symmetry for which the GP rates exceed the NGP rates by a similar factor (panel (b)). Due to the higher statistical weight for the odd exchange symmetry contribution, the ultracold GP (the thick solid red curve) rate in panel (c) is about 1.7 times larger than the NGP (the thick solid black curve) rate. In all three panels, the J-resolved GP and NGP rates (especially for J = 0 and 1) alternate between each other. Consequently, the dominance of the GP/NGP rates is reversed in the resonance region compared to the ultracold region. Its origin can clearly be traced to the enhancement of the J = 1 rates due to the ${\ell }=1$ shape resonance.

Zoom In Zoom Out Reset image size

Both the hydrogen exchange channel and the D+H₂ product channel (described in section 3.5) show a resonance feature in the energy dependent reaction rate coefficient at about 1.0 K. The resonance feature occurs in the rotationally and vibrationally resolved rate coefficients as well as the total rate coefficient. It also occurs in both the GP and NGP results. The partial wave resolved rate coefficients shown in figure 7 indicate that the resonance is due to an ${\ell }=1$ partial wave (J = 1, for initial j = 0). This is further confirmed by the argand diagrams shown in figure 8 for the $v^{\prime} =1,\,j^{\prime} =2$ final state for J = 0 (panels (a) and (c)) and J = 1 (panels (b) and (d)). The left and right panels display results for the even and odd exchange symmetries, respectively. For the even exchange symmetry, as panel (a) of figure 7 shows, the GP rates for J = 1 exceed the NGP rates near 1 K. This is reversed for the odd exchange symmetry for which the NGP rates for J = 1 exceed the GP rates (panel (b) of figure 7). The red data points correspond to the energies in the resonance region. Only the J = 1 results shown in the lower panels for both symmetries display a looping behavior characteristic of a scattering resonance. This looping behavior is a consequence of the $\pi /2$ phase shift associated with a resonance. A Lorentzian least-squares fit of the J = 1 GP resonance gives a resonance energy of 0.82 K and a width of ${\rm{\Gamma }}=0.96$ K (or lifetime $\tau =4{\rm{\hslash }}/{\rm{\Gamma }}=32\,\mathrm{ps}$). We believe this is the first time a reactive scattering resonance has been observed in the H+HD reaction at a collision energy near 1 K.

Zoom In Zoom Out Reset image size

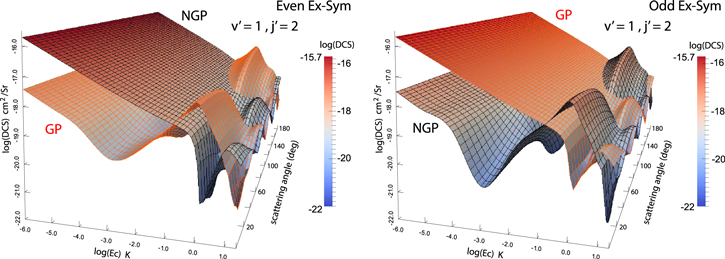

The results presented thus far have focused on reaction rate coefficients obtained by multiplying the integral cross sections with the relative collision velocity. In this section we discuss the differential cross section (DCS) for the hydrogen exchange channel. Figure 9 displays three-dimensional plots of differential cross sections as a function of both energy and scattering angle for the H+HD $(v=4,j=0)\,\to$ H+HD $(v^{\prime} =1,j^{\prime} =2)$ reaction. The DCSs are plotted for both even (left panel) and odd (right panel) exchange symmetries. The reaction rate for this final state has already been presented in panels (b) and (e) of figure 2. At low energies, the NGP rate dominates over the GP rate for the even exchange symmetry whereas the trend is reversed for the odd exchange symmetry. The NGP and GP results show the isotropic distribution in scattering angle and Wigner threshold behavior [76, 77] in scattering energy below 10 mK. The enhancement or suppression of the NGP or GP DCS in the ultracold regime is a direct outcome of the constructive or destructive interference between the inelastic (non-reactive) and exchange (reactive) scattering amplitudes which is maximized in the s-wave limit. As higher partial waves begin to contribute the effect becomes less pronounced, except when a scattering resonance is present. For example, while the NGP DCS dominates over its GP counterpart in the s-wave regime for the even exchange symmetry (left panel), the GP DCS exceeds the NGP values for collision energies above 100 mK. This is due to the ${\ell }$ = 1 shape resonance that enhances the GP DCS for energies above 100 mK (see also the J-resolved rate coefficients in figure 7 and the Argand plot in figure 8). The same scenario occurs for the odd exchange symmetry (right panel) for which the GP DCS dominates over the NGP results in the ultracold regime but not in the resonance region. In this case, the shape resonance enhances the NGP contribution.

Zoom In Zoom Out Reset image size

In figure 10, a two dimensional slice of the differential cross section is presented as a function of the scattering angle for the same final state as in figure 9 for collision energies of 0.812 K (near the shape resonance) and 8.0 K. Only results for the odd exchange symmetry are presented. It is seen that while the scattering angle dependence of the NGP DCS is nearly the same at both energies that of the GP DCS is very different. At the resonance energy (top panel) the NGP DCS exceeds the GP result by an order of magnitude except in the narrow range of scattering angle between 80°–120° where the NGP result dips below its GP counterpart. As a result, the integral cross sections and reaction rates show higher values for the NGP case in the resonance region. However, at 8.0 K where there is no resonance, contributions from partial waves ${\ell }=0-4$ are required for convergence and the s-wave contribution is not dominant anymore. Also, in this case, the DCS for both GP and NGP is symmetric at about ${90}^{\circ }$ and out of phase in scattering angle between 50°–140°. This leads to no observable difference between GP and NGP cross sections when integrated over the scattering angle as seen in the reaction rate depicted in figure 2. A similar behavior is found for the even exchange symmetry case.

Zoom In Zoom Out Reset image size

Besides the rate coefficients shown in figure 2 there are many other rotationally resolved final states that show large GP/NGP effects. These are listed in table 1 along with the two scattering amplitudes, average value of $\cos {\rm{\Delta }}$ and the ratio $\tfrac{\mathrm{GP}\,\mathrm{rate}}{\mathrm{NGP}\,\mathrm{rate}}$ at 1μK. Only state-to-state rate coefficients that are greater than $1.0\times {10}^{-16}$ cm³ s⁻¹ are shown. A significant GP effect is found in most of the rotationally resolved rate coefficients for both exchange symmetries. The most prominent are $v^{\prime} =0,j^{\prime} =0,1,4$ for which NGP or GP rates differ by more than two orders of magnitude. For these states, both the ratio $\left\langle \tfrac{| \,{f}^{\mathrm{ex}}{| }^{2}}{| \,{f}^{\mathrm{inel}}{| }^{2}}\right\rangle$ and $| \langle \cos {\rm{\Delta }}\rangle |$ values approach 1 for J = 0. The sign of $\cos {\rm{\Delta }}$ alternates for even (+1) and odd (−1) exchange symmetries (but this is not always the case). For even exchange symmetry, the square moduli of total NGP and GP scattering amplitudes are given by $| {f}^{{\rm{NGP}}}{| }^{2}\sim {f}^{2}(1+\cos {\rm{\Delta }})\sim 2{f}^{2}$ and $| {f}^{{\rm{GP}}}{| }^{2}\sim {f}^{2}(1-\cos {\rm{\Delta }})\sim 0$ as $\cos {\rm{\Delta }}\sim +1$. Hence the NGP rates remain larger than the GP rates for this case. This trend is reversed for the odd exchange symmetry for which $| {f}^{{\rm{GP}}}{| }^{2}\sim {f}^{2}(1-\cos {\rm{\Delta }})\sim 2{f}^{2}$ and $| {f}^{{\rm{NGP}}}{| }^{2}\sim {f}^{2}(1+\cos {\rm{\Delta }})\sim 0$ ($\cos {\rm{\Delta }}\sim -1$). This appears to be the case for the majority of rotational resolved rate coefficients for the hydrogen exchange reactions in H+HD collisions. For other $j^{\prime}$ states where moderate GP effects are present such as $v^{\prime} =1,2$ and 3 the ratio $\left\langle \tfrac{| \,{f}^{\mathrm{ex}}{| }^{2}}{| \,{f}^{\mathrm{inel}}{| }^{2}}\right\rangle$ deviates from unity which suppresses the interference term although $\cos {\rm{\Delta }}$ is close to 1.

Table 1.  Ultracold ($1\,\mu {\rm{K}}$) rate coefficients for the H+HD($v=4,j=0)\,\to$ HD+H; D+H₂ reaction with and without geometric phase effects, the ratio of the average square modulus of the scattering amplitudes between the different pathways for two reactions, $\cos {\rm{\Delta }}$, and the ratio of the GP and NGP rates are listed. The even and odd denote the exchange symmetry for H+HD($v=4,j=0)\,\to$ HD+H reaction. The data include the appropriate nuclear spin statistical weights.

	H+HD($v=4,j=0$)	$\longrightarrow$	HD+H reaction
$v^{\prime}$	$j^{\prime}$	NGP rate (cm3/s)	GP rate (cm3/s)	$\left\langle \tfrac{| {f}^{\mathrm{ex}}{| }^{2}}{| {f}^{\mathrm{inel}}{| }^{2}}\right\rangle$	$\langle \cos {\rm{\Delta }}\rangle$	$\tfrac{\mathrm{GP}\,\mathrm{rate}}{\mathrm{NGP}\,\mathrm{rate}}$
0	0(evn)	$3.45\times {10}^{-15}$	$3.03\times {10}^{-17}$	1.30	0.99	$9.00\times {10}^{-3}$
0	0(odd)	$6.26\times {10}^{-17}$	$9.83\times {10}^{-15}$	1.36	−0.99	157
0	1(evn)	$8.49\times {10}^{-15}$	$7.27\times {10}^{-17}$	1.31	0.99	$8.55\times {10}^{-3}$
0	1(odd)	$2.38\times {10}^{-16}$	$2.64\times {10}^{-14}$	1.48	−0.99	110
0	4(evn)	$1.43\times {10}^{-14}$	$1.26\times {10}^{-16}$	1.24	0.98	$8.79\times {10}^{-3}$
0	4(odd)	$1.88\times {10}^{-16}$	$4.27\times {10}^{-14}$	1.23	−0.99	226
1	0(evn)	$1.72\times {10}^{-15}$	$5.81\times {10}^{-17}$	0.69	0.95	$3.42\times {10}^{-2}$
1	0(odd)	$3.97\times {10}^{-16}$	$6.11\times {10}^{-15}$	0.79	−0.88	15
1	2(evn )	$9.25\times {10}^{-15}$	$1.86\times {10}^{-16}$	0.77	0.97	$2.01\times {10}^{-2}$
1	2(odd)	$4.69\times {10}^{-16}$	$2.92\times {10}^{-14}$	1.02	−0.96	62
1	4(evn)	$1.78\times {10}^{-14}$	$1.25\times {10}^{-15}$	0.50	0.92	$7.00\times {10}^{-2}$
1	4(odd)	$3.34\times {10}^{-15}$	$5.26\times {10}^{-14}$	0.58	−0.91	15
2	1(evn)	$4.55\times {10}^{-15}$	$7.32\times {10}^{-16}$	0.82	0.72	0.16
2	1(odd)	$1.23\times {10}^{-15}$	$1.62\times {10}^{-14}$	1.51	−0.88	13
2	4(evn)	$1.53\times {10}^{-14}$	$2.27\times {10}^{-15}$	0.35	0.84	0.15
2	4(odd)	$7.63\times {10}^{-15}$	$4.76\times {10}^{-14}$	0.33	−0.84	6.23
2	6(evn)	$4.75\times {10}^{-15}$	$5.73\times {10}^{-16}$	0.28	0.94	0.12
2	6(odd)	$1.83\times {10}^{-15}$	$1.56\times {10}^{-14}$	0.27	−0.96	8.54
3	4(evn)	$1.46\times {10}^{-14}$	$1.58\times {10}^{-15}$	0.30	0.95	0.11
3	4(odd)	6.40 $\times {10}^{-15}$	$4.31\times {10}^{-14}$	0.21	−0.97	6.73
	H+HD($v=4,j=0$)	$\longrightarrow$	D+H2 reaction
$v^{\prime}$	$j^{\prime}$	NGP rate (cm3/s)	GP rate (cm3/s)	$\left\langle \tfrac{| \,{f}^{\mathrm{loop}}{| }^{2}}{| \,{f}^{\mathrm{direct}}{| }^{2}}\right\rangle$	$\langle \cos {\rm{\Delta }}\rangle$	$\tfrac{\mathrm{GP}\,\mathrm{rate}}{\mathrm{NGP}\,\mathrm{rate}}$
0	6	$5.44\times {10}^{-15}$	$5.29\times {10}^{-15}$	$8.43\times {10}^{-5}$	0.76	0.97
0	8	$7.54\times {10}^{-15}$	$7.78\times {10}^{-15}$	$1.63\times {10}^{-4}$	−0.62	1.03
0	9	$1.87\times {10}^{-14}$	$1.80\times {10}^{-14}$	$1.05\times {10}^{-4}$	0.89	0.96
0	10	$4.34\times {10}^{-15}$	$4.29\times {10}^{-15}$	$7.09\times {10}^{-5}$	0.38	0.99
1	7	$3.83\times {10}^{-14}$	$3.82\times {10}^{-14}$	$1.37\times {10}^{-4}$	$3.61\times {10}^{-2}$	0.99
1	8	$1.36\times {10}^{-14}$	$1.49\times {10}^{-14}$	$5.42\times {10}^{-4}$	−0.99	1.09
2	3	$4.04\times {10}^{-14}$	$4.13\times {10}^{-14}$	$5.27\times {10}^{-4}$	−0.26	1.02
2	4	$2.57\times {10}^{-14}$	$2.68\times {10}^{-14}$	$4.59\times {10}^{-4}$	−0.49	1.04
3	0	$1.00\times {10}^{-13}$	$1.02\times {10}^{-13}$	$2.60\times {10}^{-5}$	−0.85	1.02
3	1	$4.87\times {10}^{-13}$	$4.77\times {10}^{-13}$	$2.08\times {10}^{-5}$	0.98	0.98
3	3	$9.89\times {10}^{-14}$	$9.97\times {10}^{-14}$	$3.18\times {10}^{-5}$	−0.34	1.00

We believe the results presented here for the H+HD exchange reaction shed new insights on when the GP effect may manifest in chemical reactions. For the GP effect to manifest, the interference term in equation (2) must have comparable magnitude as the pure inelastic and exchange terms and must survive the partial wave summation. In the ultracold limit where s-wave scattering dominates, the partial wave summation collapses to just one term presenting an ideal scenario for maximum constructive and destructive interference. At higher energies, out of phase contributions from different partial waves cancel the interference term. Our findings are consistent with previous studies of the H+D₂ reaction by Kendrick [27]. Our results also explain why the interference term was not observable in the recent experimental studies of the H+HD reaction by Jankunas et al [22, 23].

Our discussion of the GP effect has so far been centered around the hydrogen exchange channel in H+HD collisions. Here we examine the reactive channel leading to the D+H₂ product. Figure 11 shows GP and NGP rate coefficients for rotationally resolved ($v^{\prime} =2,j^{\prime} =0$), $(v^{\prime} =2,j^{\prime} =1)$, $(v^{\prime} =3,j^{\prime} =3$), $(v^{\prime} =3,j^{\prime} =4)$, and total rate coefficients summed over all open $v^{\prime}$ and $j^{\prime}$ levels of H₂. Panels (a), (b), (d) and (e) display rotationally resolved reaction rates whereas panels (c) and (f) present total reaction rates. For the pure reactive case the H₂ molecule is formed in even or odd rotational states which corresponds to odd or even nuclear spin states. Results for even rotational levels (even exchange symmetry) are shown in the left panels and for odd rotational levels (odd exchange symmetry) are shown in the right panels. The rate coefficients include appropriate nuclear spin statistics factors of 1/4 for the even rotational levels (para-H₂) and 3/4 for the odd rotational levels (orth-H₂). It is seen that the GP and NGP rate coefficients are nearly indistinguishable for all cases, consistent with previous findings at higher energies. This is due to the dominance of the direct pathway as illustrated in figure 12 for $v^{\prime} =2,j^{\prime} =0$ (panel (a)) and $v^{\prime} =2,j^{\prime} =1$ (panel (c)) where $| {f}^{{\rm{loop}}}{| }^{2}/| {f}^{{\rm{direct}}}{| }^{2}$ is plotted as a function of the collision energy. The black, red, and blue curves denote contributions from $J=0,J=1$ and $J=0-4$, respectively. In each case, the ratio is $\leqslant \,{10}^{-3}$ for energies ranging from 1 μK to 100 K which implies $| {f}^{{\rm{direct}}}{| }^{2}\& Gt;\,| {f}^{{\rm{loop}}}{| }^{2}$. Thus, negligible interference occurs between the direct and looping pathways. The corresponding average values of $\cos {\rm{\Delta }}$ are plotted in panels (b) and (d) (for ${m}_{j}^{\prime }={j}^{\prime }$). Although $\langle \cos {\rm{\Delta }}\rangle$ values for the $v^{\prime} =2,j^{\prime} =0$ state (panel (b)) lie close to 1 (especially for J = 1) the very small value of the looping scattering amplitude makes the interference term vanish leading to no observable GP effect. For the $v^{\prime} =2,j^{\prime} =1$ product state (panel (d)), the $\langle \cos {\rm{\Delta }}\rangle$ values are close to zero and the GP effect is even further suppressed. The bottom part of table 1 lists reactive rate coefficients for some selected H₂ ro-vibrational levels at a collision energy of 1 μK. No GP effect is present for these or any other rovibrational levels of the H₂ product. The ratio of the scattering amplitudes, $\left\langle \tfrac{| \,{f}^{\mathrm{loop}}{| }^{2}}{| \,{f}^{\mathrm{direct}}{| }^{2}}\right\rangle$ remains $\leqslant$ 10⁻⁴ for all final states making the interference term vanish, although for some cases $\langle \cos {\rm{\Delta }}\rangle$ is close to 1.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The results presented so far indicated no observable GP effect in the D+H₂ product channel compared to the strong GP effect in the H+HD channel. It would be interesting to examine whether the reverse reaction, D+H₂$(v=4,j=0)\,\to$ H+HD, would exhibit any noticeable GP effect. Figure 13 displays the rotationally resolved and total rate coefficients for the D+H₂$(v=4,j=0)\,\to$ H+HD reaction for total angular momentum summed over $J=0-4$ (solid curves). Like the previous cases, the NGP and GP results are denoted by black and red curves, respectively. The panels (a), (b) and (c) show the rotationally resolved rate coefficients for $v^{\prime} =0,j^{\prime} =16$, $v^{\prime} =1,j^{\prime} =14$ and $v^{\prime} =2,j^{\prime} =0$ final states of HD and panel (d) presents the rate coefficients summed over all energetically populated rotational and vibrational states. It is seen that the NGP and GP curves are nearly indistinguishable for the total reaction rates (panel d). This is consistent with the results for the H+HD $(v=4,j=0)\,\to$ D+H₂ reaction presented in panels (c) and (f) of figure 11. However, we find a small difference between the NGP and GP results for selected rotationally resolved rate coefficients depicted in panels (a), (b), and (c). In the ultracold regime the NGP and GP rates differ by a factor of 1.5 for $v^{\prime} =0,j^{\prime} =16$ and $v^{\prime} =1,j^{\prime} =14$, and a factor of 1.2 for $v^{\prime} =2,j^{\prime} =0$. These differences are minute compared to the rotationally resolved rate coefficients for the hydrogen exchange reaction in H+HD. The effect vanishes for collision energies above 1 K. Although a shape resonance similar to that of the H+HD reaction occurs near 3 K, the magnitude of the GP and NGP rate coefficients remains the same at the resonance position. This shape resonance is associated with the l = 2 partial wave and a Lorentzian least-squares fit gives a resonance energy of 3.33 K and a width of ${\rm{\Gamma }}=2.2$ K (or lifetime $\tau =14\,\mathrm{ps}$). Like the H+HD $(v=4,j=0)\,\to$ D+H₂ reaction, for most of the final states we find the values of $\cos {\rm{\Delta }}$ to be close to unity but the ratio between the scattering amplitudes for the looping and direct pathways are significantly less than 1 indicating the dominance of the direct pathway.

Zoom In Zoom Out Reset image size

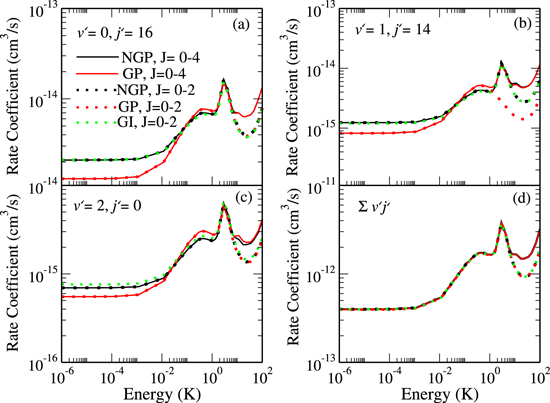

The gauge invariance test for this reaction is shown by the dotted green curve in figure 13. To save computational time the gauge invariance calculation was restricted to total angular momentum $J=0-2$. For a one-to-one comparison, we also show the corresponding GP and NGP results by the dotted red and black curves for $J=0-2$. It is seen that NGP and gauge invariance calculations yield almost indistinguishable results demonstrating that any difference between the GP and NGP results are indeed real and not a numerical artifact.
