MASSES, LUMINOSITIES, AND ORBITAL COPLANARITIES OF THE μ ORIONIS QUADRUPLE-STAR SYSTEM FROM PHASES DIFFERENTIAL ASTROMETRY

, , , , , , , , and

Published 2008 January 29 © 2008. The American Astronomical Society. All rights reserved.
, , Citation Matthew W. Muterspaugh et al 2008 AJ 135 766 DOI 10.1088/0004-6256/135/3/766

1538-3881/135/3/766

ABSTRACT

μ Orionis was identified by spectroscopic studies as a quadruple-star system. Seventeen high-precision differential astrometry measurements of μ Ori have been collected by the Palomar High-precision Astrometric Search for Exoplanet Systems (PHASES). These show both the motion of the long-period binary orbit and short-period perturbations superimposed on that caused by each of the components in the long-period system being themselves binaries. The new measurements enable the orientations of the long-period binary and short-period subsystems to be determined. Recent theoretical work predicts the distribution of relative inclinations between inner and outer orbits of hierarchical systems to peak near 40 and 140 degrees. The degree of coplanarity of this complex system is determined, and the angle between the planes of the A–B and Aa–Ab orbits is found to be 136.7 ± 8.3 degrees, near the predicted distribution peak at 140 degrees; this result is discussed in the context of the handful of systems with established mutual inclinations. The system distance and masses for each component are obtained from a combined fit of the PHASES astrometry and archival radial velocity observations. The component masses have relative precisions of 5% (component Aa), 15% (Ab), and 1.4% (each of Ba and Bb). The median size of the minor axes of the uncertainty ellipses for the new measurements is 20 micro-arcseconds (μas). Updated orbits for δ Equulei, κ Pegasi, and V819 Herculis are also presented.

Export citation and abstract BibTeX RIS

1. INTRODUCTION

μ Orionis (61 Ori, HR 2124, HIP 28614, and HD 40932) is a quadruple-star system that has been extensively studied by radial velocity (RV) and differential astrometry. It is located just north of Betelgeuse, Orion's right shoulder (left on the sky); μ Ori is a bright star that is visible to the unaided eye even in moderately light-polluted skies. Frost (1906) discovered it to be a short-period (4.5 days) single-lined spectroscopic binary; this was component Aa, whose short-period, low-mass companion Ab has never been detected directly. Aitken (1914) discovered it also had a more distant component (B) forming a sub-arcsecond visual binary. Much later, Fekel (1980) found B was itself a short-period (4.78 days) double-lined spectroscopic binary, making the system quadruple; these stars are designated Ba and Bb. Most recently, Fekel et al. (2002; hereafter F2002) reported the astrometric orbit of the A–B motion, double-lined RV orbits for A–B and the Ba–Bb subsystem, and a single-lined RV orbit for the Aa–Ab subsystem. F2002 estimate the spectral types as A5V (Aa, an Am star), F5V (Ba), and F5V (Bb), though they note that these classifications are less certain than usual due to the complexity of the system. For a more complete discussion of the history of μ Ori, see F2002.

Until now, astrometric observations have only been able to characterize the long-period A–B motion, lacking the precision necessary to measure the astrometric perturbations to this orbit caused by the Aa–Ab and Ba–Bb subsystems. The method described by Lane & Muterspaugh (2004) for ground-based differential astrometry at the ∼20 μas level for sub-arcsecond ("speckle") binaries has been used to study μ Ori during the 2004–2007 observing seasons. These measurements represent an improvement in precision of over two orders of magnitude over previous work on this system.

The goal of the current investigation is to report the center-of-light (photocenter) astrometric orbits of the Aa–Ab and Ba–Bb subsystems. This enables measurement of the coplanarities of the A–B, Aa–Ab, and Ba–Bb orbits. The masses and luminosity ratio of Aa and Ab are measured for the first time. Also presented are updated orbits for the PHASES targets δ Equ, κ Peg, and V819 Her.

Astrometric measurements were made at the Palomar Testbed Interferometer (PTI; Colavita et al. 1999) as part of the Palomar High-precision Astrometric Search for Exoplanet Systems (PHASES) program (Muterspaugh et al. 2006c). PTI is located on Palomar Mountain near San Diego, CA. It was developed by the Jet Propulsion Laboratory, California Institute of Technology for NASA, as a testbed for interferometric techniques applicable to the Keck Interferometer and other missions such as the Space Interferometry Mission (SIM). It operates in the J (1.2 μm), H (1.6 μm), and K (2.2 μm) bands, and combines starlight from two out of three available 40 cm apertures. The apertures form a triangle with one 110 and two 87 m baselines.

2. OBSERVATIONS AND DATA PROCESSING

2.1. PHASES Observations

2.1.1. Instrumental Setup

μ Ori was observed with PTI on 17 nights in 2004–2007 with the observing mode described in Lane & Muterspaugh (2004). Starlight is collected from two apertures, collimated, and sent to a central beam combining facility. There, the light from each telescope reflects from movable mirrors (delay lines) whose position is constantly varied to account for sidereal motion and to track atmospheric index of refraction variations. After this first set of delay lines, a beamsplitter is used to divide the light from each telescope; ∼70% of the light is sent to an interferometric beam combiner that monitors a single fringe from any star in the field at rapid (10–20 ms) time scales to measure fringe phase variations caused by the atmosphere, and provide feedback to the main delay lines. This process phase-stabilizes the other ∼30% of the light (a technique known as phase referencing, Lane & Colavita 2003), which is sent to a second interferometric beam combiner that can add an additional variable delay of order 250 μm to the light from one telescope. This variable delay is modulated with a triangle waveform, scanning through interferograms from all stars within the sub-arcsecond field of view. These interferogram scans are the observables used for PHASES astrometry.

2.1.2. Data Reduction

Modifications to the data processing algorithm since the original report are given by Muterspaugh et al. (2005) and have been incorporated in the current study. Interferogram templates are fit to each scan, forming a likelihood function of the separations of interferograms formed by components A and B. A grid of differential right ascension and declination is formed, and a χ2 likelihood surface is mapped onto this grid by converting delay separation to differential right ascension and declination. That χ2 surface is co-added over all the scans of μ Ori within the night (typically ∼1000 scans or more). The deepest minimum in the χ2 surface corresponds to the binary separation, while the width of that minimum determines the uncertainty ellipse. Due to the oscillatory nature of the interferograms, other local minima can exist; these "sidelobes" are separated by the interferometer's resolution ∼λ/B ∼ 4 mas (B is the separation between the telescopes, and λ is the wavelength of starlight), an amount much larger than the width of an individual minimum. The signal-to-noise ratio (S/N) can be increased by co-adding many scans and by earth-rotation synthesis, which smears all but the true minimum, and the true minimum then can be established. Only those measurements for which no sidelobes appear at the 4σ contour of the deepest minimum are used in orbit fitting.

All measurements have been processed using this new data reduction pipeline. The measurements are listed in Table 1, in the ICRS 2000.0 reference frame.

Table 1. PHASES Data for μ Ori

HJD-2400000.5 δR.A. (mas) δDecl. (mas) σmin (μas) σmaj (μas) ϕe (deg) σR.A. (μas) σDecl. (μas) $\frac{\sigma_{\rm R.A., Decl.}^2}{\sigma_{\rm R.A.}\sigma_{\rm Decl.}}$ N LDC Align Rate (Hz)
53271.49964 59.1469 105.9933 9.1 487.1 146.70 407.2 267.6 −0.99918 3092 0 0 100
53285.47060 61.8963 110.1620 14.6 376.9 19.95 354.3 129.4  0.99273 2503 0 0 100
53290.47919 62.4497 112.0044 39.6 2034.0 151.07 1780.2 984.6 −0.99894  531 0 0 100
53312.46161 66.0452 119.6805 5.2 108.2 158.79 100.9 39.5 −0.98982 6840 0 0 100
53334.41210 69.4569 127.2488 11.5 235.3 160.77 222.2 78.3 −0.98775 2876 0 0 100
53340.37952 70.2141 128.6951 15.0 165.2 157.64 152.9 64.4 −0.96791 2056 0 0 100
53341.34723 70.4709 129.3402 13.2 146.6 153.14 130.9 67.3 −0.97539 3570 0 0 100
53639.51295 104.4652 211.4488 16.3 226.6 149.61 195.6 115.5 −0.98653 1204 0 0 100
53663.47636 106.2444 217.1615 10.4 121.4 153.87 109.0 54.3 −0.97702 1829 0 0 100
53698.43902 110.2454 225.7804 46.8 894.1 37.76 707.5 548.8  0.99417  827 0 0 100
53705.34654 108.6092 226.3868 56.3 1797.7 151.29 1576.9 864.9 −0.99724  574 0 0 100
53732.29696 111.8048 231.4902 20.0 187.4 156.29 171.8 77.5 −0.95961 1103 0 0 100
53753.23270 113.4891 235.7197 43.7 346.8 158.08 322.2 135.7 −0.93783  621 0 0 100
53789.18100 117.7579 244.2916 47.3 2294.6 36.86 1836.0 1377.0  0.99908  610 0 0 100
54056.41922 131.6278 287.8511 35.5 279.5 159.04 261.3 105.3 −0.93264  699 1 1  50
54061.42434 132.3749 288.4474 30.7 580.4 161.71 551.1 184.5 −0.98450  515 1 1 100
54103.32199 134.6975 294.9159 44.7 1066.4 163.89 1024.6 299.0 −0.98780  182 1 1  50

Notes. All quantities are in the ICRS 2000.0 reference frame. The uncertainty values presented in these data have all been scaled by a factor of 1.73 over the formal (internal) uncertainties within each given night. Column 1 is the heliocentric modified Julian date. Columns 2 and 3 are the differential right ascension and declination between A and B, in milli-arcseconds. Columns 4 and 5 are the 1σ uncertainties in the minor and major axes of the measurement uncertainty ellipse, in micro-arcseconds. Column 6, ϕe, is the angle between the major axis of the uncertainty ellipse and the right ascension axis, measured from increasing differential right ascension through increasing differential declination (the position angle of the uncertainty ellipse's orientation is 90 − ϕe). Columns 7 and 8 are the projected uncertainties in the right ascension and declination axes, in micro-arcseconds, while Column 9 is the covariance between these. Column 10 is the number of scans taken during a given night. Column 11 is 1 if the longitudinal dispersion compensator was in use, 0 otherwise. Column 12 is 1 if the autoaligner was in use, 0 otherwise. Column 13 represents the tracking frequency of the phase-referencing camera. The quadrant was chosen such that the larger fringe contrast is designated the primary (contrast is a combination of source luminosity and interferometric visibility).

Download table as:  ASCIITypeset image

2.1.3. Technique Upgrades

Data since mid-2006 have benefited from the use of an automatic alignment system and longitudinal dispersion compensator; the affected data points are noted in Table 1. These modifications reduced the throughput of the astrometry setup; to compensate, a 50 Hz phase-tracking rate was sometimes used, whereas observations previous to these changes utilized 100 Hz tracking for monitoring the atmosphere.

Drifts in optical alignment may result in variable pupil sampling at the interferometer apertures, changing the effective interferometric baseline. To minimize this potential systematic error, a continuous realignment system has been developed. A red laser is co-aligned with the starlight and reverse propagated through the interferometer. Four percent reflective pellicle beamsplitters are placed near the focuses of the interferometer telescopes to extract this tracer beam and redirect to a camera where the pupil is re-imaged. The angles of the first flat mirrors receiving incoming starlight in the beam-combining lab are continually adjusted by a closed-loop feedback system to hold the laser spot on the camera at the telescope.

The path compensation for the geometric delay at PTI has been done with movable mirrors in air, which has a wavelength-dependent index of refraction. The fringe packets of astrophysical sources are dispersed by an amount that depends on the difference in air paths between arms of the interferometer; this changes the shape and overall location of the fringe packets. To compensate, two prisms are introduced in each of the interferometer's two arms. The set in one arm is static. In the other pair, the prisms are slid relative to each other along their slope to introduce a variable amount of glass dispersion whose shape is opposite that of air to high order. This flattens the variability of delay versus wavelength. The system is calibrated by setting the telescope siderostats into a retroreflecting mode, using an internal white-light source to form interferograms, which are detected with a low-resolution spectrometer (five elements across the K band), and measuring the offsets between the interferograms as a function of prism location. During observations, the prism position is continuously changed with an open-loop control calculated from the locations of the delay lines.

There are insufficient new data to establish the degree to which these instrumental changes might be reducing excess data scatter, or to establish a relative weighting between data subsets. No large discontinuities in the orbital motions are seen between pre- and post-upgrade subsets for μ Ori or the other PHASES targets, suggesting that the subsets are compatible. For the purposes of the current investigation, the PHASES observations are treated as a single data set with equal weighting on observations from before and after these upgrades.

2.1.4. The PHASES Astrometric Orbits

The differential astrometry measurements are listed in Table 1, in the ICRS 2000.0 reference frame. The existence of data scatter beyond the level estimated by formal uncertainties from the PHASES analysis algorithm was determined by model fitting the PHASES data alone. Model fitting was performed with standard χ2 sum of squared residuals minimization, slightly complicated by the two-dimensional nature of the uncertainty ellipses but still straightforward to carry out. The limited number and time span of the PHASES observations prevent an independent fitting of that data set to a four-body, 3-Keplerian model to determine potential noise excess. Thus the A–B period and Aa–Ab and Ba–Bb periods, eccentricities, and angles of periastron passages were fixed at the values reported in F2002 (in the case of Ba–Bb, which had zero eccentricity in F2002, the angle of periastron passage is undefined and fixed at zero). The minimum χ2 does not equal the number of degrees of freedom. An excess noise factor of 1.73 is found, and the PHASES uncertainties reported in Table 1 have been increased by this amount over the formal uncertainties. The rescaled (raw) median minor- and major-axis uncertainties are 20 (11) and 347 (200) μas. The rescaled (raw) mean minor- and major-axis uncertainties are 27 (16) and 668 (386) μas.

2.2. Previous Measurements

Previous differential astrometry measurements of μ Ori are tabulated in Table 5 of F2002. These have been included in the current fit, with identical weightings as assigned by that investigation, though it is noted that the text contains a typographical error, and the ρ unit uncertainty σρ should be 0.024, rather than 0.0024 mas. The time span of these measurements is much longer than that of the PHASES program and aids in solving the long-period A–B orbit, which also lifts potential fit parameter degeneracies between that orbit and those of the short-period subsystems. Measurements marked as 3σ outliers by that investigation are omitted, resulting in 80 measurements each of separation and position angle being used for fitting. Ten new measurements have been published since that investigation and are listed in Table 2 with weights computed with the same formula as used in F2002. Two of these measurements are found to be 3σ outliers. In total, there are 88 measurements of separation and position angle used in fitting.

Table 2. New Non-PHASES Astrometry for μ Ori

Besselian Year ρ θ Weight Outlier Reference
1991.8101 0.330 31.8 0.1 1 Fabricius et al. (2002)
1996.8986 0.306 13.4 8.7 0 Horch et al. (2001)
1999.0153 0.200 14.8 10.1 1 Horch et al. (2002)
1999.0153 0.196 13.3 9.7 1 Horch et al. (2002)
1999.0153 0.203 14.9 10.4 1 Horch et al. (2002)
1999.8915 0.150 11.7 5.8 1 Horch et al. (2002)
1999.8915 0.145 12.5 5.5 1 Horch et al. (2002)
1999.8915 0.154 11.3 6.1 1 Horch et al. (2002)
2000.7653 0.081 359.4 2.0 0 Horch et al. (2002)
2005.1331 0.179 26.4 0.2 1 Scardia (2007)

Notes. The ten new astrometry measurements published since F2002 for μ Ori. Column 1 is the epoch of observation in years, Column 2 is the A–B separation in arcseconds, Column 3 is the position angle east of north in degrees, and Column 4 is the measurement weight on the same scale as F2002. (δR.A. =ρsin θ, δdecl. =ρcos θ.) Column 5 is 0 if the measurement is a 3σ outlier not used in fitting, 1 otherwise. Column 6 is the original work where the measurement was published.

Download table as:  ASCIITypeset image

F2002 also present radial velocity observations of components Aa, Ba, and Bb. Those measurements are included in the present fit, with weightings as reported in Tables 24 of that paper. Measurements marked as 3σ outliers by that investigation have not been included in the present analysis. In total, 442 velocities—220 for Aa and 111 for each of Ba and Bb—are used in fitting.

Table 4. New PHASES Data for δ Equ, κ Peg, and V819 Her

Star HJD-2400000.5 δR.A. (mas) δDecl. (mas) σmin (μas) σmaj (μas) ϕe (deg) σR.A. (μas) σDecl. (μas) $\frac{\sigma_{\rm R.A., Decl.}^2}{\sigma_{\rm R.A.}\sigma_{\rm Decl.}}$ N LDC Align Rate (Hz) Eclipse
δ Equ 53508.50939 −86.2658 −117.6468 25.7 1872.8 150.49 1630.0 922.7 −0.99949  263 0 0 100 1
δ Equ 53550.41402 −94.5630 −143.7433 33.6 248.4 151.98 219.8 120.4 −0.94899  370 0 0 100 1
δ Equ 53552.38996 −95.1309 −144.7397 10.0 85.5 150.13 74.3 43.5 −0.96437 1352 0 0 100 1
δ Equ 53571.33634 −99.1010 −155.5409 9.8 68.1 149.71 59.0 35.4 −0.94762 1089 0 0 100 1
δ Equ 53584.32135 −101.4805 −162.5823 10.4 104.4 151.49 91.9 50.7 −0.97257  774 0 0 100 1
δ Equ 53586.30477 −102.0695 −163.5727 13.2 831.5 150.94 726.8 404.0 −0.99930  639 0 0 100 1
δ Equ 53607.23078 −105.7105 −174.9135 3.1 80.6 148.50 68.8 42.2 −0.99617 4856 0 0 100 1
δ Equ 53613.22582 −107.1684 −177.7125 6.7 243.8 150.28 211.8 121.0 −0.99794 1601 0 0 100 1
δ Equ 53614.22329 −106.8636 −178.5240 5.9 174.7 150.30 151.8 86.7 −0.99697 1597 0 0 100 1
δ Equ 53637.20185 −111.2007 −189.7814 12.3 357.4 157.38 330.0 137.9 −0.99531  570 0 0 100 1
δ Equ 53656.13045 −114.1207 −198.7179 16.3 215.1 154.15 193.8 94.9 −0.98163  526 0 0 100 1
δ Equ 53874.48665 −133.8986 −275.5257 12.3 424.2 147.53 357.9 228.0 −0.99794  264 0 0 100 1
δ Equ 53909.42854 −134.0082 −283.8970 6.1 58.2 152.62 51.7 27.3 −0.96785 2646 0 1  50 1
δ Equ 53957.31149 −133.6026 −293.0248 9.0 405.5 154.61 366.4 174.1 −0.99836 1127 1 1  50 1
δ Equ 53970.25612 −133.8368 −294.8599 5.7 50.6 153.56 45.3 23.1 −0.96133 2387 1 1  50 1
δ Equ 53971.25621 −133.8811 −294.9923 7.3 62.3 152.11 55.1 29.8 −0.96095 1682 1 1  50 1
δ Equ 53977.26493 −133.7524 −295.9196 5.3 39.3 157.55 36.4 15.8 −0.93151 3320 1 1  50 1
δ Equ 54003.21361 −133.0033 −299.3443 16.7 206.4 161.12 195.4 68.6 −0.96621  835 1 1  50 1
δ Equ 54005.19180 −133.0818 −299.4815 11.6 115.3 157.21 106.4 45.9 −0.96173 1614 1 1  50 1
δ Equ 54028.10922 −132.3883 −301.8627 13.3 406.9 153.38 363.9 182.7 −0.99668  632 1 1  50 1
δ Equ 54037.11296 −132.9388 −302.3034 11.0 319.6 159.14 298.7 114.3 −0.99468  556 1 1 100 1
δ Equ 54230.50355 −116.0819 −301.5397 13.1 508.2 146.70 424.8 279.2 −0.99843  933 1 1  50 1
δ Equ 54266.47236 −111.8997 −297.2144 13.2 112.0 158.12 104.1 43.5 −0.94550 1315 1 1  50 1
κ Peg 53494.50786 104.6067 43.3687 13.6 645.9 143.23 517.5 386.8 −0.99904  702 0 0 100 1
κ Peg 53586.36471 83.9658 55.9066 2.2 11.5 166.51 11.2 3.4 −0.75093 5532 0 0 100 1
κ Peg 53637.29586 71.2323 62.9289 6.3 53.5 173.82 53.2 8.5 −0.66476 1639 0 0 100 1
κ Peg 53921.45172 25.0960 85.9815 43.1 10007.6 160.71 9445.7 3306.4 −0.99990  615 0 1  50 1
κ Peg 53963.35858 −9.1846 98.3661 6.2 79.3 165.54 76.8 20.7 −0.95159 2244 1 1 100 1
κ Peg 53978.32708 −14.0804 99.4673 2.7 17.5 162.83 16.8 5.8 −0.87056 5863 1 1  50 1
κ Peg 53995.24384 −17.0621 101.1081 11.5 514.2 159.38 481.3 181.5 −0.99770  389 1 1 100 1
κ Peg 54003.32618 −22.4829 101.1592 10.9 849.5 3.09 848.2 47.1  0.97271 1590 1 1  50 1
κ Peg 54008.31093 −21.6029 102.0991 4.6 114.1 2.48 113.9 6.7  0.73308 2850 1 1  50 1
κ Peg 54075.12667 −38.5846 107.2133 7.0 183.8 3.06 183.5 12.0  0.81528 1756 1 1  50 1
κ Peg 54265.39966 −84.8163 119.9685 8.2 389.0 142.94 310.4 234.5 −0.99904 3661 1 1  50 1
V819 Her 53109.47951 49.6406 −84.4966 7.3 282.5 158.77 263.4 102.5 −0.99707 2011 0 0 100 1
V819 Her 53110.48183 48.0946 −84.1334 11.9 600.4 159.53 562.5 210.3 −0.99819 1334 0 0 100 1
V819 Her 53123.45772 49.1860 −85.9318 18.1 507.8 162.47 484.3 153.9 −0.99240 1378 0 0 100 0
V819 Her 53130.44208 48.4778 −86.4135 6.6 205.8 162.94 196.7 60.7 −0.99360 2537 0 0 100 1
V819 Her 53137.43044 48.3928 −87.1396 14.0 280.2 164.34 269.9 76.8 −0.98202 1226 0 0 100 1
V819 Her 53144.42426 47.7017 −87.6612 25.1 1039.6 167.13 1013.5 232.9 −0.99386  897 0 0 100 1
V819 Her 53145.39541 48.3082 −87.8013 13.7 316.5 161.59 300.3 100.8 −0.98964 1673 0 0 100 1
V819 Her 53168.33949 47.0275 −89.7513 15.0 339.9 162.93 325.0 100.8 −0.98778 1409 0 0 100 1
V819 Her 53172.35221 47.3441 −90.1337 6.3 170.0 168.29 166.5 35.1 −0.98309 2560 0 0 100 1
V819 Her 53173.33202 47.1604 −90.3599 8.0 77.4 33.97 64.4 43.8  0.97548 2904 0 0 100 1
V819 Her 53181.33391 46.4333 −90.7857 7.5 174.6 169.71 171.8 32.1 −0.97114 2795 0 0 100 0
V819 Her 53182.33164 46.5646 −91.0136 13.9 333.2 169.62 327.8 61.6 −0.97328 2014 0 0 100 1
V819 Her 53186.30448 45.6584 −91.1213 18.2 426.3 166.80 415.1 99.0 −0.98197  706 0 0 100 1
V819 Her 53187.30462 46.1427 −91.2225 13.0 441.5 166.94 430.1 100.6 −0.99110 1578 0 0 100 1
V819 Her 53197.26851 46.1852 −92.1522 4.8 117.1 164.87 113.0 30.9 −0.98715 5218 0 0 100 0
V819 Her 53198.24258 46.2937 −92.2555 5.7 54.6 160.37 51.5 19.1 −0.94836 5404 0 0 100 0
V819 Her 53199.29186 44.0252 −91.9446 24.7 1645.4 171.42 1627.0 246.7 −0.99488  946 0 0 100 0
V819 Her 53208.25236 46.4303 −92.4901 6.6 181.6 37.67 143.8 111.1  0.99718 6558 0 0 100 0
V819 Her 53214.24077 45.6337 −93.3429 5.5 125.9 169.45 123.8 23.7 −0.97194 5251 0 0 100 1
V819 Her 53215.23094 45.6364 −93.5172 4.8 110.6 167.53 108.0 24.3 −0.97962 5723 0 0 100 1
V819 Her 53221.22209 46.2559 −92.9726 8.8 342.2 38.91 266.3 215.0  0.99860 3998 0 0 100 1
V819 Her 53228.20946 45.0884 −94.3310 7.2 100.6 169.45 98.9 19.7 −0.92813 3180 0 0 100 0
V819 Her 53229.22073 45.2196 −94.5160 6.4 80.0 172.84 79.4 11.8 −0.83914 3905 0 0 100 1
V819 Her 53233.18295 45.0993 −94.8458 6.0 64.7 167.67 63.2 15.0 −0.91188 3303 0 0 100 1
V819 Her 53234.20151 44.8269 −94.7637 7.6 37.8 172.74 37.5 8.9 −0.51352 3701 0 0 100 1
V819 Her 53235.21764 45.2153 −94.9183 8.5 107.1 176.57 106.9 10.6 −0.60015 2094 0 0 100 1
V819 Her 53236.16733 44.4598 −94.8862 4.7 78.1 166.59 76.0 18.7 −0.96552 6684 0 0 100 0
V819 Her 53249.16006 44.2467 −95.8032 4.3 87.9 172.71 87.2 12.0 −0.93121 5428 0 0 100 1
V819 Her 53466.52265 31.4132 −102.8881 9.9 204.3 163.01 195.4 60.4 −0.98524 3031 0 0 100 1
V819 Her 53481.50628 30.4432 −103.3348 11.1 311.1 38.18 244.6 192.5  0.99731 3301 0 0 100 0
V819 Her 53494.45305 29.5257 −103.1671 18.6 251.9 163.98 242.2 71.8 −0.96316 1355 0 0 100 1
V819 Her 53585.24930 23.9818 −102.6116 10.1 114.7 174.02 114.0 15.6 −0.76046 1479 0 0 100 1
V819 Her 53874.42827 1.2427 −88.7776 6.8 99.5 168.07 97.4 21.6 −0.94665 2358 0 0 100 1
V819 Her 53956.21398 −5.0810 −81.9129 9.2 341.7 170.23 336.8 58.7 −0.98729 4028 1 1  50 0

Notes. All quantities are in the ICRS 2000.0 reference frame. The uncertainty values presented in these data have not been rescaled. Column 1 is the star name. Columns 2–14 are as Columns 1–13 in Table 1. Column 15 is 0 if the measurement was taken during a subsystem eclipse, 1 otherwise (V819 Her only).

Download table as:  ASCIITypeset image

Table 3. Orbital Parameters for μ Ori

723.86 723.86 723.58 723.58 >4.58 ...
Parameter LAa>LAb, LBa>LBb LAa>LAb, LBa < LBb LAa < LAb, LBa>LBb LAa < LAb, LBa < LBb
χ2
PAB (days) 6813.8 ±1.2 ... ... ... ... ... ...
eAB 0.7410 ±0.0011 ... ... ... ... ... ...
iAB (degrees) 96.028 ±0.028 ... ... ... ... ... ...
ωAB (degrees) 36.712 ±0.066 ... ... ... ... ... ...
TAB (MHJD) 46090.7 ±1.0 ... ... ... ... ... ...
ΩAB (degrees) 204.877 ±0.011 ... ... ... ... ... ...
PAaAb (days) 4.4475849 ±1.2 × 10−6 ... ... ... ... ... ...
eAaAb 0.0037 ±0.0014 ... ... ... ... ... ...
iAaAb (degrees) 47.1 ±9.0 ... ... 50.0 ±8.1 ... ...
ωAaAb (degrees) 304 ±21 ... ... ... ... ... ...
TAaAb (MHJD) 43739.69 ±0.26 ... ... ... ... ... ...
ΩAaAb (degrees) 50.5 ±3.7 ... ... 231.7 ±3.8 ... ...
PBaBb (days) 4.7835349 ±3.0 × 10−6 ... ... ... ... ... ...
eBaBb 0.0016 ±0.0014 ... ... ... ... ... ...
iBaBb (degrees) 110.71 ±0.73 ... ... ... ... ... ...
ωBaBb (degrees) 217 ±47 ... ... ... ... ... ...
TBaBb (MHJD) 43746.40 ±0.63 ... ... ... ... ... ...
ΩBaBb (degrees) 111.3 ±3.9 291.3 ±3.9 111.3 ±4.0 291.3 ±4.0
MA (M) 3.030 ±0.069 ... ... ... ... ... ...
MB (M) 2.746 ±0.038 ... ... ... ... ... ...
MAb/MAa 0.274 ±0.051 ... ... 0.259 ±0.039 ... ...
MBb/MBa 0.9764 ±0.0022 ... ... ... ... ... ...
LAb/LAa 0 ±0.040 ... ... 0.738 ±0.061 ... ...
LBb/LBa 0.765 ±0.055 1.246 ±0.089 0.773 ±0.055 1.233 ±0.088
d (parsecs) 46.11 ±0.28 ... ... ... ... ... ...
V0 (km s−1) 42.548 ±0.027 ... ... ... ... ... ...
MAa (M) 2.38 ±0.11 ... ... 2.408 ±0.092 ... ...
MAb (M) 0.652 ±0.097 ... ... 0.623 ±0.075 ... ...
MBa (M) 1.389 ±0.019 ... ... ... ... ... ...
MBb (M) 1.356 ±0.019 ... ... ... ... ... ...
ΦAB–AaAb (degrees) 136.7 ±8.3 ... ... 52.2 ±6.1 ... ...
ΦAB–BaBb (degrees) 91.2 ±3.6 84.5 ±3.6 91.2 ±3.8 84.5 ±3.8
ΦAaAb–BaBb (degrees) 84.6 ±4.9 125.1 ±6.0 126.2 ±5.9 82.2 ±4.8
aAB (mas) 273.7 ±2.1 ... ... ... ... ... ...
aAB (AU) 12.620 ±0.057 ... ... ... ... ... ...
aAaAb,COL (μas) 358 ±84 ... ... 364 ±53 ... ...
% 364 ±53
aAaAb (mas) 1.661 ±0.016 ... ... ... ... ... ...
aAaAb (AU) 0.07659 ±0.00058 ... ... ... ... ... ...
aBaBb,COL (μas) 102 ±30 ... ... 98 ±30 ... ...
aBaBb (mas) 1.688 ±0.013 ... ... ... ... ... ...
aBaBb (AU) 0.07780 ±0.00036 ... ... ... ... ... ...
π (mas) 21.69 ±0.13 ... ... ... ... ... ...
KAa 1.03 ±0.26 ... ... 1.64 ±0.26 ... ...
KAb1.96 ±0.27 ... ...
KBa 1.72 ±0.26 1.99 ±0.26 1.73 ±0.26 1.98 ±0.26
KBb 2.02 ±0.26 1.75 ±0.26 2.01 ±0.26 1.75 ±0.26
LK, Aa 8.3 ±2.0 ... ... 4.8 ±1.2 ... ...
LK, Ab 0 ±0.33 ... ... 3.52 ±0.86 ... ...
LK, Ba 4.4 ±1.1 3.45 ±0.84 4.4 ±1.1 3.47 ±0.84
LK, Bb 3.35 ±0.82 4.3 ±1.0 3.38 ±0.82 4.3 ±1.0

Notes. Orbital parameters for μ Ori. In the second, third, and fourth solutions, ellipses indicate a parameter that changes by less than two units in the last reported digit from the previous model. In the combined fits, all parameter uncertainties have been increased by a factor of $\sqrt{\chi_r^2} = 1.08$ (though χ2r of the combined fit is artificial due to rescaling the uncertainties of the individual data sets, this reflects the degree to which the data sets agree with each other). The first solution is strongly preferred as it produces masses and luminosities that are correlated; the second is also possible because the stars Ba and Bb are very similar. The third and fourth solutions require an unlikely luminosity for component Ab, given its mass, and are not preferred. aCOL is the semimajor axis of the motion of the center-of-light of a subsystem, at the K band. LX/LY is the K-band luminosity ratio between components X and Y. K is the K-band absolute magnitude, LK is the K-band luminosity, in solar units. For the first two solutions, the best-fit solution yields KAb infinite; a lower limit is determined by setting LAb/LAa to the upper limit of its 1σ uncertainty range.

Download table as:  ASCIITypeset image

3. ORBITAL MODELS

The apparent motions of the centers-of-light (photocenters) of the A = Aa-Ab and B = Ba-Bb subsystems relative to each other are given by the model

Equation (1)

corresponding to a four-body hierarchical dynamical system (HDS). The quantities M are component masses and L are component luminosities, and each of the summed vectors is determined by a two-body Keplerian model. This model is used to fit the astrometric data; note that the total masses from the Aa–Ab and Ba–Bb orbits also show up as component masses for the A–B orbit, linking them, and that the mass ratios and luminosity ratios appear as additional parameters, degenerate with each other. The radial velocities are fitted by a simple superposition of individual Keplerians; these determine mass ratios, and the luminosity ratios become nondegenerate parameters. The luminosity ratios are primarily constrained by the K-band PHASES data; the other astrometric data are not precise enough to detect the subsystem motions.

The combined simultaneous fit to all data sets has 26 free parameters and 626 degrees of freedom. The parameters used are listed in the top half of Table 3 with their associated best-fit values and 1σ uncertainties. It should be noted that while the Ba–Bb eccentricity has been allowed to vary as a free parameter, the best-fit value is consistent with zero and could have been fixed; the other parameters are not changed significantly by doing so. Quantities of interest derived from those parameters are listed in the second half of that table, with corresponding uncertainties derived from first-order uncertainty propagation. The apparent center-of-light wobbles of the Aa–Ab and Ba–Bb subsystems are plotted in Figure 1; the A–B and RV orbits were plotted in F2002 and are not significantly different in the present model.

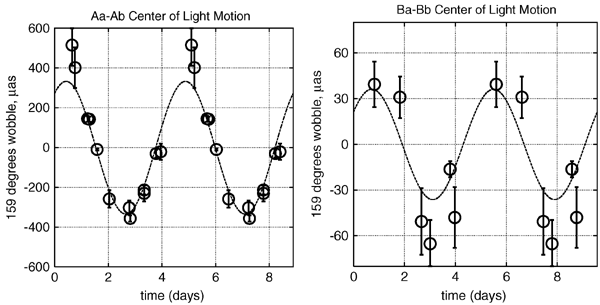

Figure 1.

Figure 1. Astrometric orbits of μ Ori Aa–Ab and Ba–Bb, phase-wrapped about their respective orbital periods. Phase zero is at the epoch of periastron passage (T), and each plot is repeated for two cycles (and each measurement is plotted twice) to allow for continuity at all parts of the graph. In both cases, the motions of the A–B system and the other subsystem have been removed. The projection axis shown for each is 159 degrees east of north (equivalent to position angle 291 degrees), well aligned with the minor axis of many PHASES observations. The plotted uncertainties are those projected along this axis, and have been increased by a factor of 1.73 over the formal uncertainties, to reflect excess noise within the PHASES set. On the left is the motion of Aa–Ab; for clarity, only those observations with rescaled and projected uncertainties less than 200 μas have been plotted; on the right is the motion of Ba–Bb, for which the cutoff was at 30 μas.

Standard image High-resolution image

Including PHASES measurements in the fit introduces the ability to evaluate the inclination and luminosity ratio of the Aa–Ab system and angles of the nodes of the Aa–Ab and Ba–Bb systems, quantities that were entirely unconstrained in the F2002 study. The A–B angular parameters have much smaller uncertainties than in F2002 (the ΩAB, iAB, and ωAB uncertainties are reduced by 13×, 6×, and 5×, respectively). Uncertainties in the A–B period, eccentricity, and epoch of periastron passage are improved by a factor of 2 or more. Most other fit parameters are constrained only marginally better than in F2002.

3.1. Relative Orbital Inclinations

In systems with three or more stars, studying the system coplanarity is of interest for understanding the formation and evolution of multiples (Sterzik & Tokovinin 2002). To determine this without ambiguity, one must have both visual and RV orbital solutions for pairs of interest. Previously, this was available only in six triples (for a listing, see Muterspaugh et al. 2006a). The reason mutual inclination measurements have been rare is due to the observational challenges these systems present: RV signals are largest for compact pairs of stars, whereas astrometry prefers wider pairs. The "wide" pair must be studied with RV and thus have an orbital period (and corresponding separation) as short as the two-component binaries that are already challenging to visual studies. The "narrow" pair is even smaller. The mutual inclination between two orbits is given by

Equation (2)

where i1 and i2 are the orbital inclinations, and Ω1 and Ω2 are the longitudes of the ascending nodes. If only velocities are available for one system, the orientation of that orbit is unknown (even if it is eclipsing, the longitude of the ascending node is unknown). If velocities are unavailable for a given orbit, there is a degeneracy in which node is ascending—two values separated by 180 degrees are possible. This gives two degenerate solutions for the mutual inclination (not necessarily separated by 180 degrees).

Even when a center-of-light astrometric orbit is available for the narrow pair, there can be a degeneracy between the node which is ascending and the luminosity ratio. Having found one possible luminosity ratio LAb/LAa = L1, it can be shown that the other possible solution, corresponding to changing the ascending node by 180 degrees, is given by

Equation (3)

where R is the mass ratio MAb/MAa. In previous studies, support data have been available to lift that degeneracy. For example, in the V819 Her system (Muterspaugh et al. 2006a), the two possible luminosity ratios were 0.26 and 1.89. The eclipsing nature of the Ba–Bb pair lifted that degeneracy because it helped establish that the luminosity ratio is much less than 1. Similarly, in the κ Peg system (Muterspaugh et al. 2006b), the spectra used for RV also show that component Bb is much fainter than Ba, again lifting the degeneracy (a luminosity ratio either nearly zero or 1.9 both possible).

For a quadruple system, there are as many as four degenerate fit solutions. For μ Ori, a global minimum χ2 is found with longitude of the ascending node ΩAaAb = 231.7 ± 3.8 degrees and LAb/LAa = 0.738 ± 0.061. The alternative pair of these parameters solving Equation (3) would force the luminosity ratio to a negative value (but close to zero within uncertainties). However, searching for solutions with nonnegative luminosity ratios near zero yields a fit solution with only slightly larger χ2, and the node at roughly 180 degrees difference (ΩAaAb = 50.5 ± 3.7 and LAb/LAa = 0 ± 0.040). All parameters other than the node angle and luminosity ratio vary between the two models by amounts less than the fit uncertainties. The two solutions find MAb/MAa = 0.259 ± 0.039 or 0.274 ± 0.051, respectively; given the rough scaling LM4 (Smith 1983), it is very likely that the larger luminosity ratio is incorrect. The larger luminosity ratio would also imply that Ab is as bright as Ba or Bb. However, component Ab is not observed in the spectrum while Ba and Bb are. This suggests that Ab is faint, though it is also possible to explain this lack of Ab lines by postulating that it is rapidly rotating. However, given that the other stars are not rapid rotators, there is little evidence to support Ab as a rapid rotator. It is concluded that the luminosity ratio near zero is strongly preferred, despite the slightly worse χ2 fit. Both fits are reported in Table 3, but the rest of the discussion in this paper refers only to the preferred solution for Aa–Ab. This degeneracy can be fully lifted by a single epoch image with a closure phase capable interferometer with sufficient angular resolution (such as the Navy Prototype Optical Interferometer; Armstrong et al. 1998).

For each of the Aa–Ab solutions, there exist two solutions for the Ba–Bb pair. In these cases, no negative luminosity ratios are found; the degeneracy is perfect and χ2 of the fits are identical. ΩBaBb differs by 180 degrees in the two orbits, and the luminosity ratio LBb/LBa switches between being larger (at ΩBaBb = 291 degrees) or smaller (at 111 degrees) than unity; all other parameters remain unchanged. Both solutions are near unity, and the stars have very similar masses (MBb/MBa = 0.9764 ± 0.0022). While the solution for which Bb is less luminous than Ba is slightly more consistent because it correlates to the mass ratio, it is conceivable that the other solution is correct. Thus, the solution for which Bb is less luminous than Ba is slightly preferred, but not as conclusively as for the Aa–Ab case, where the differences between the stars are more significant. Thus, both possibilities are considered in the remainder of this paper.

3.2. Evidence for Kozai Cycles with Tidal Friction?

Of particular interest is the potential for Kozai oscillations between orbital inclination and eccentricity in the narrow pairs (Kozai 1962), which can affect the orbital evolution of the system. These occur independently of distances or component masses, with the only requirement being that the mutual inclination be between 39.2 and 180 − 39.2 = 140.8 degrees. Other effects that cause precession can increase the value of this critical angle.

Fabrycky & Tremaine (2007) predict a buildup of mutual inclinations near 40 and 140 degrees by the combined effects of Kozai Cycles with Tidal Friction (KCTF) for triples whose short-period subsystems have periods between 3 and 10 days. The mutual inclination of μ Ori AB–AaAb is near 140 degrees, leading one to consider if this trend is starting to be seen. The systems with unambiguous mutual inclinations break down as follows:

Five systems are outside of the 3–10 day inner period range. These systems do not meet the criteria to be included in testing the buildup prediction:

  • V819 Her (Φ = 26.3 ± 1.5 degrees, 2.23 d; see Section 4),
  • Algol (Φ = 98.8 ± 4.9 degrees, 2.9 d; Lestrade et al. 1993; Pan et al. 1993),
  • η Vir (Φ = 30.8 ± 1.3 degrees, 72 d; Hummel et al. 2003),
  • ξ Uma ABC (Φ = 132.1 degrees, 670 d; Heintz 1996),
  • epsilon Hya ABC (Φ = 39.4 degrees, 5500 d; Heintz 1996).

These fall outside the 3–10 day range of inner-binary periods applicable to the prediction in Fabrycky & Tremaine (2007). However, it is worth noting that the mutual inclinations of ξ UMa and epsilon Hya are near 140 and 40 degrees, respectively, and in V819 Her and η Vir the values are outside the 40–140 degrees range, so neither would have been predicted to undergo Kozai cycles or KCTF. Algol has a nearly perpendicular alignment, though the dynamics of Algol are different due to quadrupole distortions in the semidetached stars; Algol's alignment has been explained by Eggleton & Kiseleva-Eggleton (2001).

No systems are outside the 40–140 degrees range, while also in the 3–10 day inner period range.

Two systems are between 40 and 140 degrees and in the 3–10 day inner period range. These systems would not support the KCTF-driven buildup near 40 and 140 degrees:

  • μ Ori AB–BaBb (Φ = 91.2 ± 3.6 or 84.5 ± 3.6 degrees are possible, 4.78 d)
  • 88 Tau AaAb–Ab1Ab2 (Φ = 82.0 ± 3.3 or 58 ± 3.3 degrees are possible, 7.89 d; Lane et al. 2007).

While mutual inclination degeneracies continue to exist in both systems, all possible values are in this range.

Three systems are near 40 or 140 degrees, and in the 3–10 day inner period range. These systems would appear to support the KCTF prediction:

  • μ Ori AB–AaAb (Φ = 136.7 ± 8.3 degrees, 4.45 d),
  • 88 Tau AaAb–Aa1Aa2 (Φ = 143.3 ± 2.5 degrees, 3.57 d; Lane et al. 2007),
  • κ Peg (Φ = 43.4 ± 3.9 degrees, 5.97 d; see Section 4).

In total, three of the five systems meeting the criteria for testing the KCTF prediction do appear near the peak points of 40 and 140 degrees. Following Equations (1), (22), and (35) in Fabrycky & Tremaine (2007), in the presence of general relativity (GR) precession one expects the critical angles for μ Ori AB–AaAb and κ Peg to be increased from 39.2 degrees to ∼ 68 ($\tau {\mathop{\omega}\limits^{.}}_{\rm GR} = 2.3$) and ∼ 54 degrees ($\tau {\mathop{\omega}\limits^{.}}_{\rm GR} = 1.3$), respectively, while for 88 Tau AaAb–Aa1Aa2 GR precession dominates no matter the inclination ($\tau {\mathop{\omega}\limits^{.}}_{\rm GR} = 17$). Thus, Kozai oscillations are suppressed by precession in these systems' current states. However, it is possible these were present at earlier stages in the systems' histories and their current configurations were still reached through KCTF—the inner binaries may have originally been more widely separated, in which case GR effects would have been reduced.

Alternatively, μ Ori AB–BaBb and 88 Tau AaAb–Ab1Ab2 both lie well within the range of predicted Kozai cycles, even including GR precession (which raises the critical angles to ∼58 ($\tau {\mathop{\omega}\limits^{.}}_{\rm GR} = 1.6$) and ∼50 degrees ($\tau {\mathop{\omega}\limits^{.}}_{\rm GR} = 0.9$), respectively).

Several more systems with double visual orbits but lacking RV for at least one subsystem component are listed by Sterzik & Tokovinin (2002). Two more (HD 150680 and HD 214608) are mentioned by Orlov & Petrova (2000) and one more (HD 108500) by Orlov & Zhuchkov (2005). Of these, the inner pair in HD 150680 is doubtful and listing HD 214608 as having a double visual orbit appears to be in error. In the paper cited by Orlov & Petrova (2000) for HD 214608, Duquennoy (1987) reveals it to be a double spectroscopic system, but points out that the visual elements of the inner pair are unconstrained. The value of 150 degrees for the node seems to have been taken as nominal from the outer system (whose true ascending node is 180 degrees different). Because the nodes cannot be distinguished in the visual-only pairs, two values of the mutual inclinations are equally possible for each. Furthermore, all have inner systems with periods longer than 300 days. Thus, these cannot provide further direction on testing the KCTF prediction.

3.3. Masses and Distance

Components Ba and Bb are each determined to 1.4%, Aa to 5%, while the lowest mass member, Ab, is uncertain at the 15% level. The individual masses of Aa and Ab have not been previously determined; this study enables the exploration of the natures of those stars. Both are members of star classes of interest: Aa is of spectral type Am, and Ab has a mass in the range of late-K dwarfs. Through their physical association, it can be assumed that both are co-evolved with Ba and Bb, each within the mass range for which stellar models have been well calibrated through observation.

The masses of Ba and Bb are determined only slightly better (less than a factor of 2 improvement) over the previous study by F2002. Similarly, the distance is determined to 0.6%, a slight improvement. The Hipparcos-based (Perryman et al. 1997) parallax values discussed by Søderhjelm (1999) (21.5 ± 0.8 mas in the original evaluation, revised to 20.8 ± 0.9 mas when the binary nature was considered) are consistent with, but less well constrained than, the current value of 21.69 ± 0.13 mas.

3.4. Component Luminosities

The 2MASS K-band magnitude for μ Ori is mTotal = 3.637 ± 0.260 (Skrutskie et al. 2006). F2002 gives the difference between the luminosities of A and B in several bands. Unfortunately, none of these was taken near the K band (2.2 μm) where PTI operates. However, a Keck adaptive optics image of μ Ori was obtained on MJD 53227 with a narrow band H2 2–1 filter centered at 2.2622 microns. The A–B differential magnitude in this band is mAmB = ΔmAB = −0.073 ± 0.007 magnitudes; this measurement is reported for the first time here.

The combined orbital fit provides the system distance d = 46.11 ± 0.28 parsecs and the luminosity ratios. The combined set of mTotal, ΔmAB, d, LAb/LAa, and LBb/LBa determines the component luminosities. Using first-order error propagation, the K-band luminosities are LK, Aa = 8.3 ± 2.0 solar and less than a third solar for Ab. Components Ba and Bb have K-band luminosities of either LK, Ba = 4.4 ± 1.1 and LK, Bb = 3.35 ± 0.82, or LK, Ba = 3.45 ± 0.84 and LK, Bb = 4.3 ± 1.0 solar. Absolute magnitudes are also given in Table 3. In each case, the uncertainty in the apparent magnitude mTotal dominates.

3.5. System Age and Evolutionary Tracks

The masses and absolute K-band magnitudes for the components in this system can be compared to the stellar evolution models from Girardi et al. (2002). As in F2002, an abundance of Z = 0.02 is assumed. Figure 2 shows the mass versus K-band magnitudes for several isochrones downloaded from http://pleiadi.pd.astro.it and the values derived for the components of μ Ori. As the most massive component, the properties of Aa provide the strongest constraints on age, being most consistent with isochrones in the age range of 108–108.5 years. This is not entirely consistent with the properties of Ba and Bb, though close. Of course, if KCTF has played a significant role in the orbital evolution of this system, one wonders whether stellar evolution models for single stars are really applicable to these stars. One would anticipate the evolution of Aa as being affected by tidal forces because it is part of the subsystem near the predicted 140-degree "pile-up." Thus, one would rely more on Ba and Bb for system age determination, indicating an age over 109 years.

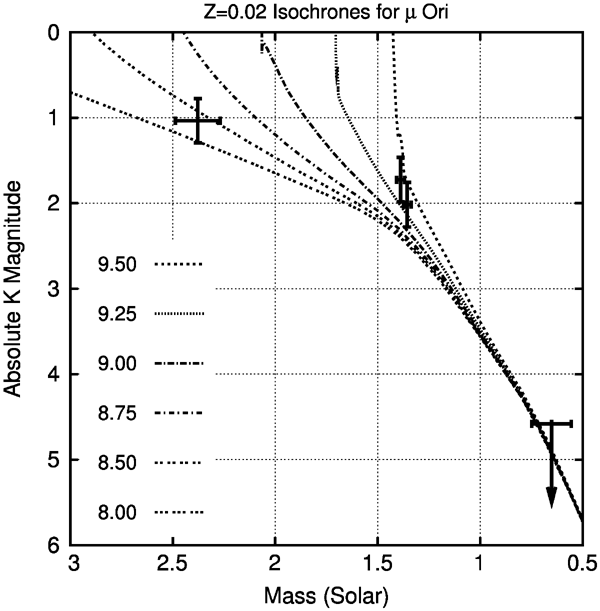

Figure 2.

Figure 2. Stellar evolution models predicting isochrones for the elements of the μ Ori system show disagreement between components Aa with Ba and Bb. Curve labels give values of log(age/years). Component Aa provides the most leverage for determining the system age, though its evolution may have been altered by tidal friction.

Standard image High-resolution image

4. UPDATED ORBITS

During the course of this investigation, a sign error was found in the analysis software that was used to compute orbital solutions for δ Equ (Muterspaugh et al. 2005), κ Peg (Muterspaugh et al. 2006b), and V819 Her (Muterspaugh et al. 2006a). This error affected fits to the radial velocity data only, with the result that the descending node was misidentified as the ascending, and the angle of periastron passage is off by 180 degrees. Because the software was self-consistent, this has no impact on the mutual inclinations derived. Additionally, the finite travel time of light across the wide orbit is included in the analysis, and this amount was thus incorrect by the same sign error, but the light travel time correction has only a small impact on those models. Both errors have since been corrected.

Twenty-three new observations of δ Equ and 11 of κ Peg have been collected since those initial investigations and are presented in Table 4. Also presented in Table 4 is the complete set of 34 V819 Her PHASES observations with the ten measurements taken during eclipses marked; the previous investigation used less precise methods for predicting eclipse times, so the flagged measurements have changed. Measurements made during eclipse are not used in fitting.

The new analysis makes use of the V819 Her Ba–Bb inclination constraint derived by eclipse lightcurves, a feature not included in the previous study. When computing χ2, an additional term (iBaBbiBaBb, eclipse)22iBaBb, eclipse is added to the sum, where iBaBb, eclipse = 80.63 and σiBaBb, eclipse = 0.33 degrees are the value and uncertainty of the Ba–Bb inclination from the lightcurve studies of van Hamme et al. (1994). Note that this measurement results from an entirely independent data set. This added constraint lessens covariances between orbital elements.

The corrected and updated orbital solutions are presented in Tables 5 and 6, which are fit to the complete set of PHASES observations and the other astrometric and RV observations tabulated in those previous papers. (A few new measurements from speckle interferometry have become available for each system since those investigations. These have little impact on the orbital solutions and are not included in the present fit to avoid overcomplicating this update.) The updated reweighting factors for the PHASES uncertainties for each data set are 3.91 for δ Equ, 7.93 for κ Peg, and 2.0 for V819 Her. Alternatively, the noise floor for κ Peg is now found at 161 μas.

Table 5. Orbital Parameters for δ Equ

Parameter Value Uncertainty
P (days) 2084.03 ±0.10
T (MHJD) 53112.071 ±0.052
e 0.436851 ±0.000025
a (mas) 231.9650 ±0.0080
V0,Lick (km s−1) −15.40 ±0.11
V0,DAO (km s−1) −15.875 ±0.080
V0,C (km s−1) −15.73 ±0.10
M1 (M) 1.192 ±0.012
M2 (M) 1.187 ±0.012
M1 + M2 (M) 2.380 ±0.019
M1/M2 1.004 ±0.012
i (deg) 99.4083 ±0.0098
ω (deg) 7.735 ±0.013
Ω (deg) 23.362 ±0.012
d (pc) 18.379 ±0.048
π (mas) 54.41 ±0.14

Notes. All parameter uncertainties have been increased by a factor of $\sqrt{\chi_r^2} = 1.09$ (though χ2r of the combined fit is artificial due to rescaling the uncertainties of the individual data sets, this reflects the degree to which the data sets agree with each other). The fit was repeated several times varying the set of nondegenerate parameters used in order to obtain uncertainty estimates for a number of desired quantities. The parameters {a, R = M1/M2} were replaced with the sets {M = M1 + M2, R} and {M1, M2}. The parallax is a derived quantity.

Download table as:  ASCIITypeset image

Table 6. Orbital Parameters for κ Peg and V819 Her

  κ Peg V819 Her

Parameter Value Uncertainty Value Uncertainty
PAB (days) 4224.76 ±0.74 2019.66 ±0.35
TAB (MHJD) 52401.52 ±0.96 52627.5 ±1.3
eAB 0.3140 ±0.0011 0.67974 ±0.00066
iAB (degrees) 107.911 ±0.029 56.40 ±0.13
ωAB (degrees) 124.666 ±0.064 222.50 ±0.22
ΩAB (degrees) 289.037 ±0.021 141.96 ±0.12
PBaBb (days) 5.9714971 ±1.3 × 10−6 2.2296330 ±1.9 × 10−6
TBaBb (MHJD) 52402.22 ±0.10 52627.17 ±0.29
eBaBb 0.0073 ±0.0013 0.0041 ±0.0033
iBaBb (degrees) 125.7 ±5.1 80.70 ±0.38
ωBaBb (degrees) 179.0 ±6.0 227 ±47
ΩBaBb (degrees) 244.1 ±2.3 131.1 ±4.1
V0,Keck (km s−1) −9.46 ±0.22 ... ...
V1,Keck (km s−1 day−1) −2.2 × 10−4 ±3.4 × 10−4 ... ...
V2,Keck (km s−1 day−2) 6.8 × 10−6 ±2.4 × 10−6 ... ...
V0,C (kms−1) −9.40 ±0.26 ... ...
V0,Lick (kms−1) −8.37 ±0.26 ... ...
V0,M/K (kms−1) ... ... −3.375 ±0.059
V0,DAO (kms−1) ... ... −3.385 ±0.065
V0,DDO (kms−1) ... ... −3.35 ±0.12
MA (M) 1.533 ±0.050 1.799 ±0.098
MBa+Bb (M) 2.472 ±0.078 2.560 ±0.067
MBb/MBa 0.501 ±0.049 0.742 ±0.012
LBb/LBa 0.015 ±0.021 0.280 ±0.037
d (parsecs) 34.57 ±0.21 68.65 ±0.87
ΦAB–BaBb (degrees) 43.4 ±3.9 26.3 ±1.5
MBa (M) 1.646 ±0.074 1.469 ±0.040
MBb (M) 0.825 ±0.059 1.090 ±0.030
aAB (AU) 8.122 ±0.063 5.108 ±0.046
aBaBb (AU) 0.08710 ±0.00091 0.04569 ±0.00040
π (mas) 28.93 ±0.18 14.57 ±0.19

Notes. Uncertainties for κ Pegasi are the maximum of three uncertainties: the uncertainty from the combined fit that included PHASES-reweighted data, that including PHASES data with a 161 μas noise floor, and the difference in the fit values for the two models. The parameters are the average values between a fit including the reweighted uncertainties and one with the noise floor.

Download table as:  ASCIITypeset image

5. CONCLUSIONS

The center-of-light astrometric motions of the Aa–Ab and Ba–Bb subsystems in μ Ori have been constrained by PHASES observations. While four degenerate orbital solutions exist, two of these can be excluded with high reliability based on mass–luminosity arguments, and the fact that Ab is not observed in the spectra. Ba and Bb are stars of a class (mid-F dwarfs) whose properties have been well established by studying other binaries. Their association with Aa and Ab, which are members of more poorly studied classes (Am and late-K dwarfs), allows a better understanding of those objects in a system which can be assumed to be coevolved. The orbital solution finds masses and luminosities for all four components, the basic properties necessary in studying their natures.

Complex dynamics must occur in μ Ori. The Ba–Bb orbital plane is nearly perpendicular to that of the A–B motion, and certainly undergoes Kozai-type inclination–eccentricity oscillations. It is possible that the mutual inclination of the A–B pair and Aa–Ab subsystem is a result of KCTF effects over the system's evolution.

Finally, it is noted that the orbits in the μ Ori system are quite non-coplanar. This is in striking contrast with the planets of the solar system, but follows the trend seen in triple star systems. With the solar system being the only one whose coplanarity has been evaluated, it is difficult to draw conclusions about the configurations of planetary systems in general. It is important that future investigations evaluate the coplanarities of extrasolar planetary systems to establish a distribution. Whether that distribution will be the same as or different from that of their stellar counterparts may point to similarities or differences in star and planet formation, and provide a key constraint on modeling multiple star and planet formation.

We thank Daniel Fabrycky for helpful correspondence about his recent theoretical work on KCTF. We thank Bill Hartkopf for providing weights for the new non-PHASES differential astrometry measurements. PHASES benefits from the efforts of the PTI collaboration members who have each contributed to the development of an extremely reliable observational instrument. Without this outstanding engineering effort to produce a solid foundation, advanced phase-referencing techniques would not have been possible. We thank PTI's night assistant Kevin Rykoski for his efforts to maintain PTI in excellent condition and operating PTI in phase-referencing mode every week. Part of the work described in this paper was performed at the Jet Propulsion Laboratory under contract with the National Aeronautics and Space Administration. Interferometer data were obtained at the Palomar Observatory with the NASA Palomar Testbed Interferometer, supported by NASA contracts to the Jet Propulsion Laboratory. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation. This research has made use of the Simbad database, operated at CDS, Strasbourg, France. MWM acknowledges support from the Townes Fellowship Program. PHASES is funded in part by the California Institute of Technology Astronomy Department, and by the National Aeronautics and Space Administration under grant no. NNG05GJ58G issued through the Terrestrial Planet Finder Foundation Science Program. This work was supported in part by the National Science Foundation through grants AST 0300096, AST 0507590, and AST 0505366. The work of F.C.F. has been supported in part by NASA grant NCC5-511 and NSF grant HRD-9706268. M.K. is supported by the Polish Ministry of Science and Higher Education through grants N203 005 32/0449 and 1P03D 021 29.

Please wait… references are loading.
10.1088/0004-6256/135/3/766
