Multiple X-line Reconnection Observed in Mercury's Magnetotail Driven by an Interplanetary Coronal Mass Ejection

Magnetic reconnection is a primary process that drives planetary magnetospheric dynamics. Mercury's magnetosphere is one of the most extreme planetary environments in our solar system due to the intense solar wind driving in the inner heliosphere. Like Earth, reconnection at Mercury occurs at the dayside magnetopause, where the solar wind energy is transferred into the magnetosphere, and in the magnetotail current sheet, where some energy is released back to the solar wind. This drives the circulation of magnetic flux and plasma that constitutes the Dungey cycle (Dungey 1961). However, the timescale of Dungey cycle at Mercury is estimated to be 2–3 minutes (Imber & Slavin 2017), which is much shorter than ∼1 hr at Earth (Baker et al. 1996).

Magnetic reconnection is expected to play a much more important role in driving Mercury's magnetospheric activity than at Earth or other magnetized planets (e.g., Slavin et al. 2009). MESSENGER frequently observed lobe field loading and unloading in Mercury's magnetotail (Slavin et al. 2010; Imber & Slavin 2017). It is believed that magnetic energy is stored in Mercury's magnetotail and eventually released by tail reconnection; this drives global magnetospheric dynamics in a manner analogous to substorms at Earth (Baker et al. 1996; Hones 1977). One substorm-associated magnetotail phenomenon is the formation of a large-scale plasmoid between the near-Earth and the distant X-lines and the subsequent injection tailward into the solar wind (e.g., Slavin et al. 1989). As for Mercury, large plasmoids are occasionally observed in the near magnetotail (Zhong et al. 2019). Moreover, Zhong et al. (2018) reported the first observation of a rapidly evolving magnetic reconnection process in Mercury's magnetotail. They showed that the tail energy was released rapidly and impulsively as repeated tailward ejections of the reconnection fronts and instantaneously in response to the enhanced solar wind driving. However, direct observations of active magnetic reconnection sites are rare. The pattern of reconnection driving the global dynamics of Mercury's magnetosphere remains poorly understood.

On 2011 November 23, an interplanetary coronal mass ejection (ICME) impacted Mercury's magnetosphere. As the ICME passed, the solar wind dynamic pressure was inferred to be ∼51 nPa, which is 4 to 9 times greater than normal (Slavin et al. 2014). The dayside magnetospheric dynamics were analyzed by Slavin et al. (2014). Here we report observations of active reconnection sites in Mercury's magnetotail under this extreme solar wind condition. We provide unambiguous evidence of multiple X-line reconnection in an unstable ion diffusion region. The observations suggest that the multiple X-line reconnection may dominate the reconnection process in Mercury's highly compressed magnetotail. Hence, it may be responsible for the global dynamics of the magnetosphere. The pattern of the magnetic energy released into the solar wind is distinct from Earth-like substorms or the convection of plasmoids created by widely separated X-lines.

An overview of the MESSENGER observations of Mercury's magnetotail crossing on 2011 November 23 is shown in Figure 1. The high-resolution (20 vectors s⁻¹) magnetic field data from the Magnetometer (MAG; Anderson et al. 2007) and ion plasma data from the Fast Imaging Plasma Spectrometer (FIPS; one energy scan per 10 s; Andrews et al. 2007) were used. Between 08:17:00 UT and 08:31:37 UT the spacecraft traveled from the magnetosheath into the magnetotail near the noon-midnight meridian and crossed the far downstream southern magnetopause multiple times. The mean location of the nightside magnetopause was ∼0.4 R_M inward from the normal magnetopause (Zhong et al. 2015). At ∼09:25:00 UT, the spacecraft traversed the current sheet from the southern to the northern lobe. The strength of the lobe field reached ∼100 nT, which is ∼100% stronger than it was for the orbits before and after the ICME. The substorm-related tail loading and unloading were not obvious. Instead, the lobe magnetic field was relatively constant throughout the tail crossing. These indicate that Mercury's magnetotail was highly compressed and under a driving force that remained approximately constant throughout the passage of the ICME.

Zoom In Zoom Out Reset image size

A remarkable signature is the occurrence of a large number of flux ropes (FRs) and their associated TCRs. The FRs and TCRs are characterized by north-to-south reversals or perturbations in the B_Z component, coincident with enhancements of B_Y and $| {\boldsymbol{B}}|$ . The positive-to-negative polarities in B_Z are indicative of tailward-moving FR structures. Thirty-three FRs or TCRs with durations longer than 10 s and B_Z peak-to-peak amplitudes greater than 10 nT were identified between 08:58:00 UT and 09:34:00 UT as the spacecraft moved from X_MSM = −3.33 to −2.24 R_M and Z_MSM = −1.11 to 0.22 R_M (red arrows in Figure 1(d)). The mean duration of these FRs is 16.8 s and they occurred at ∼1 minute intervals. These long-duration FRs have rarely been seen in previous observations (e.g., DiBraccio et al. 2015; Smith et al. 2017).

A close-up view of the magnetic field data across the current sheet is shown in Figure 2. The magnetic field data were rotated to a local current sheet coordinate system, LMN, determined by the minimum variance analysis of the magnetic field. Here, ${\boldsymbol{N}}$ is the current sheet normal, ${\boldsymbol{L}}$ is directed along the reconnecting component of the magnetic field, and ${\boldsymbol{M}}$ = ${\boldsymbol{N}}$ × ${\boldsymbol{L}}$ points in the out-of-plane direction. This coordinate system is only slightly different from the MSM coordinate system: ${\boldsymbol{L}}$ = [0.998, −0.037, 0.050], ${\boldsymbol{M}}$ = [0.033, 0.996, 0.081], and ${\boldsymbol{N}}$ = [−0.053, −0.080, 0.995]. During the main current sheet crossing (09:22:40–09:26:40 UT), the negative-to-positive reversal in B_L indicates a south–north crossing of the current sheet. The magnetic shear across the local current sheet is found to be ∼145°, the guide field B_g ∼30 nT, and the reconnecting field B_L0 ∼100 nT, consistent with a normalized guide field B_g/B_L0 of ∼0.3. The magnetic Hall field, B_H = (B_M − B_g), shows an overall positive-to-negative bipolar signature, with peak amplitudes reached ∼50% and ∼−30% of B_L0. In addition, the reversal of B_H (∼09:26:06 UT) is located in the positive B${}_{L}$ region or above the current sheet center. The average B_N is negative throughout the crossing. These magnetic field signatures suggest that the spacecraft crossed a distorted quadrupole Hall magnetic field structure tailward of the primary guide field reconnection site (Eastwood et al. 2010; Wang et al. 2012), as illustrated in Figure 2(e). The quadrupole Hall magnetic field, produced by the ion–electron decoupling (Sonnerup 1979), is a key observational signature of the ion diffusion region (e.g., Nagai et al. 2001; Øieroset et al. 2001).

Zoom In Zoom Out Reset image size

The large perturbations of the Hall magnetic field and the formation of FRs suggest that the evolution of the reconnection was highly unstable. In the diffusion region there are clear negative-to-positive reversals of B_N just before FRs FR4–8. This indicates that the spacecraft passed multiple tailward-moving X-lines, as denoted by the purple arrows in Figure 2(d). Each X-line can produce a quadrupole structure of the Hall magnetic field (e.g., Deng et al. 2004), as illustrated in Figure 2(e). Before it crossed FR4–6, the spacecraft was immersed in the Hall region with positive (B_M − B_g). The passage of the X-lines results in negative perturbations of the Hall magnetic field (blue arrows in Figure 2(c)). This can be interpreted as the passage of the southward and planetward quadrupole Hall magnetic field of the X-line, as shown by trajectory T1 in Figure 2(e). In contrast, before crossing FR 7–8, the spacecraft was immersed in the negative (B_M − B_g) region tailward of the X-line. The observed positive perturbation of the Hall magnetic field just after the X-line passed indicates that the spacecraft encountered the northward and planetward quadrupole Hall magnetic field of the X-line, as shown by trajectory T2 in Figure 2(e).

Following the X-lines are FRs. The presence of a strong core field suggests that they have a helical magnetic field topology. For the large FRs (FR4–8) observed near the current center, the maximum core field (black arrows in Figure 2(c)) exceeds 40% of the lobe magnetic field. This strong core field resulted from the compression of the guide field and Hall magnetic field, as well as the radial inward pinch of the FR due to the presence of the helical fields (Ma et al. 1994). Enhancements of the 1–10 keV thermal ion flux were observed within the FRs (green arrows above Figure 1(e)). This is consistent with the plasma density compression and pile-up between two X-lines (e.g., Chen et al. 2008; Liu et al. 2009). The ions would be accelerated along the core field due to force imbalance in the M direction, which yields further increases in the core field (Ma et al. 1994). Moreover, the magnitude of B_M in the center of the FR reached approximately 100% of $| {\boldsymbol{B}}|$, suggesting that the FRs are approximately orientated in the M direction, or parallel to the X-line. The FRs being parallel to the X-line, as well as the strong core field, further support the theory of multiple X-lines reconnection process (Lee & Fu 1985).

From high-resolution magnetic field data sampled at 20 s⁻¹, a large number of small-scale FRs with timescales of ∼1 s can be identified. Close-up view of 1 minute interval data between FR3 and FR4 are shown in Figure 3(a). Eight short-duration FRs were identified by the positive-to-negative polarity in B_N and coincident with the increase in B_M and the peak in $| {\boldsymbol{B}}|$. Negative perturbations of (B_M − B_g) were also observed just before these short-duration FRs appeared, indicating the passage of the X-lines (T1 in Figure 2(e)). Based on assumed tailward propagation speed comparable to the local Alfvén speed, ∼1600 km s⁻¹ from derived ion density (Figure 1(f)), the mean diameter of the short-duration FRs in the L direction can be estimated to be ∼10 d_i, where d_i = c/ω_pi ≈160 km is the ion inertial length. This indicates that these are ion-scale structures.

Zoom In Zoom Out Reset image size

The ion-scale structures were also observed in the large FRs where they were identified from smoothed data. The close-up views of FR1 and FR5 are shown in Figures 3(b) and (c), respectively. Their whole bipolar B_N (smoothed B_N) actually consisted of multiple successive short-duration bipolar variations. Each short-duration positive-to-negative reversal in B_N is coincident with the sub-peak in B_M and $| {\boldsymbol{B}}|$. These are key observational features for the interaction and coalescence of FRs (e.g., Wang et al. 2015; Zhou et al. 2017) and confirmed by the simulations (e.g., Markidis et al. 2012), as illustrated in Figure 3(d). The spacecraft crossed FR1 away from the current sheet, and the observed short-duration B_N bipolar are superimposed in the whole B_N bipolar. The spacecraft crossed FR5 in the vicinity of the current sheet center, whereas more sequential reversals in B_N were observed in the middle part of the large FR. These observations are consistent for the trajectories T1 and T2 of the tailward-moving merged large FRs relative to the spacecraft (Figure 3(d)). These suggest that the large FRs were likely formed repeatedly through the interaction and coalescence of many ion-scale FRs.

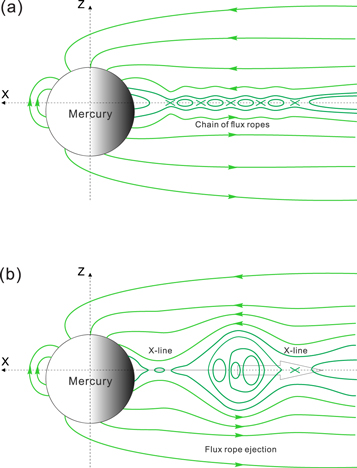

The observations of the primary Hall magnetic field, sequential passage of X-lines with Hall field perturbations, and FRs provide unambiguous evidence of multiple X-line reconnection process in an unstable ion diffusion region. During extreme solar wind conditions, Mercury's magnetotail forms a long, thin, and compressed current sheet. Assuming the current sheet is stable in the N direction, the width of the diffusion region (2δ) is estimated to be 2d_i. When the half-length of the current sheet L ≥ 10δ ∼ 1600 km or 0.65 R_M, the diffusion region becomes unstable due to tearing instability, and hence multiple X-lines appear in the diffusion region (Lee & Fu 1986). Consequently, a chain of FRs would form between neighboring X-lines, as shown in Figure 4(a). From theory (Fu & Lee 1986), the formation and convection of magnetic FRs should have a recurrence time τ ∼10t_A/R, where t_A is the Alfvén transit time and R is the normalized reconnection rate. We estimated that t_A = δ/v_A ∼0.1 s and the average $R=| {B}_{N}/{B}_{L0}| \sim 0.1$. Thus, the theoretical timescale τ = 10 s is consistent with the average interval observed between repeated ion-scale FRs.

Zoom In Zoom Out Reset image size

These ion-scale FRs are expected to interact, coalesce, and grow into larger FRs until they are ejected tailward, as shown in Figure 4(b). These large FRs are estimated to be ∼2 R_M in the north–south direction and a few R_M in the L direction. Convection of such large FRs is expected to release a large amount of magnetic flux into the solar wind, which is supplemented by the dayside reconnection. The magnetic flux transport at the nightside and dayside is balanced in a quasi-steady state, as indicated by the observed quasi-steady lobe field. The time needed to cycle the magnetic flux in the tail from the dayside, or the Dungey cycle time, can be estimated using T_C ≈2π · B_tail · R_tail/(B_SW · v_SW) (Siscoe et al. 1975). Here, B_tail is the field strength in the lobe region, R_tail is the cross-sectional radius of the tail, and B_SW and v_SW are the solar wind magnetic field and speed, respectively. The multiple magnetopause crossings indicate that R_tail is ∼2.12–2.60 R_M at X_MSM = −3.77 to −3.91 R_M, and that B_tail approximately equal to B_SW. Given an inferred solar wind speed of ∼450 km s⁻¹ (Slavin et al. 2014), we computed T_C is ∼72–88 s. The observed interval between large FRs is comparable to the estimated Dungey cycle time. From the magnetotail observations, the repeated ejection of large FRs lasts at least 35 minutes. Thus, multiple X-line reconnection in the tail current sheet drives Mercury's magnetospheric dynamics globally and continuously. The response mode of Mercury's magnetosphere to the solar wind driving under extreme conditions is distinct from the previously accepted Earth-like substorm process or the formation of large-scale plasmoids created by widely separated X-lines in the magnetotail.

We thank Dr. Ruilong Guo and Dr. Huishan Fu for helpful discussions. This work was supported by the Strategic Priority Research Program of Chinese Academy of Sciences (grant No. XDA17010201), and the National Natural Science Foundation of China (41874198, 41674178, 41621004, 41874200). L.C.L. was supported by the Science and Technology Development Fund (FDCT) of Macau (0035/2018/AFJ). The MESSENGER data used here are available from the Planetary Data System (https://pds-ppi.igpp.ucla.edu/).
