Xenon Isotopes Identify Large-scale Nucleosynthetic Heterogeneities across the Solar System

The series of steps leading to the formation of the solar system efficiently mixed material throughout the entire protoplanetary disk via large-scale dust drift and orbital perturbations of planetesimals leading to collisions. However, some heterogeneities remain and are detected by remote sensing of asteroids (e.g., Alexander et al. 2018), by analyses of meteorites, the remnants of the formation of the solar system, and by analyses of planetary material. During the last decade, studies have demonstrated the existence of an isotopic dichotomy (e.g., for Cr, Ti, Mo, Ni) between carbonaceous (CC) and non-carbonaceous (NC) chondritic meteorites (Warren 2011; Kruijer et al. 2017; Burkhardt et al. 2019). For most chemical elements, the isotopic differences between reservoirs are very small, on the order of parts per 10,000 or even lower. This dichotomy implies that the parent bodies of CC and NC meteorites incorporated different populations of presolar grains leading to distinct isotopic reservoirs still present in the modern solar system. The current favored hypothesis for establishing this dichotomy is the formation of Jupiter, which acted as a physical barrier preventing mixing of grains between outer (CC-like) and inner (NC-like) regions of the disk (Kruijer et al. 2017). The isotopic reservoir located in the outer solar system (CC-like material) carries excesses of neutron-rich Cr, Ti, Mo, and Ni isotopes created in neutron-rich stellar environments (Nanne et al. 2019).

Noble gases are tracers of choice for understanding nucleosynthetic heterogeneities in solar system material (Reynolds 1960). Studies identified several nucleosynthetic end-members for noble gases (reviewed by Ott 2014), and attempted to establish a link between these end-members and presolar grains (SiC, nanodiamonds, etc.; Lewis et al. 1994). Xenon, the heaviest noble gas, is particularly useful to understand the distribution of nucleosynthetic processes in the solar system. Its nine isotopes are produced via different combinations of nucleosynthetic pathways: p-process only for ¹²⁴Xe and ¹²⁶Xe, p- and s-processes for ¹²⁸Xe and ¹³⁰Xe, p-, s- and r-processes for ¹²⁹Xe, s- and r- for ¹³¹Xe and ¹³²Xe, and r-process only for ¹³⁴Xe and ¹³⁶Xe. Establishing the isotopic inventory of the p-process only isotopes ¹²⁴Xe and ¹²⁶Xe in the solar system is challenging since they are the rarest Xe isotopes (about 0.2% of total Xe), which makes them difficult to measure precisely. Spallation processes in space or on planetary surfaces also lead to excesses in these isotopes and corrections rely on poorly defined production rates (e.g., Avice et al. 2018a for correction attempts on Martian Xe trapped in the Martian meteorite Tissint). These difficulties prevent using the distribution of light Xe isotopes to put constraints on existing nucleosynthetic models (Arnould & Goriely 2003).

One important component revealed by analyses of Xe in meteoritic nanodiamonds is Xe-HL (Lewis et al. 1987). This Xe component is characterized by extreme enrichments, sometimes higher than 100%, in both heavy (${}^{\mathrm{134,136}}$Xe) and light (^124–128Xe) isotopes relative to the solar composition. This systematic isotopic pattern is striking since there is no known nucleosynthetic process able to produce light and heavy Xe isotopes at the same time (Arnould & Goriely 2003). One alternative explanation invokes a separation process of radioactive precursors of Xe before the end of the nucleosynthesis event (Ott 1996). Gilmour & Turner (2007) used multidimensional correlations to reveal that subtle variations in relative enrichments of heavy (${}^{\mathrm{134,136}}$Xe) and light (^124–128Xe) isotopes do exist. This demonstrates that their parent nucleosynthetic processes can be distinct.

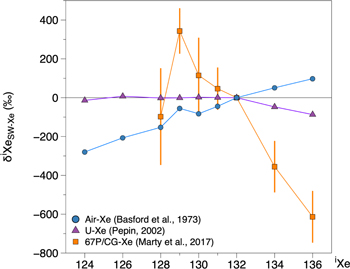

Xenon in the Earth's atmosphere is distinct from cosmochemical end-members. It is enriched in heavy isotopes and depleted in light isotopes by 3%–4% per atomic mass unit relative to cosmochemical end-members (chondritic-Xe or solar-Xe, Figure 1). This mass-dependent fractionation is likely due to the escape of Xe from the atmosphere until the end of the Archean eon (Pujol et al. 2009; Avice et al. 2017, 2018b; Bekaert et al. 2018; Zahnle et al. 2019). After correction for the mass-dependent isotopic fractionation, the precursor of atmospheric Xe presents selective depletions of ¹³⁴Xe and ¹³⁶Xe relative to ¹³²Xe and to the isotopic composition of xenon in the solar wind. This observation led to the definition of a theoretical starting isotopic composition for atmospheric Xe labeled U-Xe (Pepin 1991, Table 1). This component is solar-like (i.e., identical to SW-Xe) for all Xe isotopes except ¹³⁴Xe and ¹³⁶Xe, which are depleted by 5% and 9%, respectively, relative to SW-Xe. Until recently, no samples containing Xe with a clear affinity with U-Xe had been found except for one study of the Tatahouine diogenite (Michel & Eugster 1994), not confirmed in a following investigation (Busemann & Eugster 2002). One study of Xe trapped in lunar anorthosites (Bekaert et al. 2017) also identified potential hints of U-Xe on top of terrestrial-like Xe isotope composition but measurements of Xe in other lunar samples do not show this tendency (Mathew & Marti 2019).

Zoom In Zoom Out Reset image size

The ROSINA instrument on board the Rosetta spacecraft measured the isotopic composition of gases in the coma of comet 67P/Churyumov–Gerasimenko. Compared to solar-Xe (SW-Xe; Meshik et al. 2014), cometary xenon (67P/CG-Xe hereafter; Marty et al. 2017) presents a solar-like pattern for ${}^{\mathrm{128,130,131}}$Xe/¹³²Xe but an excess of ¹²⁹Xe (linked to the radioactive decay of ¹²⁹I) and, of interest here, a depletion of ¹³⁴Xe and ¹³⁶Xe (Figure 1). U-Xe, the progenitor of atmospheric Xe, would thus consist of a mix of about 78% chondritic Xe with about 22% cometary Xe. Given the high noble gas to water ratio of comets (Balsiger et al. 2015), a cometary contribution to atmospheric Xe remains compatible with the isotopic budget of water, which is close to the chondritic component (Marty et al. 2016). The ROSINA instrument on board the Rosetta spacecraft also measured the isotopic composition of krypton emitted by 67P/Churyumov–Gerasimenko (Rubin et al. 2018). Contrary to the case of Xe, the isotopic composition of Kr is close to the solar values. In summary, the isotopic composition of the progenitor of atmospheric Xe shows depletions in r-process Xe isotopes and cometary Xe seems to share this feature.

In this study, we revisit the interpretation proposed by Marty et al. (2017) and demonstrate that the nucleosynthetic mixture explaining 67P/CG-Xe leads to a severe depletion of light Xe isotopes (^124–128Xe) of the progenitor of atmospheric Xe relative to the solar composition. This depletion cannot be simply compensated by adding a contribution from HL-Xe to the nucleosynthetic mixture since it also carries r-process Xe isotopes (¹³⁴Xe and ¹³⁶Xe). This requires the existence of a pure p-process Xe component that can bring ^124–128Xe/¹³²Xe ratios back to solar-like values. This observation implies that large-scale p-process/r-process nucleosynthetic heterogeneities persisted since the formation of the solar system.

The isotopic compositions of Xe components used, and determined, in this study are listed in Table 1. Following Marty et al. (2017), the isotopic composition of Xe in the coma of 67P/C-G is taken from their period (b) of measurement. Taking values from the other two periods instead does not change the results of the present study. The composition of U-Xe is from (Pepin 1991) and of Air-Xe from Basford et al. (1973). Spinel-Xe corresponds to the isotopic composition computed by Ballad et al. (1979) for Xe in Allende spinels. In the present study isotopic ratios of Xe are normalized, illustrated (except for Figure 2 where the normalizing composition is 67P/CG-Xe) and discussed relative to a reference value, which is the composition of the Solar Wind measured by the Genesis mission (SW-Xe, Meshik et al. 2014).

Zoom In Zoom Out Reset image size

Conventionally, nucleosynthesis of the heavy isotopes of xenon involves contributions from the S-process and from the R-process (capitalization is used to distinguish these expected components from those discussed below). Measurements of the S-process from presolar SiC grains agree well with theoretical predictions (Lewis et al. 1994). The R-process composition can be calculated by subtracting this S-process composition from the composition of solar xenon on the basis that ¹³⁰Xe is produced only in the S-process.

However, from a compilation of literature analyses of presolar material (nanodiamonds and SiC grains), Gilmour & Turner (2007) identified that three, not two, major processes were required to account for the observed variation for heavy Xe isotopes. They denoted these s, r, and h. Based on fits of planes with ¹³⁰Xe/¹³²Xe and ¹³⁶Xe/¹³²Xe as the independent variables and the ratio of each other xenon isotope to ¹³²Xe as the dependent variable, they calculated ranges of allowed compositions for each component. They noted that the correlation extended to the light, p-process isotopes, though subtle variation was present. Gilmour and Turner's s-process, defined as making no contribution to ¹³⁶Xe, was consistent with the S-process identified by Lewis et al. (1994). The remaining variation could be accounted for by two processes that each made no contribution to ¹³⁰Xe and so could be seen as variants of the R-process. Each had a range of possible compositions. One, "h," accounted for the enrichment in ¹³⁴Xe and ¹³⁶Xe observed in presolar nanodiamonds. The other, "r," was consistent with a composition lacking ¹²⁸Xe, ¹³⁰Xe, and ¹³⁶Xe.

The relative proportions of h and r that contribute to solar xenon depend on the compositions adopted; if the r-process composition is identical to R-process xenon (which is within the allowed range for r), there is no contribution from the h-process to solar xenon and the presolar material on which the analysis was based simply samples a very rare nucleosynthetic site. However, this alternative makes it coincidental that the mixing among the components yields an r-process composition producing no ¹³⁶Xe. For this reason, Gilmour and Turner considered that all three processes made a significant contribution to solar system xenon, in which case up to 31% of the solar system ¹³²Xe budget (and all of the ¹³⁶Xe) may come from the h-process.

Marty et al. (2017) reconstructed the best-fit planes Gilmour and Turner used to constrain end-member compositions by considering mixing among their s-process and the two extreme compositions identified for the r-process. They did not include any h-process composition. This has the disadvantage of treating uncertainties on the end-members, which arise from underlying uncertainties on the fitted planes and so are correlated, as independent errors. Marty et al. showed that a "mixture" of 34% of s-process, 41% of one candidate r-process ("r1") composition, and 25% of the other candidate r2-process ("r2") reproduces 67P/CG-Xe. This demonstrated that the composition measured in 67P/CG lies on the planes identified by Gilmour and Turner, and lies between the end-member candidate compositions for the r-process. However, the percentage attributed to each of the alternates r1 and r2 has no physical meaning. It thus reduces the range of possible r-process compositions such that 0 < ¹³⁶Xe/¹³²Xe < 0.25 for the r-process, the upper limit corresponding to the ratio of ¹³⁶Xe/¹³²Xe in 67P once ¹³²Xe has been corrected for a contribution to ¹³²Xe from the s-process: 0.188 ± 0.068 (1σ). That is to say, the upper limit presumes that xenon from 67P is a binary mixture of the s- and r-processes. This new constraint on the composition of the r-process Xe requires that the h-process made a significant contribution to solar system xenon—at least 29% (2σ) of ¹³⁶Xe came from this process.

In order to predict the light isotope composition corresponding to the heavy xenon isotopes measured in 67P, we compute a theoretical isotopic composition for cometary Xe labeled comet-Xe following Equation (1)

$$\begin{eqnarray}\begin{array}{rcl}\displaystyle \frac{{}^{i}\mathrm{Xe}}{{}^{132}\mathrm{Xe}} & = & A\displaystyle \frac{{}^{130}\mathrm{Xe}}{{}^{132}\mathrm{Xe}}+B\displaystyle \frac{{}^{136}\mathrm{Xe}}{{}^{132}\mathrm{Xe}}\\ & & +\,C\ (i=124,126,128,129,131,134).\end{array}\end{eqnarray} \tag{ 1 }$$

¹³⁰Xe/¹³²Xe and ¹³⁶Xe/¹³²Xe are the measured ¹³⁰Xe/¹³²Xe and ¹³⁶Xe/¹³²Xe ratios of 67P/CG-Xe (Marty et al. 2017). A, B, and C are the parameters of the fitted planes presented by Gilmour & Turner (2007) in their Table 1. Errors were propagated by using a Monte Carlo algorithm. Mixing 22% of this synthetic cometary component with 78% of chondritic (Q-Xe) (Busemann et al. 2000; Marty et al. 2017) leads to a theoretical progenitor of Earth's atmospheric Xe labeled start-Xe. Comet-Xe and start-Xe are listed in Table 1.

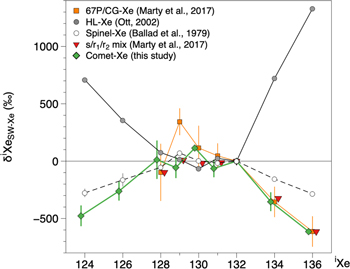

Our theoretical cometary Xe (comet-Xe, Table 1) has an isotopic composition closely matching 67P/CG-Xe for ${}^{\mathrm{128,130}\mbox{--}136}$Xe (Figure 2) but distinct from 67P/CG-Xe and SW-Xe for ${}^{\mathrm{124,126}}$Xe and ¹²⁹Xe (Figure 3).

Zoom In Zoom Out Reset image size

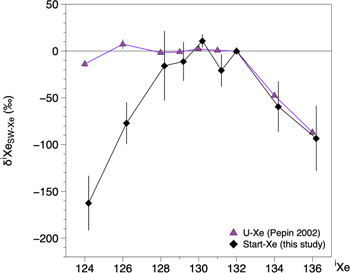

When 22% of comet-Xe is mixed with 78% of Q-Xe in order to reproduce the starting isotopic composition of atmospheric Xe (Marty et al. 2017), the resulting isotopic composition (labeled start-Xe here) is also distinct from U-Xe for ¹²⁴Xe, ¹²⁶Xe, and ¹²⁸Xe (Figure 4). The depletion relative to SW-Xe reaches −162 ± 31, −77 ± 30 and −16 ± 37‰ for ¹²⁴Xe, ¹²⁶Xe and ¹²⁸Xe, respectively.

Zoom In Zoom Out Reset image size

The depletion in ¹²⁹Xe of comet-Xe relative to 67P/CG-Xe (Figure 2) might be due to the presence of nucleosynthetic ¹²⁹Xe in cometary material (Marty et al. 2017). Marty et al. (2017) highlighted that the ¹²⁹Xe excess measured in 67P/CG is difficult to explain solely by radiogenic ingrowth of ¹²⁹Xe coming from the decay of extinct ¹²⁹I (T_1/2 = 16 Ma) since it requires orders of magnitude too much iodine relative to Xe compared to a solar-like elemental ratio. However, s-process ¹²⁹Xe is accounted for in the model and r-process ¹²⁹Xe is also produced via ¹²⁹I, so an elevated I/Xe ratio is implicated. Gilmour & Turner (2007) pointed out that chemical separation can be responsible for large variations of the elemental I/Xe ratio on the local scale. Because of this unresolved radiogenic effect, the case of ¹²⁹Xe is not further discussed here.

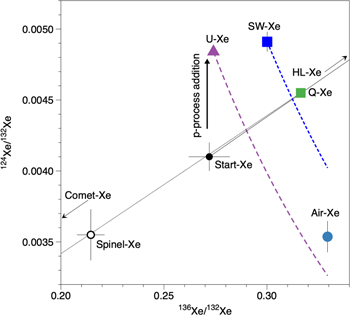

Several processes could be envisaged to explain the depletion in ^124–128Xe of start-Xe relative to U-Xe and, by extension, to SW-Xe. Corrections of mass-dependent fractionation of Air-Xe and of minor addition of plutonium derived fission Xe led to the definition of U-Xe (Pepin 1991; Figure 5). While start-Xe closely resembles U-Xe for ^129–136Xe, the low ^124–128Xe/¹³²Xe ratios are incompatible with start-Xe being a good candidate for starting Earth (or Mars) atmospheric Xe. Mixing HL-Xe with start-Xe compensates for the depletion in the light isotopes but this component also carries excesses in ¹³⁴Xe and ¹³⁶Xe (Ott 2014) and would thus lead to a departure from U-Xe for heavy isotopes. Xenon from spallation is an interesting candidate for compensating this depletion since it especially enriched in light Xe isotopes. However, the exposure age or the concentration of target elements would have to be extremely high and the relative proportions of ¹²⁴Xe, ¹²⁶Xe, and ¹²⁸Xe for spallation Xe (Wieler 2002) do not match the depletion observed here. The most plausible explanation for compensating the depletion in ^124–128Xe of comet-Xe (and start-Xe) relative to SW-Xe is simply the incorporation of pure p-process Xe to the R/S-process mixture considered here. Either the incorporation of p-process Xe from the interstellar medium happened before the incorporation of r-process Xe or material in the outer regions of the solar system do not carry the same mix of presolar sources as what have been preserved in meteorite parent bodies. Incorporation of p-process Xe with ¹²⁴Xe/¹²⁶Xe and ¹²⁸Xe/¹²⁶Xe ratios of 2.15 ± 0.82 and <12 (Figure 6), respectively, to comet-Xe before mixing with Q-Xe would solve the depletion in ^124–128Xe. Interestingly, Ballad et al. (1979) deduced from a series of chemical attacks that spinels in the Allende meteorite also carry Xe with an isotopic composition depleted in p- and r-process Xe isotopes (Figures 3 and 5). The p-process required to bring ^124–128Xe/¹³²Xe ratios back to solar values is in the range of the one required in the case of comet-Xe (Figure 6). Although results by Ballad et al. (1979) are not direct measurements but a mathematical derivation by comparing Xe isotope ratios before and after a chemical attack by H₃PO₄ and H₂SO₄, an isotopic pattern similar to comet-Xe for light isotopes favors the hypothesis that CC-like material originating from the outer solar system carries a nucleosynthetic Xe component similar to what was measured in the coma of 67P/C-G. The p-process isotopic ratios required to reach solar ratios are 2.15 ± 0.82 and a range from 0 to 12 for ¹²⁴Xe/¹²⁶Xe and ¹²⁸Xe/¹²⁶Xe, respectively. They are compared in Figure 6 to theoretical ratios derived from six nucleosynthesis models compiled and detailed by Arnould & Goriely (2003; see references therein). Among the six nucleosynthesis models considered, the ones involving the thermonuclear explosion of a CO White Dwarf star with a s-process seed distribution in the white dwarf of one hundred times the solar composition (Goriely et al. 2002), and the one invoking a type 2 supernova of 25 times the solar mass with a p-process layer PPL being contaminated by the overlying exploding He envelope, do not lead to ¹²⁴Xe/¹²⁶Xe and ¹²⁸Xe/¹²⁶Xe ratios compatible to those derived in this study. Unfortunately, the absence of measurement for the two rarest Xe isotopes, ¹²⁴Xe and ¹²⁶Xe, emitted by 67P/C-G prevent us from further constraining which type of nucleosynthetic event contributed light Xe isotopes to the solar system. In summary, the composition of comet-Xe derived in this study implies the incorporation of p-process Xe to the original mixture of r- and s -process Xe to reach solar-like isotopic ratios for ^124–128Xe isotopes. The combination of p-process and r-process Xe for comet-Xe and solar-Xe (and by extension chondritic-Xe) has to be different in order to preserve the depletion in ¹³⁴Xe and ¹³⁶Xe, the principal feature of U-Xe, the progenitor of atmospheric Xe. These variations of the contribution of p-process Xe to solar system reservoirs create non mass-dependent variations of Xe isotope ratios and may explain how the study of light Xe isotopes allowed to determine that Xe in the Earth's mantle has a chondritic origin (e.g., Péron & Moreira 2018).

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Recent studies show that CC-like material from the outer solar system is enriched in neutron-rich (heavy) isotopes of Cr, Ni, Mo, etc. These studies point toward an enrichment of r-process nuclides for material in the outer solar system. This seems to conflict with cometary Xe being depleted in r-process isotopes. However, the processes responsible for the preservation of nucleosynthetic anomalies in phases containing noble gases and those carrying more refractory elements are likely different. Cometary xenon likely resides in condensed phases of volatile elements (ices or clathrates; Altwegg et al. 2015) while the isotopic composition for more refractory elements in meteorites could be controlled by the preservation of different populations of presolar grains (Trinquier et al. 2009). Furthermore, results on Xe for 67P/Churyumov–Gerasimenko only concerns xenon emitted by gas emanations from the comet. The isotopic composition of xenon in the "rocky" part remains unknown and could show a complementary isotopic pattern similar to results obtained by Ballad et al. (1979), for example.

Xenon is not the only element on Earth to show nucleosynthetic departures from the base solar composition or from cosmochemical end-members sampled by chondrites. For example, the silicate Earth shows enrichments in p-process (Andreasen & Sharma 2006) and s-process (Burkhardt et al. 2016) neodymium relative to chondrites. Terrestrial calcium (Dauphas et al. 2014), Ti (Trinquier et al. 2009), Mo (Burkhardt et al. 2011; Budde et al. 2019) etc., are also showing nucleosynthetic departures relative to chondritic meteorites. Altogether, these results have been used to suggest the persistence of heterogeneities in the solar nebula (Andreasen & Sharma 2006) and the existence of an isotopic reservoir in the inner solar system sampled by the Earth–Moon couple but also by the enstatite chondrites (Dauphas et al. 2014; Dauphas 2017). Recent results obtained on material emitted by 67P/Churyumov–Gerasimenko helped to understand which type of material accreted outside the orbits of the giant planets (Hoppe et al. 2018). However, the nucleosynthetic inventory of the outer solar system remains to be conducted and compared with recent models linking nucleosynthetic anomalies and the formation of the protoplanetary disk (Jacquet et al. 2019). A recent study revealed that a carbon-rich clast found in the CR2 chondrite LaPaz Icefield 02342 is derived from cometary material (Nittler et al. 2019). If more analog samples were found in the future, precise measurements of the concentration and isotopic composition of noble gases in such material with state-of-the-art techniques would complete our understanding of the distribution of volatile elements in the solar system.

The precursor of atmospheric Xe presents selective depletions in ¹³⁴Xe and ¹³⁶Xe (Pepin 1991) suggesting a contribution from a cosmochemical source different from solar gas or meteorites and depleted in r-process Xe isotopes. Measurements of Xe in the coma of comet 67P/C-G identified such a depletion (Marty et al. 2017). Propagation of the data obtained on 67P/C-G toward light Xe isotopes using correlation planes derived in a previous study (Gilmour & Turner 2007) leads to a starting composition for the Earth's atmosphere different from U-Xe. Incorporation of a pure p-process end-member is required to obtain solar-like isotopic ratios for ^124–128Xe. Unfortunately, this p-process end-member remains elusive and further studies are required to define which type of nucleosynthesis event contributed p-process isotopes to the solar system.

Xenon in the solar system shows large-scale variations of r-process and p-process nuclides, which implies either that only the inner solar system was contaminated by r-process xenon, maybe by a single event (Bartos & Marka 2019), or a differential survival of nucleosynthetic carriers. A comet sample return mission, even without long-term storage at cryogenic temperatures, or the finding of relatively pure cometary material in meteorite collection would allow precise measurements of the rarest p-only and p/s-process Xe isotopes in cometary ice and grains of comets. This would help to draw the map of nucleosynthetic heterogeneities in the solar system and understand how presolar material was distributed at the time of solar system formation and during its subsequent evolution.

Members of the CAGE team (Cosmochimie, astrophysique et géophysique expérimentale) at IPGP are thanked for insightful discussions. G.A. acknowledges funding from the Région Ile-de-France through the DIM-ACAV+ program. J.D.G. acknowledges funding from the Science and Technology Facilities Council (STFC) grant No. ST/R000751/1. This study contributes to the IdEx Université de Paris ANR-18-IDEX-0001. This is IPGP contribution #4092.
