Oxygen Contribution on Li-Ion Intercalation-Deintercalation in LiAl_y Co_1 − y  O ₂ Investigated by O K-Edge and Co L-Edge X-Ray Absorption Spectroscopy

film was prepared by the ESD method. The working principles of ESD have been described in the literature.^{13 14} The stoichiometric amount of lithium nitrate, aluminum nitrate, and cobalt nitrate with a cationic ratio of was dissolved in absolute ethanol and mixed to obtain a homogeneous precursor solution. A high voltage between the nozzle and Pt foil substrate makes the precursor solution atomized at the orifice of the nozzle, generating a fine aerosol spray. The temperature of the substrate was kept at 300°C during the deposition. The precursor solution was pumped at 2 mL/h rate for 1 h through a nozzle placed above the substrate. The precursor was deposited on the Pt substrate and annealed at 800°C in air for 30 min. The homogeneous uniphase of the film was identified with X-ray diffraction (XRD) analysis. In order to minimize interference from the diffraction peaks of the Pt substrate, a grazing angle scan was made in which the angle of the incident radiation with respect to the plane of the substrate was fixed at 5°.

The Li-ion electrochemical deintercalation-reintercalation process was performed as follows. A three-electrode electrochemical cell was employed for electrochemical measurements in which lithium foil was used for both reference and counter electrodes. The electrolyte was used with 1 M in propylene carbonate (PC) solution. All the electrochemical experiments were carried out at room temperature in a glove box filled with purified argon gas. For XAS experiments, the cells were first charged to a desired value of deintercalated Li-ion content ( value) at a C/5 rate and then relaxed for a day. The electrochemical cells were disassembled in an argon-filled glove box, and the electrodes were taken out from the cell. These electrodes were then washed with tetrahydrofuran (THF) and dried thoroughly in a vacuum. All XAS experiments were carried out in an inert atmosphere, except during the insertion in the experimental XAS chamber, where the samples are exposed to air (less than 1 min).

The soft XAS measurements of the were performed on the U7 beamline in a storage ring of 2.5 GeV with a ring current of 120-160 mA at Pohang Light Source (PLS), which is a third-generation synchrotron radiation source.¹⁵ The U7 beamline, which consists of 4.3 m long, 7 cm period undulator, and the variable-included angle plane-grating monochromator, provides highly brilliant and monochromatic linear-polarized soft X-ray for the high-resolution spectroscopy.¹⁶ The O K-edge and Co -edge XAS data were taken in a total electron yield mode, recording the sample current. The measurements are surface sensitive since the mean probing depth of this method is approximately 50 Å.¹⁷

The experimental spectra were normalized by a reference signal from Au mesh with 90% transmission. The energy calibrations for O K-edge and Co -edge were made using the L-edge data of pure V and Co metal foils, respectively. According to the measured photon absorption spectra specified as the inner shell electron excitation for the Ar, and Ne gases, the energy-resolving power in the entire measurement range was greater than 3000. The base pressure of the experiment chamber was in the range.

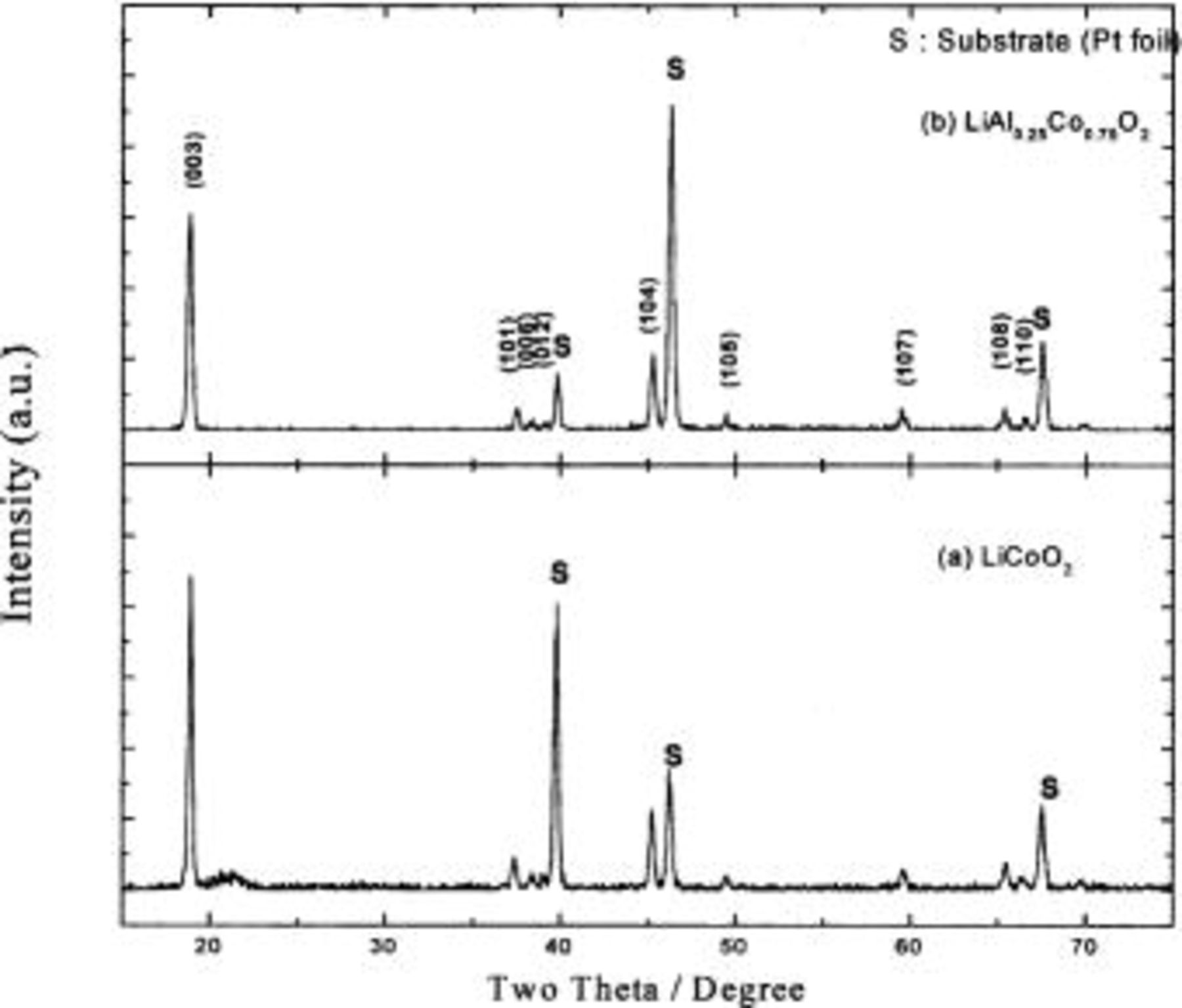

The film was successfully deposited on Pt foil by ESD. Figure 1 shows XRD patterns of the film annealed at 800°C for 0 and (b) 0.25. As can be seen in Fig. 1, all diffraction peaks can be indexed using the hexagonal axes option for the rhombohedral space group. The diffraction lines at the (006)/(012) and (108)/(110) couples for film annealed at 800°C show good splitting patterns, indicating that this sample has a well-developed, layered structure.¹⁸ The oxygen octahedra of the central Co atom are edge-shared within the octahedral layer and the Li atoms are placed in the lattice channel between interlayer planes. As in the case of the XRD pattern of shows that it has the same structure. The separations of the (006)/(012) and the (108)/(110) couples of diffraction lines of are wider than those of The further characterizations of this film electrode have been described in our previous work.^{19 20}

Zoom In Zoom Out Reset image size

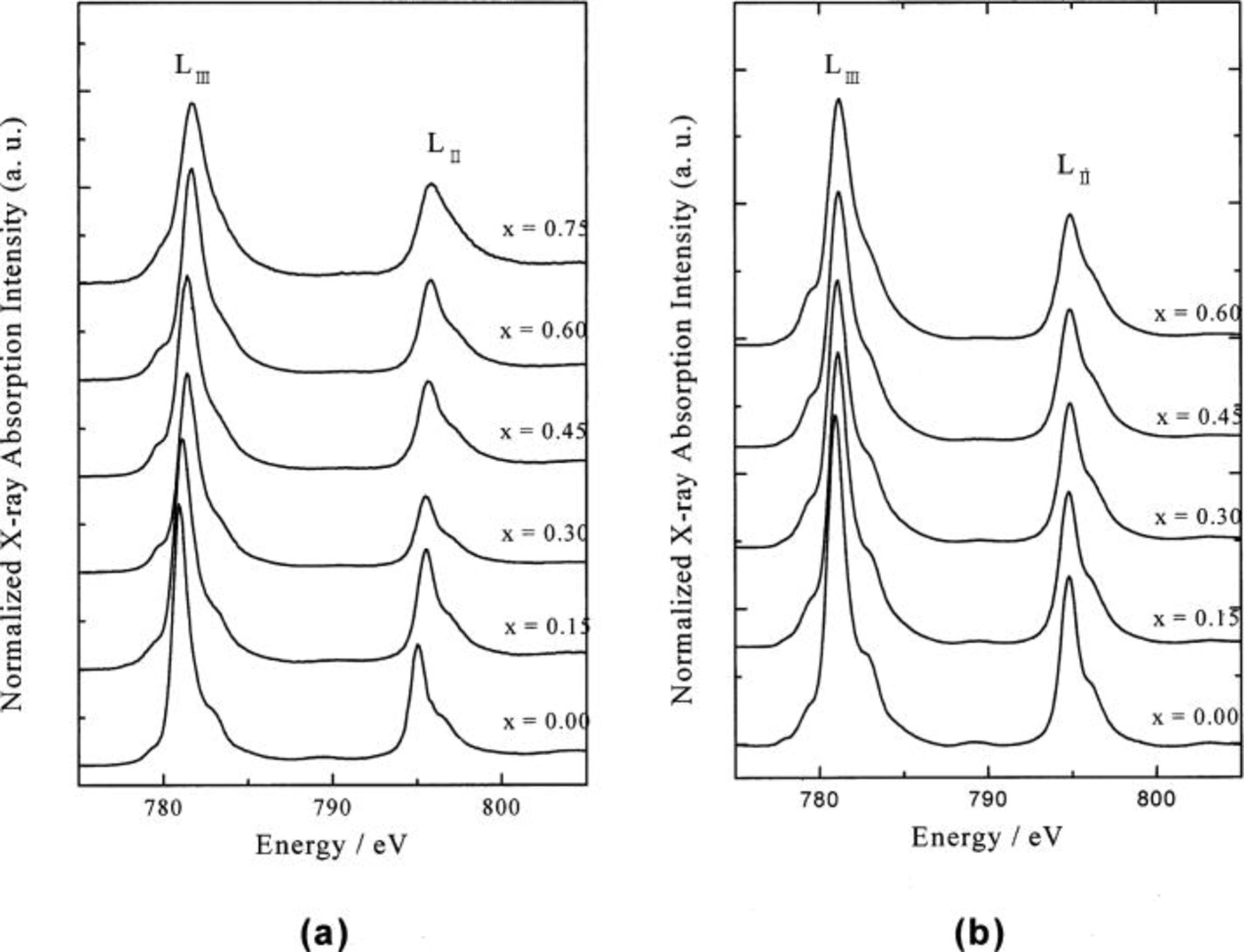

The electronic structures of Co ion in the system can be investigated qualitatively with peak features in the present soft XAS study because the peak shapes and chemical shifts are very sensitive to the oxidation state, spin state, and bond covalency. Figure 2 shows the Co -edge XAS spectra of and system with respect to the value. Respectively, the and edges corresponded to transitions from the Co and core electrons, split by the spin-orbit interaction of the Co 2p core level, to an unoccupied 3d level highly hybridized with oxygen 2p orbital. For the state in the the corresponding electronic final states represent Co where the represents the hole of Co 2p core level.

Zoom In Zoom Out Reset image size

The Co -edge XAS of film is very similar to that of bulk compound reported earlier.¹¹ This means that the film has been successfully prepared on the Pt substrate with the ESD method and the ion is present with only low-spin configuration. The Co -edge of shows main peaks at and and a weak shoulder peak at and respectively, due to Co 2p-3d electrostatic interaction and the crystal field effect of octahedral symmetry. As shown in Fig. 2, there is no substantial difference between the Co -edge XAS spectra of system during charging compared to that of However, the Co -edge XAS of for the electrochemical deintercalation have been changed effectively with the value, even though it could be said that the changes are not appreciable. The peaks are broader and shifted toward the higher energy region with increasing Li-ion deintercalation.

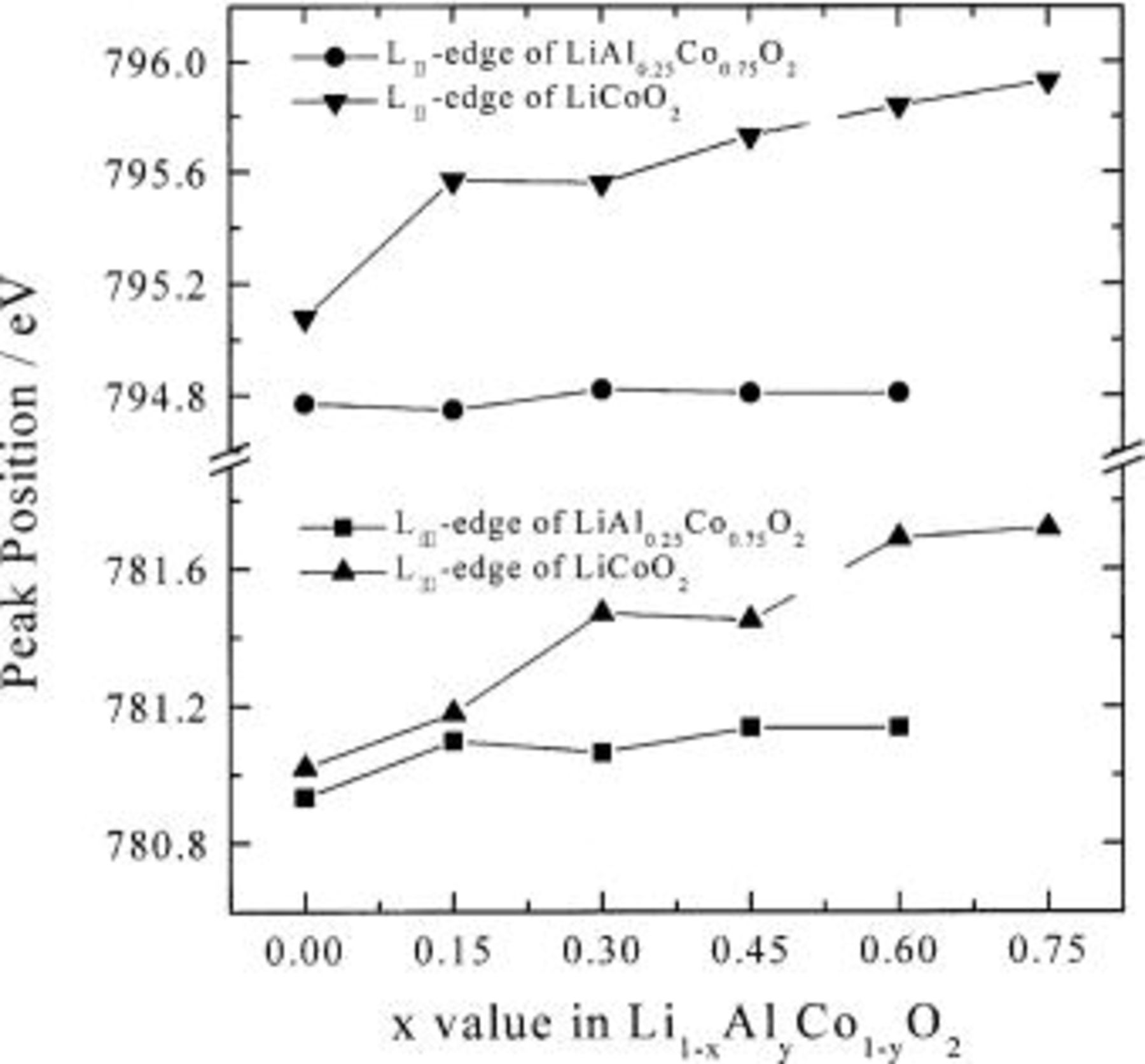

The relationship between the peak position and the deintercalated Li-ion content is depicted in Fig. 3. First, the peak position is proportional to the value in The peak shift toward the higher energy region shows directly the partial evolution of ion with electrochemical deintercalation. It is reasonable that the higher absorption energy is necessary for Co ion under the higher oxidative environment in order to excite the 2p core electron, which is strongly bound to less screened nucleus. Actually, the electrochemical deintercalation leads to the existence of central atoms with different chemical bonding characters of and bonds. In contrast, the Co -edge peak position of is hardly changed during the electrochemical deintercalation. Considering the energy resolution the trivalent low-spin state in remains mostly unaffected by Li deintercalation. As shown in Fig. 3, the substitution of Al for Co ions in reduces cobalt atom contribution on the charge compensation process during charging. This is confirmed by the following O K-edge XAS results.

Zoom In Zoom Out Reset image size

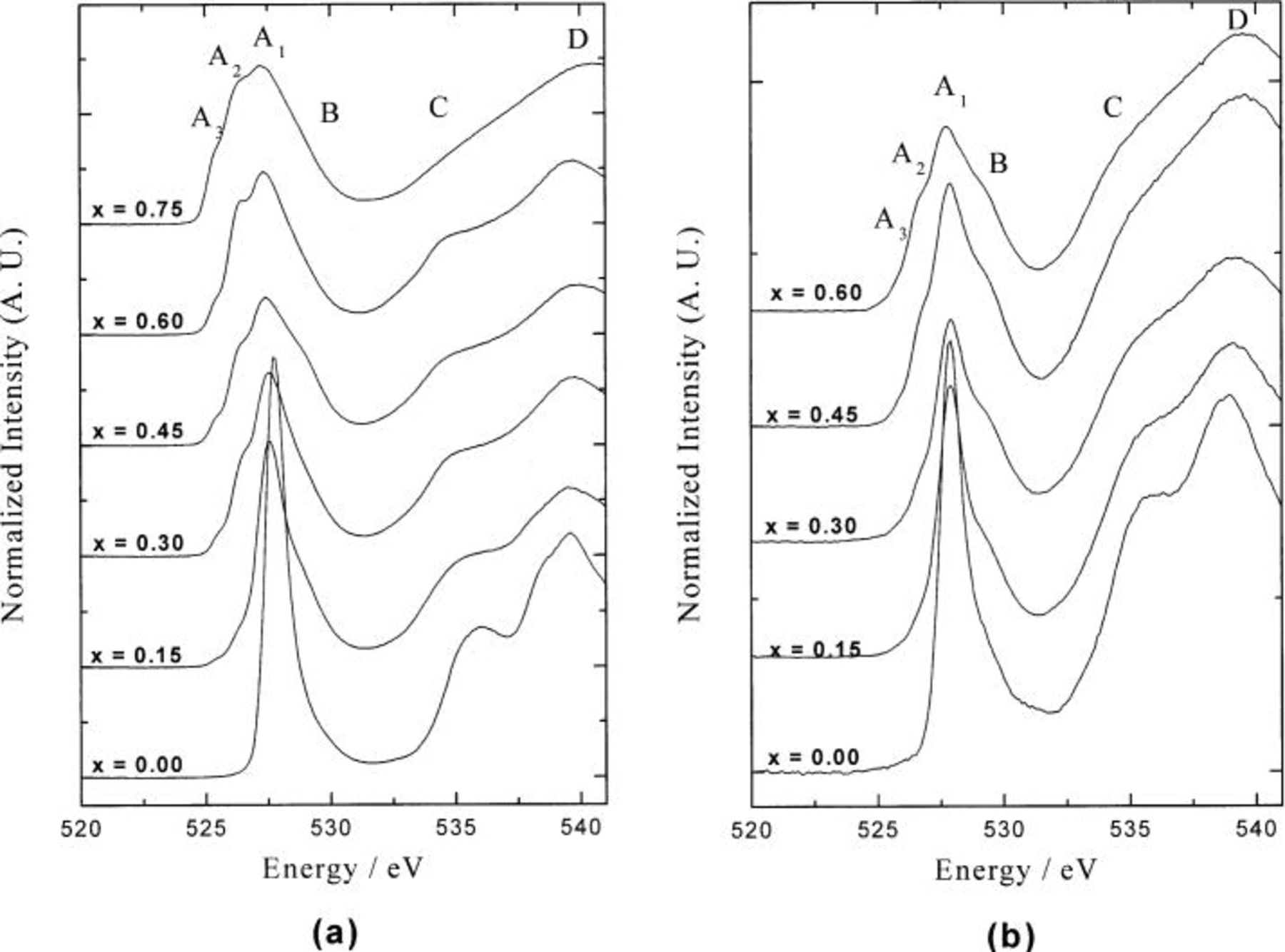

Figure 4 shows the O K-edge XAS of an electrochemically deintercalated Li-ion system. The spectrum of pristine presents a symmetric and intense absorption peak ( peak) at and the broad, higher energy peaks (C and D peaks) above 536 eV. The first intense peak corresponds to the transition of oxygen 1s electron to the hybridized state of Co 3d and oxygen 2p orbitals, whereas the broad higher peaks correspond to the transitions to hybridized states of oxygen 2p and Co 4sp orbitals. In this case, the peak corresponds to the transition to an unoccupied molecular level, including Co -oxygen 2p character, since the oxygen 2p orbital is highly hybridized with 3d orbital of ion with low spin electronic configuration under octahedral symmetry. Although the oxygen 3d transition is forbidden by the electric-dipole approximation, the appearance of the absorption peak is due to the hybridization of Co 3d and oxygen 2p orbitals. The peak corresponds to a final state of O electronic configuration, where is oxygen 1s core hole.

Zoom In Zoom Out Reset image size

As a similar spectroscopic study with oxygen K-edge absorption, some research groups have built up the spectroscopic background of ligand K-edge absorption, applying sulfur and chlorine K-edge XAS to various inorganic materials.^{21 22 23 24 25} They have investigated the relationship between the pre-edge feature and the local structures such as ligand charge state and ligand-metal bond covalency. The ligand K-edge XAS gives important structural information that cannot be obtained from the metal K-edge XAS. The spectral changes of the O K-edge XAS are relatively more dramatic than those of the Co -edge XAS with respect to the value, and these changes indicate that the charge compensation for the electron exchange in the Li-ion deintercalation process can be achieved more in oxygen site than Co metal atomic site. The spectroscopic features give important information in which the Li-ion deintercalation has much larger influence on the electronic structure of oxygen ion rather than that of Co ion. As the degree of electrochemical deintercalation increases (the value increases), the peak intensity decreases gradually and an additional broad peak B evolves as a shoulder peak in the higher region of A chemical shift in the ligand 1s core energy is related to the effective charge on the ligand. The greater the effective nuclear charge of the ligand, the more oxidative the ligand site shifts the ligand pre-edge peak position to the higher energy region, since the higher absorption energy is necessary for the more oxidized oxygen ion in order to excite the oxygen 1s core electron, which is strongly bound to less screened nucleus. Therefore, the shoulder absorption peak in the higher energy region than the threshold energy can be assigned to the higher oxidation of the oxygen site on Li deintercalation, which indicates that the charge compensation for the electron exchange in the Li-ion deintercalation process could be achieved in the oxygen site. In the case of the increase of B peak intensity with increasing is much larger than that of which shows that the oxygen site in Al-doped shows a larger contribution to the charge compensation process during charging compared to According to the previous first-principles calculations of Ceder et al. , the substitution of nontransition metal ion like for ion induces more increased oxygen participation in the electron exchange, which leads to higher open-circuit voltage above Our experimental XAS results are in good agreement with their theoretical work.

Li-ion deintercalation also gives rise to the gradual formation of two additional well-resolved absorption peaks in the lower energy region than the threshold energy. The peak intensities increase systematically with Li-ion deintercalation. Based on the earlier reports of the ligand K-edge absorption,^{21 22 23 24 25} the ligand pre-edge peak position shifts to the lower energy region due to both the local structural distortion and the increased effective nuclear charge of metal ion. The peak intensity decreases with value, while the relative intensities of the and peaks increase. The variation of the peak intensity with the electrochemical deintercalation can give important structural information about the hole state distribution and the effective charge on the oxygen atom, since the density of empty bound state in molecular energy level is related to the hybridization of Co 3d-O 2p orbitals. When the electronic structure of ion is the oxygen 1s core electron can be excited to new unoccupied molecular orbitals of one and four states hybridized with oxygen 2p orbitals. Therefore, we can say that the and peaks represent the final states of O and O electronic configurations, respectively. This is consistent with O K-edge results of a mixed valence system by Warda et al.⁸

As shown in Fig. 4, the change of and peak intensity in with increasing is smaller than that of this indicates that the Co site in shows much smaller contribution to the charge compensation process during charging than in the case of The results of Co L-edge and O K-edge analysis for the electrochemically Li-ion deintercalated system indicate that the substitution of Al for Co ions in induces increased oxygen participation in the charge compensation process during charging.

The film has been successfully deposited on Pt foil by ESD. The electronic structure for the electrochemically Li-ion deintercalated film has been investigated intensively with soft XAS at O K-edge and Co -edge. The results of Co L-edge XAS spectra during charging for and show that Al doping reduces cobalt participation in the charge compensation process during charging. The spectral changes of the O K-edge XAS for during charging are relatively more dramatic than those of the Co -edge XAS, and this indicates that the charge compensation for the electron exchange in the Li-ion deintercalation process can be achieved more in oxygen sites than Co metal atomic sites. From the comparison of the spectral changes of the Co L-edge and O K-edge XAS between and during charging, it becomes clear that the substitution of Al for Co ions in induces increased oxygen participation in the charge compensation process during charging.
