Single-step, acid-based fabrication of homogeneous gelatin-polycaprolactone fibrillar scaffolds intended for skin tissue engineering

Blends of natural and synthetic polymers have gained increasing importance as biomaterials because they combine the properties of their constituents to result in materials with improved characteristics. Thus, hybrid blended scaffolds, composed of natural and synthetic polymers in different composition ratios, have been actively explored for different tissue engineering applications, such as skin, bone, cartilage, nerves or vessels [1–4]. For skin tissue engineering, flexible scaffolds resembling the morphology and functionality of the extracellular matrix (ECM) constitute interesting materials that can provide support for cell adhesion, proliferation and differentiation, as well as wound cover [5–8]. Hence, research has been focused on the development of mechanically-appropriate, natural-synthetic polymeric systems and fibrillar membranes capable of supporting and promoting fibroblasts (FB) adhesion and proliferation [9–15]. Polycaprolactone (PCL) is a biocompatible, biodegradable, synthetic polymer approved by the US Food and Drug Administration for different medical applications [16]. It has adequate structural and mechanical stability for soft-tissue engineering applications; however, its hydrophobic character limits its ability to promote cell adhesion and proliferation [17, 18]. On the other hand, gelatin (Gel) is a natural polymer derived from the partial hydrolysis of collagen, the major component of the ECM [19], that offers attractive biological advantages having the amino and carboxyl functional groups of collagen but displaying lower immunogenicity and antigenicity [20–22]. Nevertheless, Gel rapid dissolution and weak mechanical stability in physiological conditions restricts its use for tissue engineering applications [18, 23, 24]. One way to overcome the respective disadvantages of Gel and PCL is the use of Gel-PCL blends to develop biologically favorable and mechanically stable scaffolds for tissue engineering [10, 11, 22, 25, 26].

Low miscibility or immiscibility of natural and synthetic polymers usually limits the development of homogeneous blends of natural-synthetic polymers [27–31]. The hydrophobic character of synthetic polymers such as PCL, polyacrylamide or poly(butylene succinate) normally induces hydrophilic natural polymers agglomeration during blending, resulting in phase-separated solutions [27, 28]. Phase separation is a manufacturing restriction for the fabrication of scaffolds by electrospinning, which is a technique commonly used in tissue engineering due to its ability to produce fibrillar mats that resemble the ECM morphology. Poorly blend solutions result in non-homogeneous electrospun fibers with a significant number of beads and discontinuities [26, 28, 32] that negatively impact the mechanical properties of the scaffolds [9, 23] and their ability to promote cell adhesion and proliferation, e.g. for human keratinocytes and fibroblasts [22, 33]. Phase separation of natural-synthetic polymers blends is concentration dependent and normally worsens as the natural:synthetic polymers ratio increases, in contrast with the biologically favorable properties normally improving as this ratio increases [34, 35]. Therefore, it is necessary to overcome phase separation to produce homogeneous, natural-synthetic polymers scaffolds by electrospinning with adequate properties for skin tissue engineering applications.

Different solvents, such as dichloromethane, trifluoroethanol (TFE), chloroform, methanol or hexafluoro-2-propanol (HFP), have been used to improve the miscibility of Gel-PCL blends [11, 32, 36–38]. In most reports, Gel-PCL solutions are produced in a three-step process where two independent solutions (for PCL and for Gel) are prepared and then mixed just before electrospinning. Commonly, at least two different solvents or mixtures of solvents are used to prepare the PCL and Gel solutions; nevertheless, HFP or TFE can be used as a common-solvent to obtain both solutions [38, 39]. For most traditional solvents or solvent mixtures used for Gel-PCL electrospinning blends, for example, chloroform/methanol-PCL and acetic acid-Gel solutions systems, critical phase separation occurs at Gel concentration ≥20–30 wt% (relative to total polymer weight) with severe phase separation at ≈50 wt% Gel [32]. On the other hand, fibroblasts adhesion and proliferation has been reported to significantly improve on PCL-Gel electrospun scaffolds with 30 wt% Gel or higher [10, 22, 40]. Recently, it was reported the incorporation of acetic acid (AcAc) as a dopant (0.2–0.3%) to TFE solutions of PCL and of Gel to facilitate PCL-Gel miscibility, resulting in more homogeneous electrospun Gel-PCL scaffolds for up to 50 wt% Gel [28]. It was hypothesized that solution shift to pH = 4.7 (away from Gel isoelectric point, pH ≈ 5.0) caused by AcAc addition resulted in mutually exclusive positively charged Gel molecules with stretched chain configuration that facilitated penetration into PCL chains, improving the Gel-PCL miscibility [28].

Aqueous AcAc solutions can easily solubilize Gel due to its polar nature; in fact, Gel solutions in aqueous AcAc can be successfully electrospun into homogeneous Gel fibrillar scaffolds [18, 21]. Lately, it has been shown by our group and other research groups that glacial AcAc solutions of PCL also present adequate properties for electrospinning, producing homogeneous fibrillar scaffolds [18, 41, 42]. Thus, it can be expected that Gel-PCL homogeneous blends with Gel concentration ≥30 wt% and appropriate electrospinning properties can be obtained in a straightforward single-step process by using AcAc as a sole solvent to dissolve PCL and Gel at once in a single solution. One advantage of this approach is that AcAc is a 'green' solvent less toxic than other solvents, such as TFE or HFP commonly used for Gel-PCL electrospinning solutions [43]. Furthermore, it is expected that the high acidity of AcAc (pH ≈ 2.4) used as a sole solvent can further protonate the amino groups of Gel molecules, in comparison to AcAc as a dopant with other solvents, further stretching the Gel chains and facilitating their interpenetration into the PCL chains to form miscible Gel-PCL blends. Another benefit of this AcAc sole solvent, single-step approach is the ease of preparation beacuse a single PCL-Gel-solvent mixing step is needed to obtain appropriate electrospinning solutions with high Gel concentration.

To the best of our knowledge, this is the first report using this AcAc sole solvent, single-step approach to obtain Gel-PCL blends suitable for electrospinning of homogeneous Gel-PCL scaffolds with Gel concentration ≥30 wt%. In the present work, homogeneous Gel-PCL fibrillar scaffolds with 30 and 45 wt% Gel were successfully electrospun using AcAc as a common single solvent for the Gel-PCL electrospinning solutions. The structural, chemical, thermal and mechanical properties of the scaffolds were evaluated, and their biological response was assessed in vitro using human FB as a model to evaluate their suitability for skin tissue engineering applications. Cell viability, metabolic activity and protein expression of tropoelastin and collagen Type I were studied.

2.1. Materials

2.2. Preparation of fibrillar scaffolds

2.3. Physical–chemical characterization of the scaffolds

2.3.1. Morphology

To characterize the overall macro and microscopical morphology and structure of the as-synthesized scaffolds, macroscopic photographs and light optical microscope photographs (micrographs; Axio Imager Z2, Carl Zeiss) of the scaffolds were acquired. Macroscopic photographs were acquired from the same scaffolds samples (obtained from the central area of the electrospinning collector) as used for all experiments and measurements in the present study; however, micrographs were acquired from thinner scaffolds samples obtained from the edge areas of the electrospinning collector to allow light transmission through the scaffolds and appropriate micrographs acquisition. The thickness of 6 different samples for each different membrane was measured with a digital micrometer (Mitutoyo 293-140 QuantuMike). To characterize the precise scaffolds micro-morphology, samples were sputtered coated with carbon and observed with a JEOL-7600 scanning electron microscope (SEM) using an accelerating voltage of 10.0 kV. Fiber diameter distribution was calculated by measuring (AxioVision software; Carl Zeiss Microscopy GmbH) the diameter of 80 fibers in total, proportionally selected from two different SEM micrographs acquired from the air and the collector sides of the scaffolds. Measurements from both scaffolds' sides micrographs were averaged as one group of measurements per scaffold. Average fiber diameter ± standard deviation (SD) is reported.

2.3.2. IR spectroscopy

Chemical functional groups were analyzed by infrared spectroscopy. FTIR spectra were acquired by means of an infrared spectrometer (Nicolet 880 FTIR) with attenuated total reflection module at 4 cm⁻¹ resolution and 32 scans in a wavenumber range of 4000–400 cm⁻¹. Spectra of pristine Gel and PCL were acquired as reference for the assignment of the IR bands in the spectra of the as-electrospun o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds. FTIR spectra of the scaffold samples, as used for the in vitro cells assays (i.e. scaffolds rinsed in water and ethanol, and left 48 h to dry at RT before UV-sterilization) were acquired before and after UV-sterilization to identify the possible UV-sterilization effects on the scaffolds components.

2.3.3. Wettability and water contact angle

Scaffolds hydrophilic/hydrophobic character was determined from water contact angle (WCA) measurements performed in a video-enabled goniometer (OCA 15EC; Dataphysics) via the static sessile drop method using 4 μl double distilled water drops at RT. WCA were measured on dry and hydrated (in deionized water to their water uptake plateau; supplementary figure S1 is available online at stacks.iop.org/BMM/15/035001/mmedia) scaffolds samples to assess (a) their wettability over time and (b) their stable WCA values discarding the influence of the water absorption effect, respectively. WCA were automatically calculated (156 frames/s) using the SCA20_U^® software over the whole time period of video recording; that is ≈5 s (until disappearing of water drop round shape on Gel-PCL blends scaffolds) or ≈10 s (until a stable WCA plateau was observed) for the dry and hydrated samples, respectively. WCA reported values represent the mean ± SD of three independent measurements for each different scaffold at different time points for dry samples or at the stable plateau for hydrated samples.

2.3.4. Crystallinity

XRD patterns of the scaffolds were acquired to characterize their crystalline or amorphous nature, which can be seen as an indication of the miscibility of the components in the Gel-PCL composite scaffolds. XRD patterns were acquired in a PANalytical X'Celerator diffractometer using CuKα radiation (λ = 1.54 Å; 40 mA, 40 kV) in Brag-Brettano configuration with 2θ = 10°–50°, step size of 0.05° and time/step of 20 s.

2.3.5. Mechanical properties

Mechanical properties of the scaffolds were characterized using a mechanical uniaxial test equipment (AGS-X; Shimadzu) with 100 N load cell under cross-head speed of 1 mm min⁻¹ at ambient conditions (≈20 °C and 48% of relative humidity). Four specimens conforming the ASTM D1708-06a test specimen size (probes with free rectangular gauge length = 25 mm and width = 5 mm) for each different scaffold were hydrated in deionized water to their water uptake plateau (supplementary figure S1) and analyzed. Four dry specimens conforming the ASTM D1708-06a test specimen size for each different scaffold were also analyzed for comparison purposes. Samples thickness was measured with a digital micrometer (Mitutoyo 293-140 QuantuMike) in three different points of the gauge length. The stress-strain curves from raw load-displacement data were obtained and the elastic modulus (E), tensile strength (σ) and elongation at break (ε) were determined from the stress-strain curves and are reported as the average results ± SD.

2.3.6. Thermal properties

Scaffolds thermal properties were investigated by means of TGA and DSC. TGA measurements were performed using a TGA2950 (TA Instruments) thermogravimetric analyzer with heating rate of 10 °C min⁻¹ from room temperature to 700 °C under nitrogen atmosphere. DSC measurements were acquired using a Q2000 DSC equipment (TA Instruments). Thermal scans were acquired over a temperature range of −90 °C to 150 °C at heating rate of 10 °C min⁻¹ in nitrogen atmosphere. Quench cooling was applied after first heating scan; then, a second heating scan was performed to erase the thermal history, and this was used to estimate the real thermal response of scaffolds. Scaffolds degree of crystallinity as percentage, χ_c, was calculated from the melting peak (T_m) observed on the DSC thermograms according to equation (1) [48]:

$$\begin{eqnarray}&&{\chi }_{{\rm{c}}}=\,\left(\displaystyle \frac{{\rm{\Delta }}{H}_{{\rm{m}}}}{{\rm{\Delta }}{H}_{{\rm{m}}}^{0}}\right)\times 100,\end{eqnarray} \tag{ 1 }$$

where ΔH_m is the scaffolds sample melting enthalpy (endothermic peak related to the melting of PCL crystals) and ΔH⁰_m is the reference melting enthalpy of 100% crystalline PCL; ΔH⁰_m = 142.0 J g⁻¹ [49, 50]. The observed T_m on DSC thermograms can be ascribed only to the PCL component (the only scaffold component that can develop a crystalline phase due to its semi-crystalline structure) since the Gel component is totally amorphous and has not a specific melting peak associated. Data extracted from TGA and DSC studies were analyzed using the universal Analysis^® software.

2.3.7. Gelatin release

Gelatin released from Gel-PCL scaffolds in aqueous solution was determined by the Biuret method [51]. The Biuret reagent was prepared by dissolving 0.25 g of CuSO₄·5H₂O and 1.12 g of KNaC₄H₄O₆·4H₂O in 66.6 ml of distilled water. Then, upon constant stirring, 7 g of NaOH dissolved in 66.6 ml of distilled water was incorporated to the solution. Finally, 34.6 ml of distilled water was added and the obtained stock Biuret solution was transferred to a light-protected bottle and stored at 4 °C. To establish the absorbance versus Gel concentration calibration curve, different standard solutions with Gel concentration of 0.2, 0.25, 0.5, 1.0, 1.5, 2.0, 2.5 and 5.0 mg ml⁻¹ were prepared from a stock Gel:PBS solution (10 mg ml⁻¹). Aliquots of 0.5 ml of each standard solution, and of PBS to determine blank absorbance, were mixed with 2.25 ml of Biuret reagent. After 15 min of reaction at RT, solution absorbance was measured at 560 nm in a UV–vis spectrophotometer (Cary 1E Varian). To determine the amount of Gel released from Gel-PCL scaffolds, samples (20 ± 0.94 g) of each scaffold were independently immersed in 2 ml of PBS and incubated at 37 °C in an orbital shaking incubator (mrclab TU400) at 80 rpm. After 1 day and then every three days up to 7 d, incubation medium was replaced for fresh medium, following the same medium change time schedule for the cellular tests of the scaffolds. 0.5 ml aliquots of the immersion supernatants, collected at every medium change time-point, were mixed with 2.25 ml of stock Biuret solution, absorbance was read at 560 nm and Gel concentration in supernatants was obtained using the calibration curve. Finally, total amount of Gel released was calculated for each sample. Experiments were independently performed by triplicate. Results are presented as the average of Gel released from the scaffolds in percentage relative to theoretical (according to PCL:Gel ratio in electrospinning solution and scaffold samples weight) total Gel content in as-electrospun scaffolds.

2.3.8. Degradation

To evaluate scaffolds degradation, dry scaffolds samples (1.5 cm in diameter) were weighed (W₀) and incubated in 1 ml of PBS at 37 °C and 80 rpm; PBS was changed every day. At 1, 2, 3, 4, 5, 6, 7 and 17 days of incubation, samples were rinsed with distilled water, dried at 37 °C for 24 h and weighed (W₁). Evaluations from 1 to 7 d were set to properly asses the first fast but short degradation period expected for the composite scaffolds (mainly due to Gel loss). After that, a longer evaluation time point (17 d) was set to corroborate the slow degradation process expected to occur (due to PCL hydrolytic degradation) after the first fast degradation stage of the composite scaffolds. Weight loss (W_loss) in percentage was calculated at each testing time using equation (2):

$$\begin{eqnarray}&&{W}_{{\rm{l}}{\rm{o}}{\rm{s}}{\rm{s}}}( \% )=\,\left(\displaystyle \frac{{W}_{0}-{W}_{1}}{{W}_{0}}\right)\times 100.\end{eqnarray} \tag{ 2 }$$

2.4. In vitro biological characterization of scaffolds

2.5. Statistical analysis

3.1. Conductivity and viscosity of electrospinning solutions

3.2. Physical–chemical properties of fibrillar scaffolds

The overall macroscopic and optical microscopic aspect of the as-synthesized membranes is shown in figure 1, from where it can be observed that the obtained scaffolds were flexible, resistant to the manipulation and characterized by a homogeneous fibrillar morphology. The average thickness of the scaffolds synthesized was 0.49 ± 0.04, 0.57 ± 0.04 and 0.81 ± 0.09 mm for o-PCL, 30Gel/PCL and 45Gel/PCL, respectively.

Zoom In Zoom Out Reset image size

Representative SEM micrographs of o-PCL, 30Gel/PCL and 45Gel/PCL electrospun scaffolds are shown in figures 2(a)–(c) along with the histograms of the scaffold's fibers diameter in figures 2(d)–(f). Scaffolds exhibited fibrillar structures with randomly oriented fibers that were almost free of beads or defects. o-PCL scaffolds presented an average fiber diameter of 2.152 μm (figures 2(d)). Addition of Gel to PCL electrospinning solutions resulted in narrower fibers. Average fiber diameter for 30Gel/PCL and 45Gel/PCL scaffolds was 0.755 and 0.708 μm, respectively (figures 2(e) and (f)). Fibers diameter histograms showed narrower SDs for 30Gel/PCL (SD = 0.254 μm) and 45Gel/PCL (SD = 0.181 μm) than for o-PCL (SD = 0.756 μm). Average fiber diameter differences between o-PCL and either 30Gel/PCL or 45Gel/PCL were statistically significant at p < 0.05. However, differences between average fiber diameter of 30Gel/PCL and 45Gel/PCL were not statistically significant.

Zoom In Zoom Out Reset image size

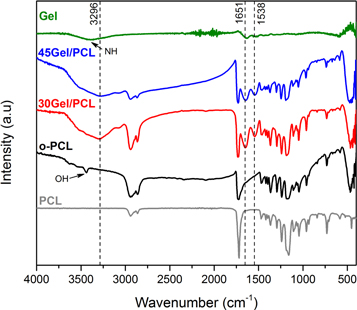

FTIR spectra of pristine Gel, pristine PCL and as-electrospun o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds are shown in figure 3. The FTIR spectra of 30Gel/PCL and 45Gel/PCL showed IR bands at wavenumbers below 3000 cm⁻¹ that were confidently assigned to either the PCL or Gel scaffolds' components [28, 32, 53, 54] as indicated in table 2. Nevertheless, the as-electrospun o-PCL scaffolds showed a new band at 3480 cm⁻¹ in comparison to pristine PCL, this band can be assigned to O–H stretching [28, 53, 54]. On the other hand, the characteristic band of pristine Gel at 3296 cm⁻¹ (N–H stretching) was not clearly observed in the Gel-PCL scaffolds and instead, a broad band centered at ≈3296 cm⁻¹ was observed for the spectra of 30Gel/PCL and 45Gel/PCL. FTIR bands observed for pristine Gel, pristine PCL and o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds and their corresponding vibrational assignment are listed in table 2.

Zoom In Zoom Out Reset image size

Table 2.  FTIR bands observed for pristine Gel, pristine PCL and o-PCL, 30Gel/PCL and 45Gel/PCL electrospun scaffolds and their corresponding vibrational assignments.

	Wavenumber (cm−1)			Assignment
PCL	Gel	o-PCL	Gel/PCLa		Reference
		3488		O–H groups	[53]
	3438			N–H stretching amide bond	[28, 53]
			3296	overlapping of O–H and N–H stretching	[54]
2945		2945	2945	asymmetric CH2 stretching	[32, 53]
2859		2859	2859	symmetric CH2 stretching	[32, 53]
1731		1731	1731	C=O stretching	[32, 53]
	1651		1651	C=O stretching, amide I	[32, 53, 54]
	1538		1538	N–H bending, amide II	[32, 53, 54]
1294		1294	1294	C–C stretching	[32, 53]
1240		1240	1240	asymmetric C–O–C stretching	[32, 53]
1175		1175	1175	symmetric C–O–C stretching	[53]
1045		1045	1045	C–O stretching	[32]

^a30Gel/PCL and 45Gel/PCL scaffolds showed the same IR bands and thus, they are included within the same column as Gel/PCL scaffolds.

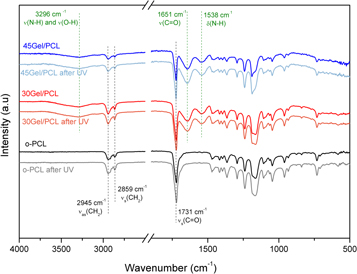

The scaffolds were washed, and UV-sterilized before their use in the in vitro cellular assays. Then, dry washed scaffolds samples were assessed by FTIR spectroscopy before and after the UV-sterilization process (figure 4) to assess the possible changes in the scaffolds chemical structure due to the UV-sterilization process; mainly the potential Gel crosslinking effects induced by the UV radiation. No evident shifts of the FTIR bands were observed before and after UV-sterilizations. Neither evident changes in the relative intensities or broadening of the IR bands in the spectra were observed. It is important to mention that in comparison with the as-electrospun scaffolds (figure 3) the OH-stretching band (3488 cm⁻¹) observed for the as-electrospun o-PCL scaffold was not observed in the washed and/or not UV-sterilized scaffolds.

Zoom In Zoom Out Reset image size

Results of WCA measurements on dry samples at 1, 3 and 5 s and on hydrated samples at 10 s after water droplet deposition on the scaffolds are shown in figures 5(a) and (b), respectively. Droplets remained with semi-spherical shapes on dry o-PCL after 5 s of water droplet contact with the surface, exhibiting a stable WCA ≈ 131°. In contrast, water droplets on dry 30Gel/PCL and 45Gel/PCL quickly wetted the surface after first contact, WCA on initially dry Gel-PCL scaffolds quickly decreased from 66° (30Gel/PCL) and 56° (45Gel/PCL), immediately after water droplet deposition, to 34° (30Gel/PCL) and 14° (45Gel/PCL) after 5 s of water droplet deposition on the surface. On the other hand, on initially hydrated samples, the average WCA at the stable plateau for o-PCL scaffolds was 126° exhibiting a hydrophobic surface, while the stable average WCA on initially hydrated 30Gel/PCL and 45Gel/PCL samples was 65.1° and 25.3°, respectively, exhibiting that Gel-PCL blend scaffolds possessed a hydrophilic surface.

Zoom In Zoom Out Reset image size

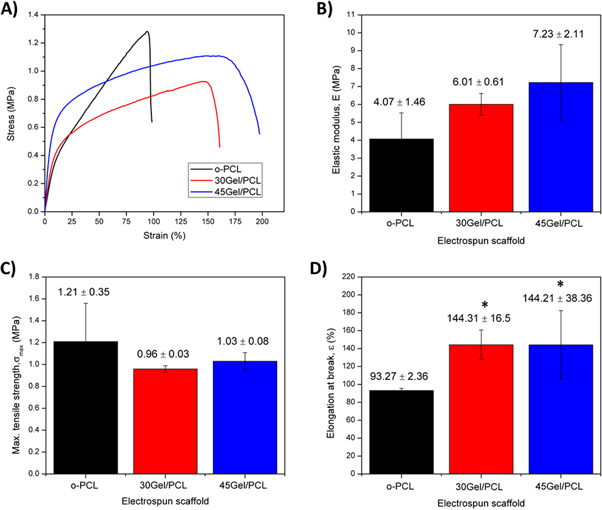

Figure 6 shows the tensile mechanical parameters of hydrated o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds; that is, their elastic modulus, E; maximum tensile strength, σ_max; and elongation at break, ε. Elastic modulus was 4.07 ± 1.46 MPa, 6.01 ± 0.61 MPa and 7.23 ± 2.11 MPa for o-PCL, 30Gel/PCL and 45Gel/PCL, respectively. Even when Gel addition to the scaffolds seemed to slightly increased the average elastic modulus of Gel/PCL scaffolds in comparison to o-PCL, the differences observed among the E values of the different scaffolds were not statistically significant (p < 0.05), and thus, the three different scaffolds studied in the present work, o-PCL, 30Gel/PCL and 45Gel/PCL, had similar elastic modulus in the hydrated state. The maximum tensile strength was also statistically comparable between the different scaffolds with o-PCL presenting a slightly higher maximum tensile strength in comparison to 30Gel/PCL and 45Gel/PCL but with no statistical significance for the differences observed; σ_max was 1.21 ± 0.35 MPa, 0.96 ± 0.03 MPa and 1.03 ± 0.08 MPa for o-PCL, 30Gel/PCL and 45Gel/PCL, respectively. On the other hand, the elongation at break of the scaffolds with Gel, 30Gel/PCL and 45Gel/PCL, was ≈51% higher than that of the o-PCL scaffolds with a statistical significance for the differences observed between the elongation at break of o-PCL and that of the Gel/PCL scaffolds; nevertheless, no significant differences in the elongation at break between the 30Gel/PCL and 45Gel/PCL scaffolds were observed (ε ≈ 144% for both scaffolds). Tensile properties of dry scaffolds samples (supplementary figure S2) evidenced a significant change (increase) only for the maximum elongation at break of dry o-PCL (E = 6.09 ± 3.10 MPa, σ_max = 2.27 ± 0.94 MPa and ε = 238.25 ± 59.12%) in comparison to hydrated o-PCL. However, 30Gel/PCL and 45Gel/PCL scaffolds showed a significant different mechanical behavior in the dry and hydrated states, with stiff and brittle characteristics in the dry state (supplementary figure 2; E = 12.66 and 49.56 MPa, σ_max = 1.46 and 0.66 MPa and ε = 62.67% and 1.53% for dry 30Gel/PCL and 45Gel/PCL, respectively) and plastic properties in the hydrated state (figure 6).

Zoom In Zoom Out Reset image size

XRD patterns of o-PCL, 30Gel/PCL and 45Gel/PCL are shown in figure 7. XRD patterns for o-PCL showed two strong diffraction peaks at 2θ = 21.11° and 23.99° corresponding to the (110) and (200) planes of the semi-crystalline PCL structure, in agreement with literature [55]. XRD patterns of 30Gel/PCL and 45Gel/PCL also showed the characteristic diffraction peaks of semi-crystalline PCL (figure 7) but with a smaller intensity. Intensity of peak at 2θ = 21.11° decreased 11.33% and 34.69%, respectively for 30Gel/PCL and 45Gel/PCL, in comparison to the corresponding peak for o-PCL (figure 7). No noteworthy diffraction peaks from Gel were observed for either 30Gel/PCL or 45Gel/PCL since Gel is fully amorphous.

Zoom In Zoom Out Reset image size

TGA curves of pristine Gel and o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds are shown in figure 8(a), whereas data are summarized in table 3. o-PCL showed a single weight loss step at a temperature of maximum weight loss rate (T_max) of 394 °C. Pristine Gel showed a first weight loss step at T_max of 67 °C that was attributed to water content, followed by a broad degradation step, where two weight loss peaks can be identified at T_max of 288 °C and 317 °C. Gel-PCL blended scaffolds (30Gel/PCL and 45Gel/PCL) also exhibited an initial weight loss due to water adsorbed mainly in the Gel component (35 °C and 32 °C) and weight loss peaks attributed to both components PCL (389 °C and 387 °C) and Gel (290 °C, 324 °C and 287 °C, 318 °C) with intensities that were correlated with the Gel:PCL ratio on the blend composition; that is, intensity of weight loss peaks attributed to PCL decreased as Gel:PCL ratio increased, while intensity weight loss peaks attributed to Gel increased as Gel:PCL ratio increased.

Zoom In Zoom Out Reset image size

Table 3.  Thermogravimetric characterization of pristine Gel and o-PCL, 30Gel/PCL and 45Gel/PCL electrospun scaffolds.

Material	Main region of thermal decomposition
	Temperature range (°C)	Weight loss (%)	Tmax (°C)a
Pristine Gel	193–495	75	67	288	317	—
o-PCL	299–463	97	—	—	—	394
30Gel/PCL	249–475	91	35	290	324	389
45Gel/PCL	238–473	95	32	287	318	387

^aT_max is the temperature of maximum weight loss rate for each degradation step.

Heating DSC scans of o-PCL, 30Gel/PCL and 45Gel/PCL are shown in figure 8(b) and thermal properties are summarized in table 4. A unique endothermal peak was detected in the heating scans for the three scaffolds; this peak was attributed to melting of the PCL component at a melting temperature (T_m) of about 55 °C. Scaffolds endothermic melting enthalpy (ΔΗ_m) decreased as their Gel concentration increased, indicating that scaffolds χ_c decreased with increasing Gel concentration. The presence of the amorphous Gel component in the Gel-PCL blends scaffolds may either simply 'dilute' the crystalline phase (due to the presence of the semi-crystalline PCL) or to some extent it could also inhibit the PCL crystallization. In order to answer this question, the melting enthalpy per gram of PCL present (according to the theoretical PCL-Gel composition of the scaffolds from Gel-PCL electrospinning solutions) in each blend scaffold (ΔΗ_m[PCL]) was calculated (table 4). The values obtained were practically constant with a value at around 70 J g⁻¹, showing that, although the overall crystallinity degree of the blends decreased from o-PCL to 30Gel/PCL to 45Gel/PCL, the ability for crystallization of the PCL remained unaltered.

Table 4.  Calorimetric properties of o-PCL, 30Gel/PCL and 45Gel/PCL electrospun scaffolds

Scaffold	Tm (°C)a	ΔΗm (Jg−1)b	ΔΗm[PCL] (Jg−1)c	χc (%)d
o-PCL	54	70	70	49
30Gel/PCL	56	50	71	35
45Gel/PCL	56	41	74	29

^aMelting temperature. ^bMelting enthalpy. ^cMelting enthalpy per gram of PCL. ^dχ_c = degree of crystallinity from melting enthalpy.

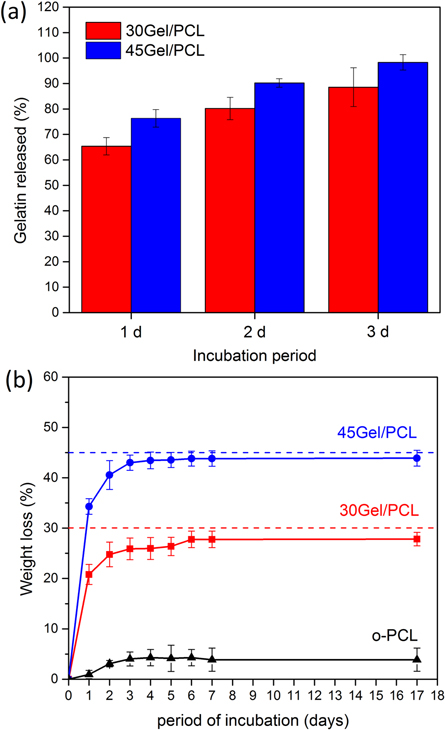

Figure 9(a) shows percentage of Gel released relative to the theoretical total Gel content of the scaffolds (calculated from the PCL:Gel ratio used in the electrospinning solutions) for 30Gel/PCL and 45Gel/PCL scaffolds incubated in PBS. After 1 d of incubation, 30Gel/PCL and 45Gel/PCL released ≈66% and ≈75% of their theoretical content of Gel, respectively. After 48 h of incubation, Gel released was ≈80% and ≈88% of their theoretical content of Gel for 30Gel/PCL and 45Gel/PCL, respectively. After 72 h, Gel released in PBS was ≈86% and ≈95% of the theoretical Gel content for 30Gel/PCL and 45Gel/PCL, respectively. At 5 and 7 d, no Gel content in the supernatants could be detected, within the resolution of the Biuret assay used in the present work.

Zoom In Zoom Out Reset image size

Overall degradation behavior of o-PCL and Gel-PCL scaffolds in PBS (in terms of W_loss in percentage as a function of time) is shown in figure 9(b). As expected, o-PCL did not show an important W_loss (W_loss < 4%) even after 17 days of incubation. After 3 days of incubation, Gel-PCL scaffolds showed W_loss equal to 26% and 43%, respectively for 30Gel/PCL and 45Gel/PCL. By day 17, 30Gel/PCL and 45Gel/PCL scaffolds evidenced a weight lost (≈28% and ≈44%, respectively for 30Gel/PCL and 45Gel/PCL) very similar to that observed since day 3 of the degradation test.

3.3. In vitro biocompatibility of the scaffolds

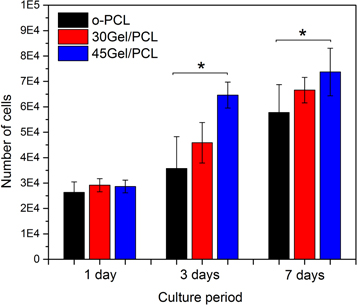

The number of (metabolically active) viable cells on Gel/PCL scaffolds after 1, 3 and 7 days of culture is shown in figure 10. The number of viable cells on the scaffolds was indirectly evaluated by the MTT-Formazan assays using a calibration curve to obtain the number of cells (metabolically active) on the scaffolds from MTT-Formazan assay absorbance reads.

Zoom In Zoom Out Reset image size

Number of viable cells on the scaffolds increased with culture days. The number of cells on the Gel-PCL scaffolds was larger than that on the o-PCL scaffold at each corresponding evaluation time point. However, only the number of cells on 45Gel/PCL at 3 and 7 days of cell culture was significantly larger than the number of cells on the o-PCL scaffold at the corresponding incubation time. Cell metabolism can be seen as an indirect measurement of cell viability (number of metabolically active cells) on the scaffolds and thus, it is possible to state that cell viability increased for the blend scaffold 45Gel/PCL in comparison to o-PCL.

Representative fluorescence micrographs of the border and central areas of the scaffolds acquired from LIVE/DEAD (calcein/ethidium homodimer) assay after 1 and 3 days of cell culture on o-PCL and Gel-PCL scaffolds are shown in figure 11. From qualitative analysis of the micrographs, it can be observed a high percentage of cell viability (green; alive cells) with few dead cells (red) on the three different scaffolds studied. The same results were observed at the two different culture intervals tested in the present study. Nevertheless, it is important to emphasize that cells mainly remained within the central area of the scaffold where they were originally drop-seeded for the o-PCL scaffolds (figure 11(b)), leaving the border areas of the o-PCL scaffolds uncovered even after 3 days of culture (figure 11(a)). On the other hand, cells cultured on the 30Gel/PCL and 45Gel/PCL scaffolds homogeneously spread over the whole surface of the scaffolds (remaining at the central area of the scaffolds where cells were originally seeded and conquering also the border areas of the scaffolds), covering the entire available area of the Gel-PCL blend scaffolds surface (figures 11(a)–(b)) after 3 days of cell culture.

Zoom In Zoom Out Reset image size

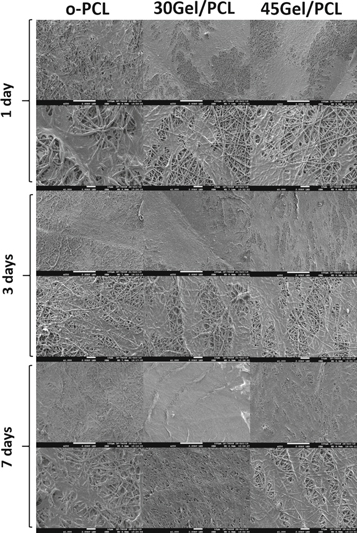

Representative SEM micrographs of cells seeded o-PCL, 35Gel/PCL and 45Gel/PCL scaffolds samples cultured for 1, 3 and 7 days are shown in figure 12. From these micrographs it can be observed that cells were well-adhered on all the scaffolds after 1 day of incubation. With increasing culture time, cells conquered the surface of the scaffolds and seemed to remain well adhered with a significant amount of ECM deposited. Although cells are well adhered and extended over the surface of all the scaffolds, cells on Gel-PCL blend scaffolds seemed to present a more homogeneous coverage of the surface of the scaffolds in comparison to cells on o-PCL. By 7 days of culture on 30Gel/PCL and 45Gel/PCL, cells covered the whole surface of the scaffolds (mainly cells on 30Gel/PCL) forming a homogeneous and dense layer of well-adhered cells.

Zoom In Zoom Out Reset image size

Expression of characteristic fibroblasts proteins from cells seeded on o-PCL and Gel-PCL scaffolds was analyzed by immunostaining of tropoelastin and collagen Type I, characteristic proteins of the dermis ECM. Representative immunocytochemistry micrographs after 3 days of cell culture on the scaffolds or on TCP (Ctrl+) are shown in figure 13. Immunocytochemistry negative controls (Ctrl−) did not present brown color staining around the blue cell nuclei for neither cells culture on TCP, o-PCL or Gel/PCL scaffolds, corroborating the specificity of the immunocytochemistry assay. Controls (Scaffold Ctrl) to assess the potential interaction of the immunocytochemistry assay compounds with the components of the scaffolds (mainly with gelatin) were also performed by studying unseeded (but cultured in culture medium) scaffolds by immunocytochemistry.

Zoom In Zoom Out Reset image size

From figure 13, it can be observed that FB cultured on o-PCL and Gel/PCL scaffolds expressed tropoelastin and collagen Type I (zones of deep brown staining around cells blue nuclei, marked with black arrows in figure 13). Expression of both proteins by cells cultured on the scaffolds was similar to that of the Ctrl+ (cells on TCP). It is important to mention that fibers of the scaffolds presented a slight unspecific brown staining upon immunocytochemistry assays (figure 13; Scaffolds Ctrl column), mainly 45Gel/PCL; however, this unspecific staining did not prevent distinguishing cell positive expression of tropoelastin or collagen Type I (deep brown staining; black arrows in figure 13).

Gel-PCL fibrillar scaffolds with 30 and 45 wt% Gel were successfully electrospun using an environmentally friendly, single-step solution procedure, where AcAc was used as a 'green' sole solvent to straightforwardly produce Gel-PCL solutions with Gel concentration ≥ 30 wt% and suitable for electrospinning. The electrospun scaffolds presented fibrillar morphologies with average fiber diameters that significantly decreased upon Gel addition to the scaffolds, in comparison to o-PCL; that is, micron average fiber diameters for o-PCL and submicron average fiber diameter for 30Gel/PCL and 45Gel/PCL scaffolds were observed. Similar effects, about the sub-micron average fiber diameter obtained and its decrement with Gel concentration were also observed before for Gel-PCL electrospun scaffolds from solutions of different solvents than AcAc. Studies showing PCL-Gel scaffolds with ≈50 wt% Gel evidenced significantly inhomogeneous fiber morphologies with highly dispersed fiber diameter distribution [9, 10, 22]. According to Feng et al [28], the decrement in fiber diameter with Gel concentration might be ascribed to the increment of charge density in Gel-PCL AcAc-doped TFE solutions due to Gel addition, since PCL is a non-ionic synthetic polymer and it is not expected to produce significant additional charges upon dissolution in AcAc. In the present work a considerable increment in the conductivity of the Gel-PCL-AcAc blend electrospinning solutions, in comparison to only-PCL-AcAc solutions, was observed, this increment was positively correlated with the increment in Gel concentration for the solutions; table 1. At low pH (AcAc, pH ≈ 2.4), amino groups in amphoteric Gel molecules can be easily protonated producing positive charges [39] that increase the overall charge density, and therefore, the conductivity of the Gel-PCL-AcAc blend solutions. It is well known that in the electrospinning process an increase in conductivity causes greater elongation forces resulting in fibers of smaller diameter [56]. Then, as Gel concentration increased, conductivity (charge density) further increased, which favored the formation of fibers with smaller diameters for 45Gel/PCL and 30Gel/PCL in comparison to o-PCL. As Gel concentration in the electrospinning solutions increased, viscosity of solutions decreased (table 1), which could have also further contributed to facilitate the electrospinning process and the formation of thinner fibers for the Gel-PCL blend scaffolds.

Non-homogeneous, phase-separated, natural-synthetic polymers solutions normally result in electrospun scaffolds with inhomogeneous fiber morphology [54]; the more critical the phase separation, the larger the scaffold's fiber inhomogeneity. 30Gel/PCL and 45Gel/PCL scaffolds showed smooth, uniform, narrow fibers with similar characteristics to those of fibrillar scaffolds obtained from TFE-based, chloroform-methanol or hexafluoropropanol multi step electrospinning solutions [9, 10, 22, 28, 57]. This result is in line with the observation that Gel-PCL-AcAc solutions in the present study did not present significant phase-separation.

PCL is a polyester with characteristic IR bands at 2900–2800, 1730–1750 and 1150 cm⁻¹ that correspond to the C–H, C=O–O and C–O stretching, respectively [9, 10, 32, 58]. Nevertheless, the FTIR spectra of as-electrospun o-PCL scaffolds showed an additional band at 3480 cm⁻¹ that can be assigned to O–H stretching. In this respect, the strong acidity of the AcAc might had induced a slight PCL degradation during the dissolution process, increasing the number of PCL chains terminal O–H groups [59]. However, the more likely cause for the observation of OH groups can be an inadequate evaporation of the AcAc during the electrospinning process (even after two weeks of scaffolds drying). Washed scaffolds, as used for the in vitro studies, were assessed before and after UV-sterilization, and in this case the IR spectra of o-PCL showed no FTIR bands that can be associated to OH groups, confirming that observation of the OH-stretching band in the spectra of the as-electrospun o-PCL was due to the presence of AcAc traces in the scaffold. Above 3000 cm⁻¹, pristine Gel showed a broad band centered at ≈3438 cm⁻¹ corresponding to N–H stretching [32]; however, the FTIR spectra of the Gel/PCL scaffolds showed a broad band centered at 3296 cm⁻¹. Shifting of this band towards lower wavenumbers (3296 cm⁻¹) respect to pristine Gel (3438 cm⁻¹) might be accounted for by protonation of the amino groups of Gel and/or indicate hydrogen bonds interactions between PCL and Gel as previously reported [32, 34]. PCL chains susceptibility to form hydrogen bonds with Gel N–H groups could have contributed to facilitate Gel-PCL miscibility.

Among tissue engineering scaffold properties, wettability is relevant because hydrophilicity is usually expected to be beneficial for cell adhesion and proliferation, and thus, hydrophilic scaffolds could be expected to be feasible for enhancing wound healing upon a potential patient application as scaffolds for skin tissue engineering [60, 61]. In agreement with previous reports by other authors [10, 22, 42], the present results showed that integration of Gel to the scaffolds induced the formation of hydrophilic surfaces, where WCA, as measured on fully hydrated samples, significantly decreased with the increment of the scaffolds Gel concentration. As expected, due to the hydrophobic nature of PCL, o-PCL scaffolds were hydrophobic showing a high WCA (≈140° on hydrated samples) that rapidly stabilized at 126.6°. 30Gel/PCL and 45Gel/PCL scaffolds showed a hydrophilic nature (WCA < 90°), exhibiting WCA values for the 30Gel/PCL and 45Gel/PCL hydrated samples (65.1° and 25.3°, respectively for 30Gel/PCL and 45Gel/PCL) significantly smaller than those of hydrated o-PCL scaffolds. The water uptake capacity of the Gel/PCL blend scaffolds was also significantly enhanced in comparison to o-PCL. Gel/PCL blend scaffolds water uptake significantly increased as Gel concentration in the scaffolds increased (supplementary figure S1), from the small water uptake capacity of o-PCL (10% swelling) to the 200% and 400% swelling (supplementary figure S1) observed for 30Gel/PCL and 45Gel/PCL, respectively.

Dry Gel/PCL scaffolds presented a rapid water absorption, where after 5 s of water droplet deposition on the surface of these samples, the water droplet was almost completely absorbed by the scaffolds. On the other hand, o-PCL scaffolds hydrophobic surface prevented water-surface appropriate interactions resulting in very small water absorption, where after 5 s of water contact with dry o-PCL samples, the round shape of the water droplet deposited still remained quite stable (WCA = 134). Improvement of water wettability of 30Gel/PCL and 45Gel/PCL in comparison to o-PCL can be mainly ascribed to the contribution of the polar nature of the Gel component in the Gel/PCL blend scaffolds. Gel possesses amide bonds and hydrophilic carboxylic and amine functional groups that allow interaction and formation of hydrogen bonds with water molecules, resulting in the hydrophilic nature observed for the Gel/PCL blend scaffolds and their significantly increase in water uptake capacity, in comparison to o-PCL.

Thermal stability of the obtained scaffolds was evaluated through TGA measurements, which provided also qualitative indication on the scaffolds' composition. The o-PCL scaffolds showed a single-step thermal degradation profile at T_max of 394 °C, whereas pristine Gel showed multiple peaks of weight loss due to the loss of absorbed water and the Gel thermal degradation due to protein chain breakage and peptide bonds rupture [62, 63]. Moreover, Gel was not fully degraded after 700 °C, since a weight residual of about 20% was observed. The observation of the contribution of both components, Gel and PCL, in the thermal degradation of the blend scaffolds corroborated that both components PCL and Gel were present blended in the scaffolds. The calorimetric behavior of the 30Gel/PCL and 45Gel/PCL scaffolds showed a unique melting temperature at ≈55 °C which was attributed to PCL. The absence of the characteristic peak of Gel (≈93 °C) in the thermograms of the Gel/PCL scaffolds suggested that Gel was well dispersed at the molecular level within PCL, evidencing a good miscibility between both materials [64]. From the calculated percentage of crystallinity from the ΔH_m and from qualitative analysis of the XRD patterns, it can be deduced that the overall crystallinity of the scaffolds decreased with the increment of Gel concentration in the scaffolds. As mentioned above, the use of AcAc as solvent for the electrospinning solutions can improve Gel protonation, as suggested by the increment in the conductivity of the Gel-PCL solutions in comparison to pure PCL solutions. Improved Gel protonation is expected to enhance Gel chains stretching due to electrostatic repulsions, which can consequently favor Gel chains penetration into the PCL chains enhancing their miscibility. However, this phenomenon did not restrict PCL chain mobility and its ability for crystallization remained unaltered, and the presence of Gel in the blends simply 'dilute' the crystalline phase in the scaffolds. The absence of interference of Gel into the ability of PCL to crystallize (to the same extent as in the pure PCL state) in the blend scaffolds was demonstrated by the calculated values of the melting enthalpy per gram of PCL present in each blend scaffold [ΔΗ_m(PCL)] which remained almost the same for the two Gel:PCL ratios studied. In line with this result, the smaller intensity of XRD peaks at 2Ѳ = 21.11° and 23.99° (attributed to PCL) for Gel/PCL scaffolds in comparison to o-PCL, can be ascribed to the higher content of amorphous component in the scaffolds as Gel concentration increased.

Papa et al [23] fabricated electrospun fibrillar Gel-PCL mats with 50 wt% Gel by means of a two-step solution process using HFP as solvent. Mats showed two endothermic peak temperatures corresponding to PCL and Gel (Gel T_m was a low-intensity broad peak, but it was still observed in the DSC scans) indicating not complete miscibility of Gel-PCL. Not complete miscibility of HFP Gel-PCL solutions was also corroborated by Kolbuk et al [27]. The nonlinear T_m dependence on the PCL:Gel ratio observed by Kolbuk et al suggested that PCL-Gel-HFP solution systems were compatible (sufficiently strong PCL-Gel interaction) but not completely miscible [27]. Enhancement of Gel-PCL blending was demonstrated in previous studies by Zhou et al and Feng et al where alkali- or acid-doped solutions were used [28, 54], showing the presence of a single T_m (close to PCL T_m = 59 °C) or no presence of the T_m peak associated to Gel (≈93.9 °C). According to Mohamed et al [64] it is possible to state that the present Gel/PCL electrospun scaffolds obtained from AcAc solutions represent miscible blends, displaying a single T_m that was composition dependent (increasing with Gel concentration) in the evaluated temperature and composition ranges.

In the present work, the use of AcAc as the sole solvent for the electrospinning solutions did not seem to affect the mechanical strength of the present o-PCL scaffolds, in comparison to PCL scaffolds electrospun from solutions of different organic solvents, other than sole AcAc. o-PCL scaffolds in the present work showed E = 4.07 MPa, σ_max = 1.21 MPa and ε = 93.27% in their hydrated state and E = 6.09 MPa, σ_max = 2.27 MPa and ε = 238.2% in its dry state, which is in agreement with mechanical properties reported for PCL scaffolds electrospun from TFE or chloroform solutions, that displayed E = 1.43–4.98 MPa, σ_max = 1.2–2.7 MPa and ε = 48%–126%, depending on whether the mechanical properties were assessed in dry or hydrated samples [15, 21, 24, 27].

When Gel is blended with PCL, the mechanical properties of resulting Gel/PCL electrospun scaffolds can vary within a wide range depending on the chemical characteristics of the scaffolds such as Gel:PCL composition ratio and degree of Gel-PCL miscibility, and some morphological features such as fibers diameter, orientation or configuration (coaxial, single composition or co-electrospinning) [10, 11, 28, 37, 54]. Nevertheless, in the case of Gel/PCL scaffolds, samples hydration state (dry or hydrated) is a key factor greatly influencing the mechanical properties, with different hydration conditions resulting in significantly different tensile properties for the same scaffold. Previous works have reported the elastic modulus for dry Gel/PCL scaffolds in the range of 2.7–154.7 MPa, mainly depending on Gel:PCL composition ratio and miscibility. In contrast, for hydrated Gel/PCL scaffolds the elastic modulus has been reported in the range of 0.5–15 MPa [10, 11, 37, 45, 54]. In the present work, elastic modulus of Gel/PCL scaffolds dropped from 12.66 and 49.56 MPa, respectively for 30Gel/PCL and 45Gel/PCL in the dry state to 6.01 and 7.23 MPa, respectively for 30Gel/PCL and 45Gel/PCL in the hydrated state. According to Vatankhah et al model, elastic modulus of Gel/PCL scaffolds can be dropped by 80% under hydrated conditions in comparison to the same samples assessed in dry conditions. The relative impact of Gel:PCL composition ratio, fibers diameter and fibers orientation in the mechanical properties of Gel/PCL scaffolds also change depending on the hydrated or dry state of the samples. In dry conditions, the most relevant factor is composition (45.4% relative impact) followed by fibers orientation and fiber diameter (33.9% and 20.7% relative impact, respectively), while in hydrated conditions, the relative impact of composition increases to 50.4% followed by fibers diameter and fiber orientation (34.7% and 14.9% relative impact, respectively) [37]. The different mechanical properties of Gel/PCL scaffolds in dry and hydrated state can be mainly ascribed to the different mechanical nature of PCL and Gel in dry and hydrated conditions. While PCL is a mainly elastic polymer in either dry or hydrated state, Gel is a stiff and brittle biopolymer in the dry state but presents a plastic behavior in hydrated conditions [37] with mechanical properties reported as E = 0.4–0.8 MPa, σ_max = 0.2–0.5 MPa and ε = 150%–90% for crosslinked Gel electrospun scaffolds in the hydrated state and E = 45–105 MPa, σ = 1.1–2.5 MPa and ε = 5%–64% for Gel scaffolds in the dry state [24, 36, 39]. The significant differences observed in the elastic modulus of Gel scaffolds in hydrated and dry state have been mainly ascribed to the high Gel hydration capacity [37, 54].

The remarkably different properties of Gel/PCL scaffolds in dry and hydrated conditions emphasize the importance of assessing the mechanical properties of Gel/PCL scaffolds in their hydrated state, which better resembles the in vitro and in vivo conditions of scaffolds intended for tissue engineering applications. In the present work, blending of Gel and PCL resulted in electrospun scaffolds that presented in hydrated conditions, significantly higher elongation at break but comparable elastic modulus and maximum tensile strength than that of the o-PCL scaffolds. This can be explained in terms of the Gel hydrophilicity and high capability of water absorption, the intermolecular interactions between Gel and PCL (FTIR results) and the decrement of the overall (as blend bulk material) Gel/PCL scaffolds crystallinity degree (DSC results) due to Gel incorporation (amorphous component). Finally, it is important to emphasize that tensile moduli in hydrated conditions of present Gel/PCL scaffolds was within the range of elastic moduli reported for the skin (E = 0.06–70 MPa, depending on the body area and measurement conditions [11, 37, 65]). Also, according to Duan et al membranes with E > 1.3 MPa and σ_max > 1.5 MPa in hydrated conditions, as it is the case of the present Gel/PCL scaffolds, have potential to meet the mechanical requirements for temporary wound covers intended for skin regeneration [36], which are not normally subjected to high tensile strength when immobilized at wound sites [66]. Thus, the present Gel/PCL scaffolds exhibited feasible mechanical properties as potential tissue engineering scaffolds for wound healing that could also simultaneously function as temporary wound covers.

As previously mentioned, acidic pH of AcAc facilitated Gel protonation, as a consequence, strong physical interactions (hydrogen bonding) between Gel and PCL occurred, facilitating Gel interaction with PCL chains and enhancing the blending of these two polymers. Blending increased polymer chain entanglement and resulted in homogeneous and thermally stable Gel/PCL scaffolds with thinner fibers. It should be noted that even though secondary intermolecular bonds such as hydrogen bonds are much weaker than primary covalent bonds, significant intermolecular forces can result from the formation of many hydrogen inter-chain bonds which are capable of resisting polymer chains displacement [65]. Hence, Gel-PCL enhanced interactions restricted PCL chains displacement and consequently the elastic modulus of Gel/PCL scaffolds increased in comparison to that of o-PCL. The elastic moduli and elongation at break of the present Gel/PCL scaffolds are within similar values to those previously reported for Gel/PCL scaffolds with 50 wt% Gel electrospun from AcAc-doped TFE solutions [28, 39]. However, the blending of Gel and PCL did not considerably affect the maximum tensile strength in comparison to o-PCL scaffold (σ_max ≈ 0.96–1.21 MPa) suggesting a homogeneous gelatin inclusion in the PCL molecular chains. Gel incorporation improved the elongation at break of the Gel/PCL scaffolds in comparison to o-PCL resulting in more flexible materials. This could be because the polar groups of Gel formed extra hydrogen bonding with water molecules, thereby, increasing their plasticity properties.

Since Gel is a water-soluble protein, crosslinking of Gel-based scaffolds is commonly used to prevent rapid dissolution of the scaffolds in biological media. Nevertheless, some techniques for Gel crosslinking have been associated to potential cytotoxic effects due to the presence of crosslinking agent residues when appropriate purification protocols after crosslinking are not implemented [67, 68]. In the present work, no crosslinking was implemented to avoid potential toxic effects, and to evaluate whether straightforward Gel blending with PCL by electrospinning from sole AcAc Gel-PCL solutions could increase the stability of Gel towards water dissolution in an appropriate range for scaffolds intended for skin tissue engineering capable of promoting cell adhesion and proliferation of fibroblast. The rate of Gel dissolution into aqueous media at 37 °C, as determined by Biuret assay, of the present Gel/PCL scaffolds was lower than dissolution rates reported in the literature for non-crosslinked only-Gel electrospun scaffolds, which were totally dissolved after 1 h [69]. Papa et al used glyceraldehyde (GC) and 1,4-butanediol diglycidyl ether (BDDGE) for Gel crosslinking into PCL-Gel electrospun fibers, reporting that scaffolds crosslinked with BDDGE (≈20% of crosslinking degree) showed a complete release of total Gel after just few hours of incubation in deionized water at 37 °C, while scaffolds crosslinked with GC (≈30% of degree of crosslinking) showed a release of ≈44% of Gel content after ≈75 h under the same conditions [23]. Kishan et al reported that Gel electrospun fibers crosslinked in situ with hexamethylene diisocyanate (≈32% of degree of crosslinking) lost ≈56% and 75% of its mass, respectively, after ≈24 and 72 h of immersion in an enzymatic solution (collagenase-PBS) at 37 °C [24]. In comparison to those previous studies, it can be suggested that present Gel/PCL scaffolds displayed a moderated Gel dissolution rate, showing slower Gel dissolution rates than those showed by only-Gel electrospun fibers with no crosslinking or Gel-PCL electrospun fibers crosslinked with BDDGE (20% of crosslinking degree) [23, 69], but showing faster Gel dissolution rates than Gel electrospun fibers crosslinked in situ with hexamethylene diisocyanate (32% of degree of crosslinking) [24]. Moderate Gel stability in aqueous solutions at 37 °C of present scaffolds might be addressed to improved miscibility and intermolecular forces between PCL and Gel due to the use of AcAc as the sole solvent for the electrospinning solutions. Other factors such as a slow diffusion of Gel from the inner parts of the scaffolds to the surface/exposed areas of the scaffolds could also be influencing the slower Gel dissolution rate in aqueous media observed from the present blend Gel/PCL scaffolds in comparison to crosslinked only-Gel scaffolds or some crosslinked PCL-Gel scaffolds.

Gel/PCL scaffolds underwent a faster weight loss (W_loss) in comparison to o-PCL scaffolds during the first 3 days of immersion. A small weight loss for o-PCL scaffolds (about 4%) occurred during the first 3 days of incubation and no further significant W_loss increments occurred for the time investigated in the present study (17 d). W_loss observed for Gel/PCL scaffolds mainly corresponded to the amount of Gel released from the scaffolds as estimated from Biuret assay, indicating that W_loss of 30Gel/PCL and 45Gel/PCL scaffolds during immersion can be mainly ascribed to Gel dissolution. The polar nature of Gel molecules decreased 30Gel/PCL and 45Gel/PCL scaffolds hydrophobicity in comparison to o-PCL scaffolds, which might had also contributed to facilitate the scaffolds water uptake, and thus, to increase the PCL degradation rate, which occurs mainly through hydrolysis [16].

MTT-Formazan assays exhibited a larger number of cells on 30Gel/PCL and 45Gel/PCL scaffolds in comparison to o-PCL scaffolds. Cell viability improvement did not show any significant differences between scaffolds after 1 day of cell culture. Nevertheless, number of cells on the scaffolds was positively correlated to the amount of gelatin in the 30Gel/PCL and 45Gel/PCL scaffolds after 3 days of cell culture, and the number of cells was significantly higher on 45Gel/PCL than on o-PCL scaffolds at 3 and 7 days of culture. Considering that at 1 day of culture the number of cells on 30Gel/PCL and 45Gel/PCL were not significantly different from that on o-PCL scaffolds; then, MTT-Formazan assay results at 3 and 7 days of cell culture suggested that Gel induced a significant increment in fibroblasts proliferation on the scaffolds. Cell viability improvement with Gel concentration, in comparison to o-PCL scaffolds, can be ascribed to both the Gel in the scaffolds and the Gel released into the local microenvironment upon cell culture, since Gel has proved its ability to promote integrin binding sites and hydrophilic amine and carboxyl functional groups for cell differentiation and adhesion [70]. In agreement with these Gel properties, different studies have reported that Gel-PCL fibers promote cell adhesion and proliferation in comparison to pristine PCL fibers [10, 22, 40]. In the present study, fluorescent micrographs from LIVE/DEAD assays on cell-cultured o-PCL scaffolds showed viable cells that mainly remained in the area where they were originally drop-seeded. This agglomeration-like behavior can be explained by the hydrophobic nature of the o-PCL scaffolds. In contrast, on the hydrophilic 30Gel/PCL and 45Gel/PCL scaffolds cells homogeneously extended all over the surface of the scaffolds with culture days. In agreement with viability assays, SEM analysis showed a well-adhered and dense layer of fibroblast on Gel/PCL blend scaffolds at all culture time points studied. At 7 days of culture, a uniform dense layer of cells and secreted ECM components was observed on 30Gel/PCL scaffolds almost covering the entire surface of the scaffold. Fibroblasts are the most abundant cells in the dermis, and in a favorable environment, these cells synthesize the dermis ECM that is mainly composed of elastin and collagen Type I fibers [71]. Immunocytochemistry assays performed in the present study showed that human fibroblasts cultured on o-PCL, 30Gel/PCL and 45Gel/PCL scaffolds positively synthetized tropoelastin and collagen Type I at a similar level than fibroblasts cultured in monolayer on tissue culture plates. These qualitative results can be seen as an indication that fibrillar morphology and chemical composition of the present scaffolds was favorable for culturing human fibroblasts.

Homogeneous Gel/PCL blend fibrillar scaffolds were successfully fabricated by electrospinning using an AcAc sole solvent straightforward approach that, to the best of our knowledge, was applied here for the first time to electrospun Gel-PCL solutions with Gel concentration ≥30 wt%. Physical–chemical characterization of the scaffolds showed that Gel and PCL interacted mainly by hydrogen bonds resulting in miscible blend Gel/PCL scaffolds. Most likely, the miscibility of the synthetic-natural polymers blends was a result of the strong acidity of AcAc that improved the protonation of the Gel molecules in the electrospinning solutions. Miscibility of Gel-PCL in the blend scaffolds decreased the dissolution rate of Gel in aqueous solution (PBS, pH = 7.4) at 37 °C, improving the stability of the scaffolds. Furthermore, scaffolds biological response assessment with fibroblasts confirmed their biocompatibility and the feasibility of the Gel/PCL blend scaffolds to promote fibroblasts adhesion and proliferation. The developed Gel/PCL fibrillar membranes showed potential application in the tissue engineering field as scaffolds for wound healing. Among the scaffolds studied, 30Gel/PCLshowed to be the best candidate for tissue engineering applications, satisfying better the expected mechanical, stability and biocompatibility requirements.
