Benefits of using removable filters in dual-layer flat panel detectors

The concept of dual-layer x-ray detectors dates back to the 1980s when Barnes et al (1985) used a thin (86 μm) layer of the yttrium-oxysulfide scintillator (Y₂O₂S, Z_eff = 35) to preferentially detect low-energy x-rays, a 0.38 mm Cu layer to preferentially filter out residual low-energy x-rays, and finally a 164 μm layer of gadox scintillator (Gd₂O₂S, Z_eff = 58) to preferentially detect high-energy x-rays. The low- and high-energy x-ray images were combined linearly to obtain soft-tissue (bone cancellation) and bone (soft-tissue cancellation) radiographs. The authors noted that 'the energy separation achieved with the dual-energy (DE) detector is markedly reduced when the copper filter is removed. In practice, this decrease overshadows the advantage of the increased high energy image detected fluence.'

Based upon the pioneering work of Barnes et al, additional developments of dual-layer flat panel detectors (DL-FPDs) with digital readouts were recently reported (Lu et al 2019, 2021). As shown in figure 1(a), the two scintillator layers are made of the same material (e.g. CsI:Tl) but with different thicknesses (200 μm versus 550 μm). Compared with (Barnes et al 1985), the thickness of the Cu layer in recent DL-FPDs has been increased aggressively to 1 mm to widen the energy separation between the two CsI layers. Research has been done to explore DL-FPDs' potential clinical applications, including DE radiography with bone suppression, soft-tissue motion tracking, mask-free digital subtraction angiography, metal artifact suppression in cone-beam CT (CBCT), material quantification and discrimination, scatter estimation, improved COVID-19 detection, etc (Lu et al 2019, Shi et al 2020, 2020, Ma et al 2020, Stahl et al 2021, Shi et al 2021, 2021, Wang et al 2021, Wang 2021). Compared to kVp-switching-based DE imaging methods, 'the simultaneous low and high energy acquisition is an advantage, not only in reducing misregistration problems but also in reducing the x-ray tube load.' (Barnes et al 1985) Compared with energy-discriminating photon-counting detectors (PCDs), DL-FPDs offer more extensive spatial coverage with a much lower system cost at the moment. For high-flux imaging procedures, DL-FPDs do not suffer from pileup-induced count losses and image artifacts as PCDs do.

Zoom In Zoom Out Reset image size

Despite their advantages in DE imaging, existing digital DL-FPDs have a major technical limitation: as shown in figures 1(b)–(c), the Cu layer sandwiched between the two scintillator layers can absorb a significant fraction of the input x-rays (e.g. 34% at 120 kV). While this is justifiable for DE applications where a better energy separation may outweigh some photon loss, for other single-energy (SE) imaging applications, the loss of x-rays in the Cu layer is unnecessary and degrades the overall radiation dose efficiency of the detector system. For medical imaging systems that use FPDs, SE acquisitions are usually more common than DE acquisitions. Taking chest radiography as an example, as stated by clinical experts in a topic review: 'DE subtraction is most helpful when a lung lesion is obscured by overlying bone structures. If a nodule is obscured by an overlapping soft-tissue structure, DE subtraction may not be beneficial.' (Kuhlman et al 2006) Additionally, the majority of lateral-view chest radiographs are acquired with the SE mode due to a lack of low-energy photons. For image-guided radiation therapy, while FPDs may potentially benefit from DE imaging when tracking moving tumors such as those in the lung (Lu et al 2021), the same detectors are often used for simpler geometric alignment tasks where SE imaging is sufficient (Boda-Heggemann et al 2011, Posiewnik and Piotrowski 2019). For chest CT imaging, a recent survey conducted by the Society of Thoracic Radiology shows that among institutions with DE-CT scanners, only 1.9% used the DE mode for all patients scanned; for the overwhelming majority of the patients, DE was individually chosen for patients depending on the specific clinical indication (Rajiah 2020). For interventional x-ray systems with FPDs, the vast majority of imaging tasks are the localization of high-contrast devices and anatomy that do not require or benefit from DE imaging (Shalom et al 2020). For those SE imaging procedures with extended scan duration, concerns over potential radiation effects (Balter et al 2010) make the presence of a permanent Cu filter in the FPD highly undesirable due to the reduction in the SE imaging mode's radiation absorption efficiency.

This work presents a new DL-FPD design with a removable filter layer between the two scintillator layers. Unlike the permanent Cu filter in existing DL-FPDs, the filter material can be removed from the inter-scintillator space when the DL-FPD is used for SE imaging procedures to avoid unnecessary x-ray loss. The following section describes theoretical and experimental methods to demonstrate the potential benefits of using removable filters in DL-FPDs.

2.1. Detector design

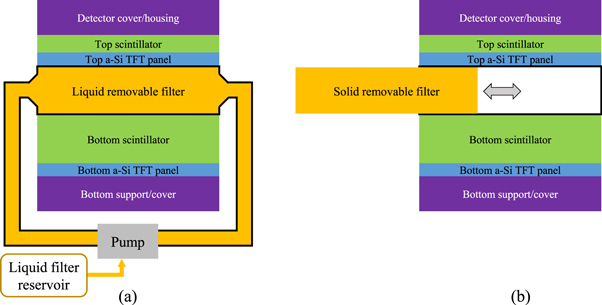

As shown in figure 2(a), the removable filter can be implemented using a watertight chamber between the two scintillator layers. Before DE imaging procedures, the chamber can be filled with liquid high-Z_eff materials such as iodine solutions. When DE imaging is not clinically indicated, the FPD can return to the high-efficiency SE imaging mode by draining the liquid filter from the inter-scintillator space to an off-detector reservoir using a pump. Alternatively, a solid removable filter can be manually inserted or removed from the inter-scintillator space in DL-FPD, as shown in 2(b).

Zoom In Zoom Out Reset image size

This work studied three filter materials, including a gadolinium (Gd) liquid solution, an iodine (I) liquid solution, and a solid Cu removable filter. The goal was to determine the optimal area density, s_f = ρ_f T_f, of the removable filter as a function of the input x-ray spectrum, DE imaging task, and thickness of the first CsI layer (T₁). The second CsI layer's thickness, T₂, was kept at 550 μm (the same as what's in the existing DL-FPDs).

Assuming the DE imaging task is to estimate water and bone thicknesses via a two-material decomposition, we modeled the expected outputs of the two scintillator layers as follows:

$$\begin{eqnarray}&&{\bar{I}}_{1}={\int }_{0}^{{E}_{{\rm{m}}}}[\bar{N}(E)\,E\,{{\rm{e}}}^{-{A}_{{\rm{w}}}{f}_{{\rm{w}}}(E)-{A}_{{\rm{b}}}{f}_{{\rm{b}}}(E)}]\left(1-{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{1}}\right){\rm{d}}E;\end{eqnarray} \tag{ 1 }$$

$$\begin{eqnarray}&&{\bar{I}}_{2}={\int }_{0}^{{E}_{{\rm{m}}}}[\bar{N}(E)\,E\,{{\rm{e}}}^{-{A}_{{\rm{w}}}{f}_{{\rm{w}}}(E)-{A}_{{\rm{b}}}{f}_{{\rm{b}}}(E)}]\,{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{1}-{\mu }_{{\rm{f}}}(E){T}_{{\rm{f}}}}\left(1-{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{2}}\right){\rm{d}}E.\end{eqnarray} \tag{ 2 }$$

In the above two equations, $\bar{N}$ is the expected number of input x-ray photons with energy E; E_m is the maximum x-ray energy; f_w(E) and f_b(E) denote the mass attenuation coefficients of water and bone, respectively; A_w and A_b are the projections of the patient attenuation into the water basis and bone basis, respectively; μ_f is the linear attenuation coefficient of the liquid filter material. Taking an iodine-water solution with an iodine concentration of ρ_f as an example, μ_f can be calculated as

$$\begin{eqnarray}&&{\mu }_{{\rm{f}}}(E)=\displaystyle \frac{{\rho }_{{\rm{f}}}}{{\rho }_{{\rm{I}}}}\,{\mu }_{{\rm{I}}}(E)+\left(1-\displaystyle \frac{{\rho }_{{\rm{f}}}}{{\rho }_{{\rm{I}}}}\right)\,{\mu }_{{\rm{w}}}(E),\end{eqnarray} \tag{ 3 }$$

where μ_I and μ_w denote the attenuation coefficients of pure iodine and water, respectively, and ρ_I denotes the mass density of pure iodine.

For energy-integrating FPDs, the variances of the two scintillator layers' outputs were modeled as (Swank 1973)

$$\begin{eqnarray}&&{\sigma }_{{I}_{1}}^{2}={\int }_{0}^{{E}_{{\rm{m}}}}[\bar{N}(E){E}^{2}\,{{\rm{e}}}^{-{A}_{{\rm{w}}}{f}_{{\rm{w}}}(E)-{A}_{{\rm{b}}}{f}_{{\rm{b}}}(E)}]\,(1-{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{1}}){\rm{d}}E;\end{eqnarray} \tag{ 4 }$$

$$\begin{eqnarray}&&{\sigma }_{{I}_{2}}^{2}={\int }_{0}^{{E}_{{\rm{m}}}}[\bar{N}(E)\,{E}^{2}\,{{\rm{e}}}^{-{A}_{{\rm{w}}}{f}_{{\rm{w}}}(E)-{A}_{{\rm{b}}}{f}_{{\rm{b}}}(E)}]\,{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{1}-{\mu }_{{\rm{f}}}(E){T}_{{\rm{f}}}}\left(1-{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{2}}\right){\rm{d}}E.\end{eqnarray} \tag{ 5 }$$

In clinical practice, ${\bar{I}}_{1}$ and ${\bar{I}}_{2}$ are generally unavailable. Instead, only a single sample of each, I₁ and I₂, are acquired. An important goal of DE imaging is to estimate A_w and A_b of the patient from I₁ and I₂. Assuming I₁ and I₂ follow a normal distribution with the following probability density functions:

$$\begin{eqnarray}&&{p}_{1}({I}_{1})=\displaystyle \frac{1}{{\left(2\pi {\sigma }_{{I}_{1}}^{2}\right)}^{1/2}}\,{{\rm{e}}}^{-\tfrac{{\left({I}_{1}-\bar{{I}_{1}}\right)}^{2}}{2{\sigma }_{{I}_{1}}^{2}}},\qquad {p}_{2}({I}_{2})=\displaystyle \frac{1}{{\left(2\pi {\sigma }_{{I}_{2}}^{2}\right)}^{1/2}}\,{{\rm{e}}}^{-\tfrac{{\left({I}_{2}-\bar{{I}_{2}}\right)}^{2}}{2{\sigma }_{{I}_{2}}^{2}}},\end{eqnarray} \tag{ 6 }$$

then for the two parameters-of-interest (A_w and A_b), their joint log-likelihood function is given by:

$$\begin{eqnarray}&&{ \mathcal L }({A}_{{\rm{w}}},{A}_{{\rm{b}}}| {I}_{1},{I}_{2})=-\mathrm{ln}{\sigma }_{{I}_{1}}-\mathrm{ln}{\sigma }_{{I}_{2}}-\displaystyle \frac{{\left({I}_{1}-\bar{{I}_{1}}\right)}^{2}}{2{\sigma }_{{I}_{1}}^{2}}-\displaystyle \frac{{\left({I}_{2}-\bar{{I}_{2}}\right)}^{2}}{2{\sigma }_{{I}_{2}}^{2}}-\mathrm{ln}(2\pi ).\end{eqnarray} \tag{ 7 }$$

As shown previously by Roessl and Herrmann (2009), the elements of the 2 × 2 Fisher information matrix (FIM) for A_w and A_b are given by:

$$\begin{eqnarray}&&{{ \mathcal F }}_{11}=E\left[-\displaystyle \frac{{\partial }^{2}{ \mathcal L }}{{\partial }^{2}{A}_{{\rm{w}}}}\right]\end{eqnarray} \tag{ 8 }$$

$$\begin{eqnarray}&&=\displaystyle \frac{1}{{\sigma }_{{I}_{1}}^{2}}{\left(\displaystyle \frac{\partial {\bar{I}}_{1}}{\partial {A}_{{\rm{w}}}}\right)}^{2}+\displaystyle \frac{1}{{\sigma }_{{I}_{2}}^{2}}{\left(\displaystyle \frac{\partial {\bar{I}}_{2}}{\partial {A}_{{\rm{w}}}}\right)}^{2}+\displaystyle \frac{1}{2{\left({\sigma }_{{I}_{1}}^{2}\right)}^{2}}{\left(\displaystyle \frac{\partial {\sigma }_{{I}_{1}}^{2}}{\partial {A}_{{\rm{w}}}}\right)}^{2}+\displaystyle \frac{1}{2{\left({\sigma }_{{I}_{2}}^{2}\right)}^{2}}{\left(\displaystyle \frac{\partial {\sigma }_{{I}_{2}}^{2}}{\partial {A}_{{\rm{w}}}}\right)}^{2};\end{eqnarray} \tag{ 9 }$$

$$\begin{eqnarray}\begin{array}{rcl}{{ \mathcal F }}_{22} & = & E\left[-\displaystyle \frac{{\partial }^{2}{ \mathcal L }}{{\partial }^{2}{A}_{{\rm{b}}}}\right]\\ & = & \displaystyle \frac{1}{{\sigma }_{{I}_{1}}^{2}}{\left(\displaystyle \frac{\partial {\bar{I}}_{1}}{\partial {A}_{{\rm{b}}}}\right)}^{2}+\displaystyle \frac{1}{{\sigma }_{{I}_{2}}^{2}}{\left(\displaystyle \frac{\partial {\bar{I}}_{2}}{\partial {A}_{{\rm{b}}}}\right)}^{2}+\displaystyle \frac{1}{2{\left({\sigma }_{{I}_{1}}^{2}\right)}^{2}}{\left(\displaystyle \frac{\partial {\sigma }_{{I}_{1}}^{2}}{\partial {A}_{{\rm{b}}}}\right)}^{2}+\displaystyle \frac{1}{2{\left({\sigma }_{{I}_{2}}^{2}\right)}^{2}}{\left(\displaystyle \frac{\partial {\sigma }_{{I}_{2}}^{2}}{\partial {A}_{{\rm{b}}}}\right)}^{2};\end{array}\end{eqnarray} \tag{ 10 }$$

$$\begin{eqnarray}\begin{array}{rcl}{{ \mathcal F }}_{12} & = & {{ \mathcal F }}_{21}=E\left[-\displaystyle \frac{{\partial }^{2}{ \mathcal L }}{\partial {A}_{{\rm{w}}}\partial {A}_{{\rm{b}}}}\right]\\ & = & \displaystyle \frac{1}{{\sigma }_{{I}_{1}}^{2}}\displaystyle \frac{\partial {\bar{I}}_{1}}{\partial {A}_{{\rm{w}}}}\displaystyle \frac{\partial {\bar{I}}_{1}}{\partial {A}_{{\rm{b}}}}+\displaystyle \frac{1}{{\sigma }_{{I}_{2}}^{2}}\displaystyle \frac{\partial {\bar{I}}_{2}}{\partial {A}_{{\rm{w}}}}\displaystyle \frac{\partial {\bar{I}}_{2}}{\partial {A}_{{\rm{b}}}}+\displaystyle \frac{1}{2{\left({\sigma }_{{I}_{1}}^{2}\right)}^{2}}\displaystyle \frac{\partial {\sigma }_{{I}_{1}}^{2}}{\partial {A}_{{\rm{w}}}}\displaystyle \frac{\partial {\sigma }_{{I}_{1}}^{2}}{\partial {A}_{{\rm{b}}}}+\displaystyle \frac{1}{{\left({\sigma }_{{I}_{2}}^{2}\right)}^{2}}\displaystyle \frac{\partial {\sigma }_{{I}_{2}}^{2}}{\partial {A}_{{\rm{w}}}}\displaystyle \frac{\partial {\sigma }_{{I}_{2}}^{2}}{\partial {A}_{{\rm{b}}}}.\end{array}\end{eqnarray} \tag{ 11 }$$

The partial derivatives in equations (8)–(11) can be calculated based on equations (1), (2), (4) and (5). For example

$$\begin{eqnarray}&&\displaystyle \frac{\partial {\bar{I}}_{1}}{\partial {A}_{{\rm{w}}}}=-{\int }_{0}^{{E}_{{\rm{m}}}}[\bar{N}(E)\,E\,{f}_{{\rm{w}}}(E)\,{{\rm{e}}}^{-{A}_{{\rm{w}}}{f}_{{\rm{w}}}(E)-{A}_{{\rm{b}}}{f}_{{\rm{b}}}(E)}]\,(1-{{\rm{e}}}^{-{\mu }_{\mathrm{CsI}}(E){T}_{1}}){\rm{d}}E.\end{eqnarray} \tag{ 12 }$$

From the FIM, the Cramér–Rao lower bound (CRLB) of parameters A_w and A_b can be calculated:

$$\begin{eqnarray}&&{\tilde{\sigma }}_{{A}_{{\rm{w}}}}^{2}=\displaystyle \frac{{{ \mathcal F }}_{22}}{| { \mathcal F }| };\end{eqnarray} \tag{ 13 }$$

$$\begin{eqnarray}&&{\tilde{\sigma }}_{{A}_{{\rm{b}}}}^{2}=\displaystyle \frac{{{ \mathcal F }}_{11}}{| { \mathcal F }| }.\end{eqnarray} \tag{ 14 }$$

For the optimization of T_f and T₁, two DE tasks were used. The first one is to estimate water and bone thicknesses with the following ground truth: A_w = 30 g cm⁻²; A_b = 10 g cm⁻². The second is to estimate water and iodine thickness (via water-iodine 2-material decomposition) with the following ground truth: A_w = 30 g cm⁻²; A_I = 250 mg cm⁻². T₂ was fixed at 550 μm and the input spectrum was a typical 120 kVp beam with 2.5 mm Al inherent filtration and 1 mm Cu external beam filter. For both DE tasks, CRLB was also evaluated for the existing DL-FPD with the permanent 1 mm Cu filter.

2.2. Experimental study

No matter whether a DL-FPD uses a permanent or removable filter, the impact of the inter-scintillator filter on the absorption efficiency of the first CsI layer is minimal. Instead, the impact is primarily on the second CsI layer behind the filter. Therefore, the experimental study focused on demonstrating the advantages of the proposed DL-liquid-FPD for the absorption efficiency of the second CsI layer. To do so, an experimental setup shown in figure 3 was used to emulate dual-layer FPDs: a 150 μm thick tin (Z = 50) foil was used as a surrogate for the first CsI (Z_eff = 54) layer: as shown in figure 4, 150 μm tin has very similar x-ray attenuation properties as 200 μm CsI. When the tin (Sn) foil was directly attached to the surface of an FPD with 600 μm CsI, an emulator of the proposed DL-FPD operated under the SE mode was created; when a 1 mm Cu filter was sandwiched between the Sn and the FPD surface, an emulator of the existing DL-FPD was created. The digital FPD (4030CB, Varian Medical Systems, Inc., UT, USA) has a single scintillator (CsI) layer with a thickness of 600 μm, which is similar to the thickness of the 2nd scintillator layer (550 μm) in the existing DL-FPDs. The FPD has 2048 × 1536 pixels with an isotropic pixel pitch of 194 μm. Other key components of the experimental system include a rotating tungsten anode x-ray tube (G1952 with B-180H housing, Varian Medical Systems, Inc., UT, USA) and an 80 kW high-frequency generator (Indico100, CPI Inc., Ontario, Canada).

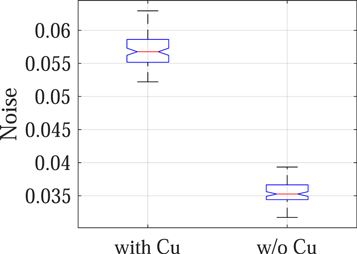

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The zero-frequency noise equivalent quanta (NEQ) of the 600 μm CsI layer was measured at different tube potential levels ranging from 70 to 125 kVp (highest available in our system), all with 2.5 mm inherent filtration and 1 mm Cu added filtration. The exposure per image frame ranges from 8.8 μR (70 kVp) to 126 μR (125 kVp). At each kVp, 250 image frames were repeatedly acquired at 1 mA and 7.5 frames per second. Next, the 1 mm Cu between the Sn layer and the CsI layer on the FPD was removed in order to create a physical emulator of the proposed DL-FPD operated under the SE imaging model. Measurements of the NEQ were repeated under the same input radiation condition.

In addition to NEQ measurements, a physical phantom with low-contrast features shown in figure 5 was imaged under conditions that simulate (1) existing DL-FPD with a permanent 1 mm Cu filter or (2) proposed DL-FPD (SE mode), respectively. For each condition, an ensemble of 100 image frames was acquired, from which image noise and contrast-to-noise ratios (CNRs) of low-contrast features were measured using the circular ROIs shown in figure 5.

Zoom In Zoom Out Reset image size

Finally, to test the stability of liquid filters during gantry rotation, a phantom shown in figure 6 was attached to an FPD of a commercial C-arm x-ray interventional system (Artis Zee, Siemens Healthineer). The phantom contains a cylindrical cavity with a diameter of 5 cm. The cavity was filled with an iodine solution prepared by mixing Omnipaque 350 (GE Healthcare) with deionized water. The iodine concentration is 75 mg cm⁻³, which gives an area density of 375 mg cm⁻² at the center of the phantom. The C-arm gantry was rotated at its highest speed using a 5 s cone-beam CT scan protocol. X-ray attenuation image of the phantom was recorded at gantry angles ranging from 0 to 200 degrees.

Zoom In Zoom Out Reset image size

Figure 7 plots the CRLBs of water-bone decomposition tasks as functions of s_f (filter material area density) and T₁ (thickness of first CsI layer). All CRLB values were normalized by those of the existing DL-FPD with 1 mm Cu. For liquid iodine filters, the optimal iodine area density and T₁ are 375 mg cm⁻² and 180 μm, respectively; for liquid Gd filters, the optimal Gd area density and T₁ are 235 mg cm⁻² and 180 μm, respectively; for solid Cu filters, the optimal Cu area density and T₁ are 1.66 g cm⁻² and 195 μm, respectively. Compared with Cu and Gd filters, the iodine filter yielded a slightly lower CRLB.

Zoom In Zoom Out Reset image size

Figure 8 plots the normalized CRLBs of water-iodine decomposition tasks as functions of s_f and T₁. For liquid iodine filters, the optimal iodine area density and T₁ are 380 mg cm⁻² and 165 μm, respectively; for liquid Gd filters, the optimal Gd area density and T₁ are 235 mg cm⁻² and 170 μm, respectively; for solid Cu filter, the optimal Cu area density and T₁ are 1.66 g cm⁻² and 190 μm, respectively. Again, the iodine filter yielded a slightly lower CRLB.

Zoom In Zoom Out Reset image size

As shown by the contour lines in figures 7 and 8, for a given filter material, a certain deviation from the optimal filter density or T₁ does not substantially change the CRLB values. Therefore, we chose 375 mg cm⁻² iodine filter and T₁ = 180 μm for the remainder of the theoretical evaluations.

Figures 9(a)–(b) plot CRLB values of water-bone decomposition DE task as a function of kVp (A_w = 30 g cm⁻²; A_b = 10 g cm⁻²). Figures 9(c)–(d) plot CRLB values of water-iodine decomposition DE task as a function of kVp as a function of kVp (A_w = 30 g cm⁻²; A_I = 250 mg cm⁻²). All CRLB values were normalized by those of the existing DL-FPD with 1 mm Cu. When kVp is greater than 100, using the iodinated filter (375 mg cm⁻²) improved the DE material decomposition performance when compared with the 1 mm Cu filter.

Zoom In Zoom Out Reset image size

Figure 10(a) plots the kVp-dependent of the total x-ray absorption efficiency of the proposed DL-FPD with the filter being removed. As a comparison, the total x-ray absorption efficiencies of the existing DL-FPD with the permanent 1 mm Cu filter are also presented. Thicknesses of the top and bottom scintillators were assumed to be 180 μ and 550 μm, respectively. Compared with the existing DL-FPD with the permanent Cu, the relative improvement in the absorption efficiency by the removable filter design ranges from 32% at 140 kVp to 43% at 100 kVp.

Zoom In Zoom Out Reset image size

Figure 10(b) plots the energy separation between the two scintillator layers in DL-FPD as a function of kVp. When an iodinated filter (375 mg cm⁻²) was used, the energy separation ranges from 7.5 keV at 100 kVp to 10.9 keV at 140 kVp. In contrast, the energy separation in the existing DL-FPD with 1 mm Cu ranges from 5.4 keV at 100 kVp to 7.9 keV at 140 kVp.

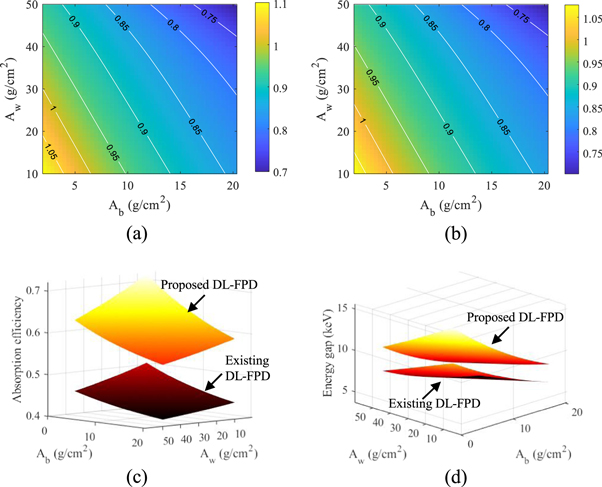

Using the 375 mg cm⁻² iodine filter, CRLBs of the proposed DL-FPD were calculated for a variety of A_w and A_b values. As shown in figures 11(a)–(b), for the majority of water-bone estimation tasks, the proposed DL-FPD with the optimized iodine filter has a better DE performance, especially at larger A_w and A_b. As shown by figure 11(c), the proposed DL-FPD with the optimized iodine filter provides a wider spectral separation that improves the DE imaging performance for most tasks. Relative to the exiting DL-FPD with the permanent Cu filter, the proposed DL-FPD improved total x-ray absorption efficiency when the filter was removed from the inter-scintillator space. This improvement is due to the fact that no x-rays are lost in the inter-scintillator filter. The relative improvement in the absorption efficiency depends on the object thickness (A_w and A_b) and ranges from 32% to 42%.

Zoom In Zoom Out Reset image size

The experimental results are consistent with the theoretical results: as shown in figure 12, removing the Cu filter significantly improved the NEQ level of the FPD that served as a surrogate for the second CsI layer in dual-layer FPDs. For example, at 120 kVp, removing the Cu layer increased the NEQ from 1685 ± 158 to 3758 ± 346, indicating that the Cu layer introduced a loss of 2073 ± 380 in NEQ. Therefore, having a permanent Cu layer is highly undesirable for SE imaging applications. Post-log images of the phantom in figure 13 also confirmed that removing the Cu filter during SE imaging can effectively improve low-contrast detectability: for DL-FPD with a permanent 1 mm Cu filter, the measured CNR is 2.1 ± 0.3; for the proposed DL-FPD, the measured CNR was improved to 3.8 ± 0.3. The CNR improvement is primarily caused by better utilization of the x-rays and a reduction in noise: as shown in figure 14, removing the Cu filter during SE imaging reduces noise standard deviation from 0.057 ± 0.002 to 0.035 ± 0.002.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

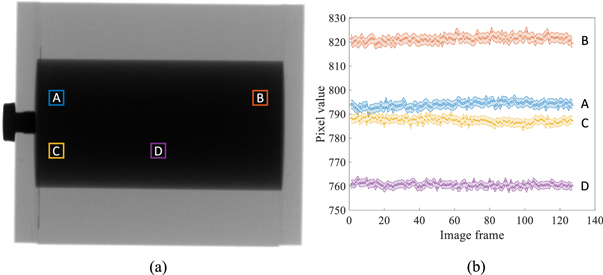

Finally, figure 15 shows that for each local region, the attenuation signal of the liquid iodine is very stable over the course of C-arm gantry rotation at its highest speed (5 s/scan), despite the presence of centrifugal and gravitational forces and possible gantry wobbling. Because of this stability, we expect that a flood-field normalization will cancel out the liquid iodine signal when it is used as a filter in DL-FPD's DE imaging procedures.

Zoom In Zoom Out Reset image size

Compared with the dual-layer detector design reported in the 1986 paper by Barnes et al (1985), the more recent DL-FPD prototypes have a much larger T₁ (thickness of 1st scintillator layer) and a much thicker Cu layer. Although the precise reason for making these changes is unknown, increasing T₁ does help improve the overall x-ray absorption efficiency: based on the Beer–Lambert law, a thicker 1st scintillator layer reduces the x-ray intensity reaching the front surface of the Cu layer, and thus the total amount of x-ray loss in Cu can be reduced. However, a thicker 1st scintillator layer also absorbs more high-energy x-rays, which pushes the mean energy of the absorbed spectrum closer to that of the 2nd scintillator layer. In that case, using a thicker (i.e. 1 mm) Cu filter imposes a more aggressive beam hardening to the penetrated x-rays to maintain a decent spectral separation between the two scintillator layers. Despite this, the spectral separation of the current DL-FPD is still narrower compared with the one in Barnes et al (1985). An important advantage of the proposed DL-FPD is that, when optimizing the scintillator and filter thicknesses, no additional consideration of the SE imaging performance is needed due to the removable filter design. In other words, the design is no longer restricted by the trade-off between total absorption efficiency and energy separation. This allows for an optimal design of the dual-layer FPD for DE imaging.

As illustrated in figure 2, the removable filter can be implemented using either a liquid solution or a solid material. Using liquid filters gives the potential of automated filter engagement and removable. This is particularly attractive for robotic C-arm systems for interventional applications, during which SE and DE imaging modes often need to be switched back and forth and the whole FPD can be wrapped by a protective bag. Solid filters usually have higher mechanical stability and can be inserted or removed manually. Therefore, no additional pumps or purging devices are needed as in the case of liquid filters. Solid filters can be potentially implemented using resin plates with iodine/gadolinium additives of the desired concentration. Alternatively, solid filters can be implemented using metallic materials. Since iodine or Gd solutions outperformed Cu as shown in figures 7 and 8, the DE imaging performance of the DL-FPD should benefit from the use of a high-atomic number material. Doing an exhaustive search of the metallic filter materials is needed in the future but is out of the scope of this paper, which focuses on the presentation of the removable filter concept.

For liquid materials, the front and back walls of the filter chamber need to be made of thin and low-attenuating materials to reduce x-ray loss. For example, we experimentally measured the impact of two 1/16'' (1.6 mm) acrylic sheets on x-ray intensity under the condition of 120 kVp, 1 mm Cu external beam filtration, and 150 μm Sn (to emulate the beam hardening by the first CsI layer). The percent reduction in the measured signals of our FPD is only 3.6% ± 0.6%, indicating a negligible impact from the acrylic sheets on x-rays.

Compared with solid metallic filters, liquid filters with PMMA chamber walls have lower thermal conductivities. However, the passive a-Si TFT panel generally has a very low power consumption. Therefore, no heat dissipation problem is anticipated when assembling a TFT panel directly with a liquid filter chamber. This is evidenced by the commercial availability of triple-layer FPDs, in which the top CsI/TFT unit is followed by a middle CsI/TFT unit and then by a third (bottom) CsI/TFT unit (Karim 2021).

In practice, to help avoid the problem of residual liquid on the chamber during the SE imaging mode, special treatments of the chamber wall material may be needed. There exist methods to make the walls superhydrophobic and thus have the liquid completely bead off in the SE operating mode, whether they involve a coating, a treatment, or something mixed into the wall material itself. One method is to coat the walls with SiO₂ or TiO₂ using a sol-gel process (Huang et al 2017); another is to use polydimethylsiloxane (PDMS)-PMMA combination as a spray coating (Liu et al 2017) or a polystyrene-PMMA combination as a spin coating (Ma et al 2007). It is also possible to use a low-temperature plasma to treat and change the hydrophobicity properties of the surface of the material (Xu et al 2013).

When an image object is projected onto a DL-FPD system, its geometric magnification is different between the two scintillator layers. Therefore, the impact of filter thickness on the geometric mismatch needs to be considered when building the proposed detector. Prior works have demonstrated that, by incorporating system optics models into image processing and reconstruction, the geometric mismatch can be effectively compensated even for high-resolution imaging applications (Wang et al 2020, 2021).

DL-FPDs discussed in this work may find applications in x-ray digital radiography systems, mobile C-arm x-ray systems, and C-arm systems for image-guided interventions and radiotherapy. The proposed DL-FPDs were not designed for use in multi-detector row CTs (MDCTs), which have much faster gantry rotation speeds compared with C-arm CBCTs. A fast-rotating MDCT gantry can exert a strong centrifugal force on the liquid filter material and introduce instabilities to the filter's x-ray absorption.

This work has the following limitations: First, the detector optimization only studied three filter materials (I, Gd, and Cu) and two general groups of DE imaging tasks (water and bone thickness estimations via water-bone 2-material decomposition; water and iodine thickness estimations via water-iodine 2-material decomposition). Further, the scope of this paper is limited to single-layer removal filters, i.e. we only studied one material at a time for the proposed removable filter. It is in principle possible to combine multiple solid filters of different materials and thicknesses, or use a different material, other than acrylic, to build the chamber for holding the liquid. Whether multi-layer removable filters can bring additional benefits to certain imaging tasks deserves investigation in the future. Next, the work only studies one scintillator material (CsI, Z = 54). In the 1986 paper by Barnes et al (1985), Y₂O₂S (Z = 35) was used in the 1st scintillator layer while Gd₂O₂S (Z_eff = 58) was used in the 2nd scintillator layer. The difference in Z between Y₂O₂S led to a larger spectral separation (14.8-23.6 keV with 140 kVp inputs) (Barnes et al 1985) compared with the more recent CsI DL-FPDs (Lu et al 2019). Although the majority of medical FPDs use CsI due to its better spatial resolution properties by growing CsI into columnar structures (Miller et al 2005), it is interesting to explore in future works the joint use of Y₂O₂S (as the first scintillator layer) and the proposed liquid filter device for building DL-FPDs. Third, the scope of this work does not include the actual fabrication of the DL-FPD device. Our focus was put on the theoretical optimization of the liquid filter material, which did not consider the impacts of x-ray scattering, scintillation light loss and spatial spreading, electronic noise of the readout systems, additional x-ray attenuation by the TFT panels, walls of the liquid filter device, and foam protective layers in front of the scintillator. For material decomposition and other DE imaging tasks, hardware- or software-based scatter correction is often applied, which mitigates the influence of scattered x-rays but also changes the spectral and statistical models of I₁ and I₂. The most straightforward approach to include scattering and other factors in the evaluation of the proposed DL-FPD is to physically build such a device. This will be an important task for our future work.

For existing DL-FPDs with a permanent Cu filter layer, over 30% of the input x-rays can be lost in the Cu layer regardless of the use of DE or SE imaging modes. In this work, a novel dual-layer FPD design was proposed and optimized. By making the inter-scintillator filter removable using either liquid or solid materials, the DL-FPD can be toggled between DE imaging mode and high-absorption-efficiency SE imaging mode. The removable design also decouples the spectral separation consideration from the x-ray absorption efficiency consideration when designing the DL-FPD, which permits improvements in DE imaging performance as well.
